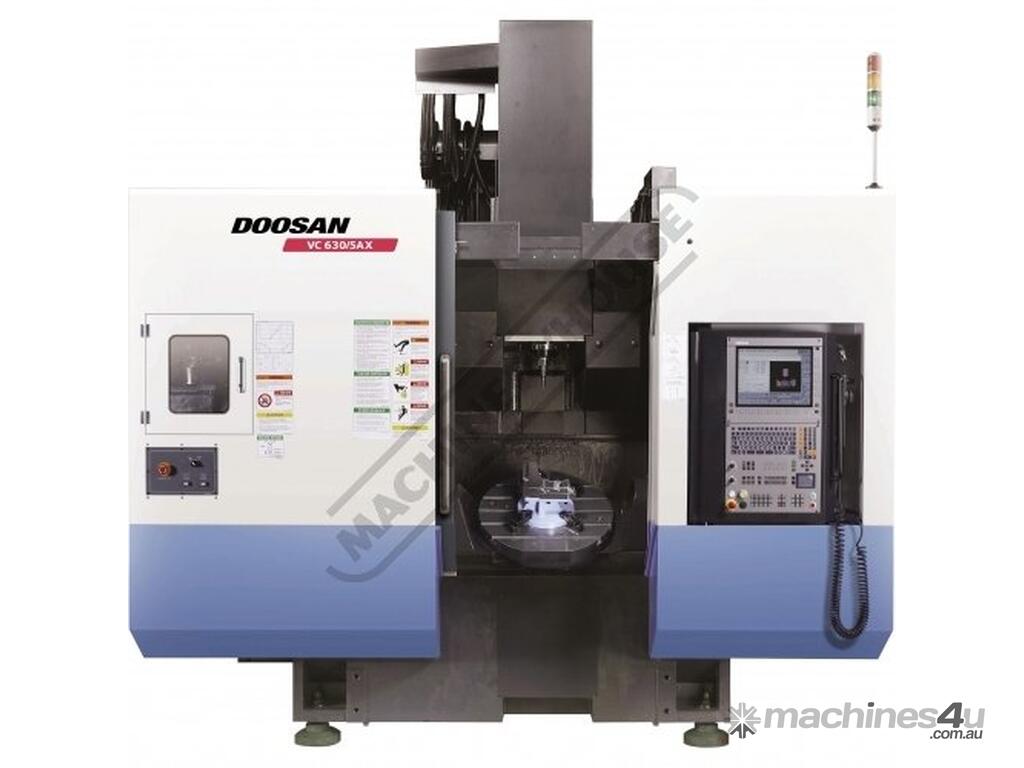

VC630/5AX CNC 5 Axis Machining Centre Series Details

DOOSAN MACHINE TOOLS VC630/5AX CNC 5 Axis Machining Centre Series Details
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: I8017

Features:
Portable MPG
Internal Chip Conveyor
Coolant System
Fully Enclosed Guarding with Door Interlocks
Work Light
Operator Training
In House Service and Support Australia Wide


Specifications:
ORDER CODE: I8017
MODEL: VC630/5AX
X Travel (mm): 650
Y Travel (mm): 765
Z Travel (mm): 520
A Travel (deg): 150 (+30 -120)
B Travel (deg): ~
C Travel (deg): 360
Table Size (mm): ~
MAX Workpiece Height (mm): 630
Table Capacity (kg): 500
Spindle - Table (mm): 210-730
Spindle - Table (mm): ~
Spindle - Table (mm): ~
Spindle Taper: BT40 - Big Plus
Spindle Speed (rpm): 12,000-20,000
Spindle Motor (kW): 22
Rapid Traverse (m/min): 36-40
Guideways: Roller LMG
Tool Change: 40Tool Arm Type
Control: Fanuc 31i /
Control: Heidenhain TNC 640
Control: EZI Guide I Conversational
Control: / Heidenhain
Control: 5 Axis Simultaneous or 4+1


To Purchase Online Please Visit The Machineryhouse & Search For 'I8017'
