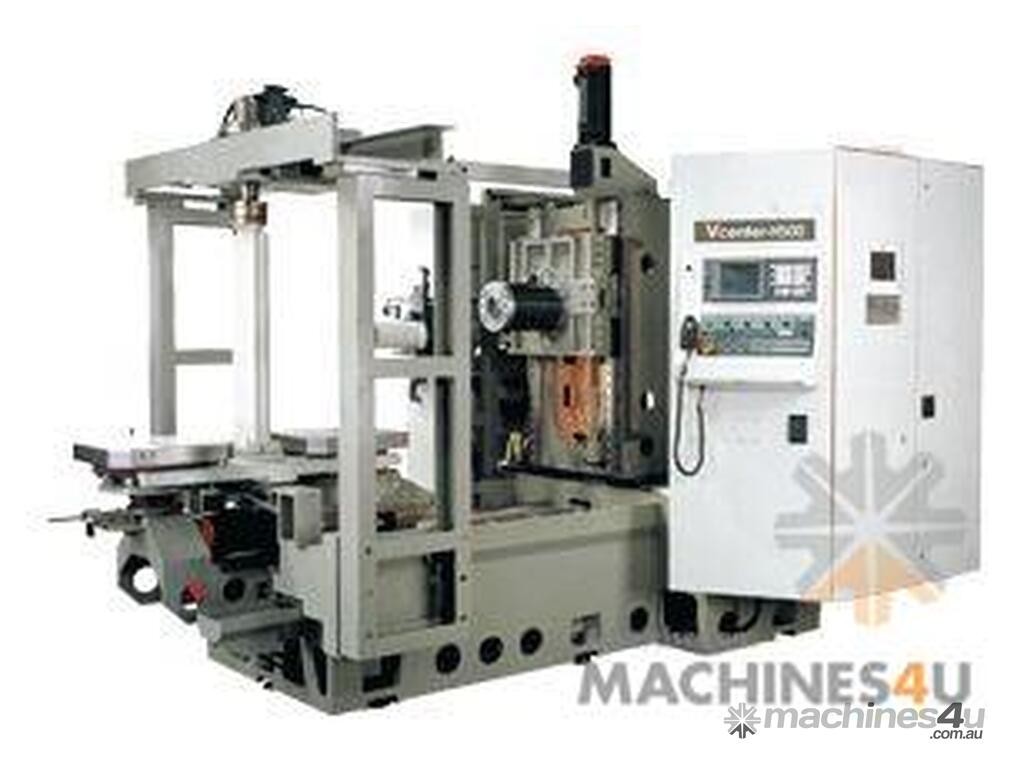

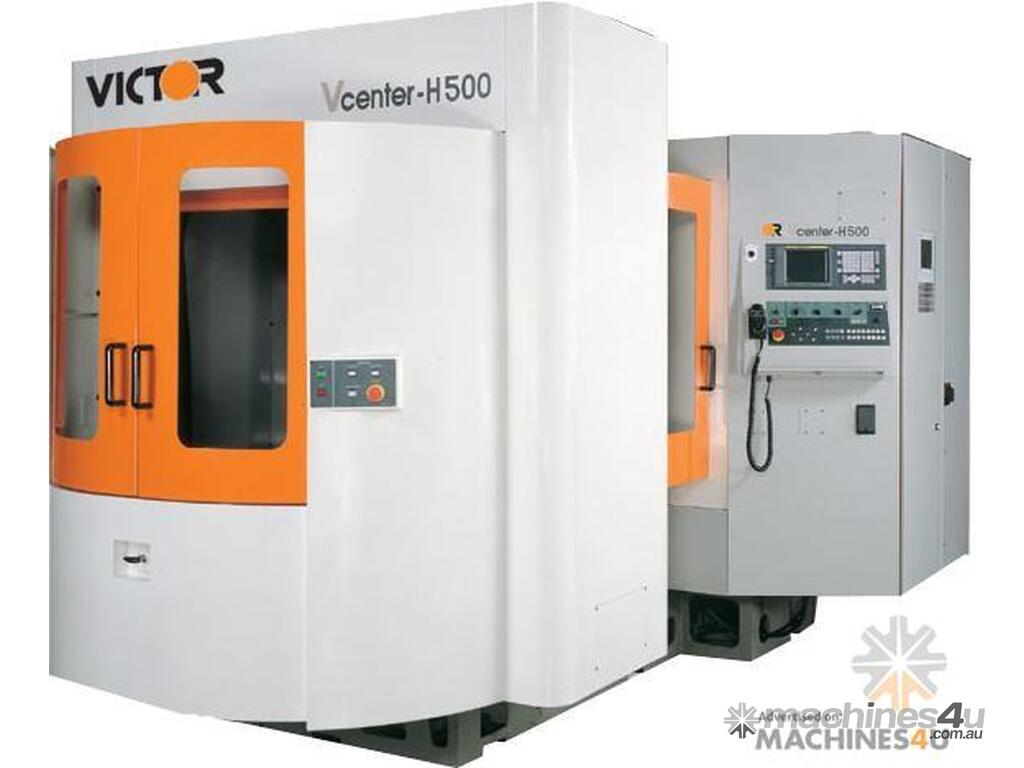

VCENTER 500 Horizontal Machining Centres

Specifications:

Vcenter-H500
X-axis travel: 720 mm
Y-axis travel: 650 mm
Z-axis travel: 720 mm
Table working area: 500 x 500 mm
Rapid feed (X/Y/Z): 24/24/24 m/min
Tooling: BT-50
Number of tools: 40
Spindle Speed: 6000 rpm
Spindle Power: 11/15 kW
Machine weight: 12500kg

Vcenter-H500HS
X-axis travel: 720 mm
Y-axis travel: 650 mm
Z-axis travel: 720 mm
Table working area: 500 x 500 mm
Rapid feed (X/Y/Z): 30/30/24 m/min
Tooling: BT-40
Number of tools: 40
Spindle Speed: 14000 rpm
Spindle Power: 15/18.5 kW
Machine weight: 11000 kg

In horizontal machining center, we have launched VCENTER-500/500HS and VCENTER-630/1000. The VCENTER-500/500HS has been designed in the manner that all Victor machines have been designed in for over 40 years, that of a mixture of the highest of quality standard and rock solid reliability.

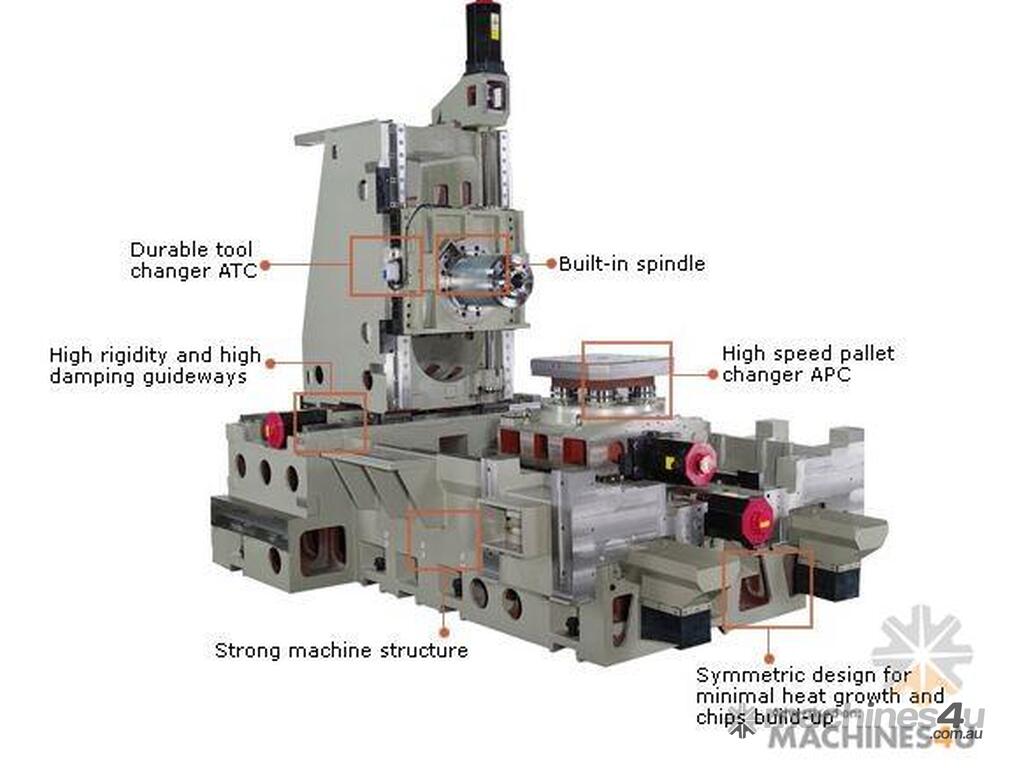

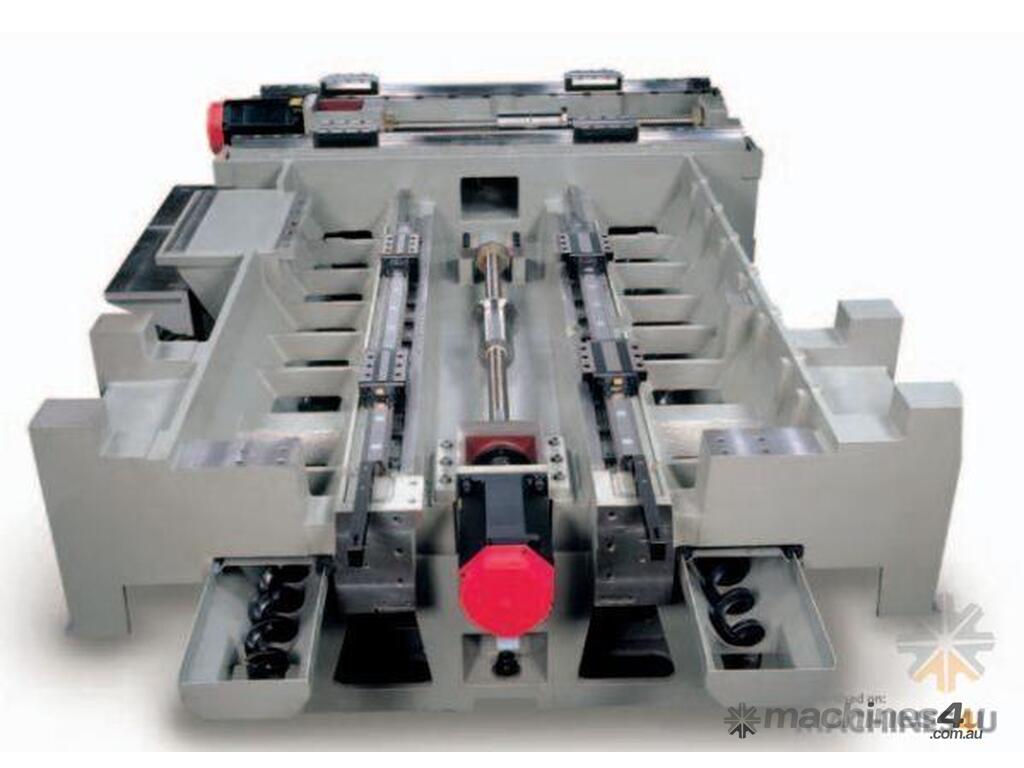

Following the success experience of the VCENTER-H630, the emphasis has continued to be placed in a continuous cutting ability, so the VCENTER-H500/500HS has been designed to ensure downtime is kept to the absolute minimum from the casting of the machine structure to the final machine assembly.
