VCF850/850L Multi Purpose Machining Centre Series Details

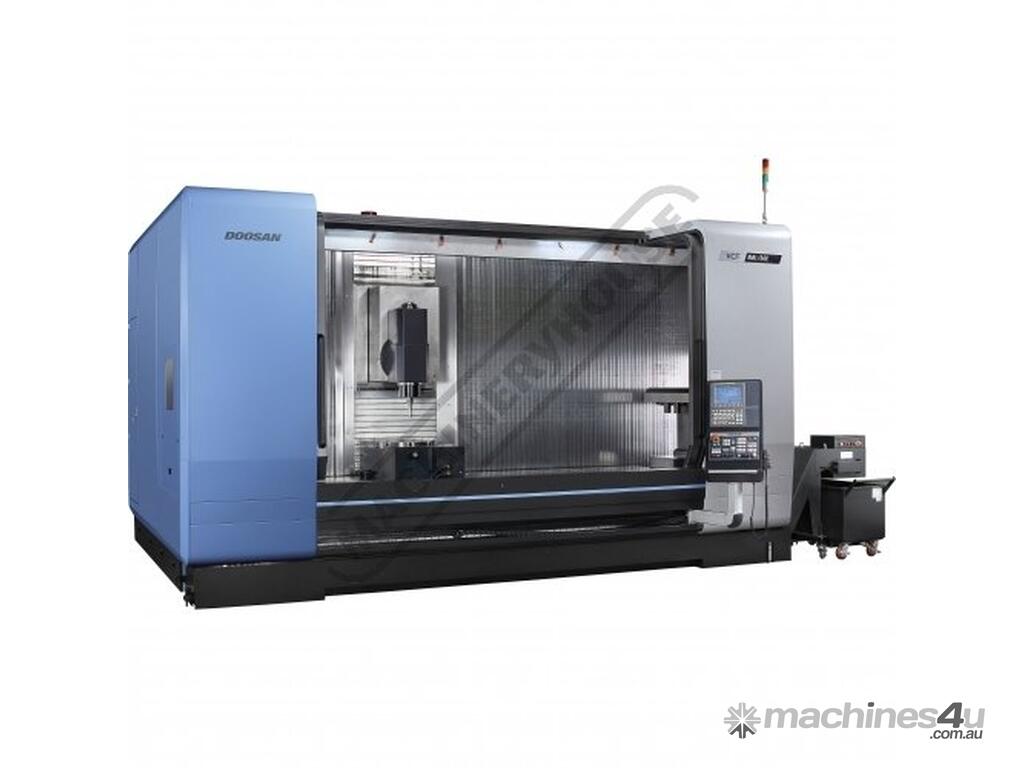

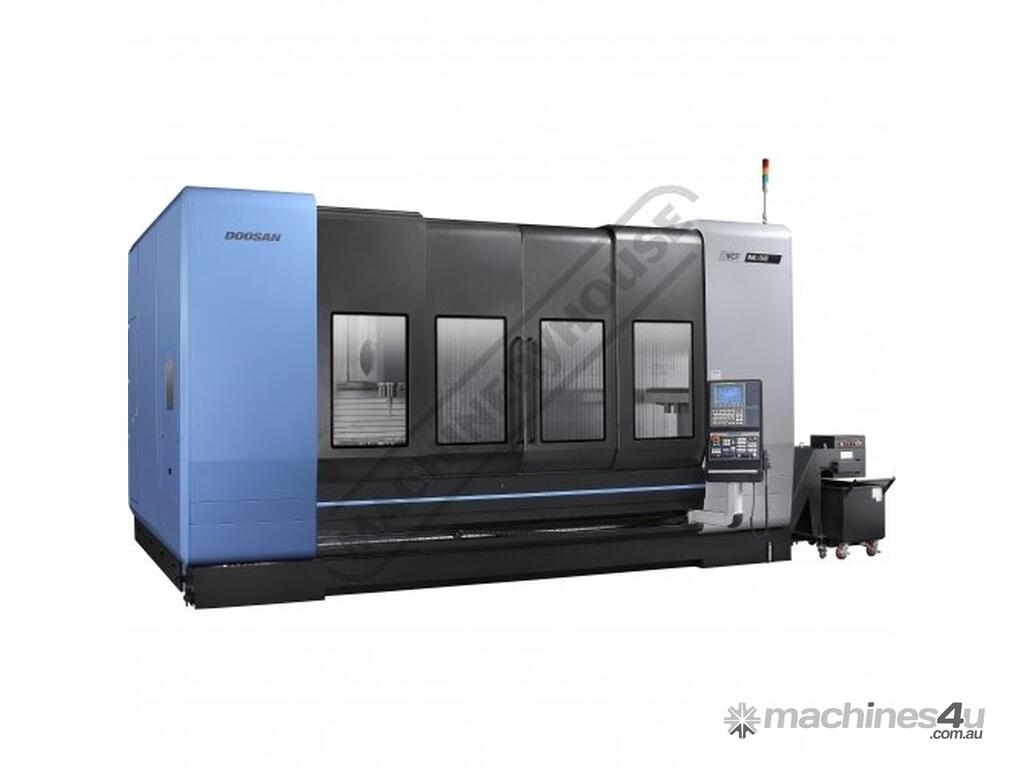

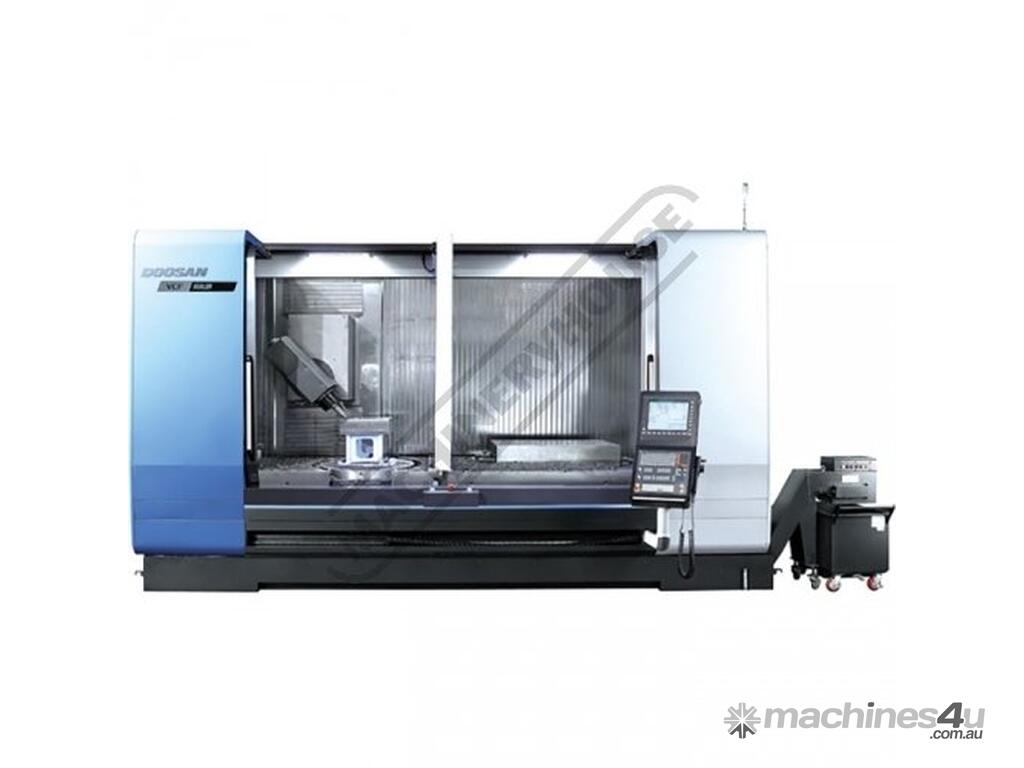

DOOSAN MACHINE TOOLS VCF850/850L Multi Purpose Machining Centre Series Details
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: I8014A

Features:
Built In Spindle Motor
Spindle Oil Cooler
Portable MPG
Coolant System
Fully Enclosed Guarding with Door Interlocks
Work Light
Operator Training
In House Service and Support Australia Wide



Specifications:
ORDER CODE: I8014A
MODEL: VCF850/850L
X Travel (mm): 2000/3000
Y Travel (mm): 850
Z Travel (mm): 800
A Travel (deg): ~
B Travel (deg): ~
C Travel (deg): 360
Table Size (mm): ~
MAX Workpiece Height (mm): 2500/3500 x 870
Table Capacity (kg): 3500
Spindle - Table (mm): 100-900 (3 Axis)
Spindle - Table (mm): ~
Spindle - Table (mm): ~
Spindle Taper: BT40 - Big Plus
Spindle Speed (rpm): 12,000-18,000
Spindle Motor (kW): 22-32
Rapid Traverse (m/min): 40
Guideways: Roller LMG
Tool Change: 30/60 Tool Arm Type
Control: Fanuc 31i /
Control: Heidenhain TNC 640
Control: EZI Guide I Conversational
Control: / Heidenhain

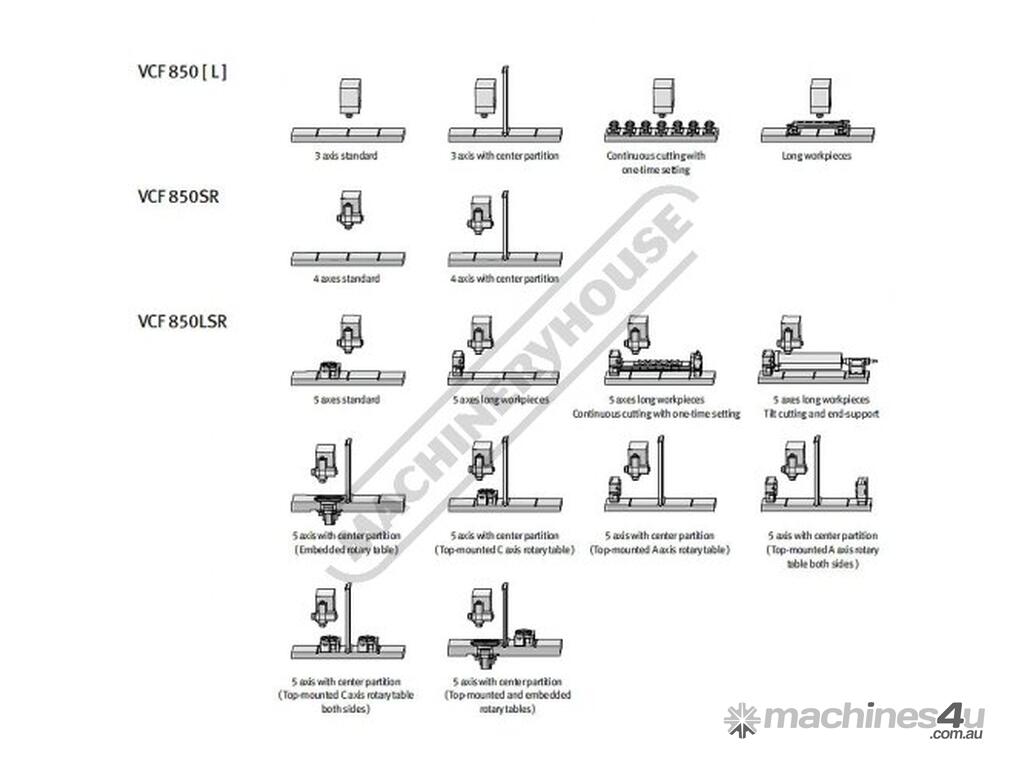

Control: 3, 4 or 5 Axis Simultaneous
