VERTICAL BAND RESAW (MODEL: FTF-700)

FTF-700 - VERTICAL BAND RESAW

Description:
An outstanding and engineering design delivers a good performance. A fast and accurate cutting gives you a high quality. Full-power vertical band resaws can cut into a desired thinness. Also, the upper wheel can saw a sufficient thickness, a convenience of the blade replacement and a simple operation are other features. Full-power vertical band resaws believe that they can work for their owners forever.

General features and constructions:
1) Moving workplaces easily, it doesn’t need to build up a foundation.

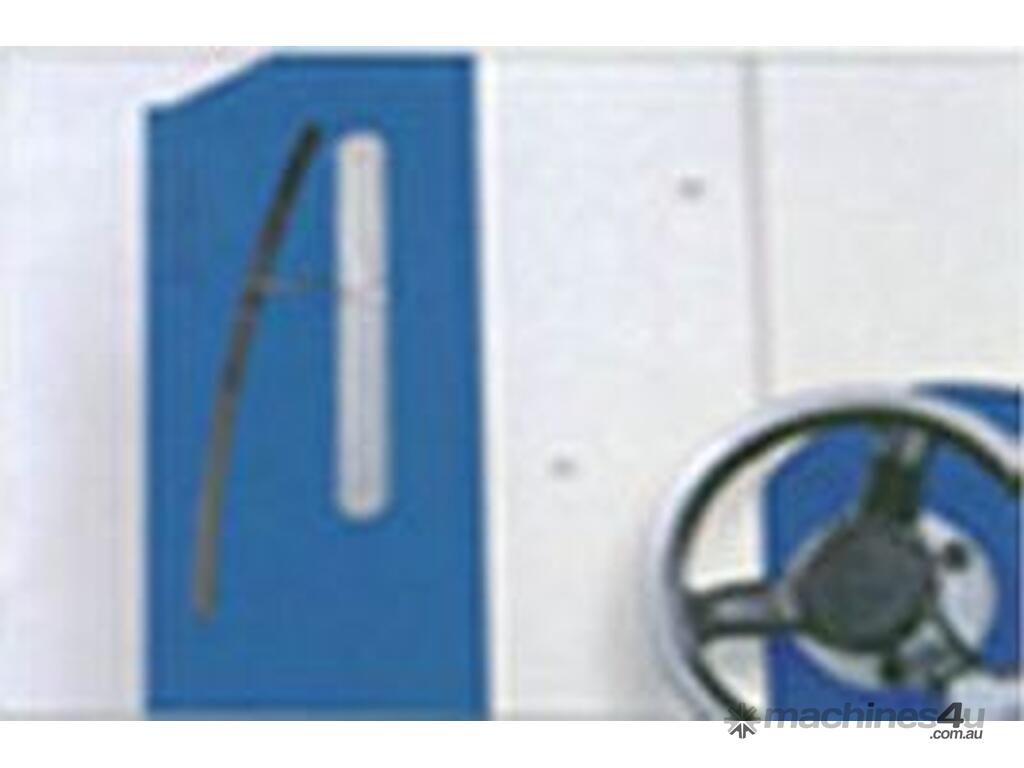

2) The saw tension can be read from the tension indicator.
3) Aprinciple of counterbalance weight controls the blade tension.
4) A handwheel is also provided for micrometrical adjustment.
5) Bakelite of saw guide ensures a high wear resistance.

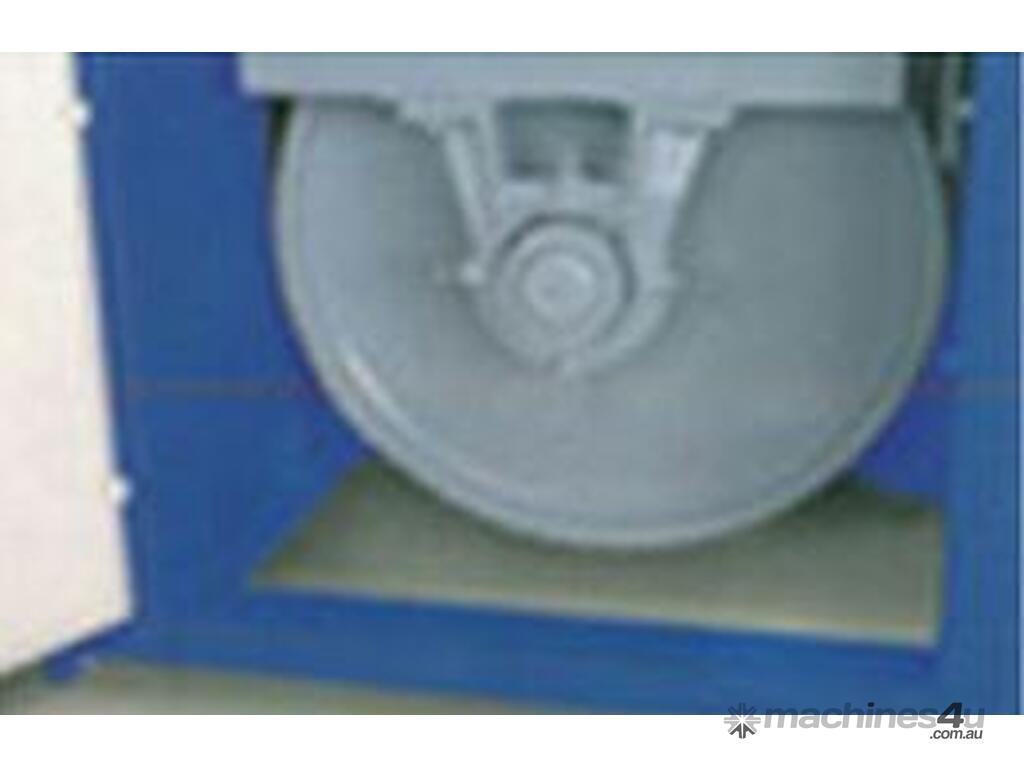

6) The high-speed steel upper wheel and the casting iron lower wheel both are dynamically balanced that makes the machine run extremely smooth.
7) Bronze pieces are provided for wheel cleaning.

MODEL: FTF-700
CUTTING CAPACITY- 350*350mm
MIN. CUTTING THICKNES- 3mm
DISTANCE FROM FENCE TO BLADE- 185mm
DISTANCE FORM FEED ROLLER TO BLADE- 190mm
WHEEL DIAMETER- 28"
WHEEL WIDTH- 3-1/2"
WIDTH OF BLADE- 4"
LENGTH OF BLADE - 4850mm
FEED SPEED (VARIABLE)- VARIABLE
WHEEL DRIVE MOTOR- 20 HP
HYDRAULIC PUMP MOTOR- 2 HP
NET WEIGHT- 1500 KG
GROSS WEIGHT- 1700 KG
PACKING DIMENSIONS(cm)- 230*135*225

*Disclaimer*
Note: All photos and pricing are indicative only and have been prepared in good faith and with due care. Photos provided may include some optional features. Please contact us for an accurate quotation.
