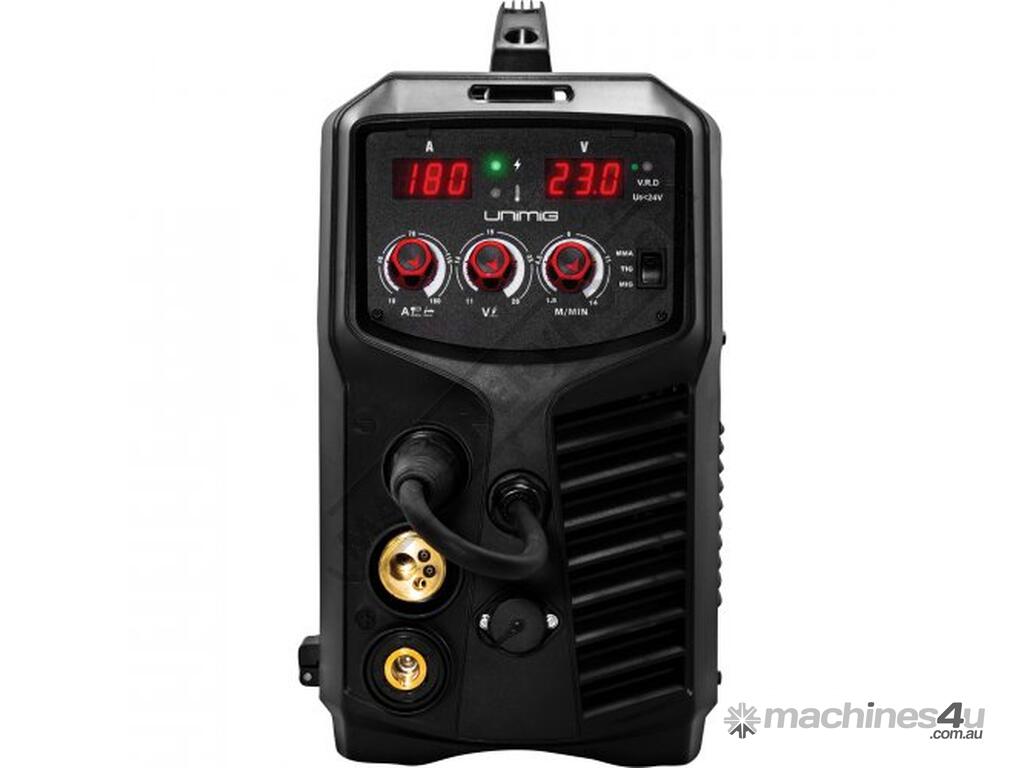

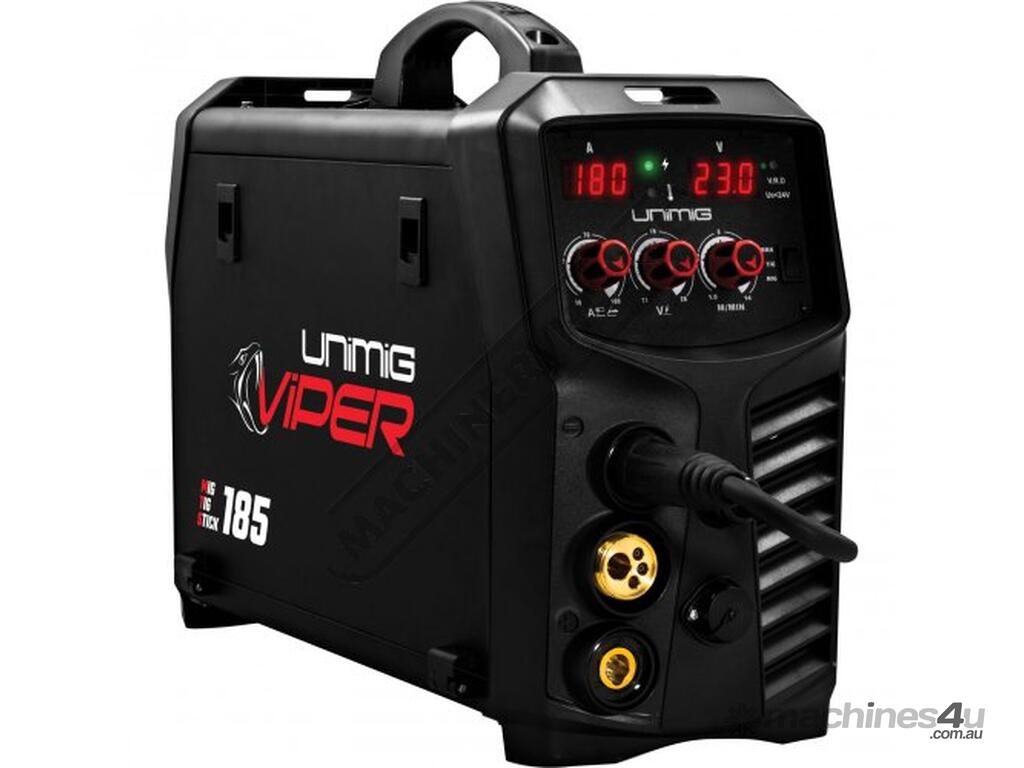

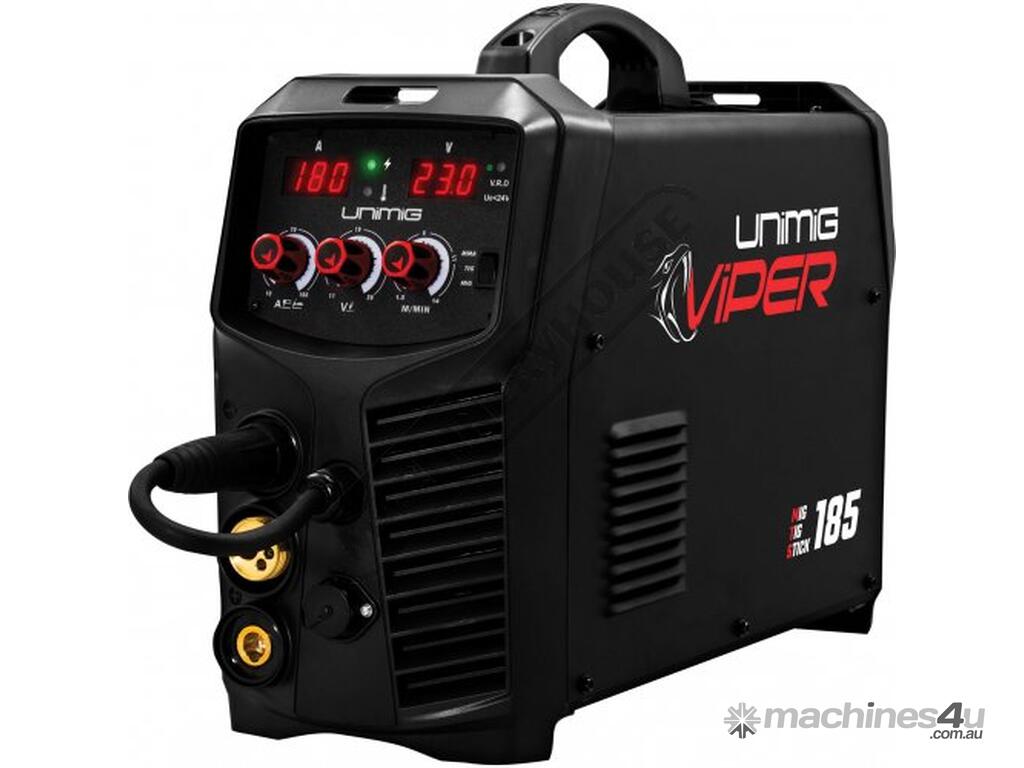

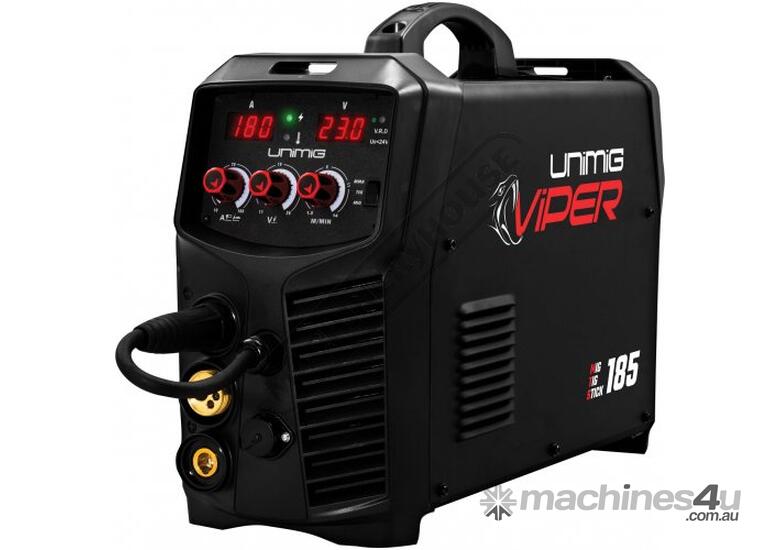

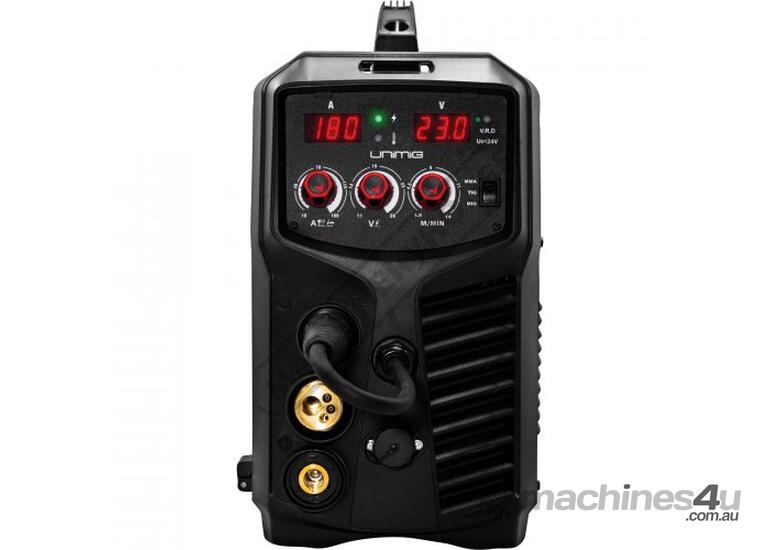

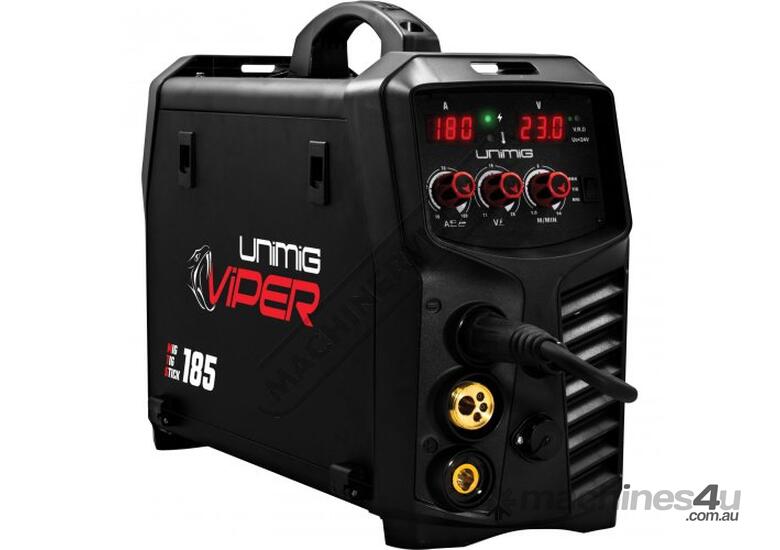

VIPER™ 185 MIG/TIG/STICK WELDER #KUMJRVM185 30-180 Amps Welding Current Range

UNIMIG WELDERS VIPER™ 185 MIG/TIG/STICK WELDER #KUMJRVM Amps Welding Current Range
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W243

The VIPER 185 is a powerful multi-process inverter welding machine featuring MIG, TIG and Stick(MMA) capabilities. It is also Spool Gun Ready, and includes a geared wire drive ensuring smooth wire feeding in all situations.

The VIPER 185 comes standard with a 10AMP domestic plug, making it the ultimate welding machine for the home workshop and DIY use. The welding machine’s lightweight construction means it can be transported with ease to wherever it is needed.

Both Gas Shielded and Gasless wires are supported, providing MIG welding capabilities across a range of metals including Mild Steels, Stainless Steels and Aluminium. Also included are stepless voltage and amperage controls, wire inch and burn back adjustment for easy set up and control of your welds. For additional flexibility, connecting a PLSP150A Spool Gun provides the ability to use thinner/softer wires such as aluminium.

Lift Arc DC TIG welding is supported on the VIPER 185, through the connection of 17V TIG torch for Mild Steel, Stainless Steel and Copper welding. Stick welding (MMA) is also supported with the capability to run electrodes up to 4.0mm, perfect for jobs where access to a gas cylinder is unavailable.

Features:
Welds: Steels Stainless Cast Iron Bronze Aluminium Copper
10AMP Domestic Plug
Geared wire drive
Lift arc Tig ignition
Spool gun compatible
Voltage reduction device (MMA)
Digital voltage & amperage display

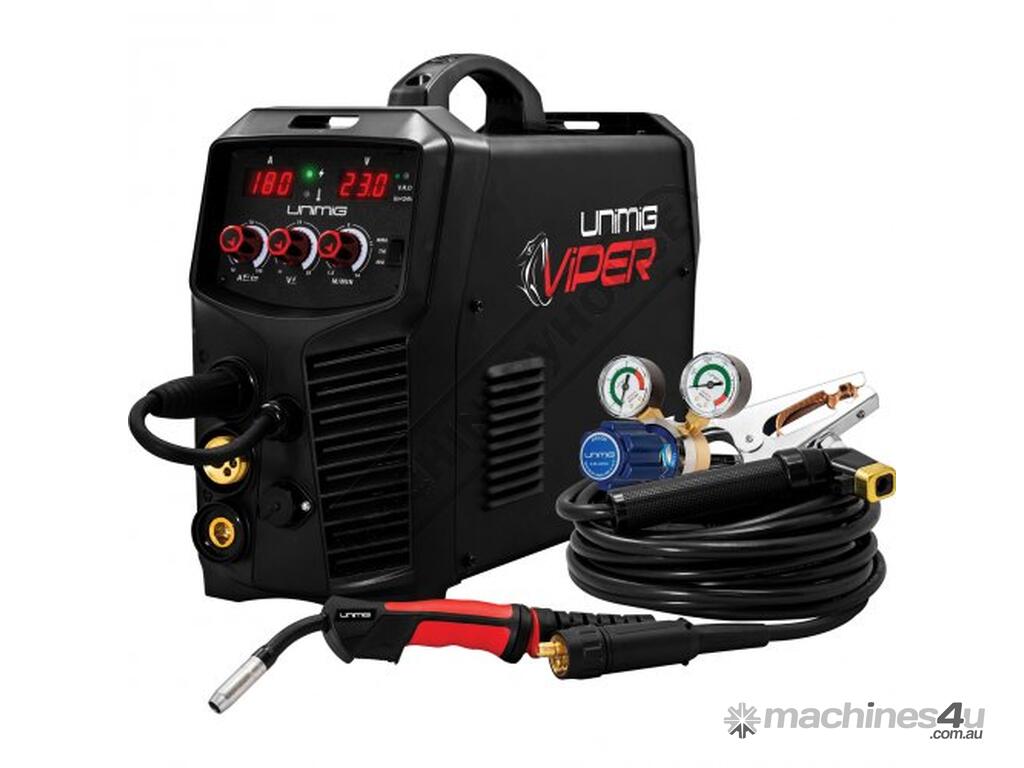

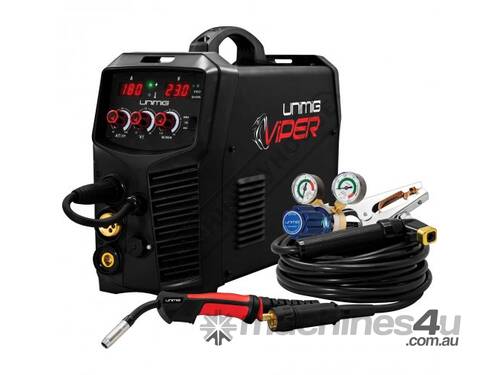

Includes:
- Viper 185 Inverter MIG/ TIG / MMA Power Source
- SB15 Sure Grip 4M MIG Torch (inc. consumables)
- 3m Arc Welding Lead Set
- 300 Amp Earth Clamp
- Twin Gauge Argon Regulator
- 2m Gas Hose Complete with fittings
- Operating Manual



Specifications:
ORDER CODE: W243
MODEL: VIPER 185
Type: MIG / TIG / STICK
Type: Multifunction Welder
Part Number: KUMJRVM185
Voltage (V): 240
Recommended Plug Amperage (amp): 10
Welding Current Range - MIG (amp): 30 - 180
Welding Current Range - STICK (amp): 30 - 160
Welding Current Range - TIG (amp): 30 - 160
Duty Cycle (% amp): 10 180
Duty Cycle (% amp): ~
Wire Spool Size (kg): 1 & 5
Ferrous Wire Size - Range (mm): 0.6 - 0.9
Stainless Steel Wire Size - Range (mm): 0.6 - 0.9
Aluminium Wire Size - Range (mm): 0.6 - 0.9
Recommended Generator (KVA): ~
Dimensions (mm): 553 x 214 x 388
Nett Weight (kg): 12
