UNIMIG WELDERS VIPER™ ARC 140 STICK WELDER #KUMJRVA Amps Welding Current Range
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W165

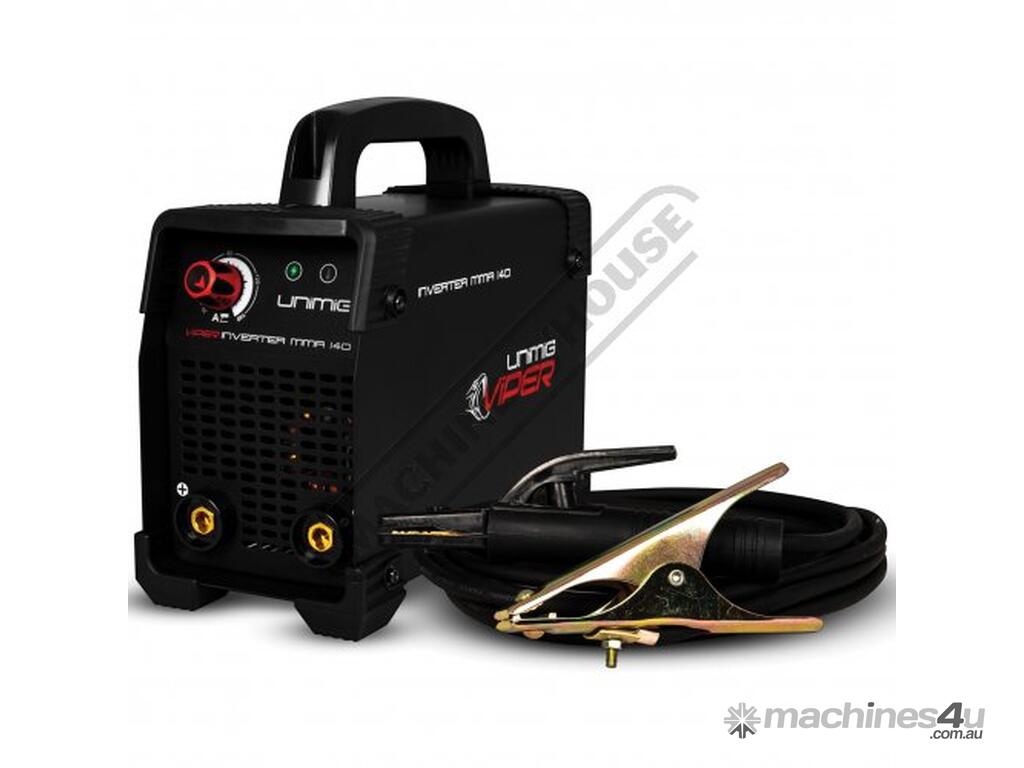

The VIPER ARC 140 is a new generation, low cost welding machine produced using the latest in IGBT inverter technology. Designed to meet the needs of the price conscious non-commercial user without compromising on quality, this machine is as reliable and robust as you would expect a machine bearing the UNIMIG name to be. The DC MMA welding function delivers a smooth and incredibly stable arc allowing easy welding with electrodes producing high quality welds including cast Iron, stainless steel and low hydrogen.
The VIPER ARC 140 is also equipped with DC Scratch Start TIG capability and connection of the 17V TIG torch allows DC TIG welding of steel, stainless steel, bronze and copper. The unique electronic design structure and air channel design in this machine speeds up the heat dissipation of the power device improving the duty cycle of the machine. The unique air channel design also effectively reduces dust ingestion by the fan, dust build up and absorption by the electronic circuits and power device is minimised thereby improving the reliability of the machine.
The VIPER ARC140 is an exceptional machine for the price and is suitable for a wide range of applications including light fabrication and farming. The VIPER ARC 140 offers great portability with the power to get the job done and with the convenience of being fitted with a 10 amp domestic plug. Manufactured in compliance to AS/NZ60974.1
Features:
Latest IGBT inverter technology
MMA (stick electrode)
Hot start (improves electrode starting)
Arc Force (boosts current to prevent electrode extinguishing)
Excellent arc stability with all electrodes
DC Scratch TIG - Scratch Arc Ignition basic DC TIG application
Thermal overload protection
IP21S rating for environmental/safety protection
Generator compatible (recommend 6.5 KVA minimum)
Tolerant to variable power supplies
Fitted with and approved to use domestic 10 amp plug
Includes:
- 2.5 Metre Arc Leads
Specifications:
ORDER CODE: W165
Type: STICK WELDER
MODEL: VIPER™ ARC 140
Part Number: #KUMJRVA140
Voltage / Amperage (V / amp): 240 / 10
Recommended Plug (amp): 10
Input Frequency (Hz) (Hz): ~
Input Current (amp): 27.4
Ieff Current (amp): 10
Power Rating (kVA): 6.49
Rated Output Current (amp / V): 140 / 25
Rated Output Current (amp / V): ~
Range of Output Current (amp): 20 - 140
Range of Output Current (amp): ~
Range of Output Current (amp): ~
Arc Force (amp): ~
No Load Voltage (V): 68
Pre-Flow (S) (sec): ~
Clean Width (%) (%): ~
Slope-Down Time (S) (sec): ~
Post-Flow Time (sec): ~
Base Current (%): ~
Pulse Frequency (Hz): ~
Pulse Duty Cycle (%): ~
Duty Cycle 40 Deg C - TIG (% amp): ~
Duty Cycle 40 Deg C - MMA (% amp): 15 140
Duty Cycle 40 Deg C - Plasma (% amp): ~
Plasma Severance Cut Capacity Carbon Steel (mm): ~
Plasma Production Cut Capacity Carbon Steel (mm): ~
Plasma Production Cut Capacity Aluminium (mm): ~
Protection Class: IP21S
Remote Control (Yes / ~): ~
Recommended Generator (kVA): 6.5
Efficency (%): 85
Power Factor: 0.65
Insulation Class: F
Dimensions (mm): 295 x 135 x 270
Nett Weight (kg): 4
