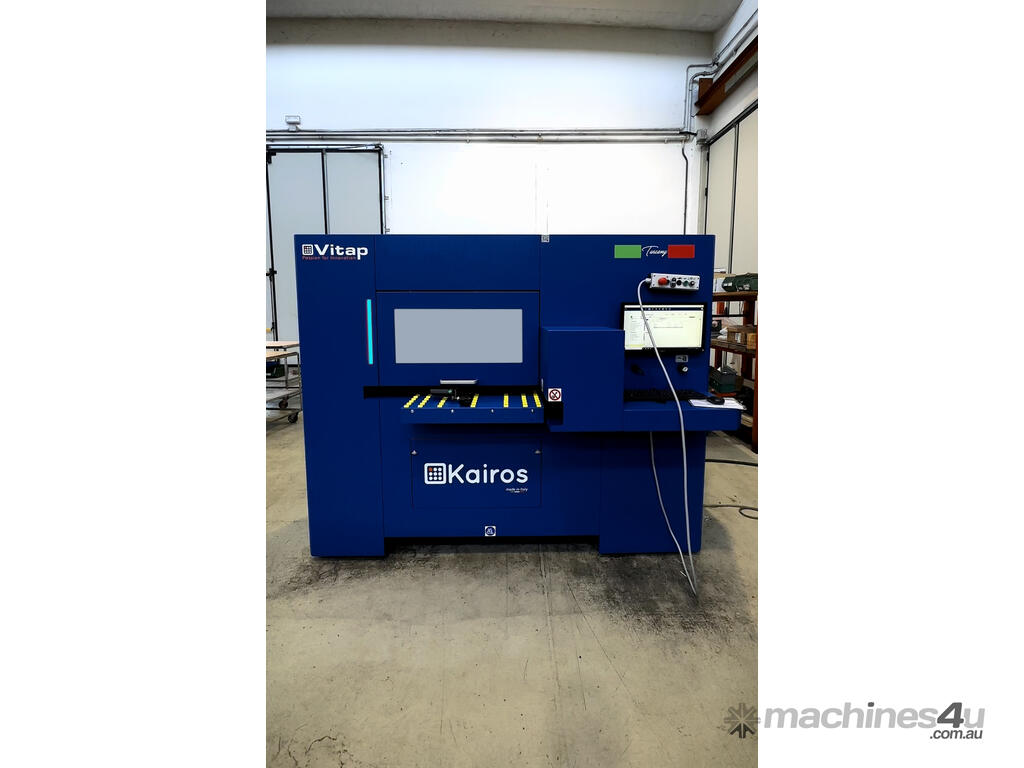

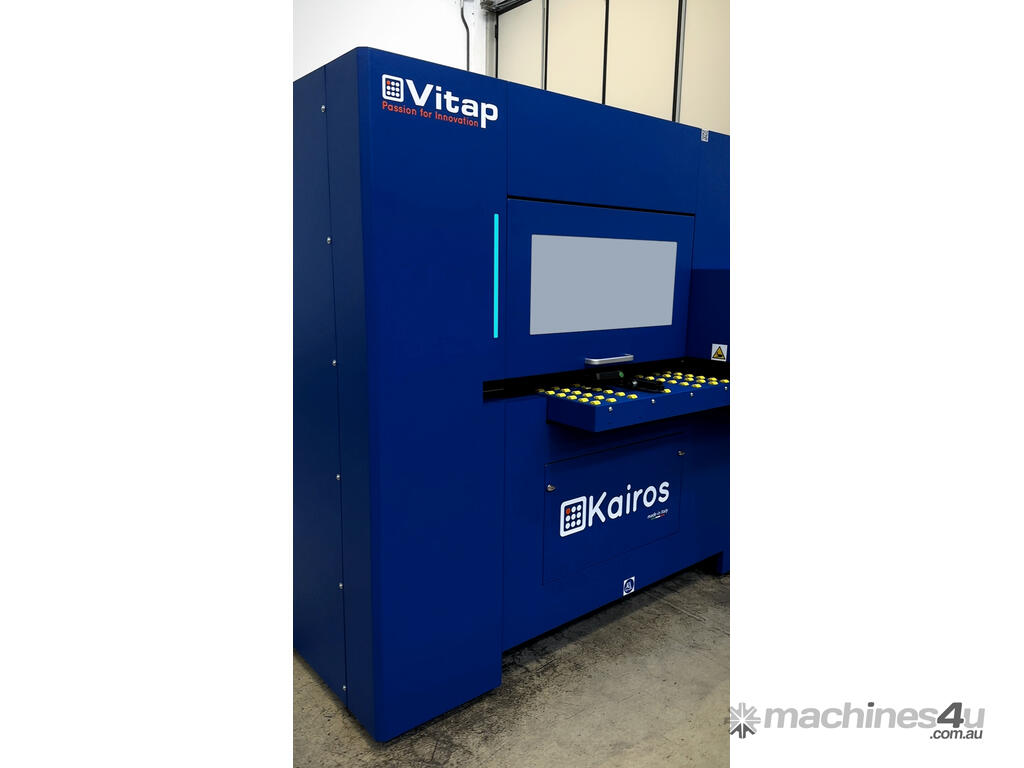

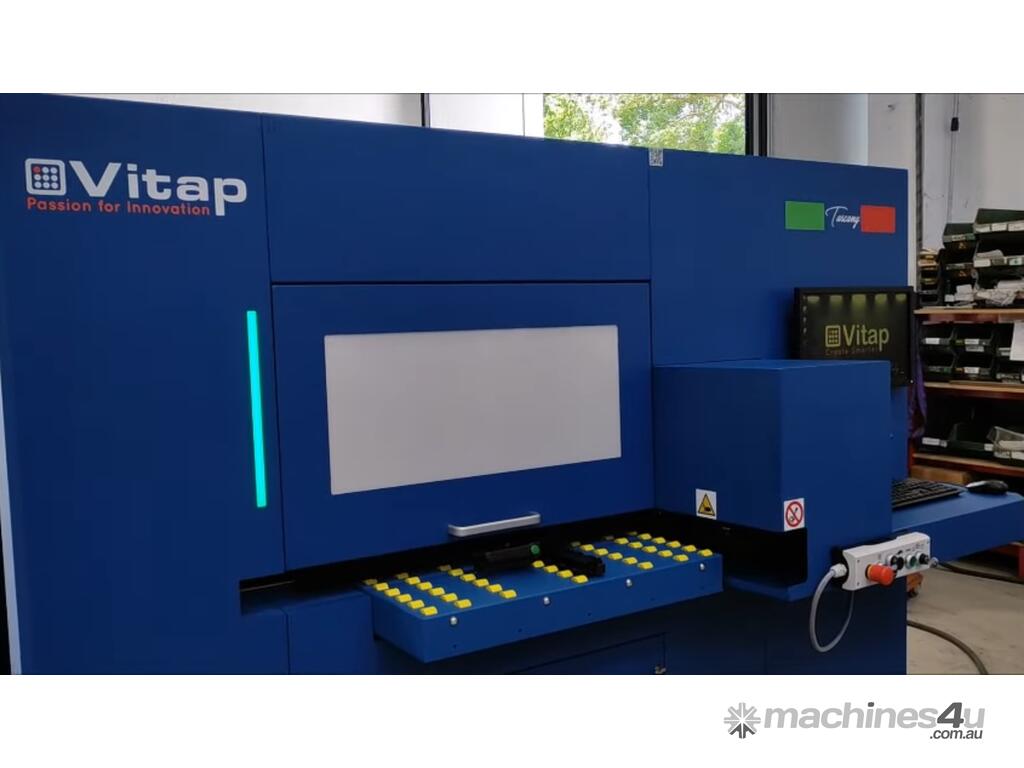

VITAP Kairos CNC Drilling & Machining Centre

The VITAP Kairos is available from Tuckwell Machinery!

This compact all in one CNC is the perfect solution for manufacturers who are tight on space but a looking for a CNC controlled drilling solution with the added bonus of onboard routing.

CNC WORKING CENTER

9 independent vertical spindles
(2+2) X axis horizontal spindles
(2+2) Y axis horizontal spindles
Grooving Saw unit
Routing unit ER 32 - 3.3KW (RPM 24,000)

ALL OPERATION TYPES:
- Vertical holes (from bottom)
- Horizontal holes on the front - Horizontal holes from behind
- Horizontal side holes
- Holes for hinges (from bottom)

Multiple drilling for shelves (from bottom)
Blade group for grooving from bottom
STANDARD SPECIFICATIONS:
No limit in panel length.
Milling from the bottom and automatic return of the piece to the operator + automatic selector for the output of the panel on the back of the machine. High productivity and flexibility.
3 controlled axes.
X-axis latest-generation Brushless motor with epicyclic reduction gear, pinion and rack with high precision.
Y-axis latest-generation Brushless motor with epicyclic reduction gear, pinion and rack with high precision.
Axe Z latest generation motor and ball screw.
Industrial Pc for better programming performance.
Simple programming system

Monitor LCD TFT 20"
USB port for loading programs run on a station in each office.
Cutting optimization Software.
Graphics programming CAD TPA, base version.
Saving all files with all data.
Macro Programming.
Import DXF files.
Full Parametric Control.

Max panel size: X: unlimited, Y: 920 mm, Z: 50mm
Min panel size: X: 270/400 *, Y: 185 mm, Z: 3 mm (* 270mm with limits)
Max panel weight: kg 50
Spindles speed rotation: 3,600 RPM
Saw blade speed rotation: 7,000 RPM
Panel feeding speed X : 25m/min
Max drilling depth in vertical: 43 mm.
Max vertical diameter of the tools 35mm
Motor power 1.7 KW
Max horizontal diameter of the tools 12 mm
C3301087 software for TPA writing
C3301238 license for programming and creation of drawings by another PC CE Standards

STANDARD:

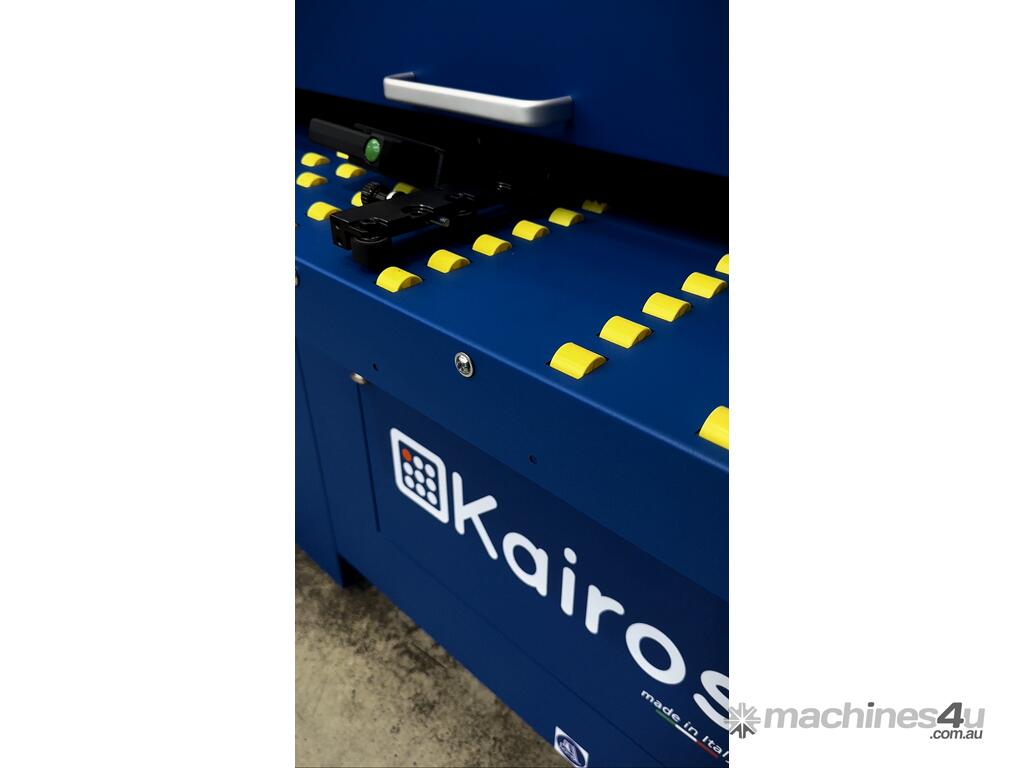

Panel movement by one clamp
Double "0": Panel reference: New generation laser to detect the beginning and the end of the piece.
The program can readjust the drilling at the bottom of the piece to have a perfect flush between the vertical and horizontal pieces, The laser is composed by a transmitter and receiver to avoid any error caused by dark colours of the edge band.
New system of movement of the head on the Y axis and Z with high patented rigidity.

MADE IN ITALY
