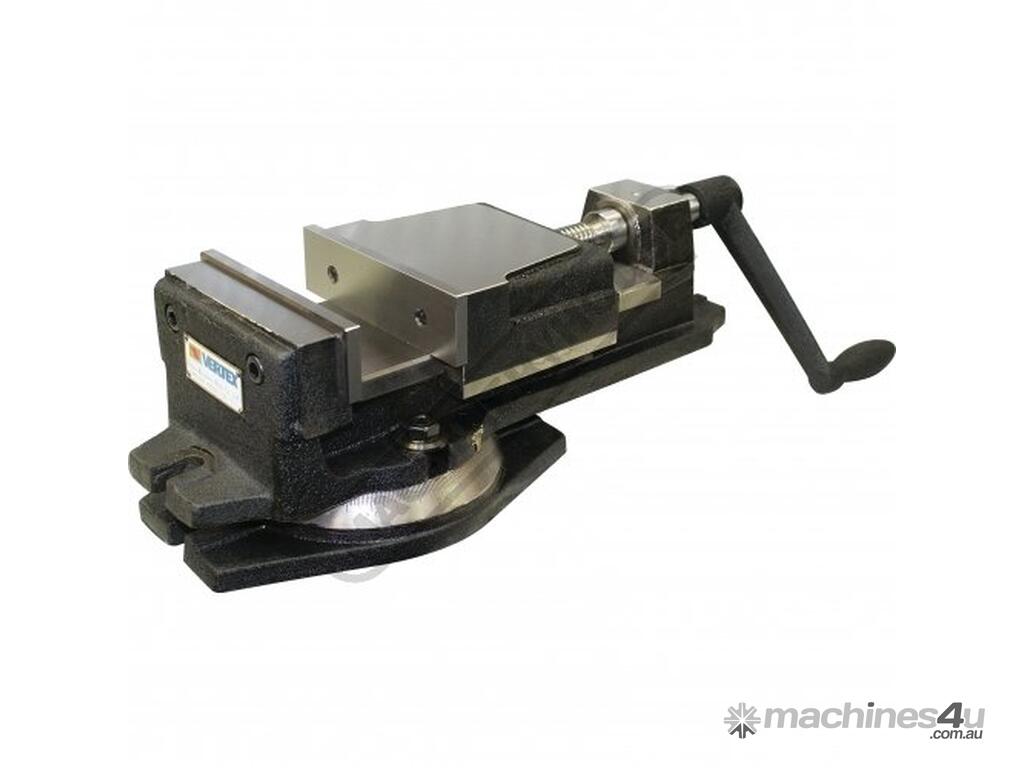

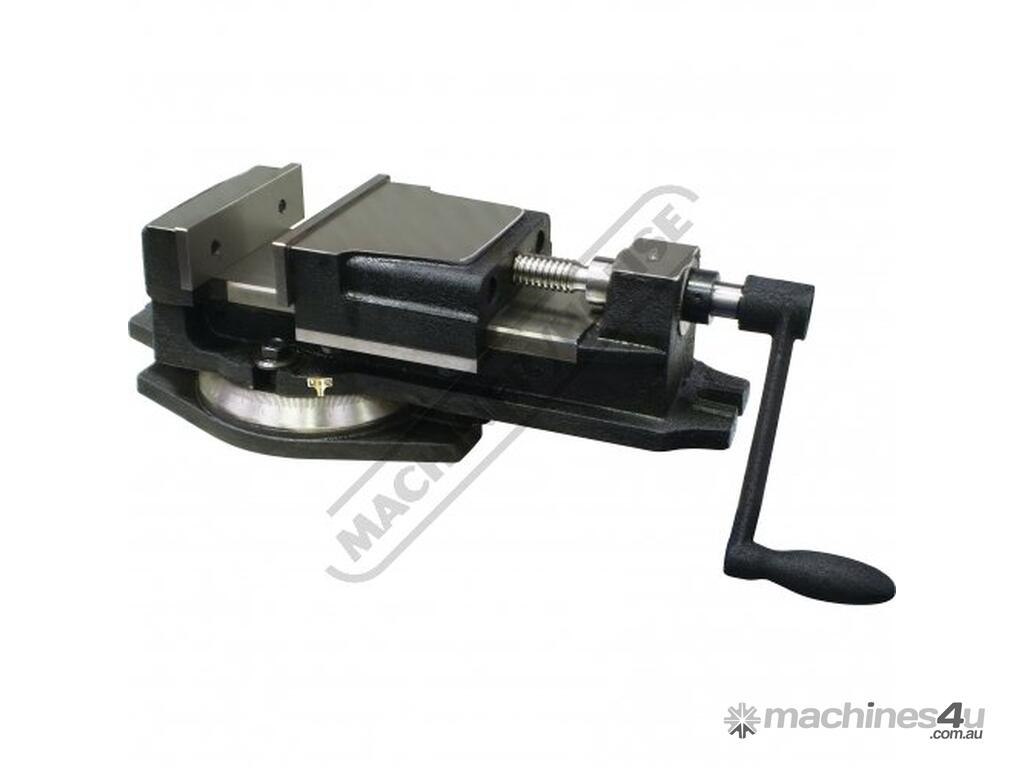

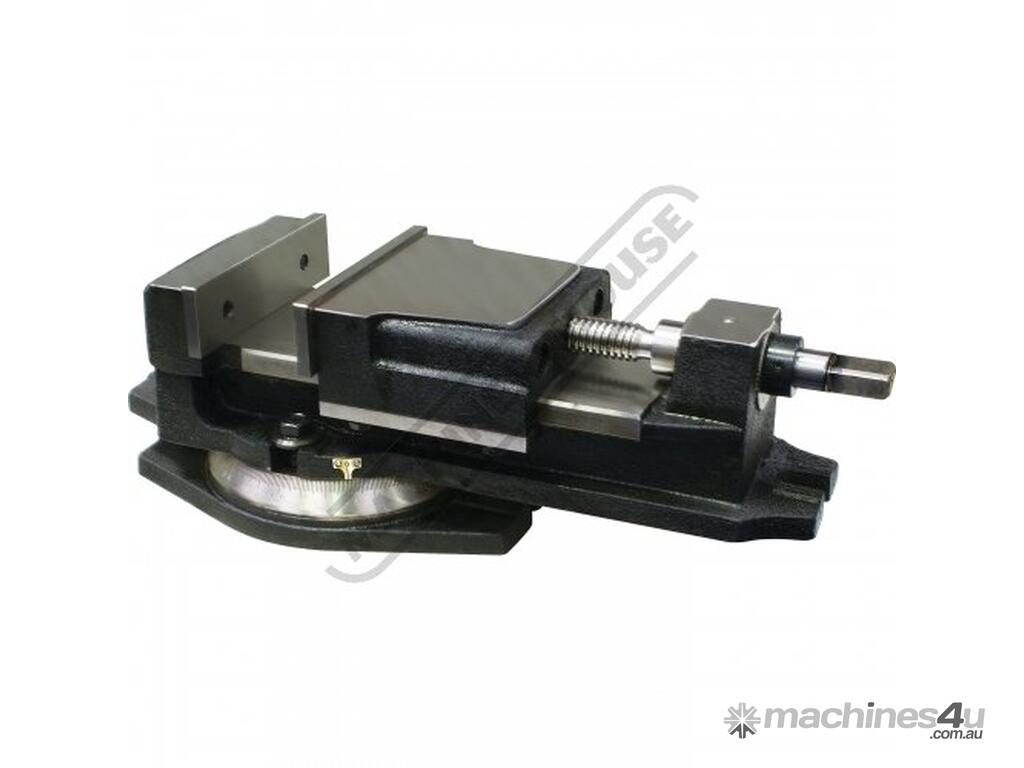

VK-6 Vertex K-Type Milling Vice 152mm Jaw Width 112mm Jaw Opening

VERTEX VK-6 Vertex K-Type Milling Vice 152mm Jaw Width 112mm Jaw Opening
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: V106

Features:
Jaws hardened and ground alloy steel
All working surfaces such as top and bottom of bed jaw plates and base are precision ground square and parallel
Bearing portion of the acme-threaded leadscrew is ground for accurate alignment
Graduated swivel base with large easy-to-read divisions


Specifications:
ORDER CODE: V106
MODEL: VK-6
E - Jaw Width (mm): 152
R - Jaw Opening (mm): 112
h1 - Jaw Depth (mm): 40
A (mm): 421
B (mm): 160
H (mm): 105
S (mm): 462
a (mm): 245
b (mm): 175
h2 (mm): 40
g1 (mm): 16
g2 (mm): 16
Nett Weight (kg): 30


To Purchase Online Please Visit The Machineryhouse & Search For 'V106'
