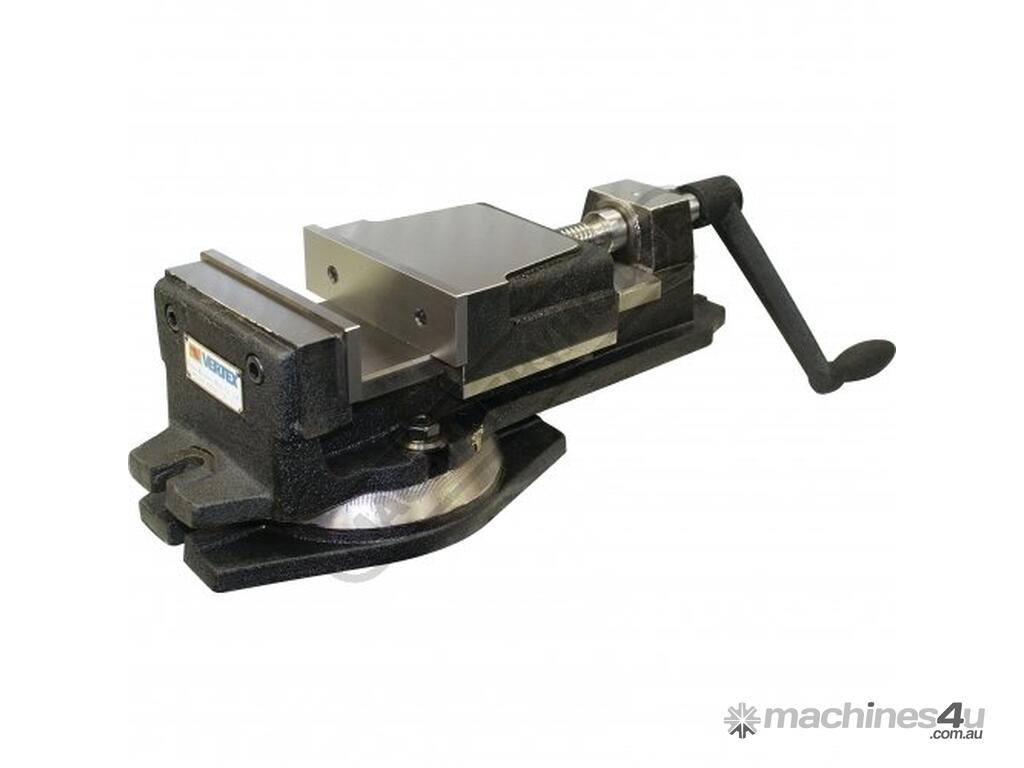

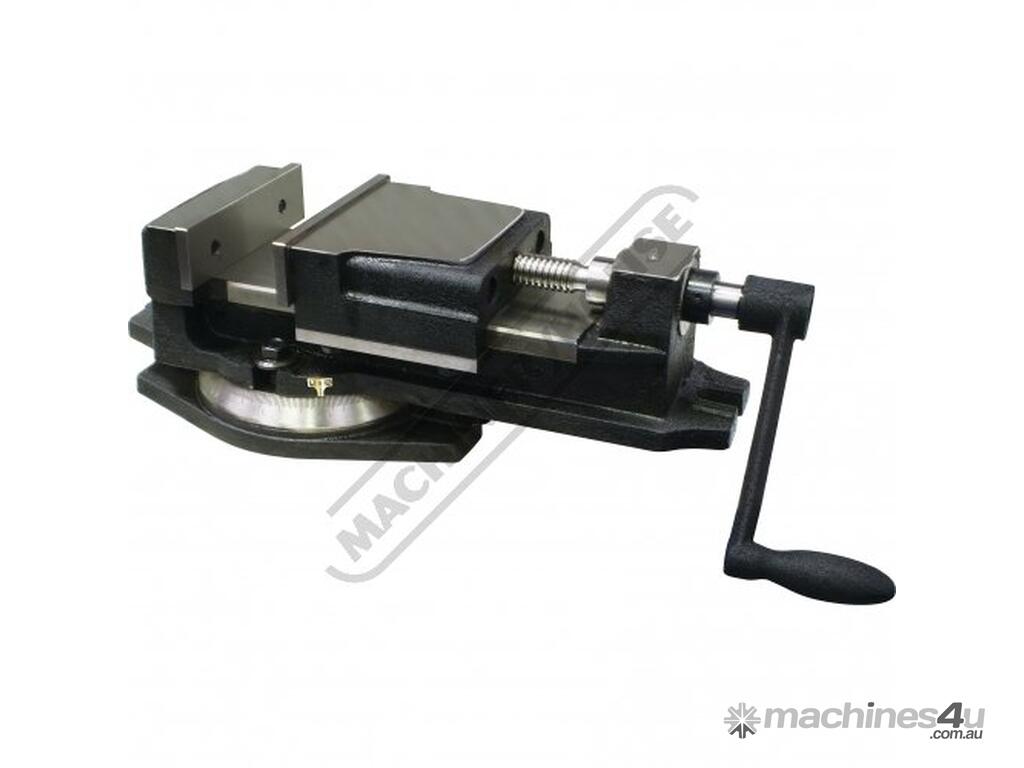

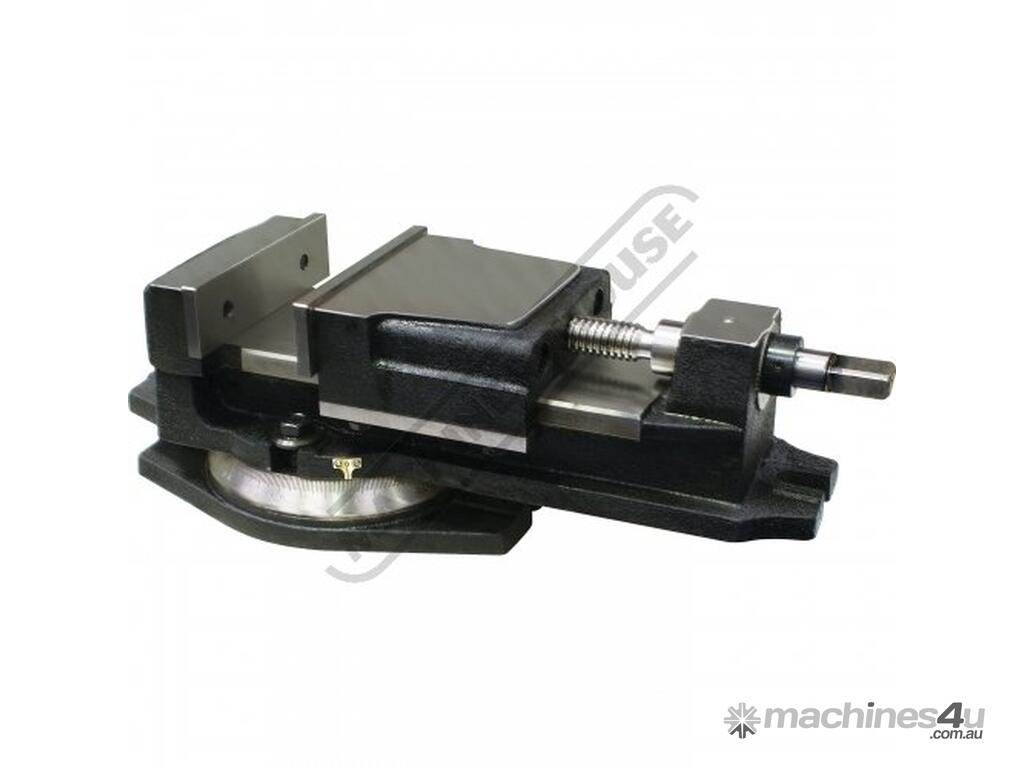

VK-8 Vertex K-Type Milling Vice 203mm Jaw Width 146mm Jaw Opening

VERTEX VK-8 Vertex K-Type Milling Vice 203mm Jaw Width 146mm Jaw Opening
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: V108

Features:
Jaws hardened and ground alloy steel
All working surfaces such as top and bottom of bed jaw plates and base are precision ground square and parallel
Bearing portion of the acme-threaded leadscrew is ground for accurate alignment
Graduated swivel base with large easy-to-read divisions


Specifications:
ORDER CODE: V108
MODEL: VK-8
E - Jaw Width (mm): 203
R - Jaw Opening (mm): 146
h1 - Jaw Depth (mm): 58
A (mm): 576
B (mm): 215
H (mm): 144
S (mm): 620
a (mm): 340
b (mm): 230
h2 (mm): 45
g1 (mm): 18
g2 (mm): 18
Nett Weight (kg): 55


To Purchase Online Please Visit The Machineryhouse & Search For 'V108'
