VM MOTORI MARINE MR506 SH3 270HP ENGINE

The new MR506 SH3 engine delivers exceptional performance using state-of-the-art injection technologies and turbocharging.
The new 3.0L V6 engine with a power of 270 HP and a torque of 587Nm at 2200 RPM is at the top of its category.

Thanks to its compactness it offers great installation flexibility.
The main technical features are the 2000 bar injection system, a double chain driven overhead camshaft and 4 valves per cylinder.
Thanks to the new variable geometry VGT turbocharger with ball bearings and a water cooled turbine, the engine is able to develop both a very high specific power and an immediate response from low revolutions.
Reliable, fast, ecological and with low noise levels, the new V6 diesel engine of the MR506 family is able to meet the needs of every boatie.

Scope of Supply:
• 12V Starter motor

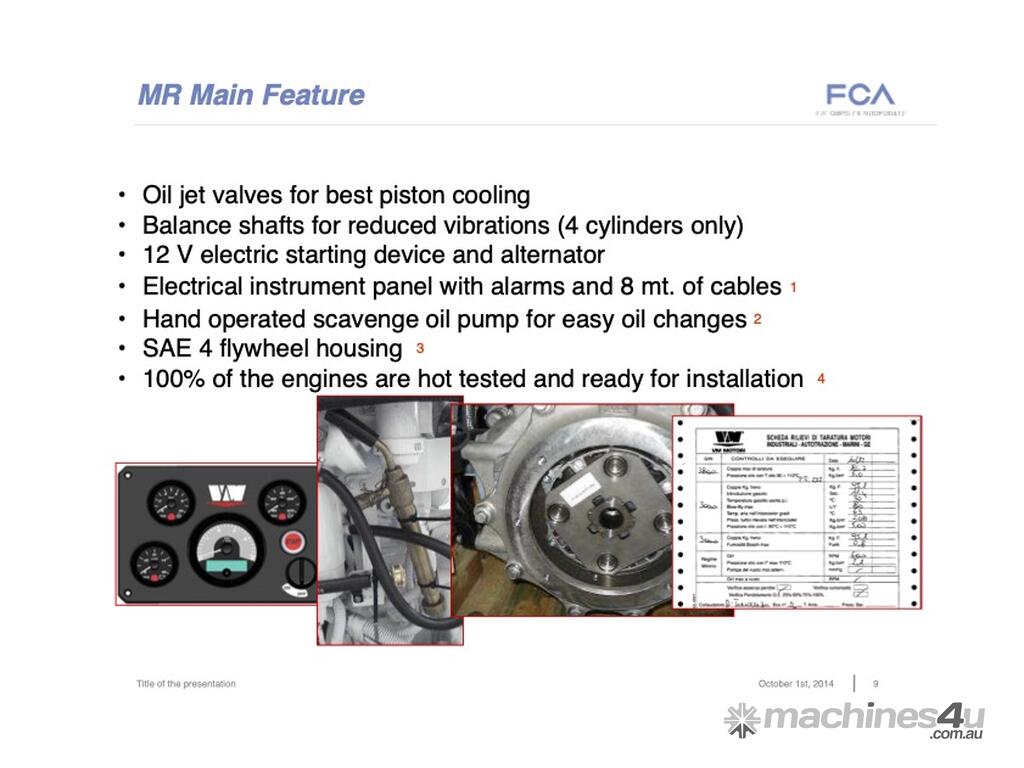

• Panel with electric instruments
• Alternator 12V-110A
• SAE 6.5"
• Single variable geometry turbocharger inter-cooled and water cooled turbine housing

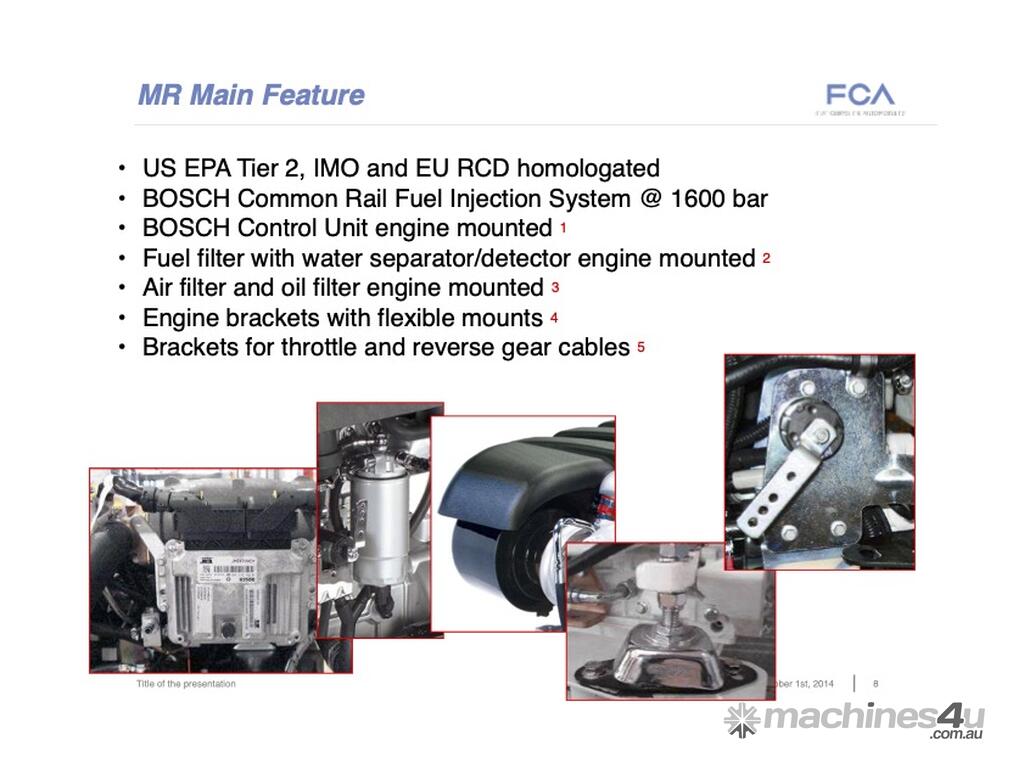

• Air and oil, fuel filters mounted
• Drain oil pump

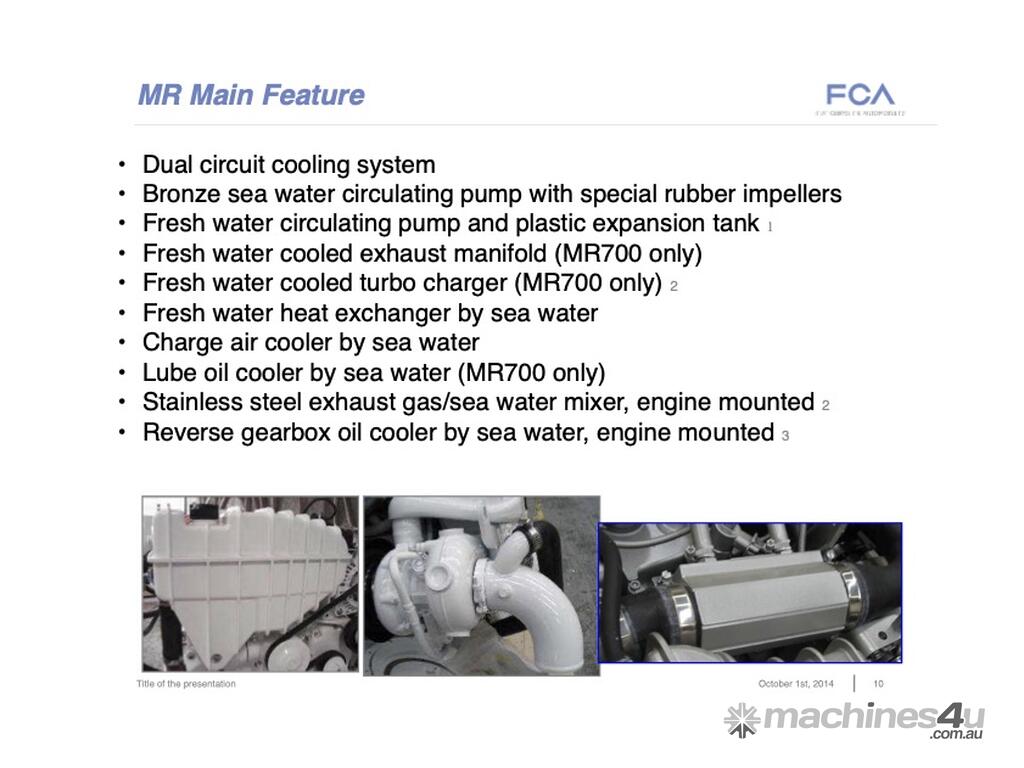

• Freshwater engine cooling system with seawater heat exchanger
• Engine lubricating oil cooled by heat exchanger seawater cooled
• Bronze seawater circulating pump with impeller in special rubber
• Centrifugal pump for freshwater circulation
• Stainless steel exhaust gas/seawater mixer
• Flexible mounts
