VM MOTORI MARINE MR506 SS3 230HP ENGINE

The new MR506 SS3 engine offers a power of 230 HP and a torque of 500Nm at 2200 RPM.

The main technical features are the 2000 bar injection system, a double chain driven
overhead camshaft and 4 valves per cylinder.
Thanks to the new variable geometry VGT turbocharger with ball bearings and a water cooled turbine, the engine is able to develop both a very high specific power and an immediate
response from low revolutions.
Reliable, fast, ecological and with low noise levels, the new V6 diesel engine of the MR506 family is able to meet the needs of every boatie.

Scope of Supply:
• 12V Starter motor

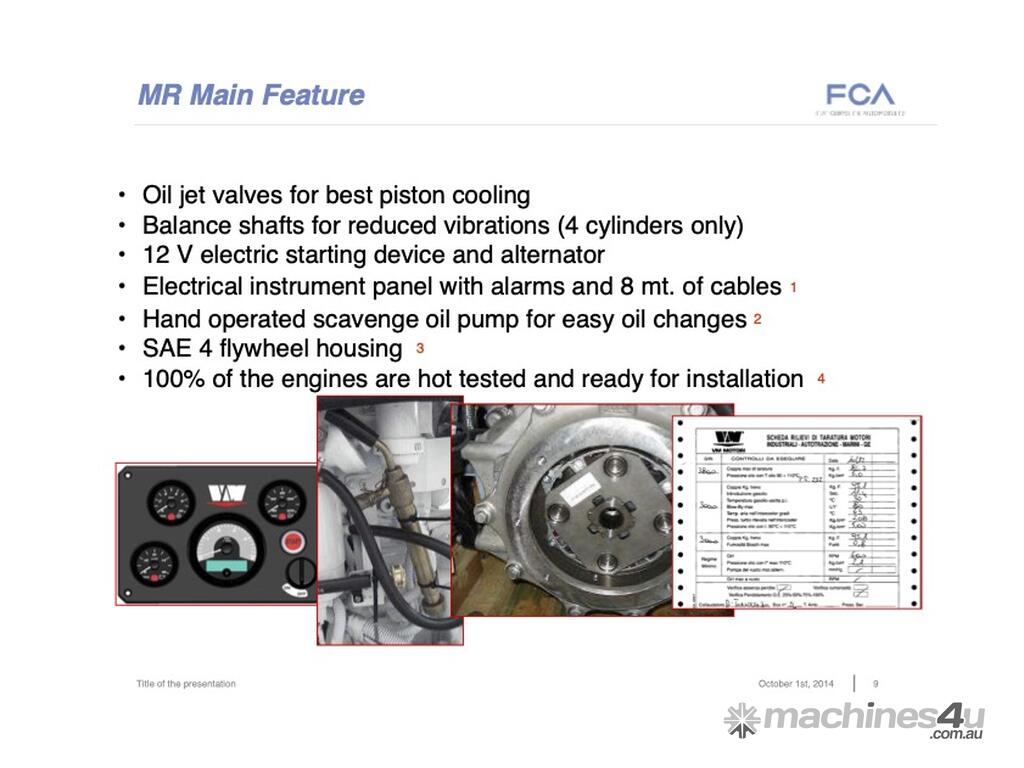

• Panel with electric instruments
• Alternator 12V-110A
• SAE 6.5"
• Single variable geometry turbocharger inter-cooled and water cooled turbine housing

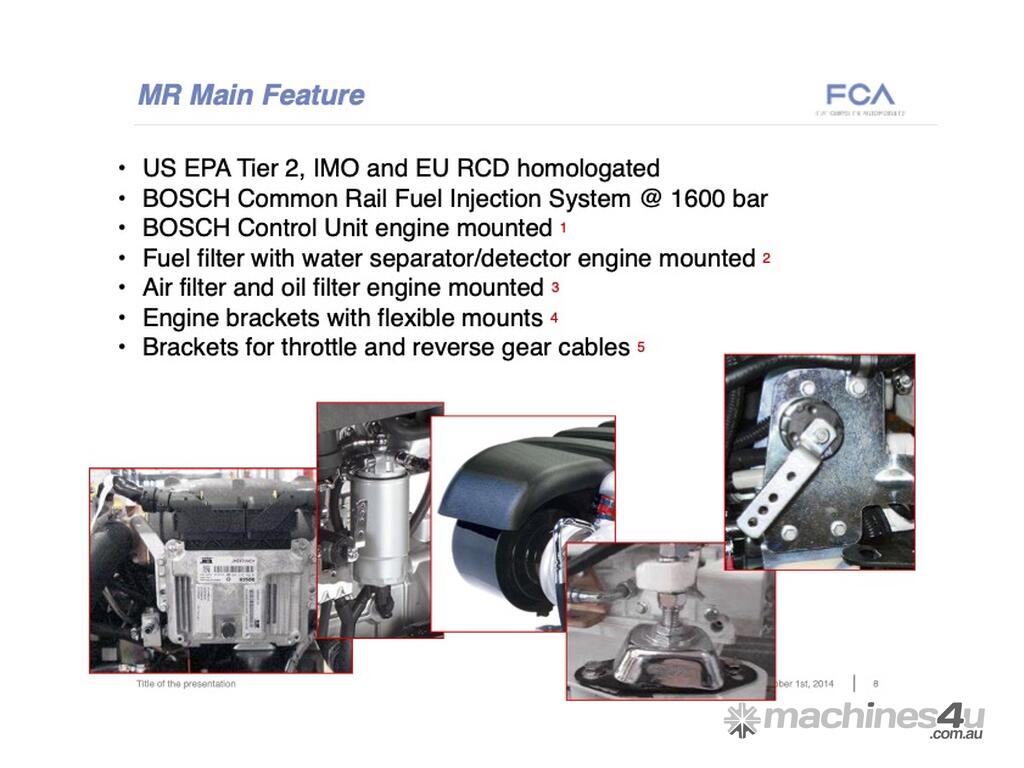

• Air and oil, fuel filters mounted
• Drain oil pump

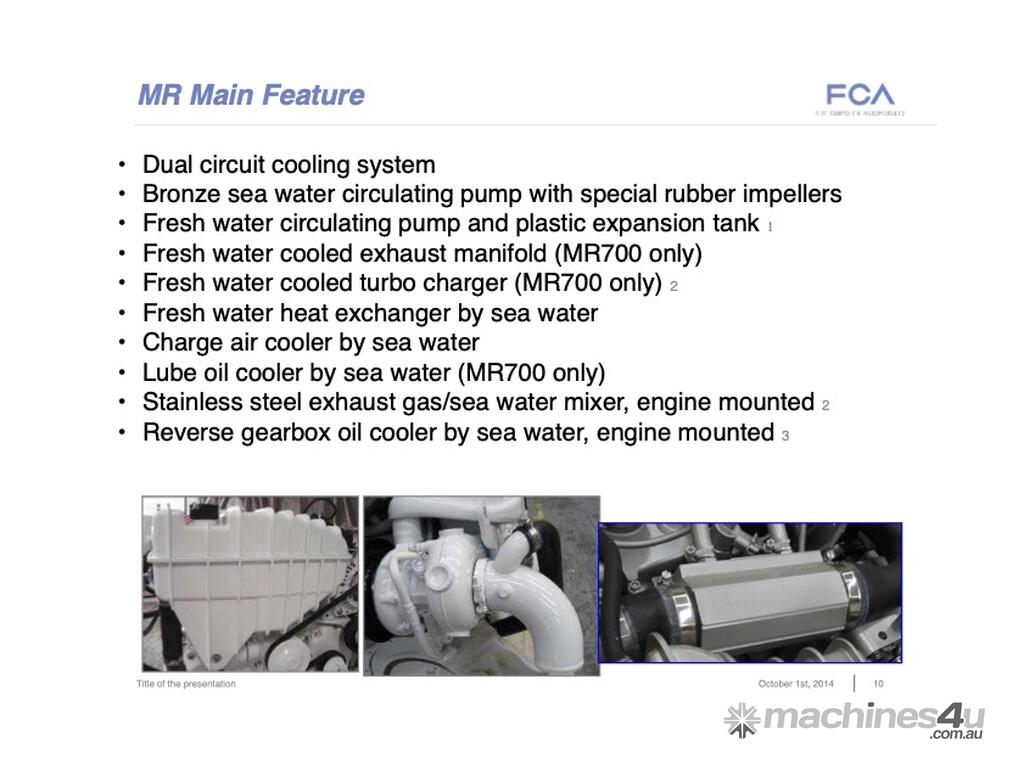

• Freshwater engine cooling system with seawater heat exchanger
• Engine lubricating oil cooled by heat exchanger seawater cooled
• Bronze seawater circulating pump with impeller in special rubber
• Centrifugal pump for freshwater circulation
• Stainless steel exhaust gas/seawater mixer
• Flexible mounts
