235kW/320HP 3800rpm diesel marine engine. 4 stroke turbocharge and aftercooled, direct injection diesel engine with electronically controlled common rail injection. Cooling controlled by separate fresh and salt water circuits, with extractable hoses for easy maintenance. Lube oil, water and air circuits designed to reduce external flexible pipes to a minimum to reduce loss of liquids in the bilge. Auxiliary devices driven by Poly-V belt to ensure excellent power transfer and long life. Electrical circuit protected by reactivate-able valves.
Scope of Supply:
• 12V Starter motor

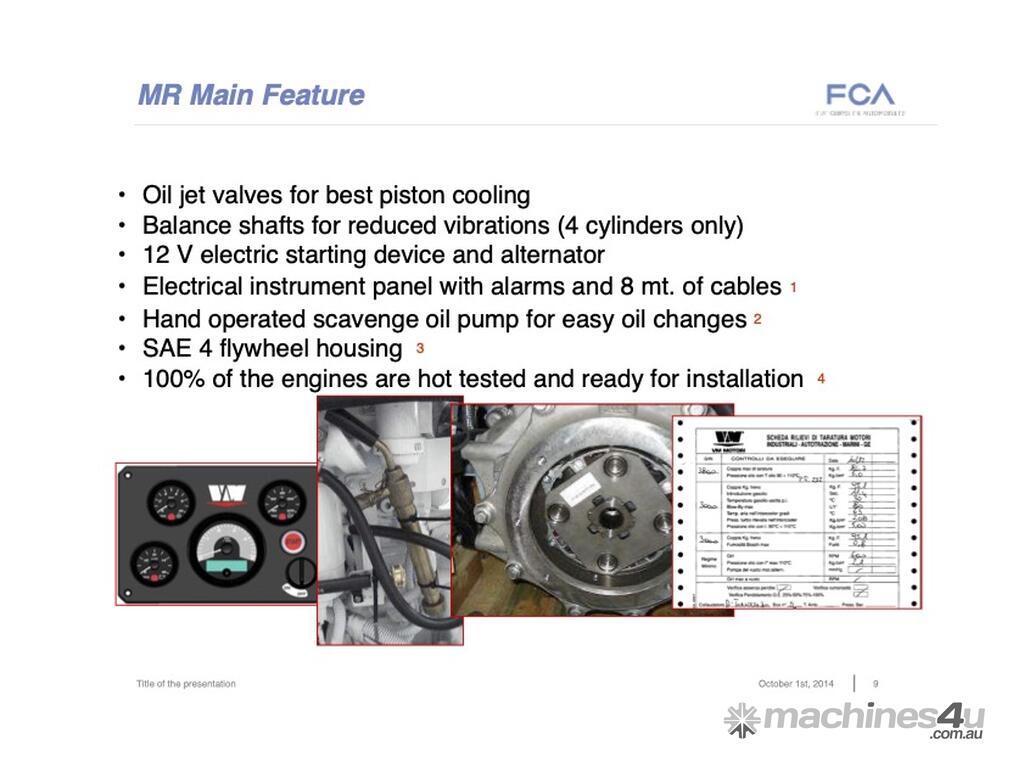

• Panel with electric instruments
• Alternator 12V-110A
• SAE4 Back-end
• Air and oil, fuel filters mounted
• Drain oil pump

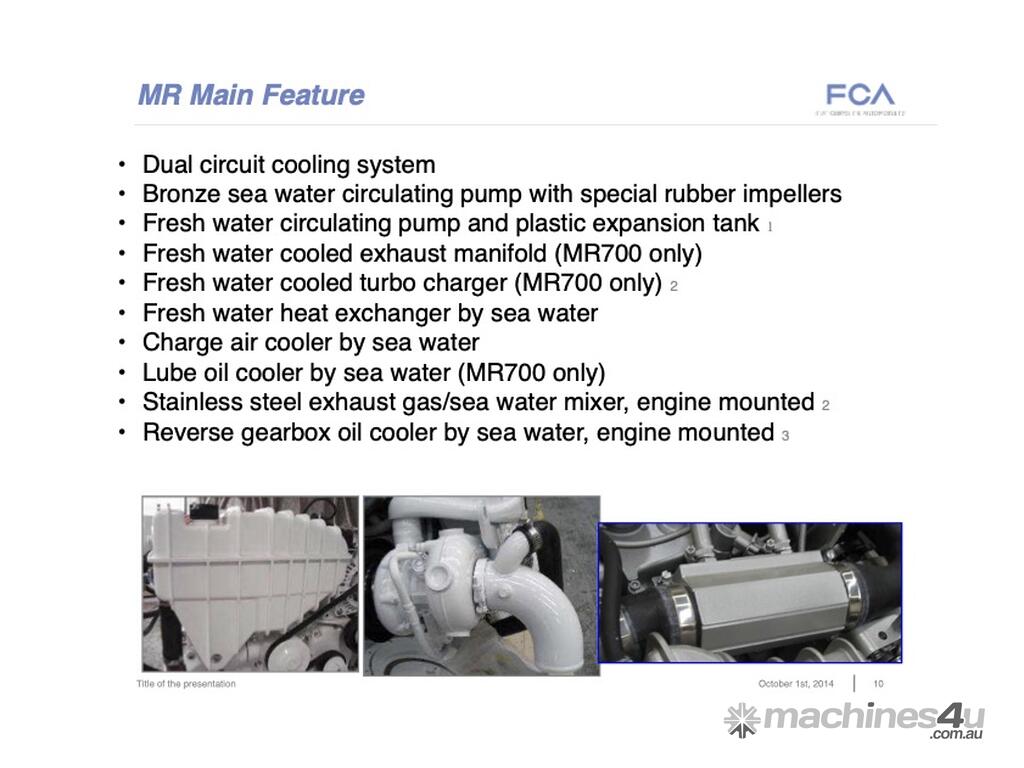

• Freshwater engine cooling system with seawater heat exchanger
• Engine lubricating oil cooled by heat exchanger seawater cooled
• Freshwater cooled exhaust manifold and freshwater turbocharger
• Bronze seawater circulating pump with impeller un special rubber
• Centrifugal pump for freshwater circulation
• Stainless steel exhaust gas/seawater mixer
• Flexible mounts
