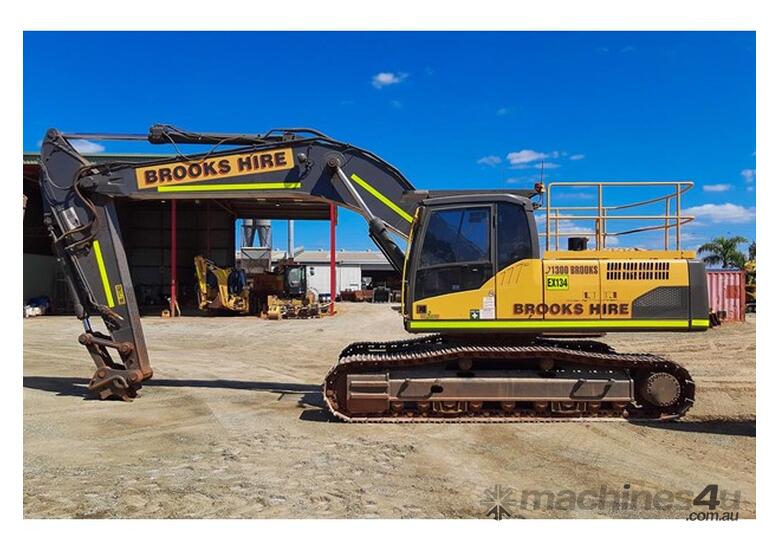

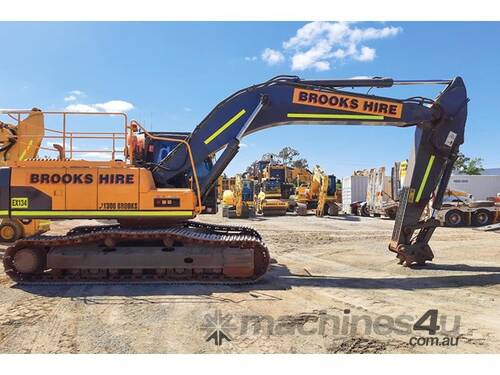

The Volvo 290 CLC compact hydraulic excavator incorporates high-level technology allowing outstanding performance.
EQUIPMENT DETAILS
Year 2012
Make Volvo
Model EC290
SPECIFICATIONS
Operating Weight 28813 kg
Flywheel horse power 106.6 kW / 1900 rpm
Bucket capacity (SAE heaped) 1.2 m3
PERFORMANCE
Travel speed Hi 5.2 km/h
Travel speed Lo 3.2 km/h
Swing speed 10.2 rpm
Ground pressure 53.9 kPa
DIMENSIONS
A Shipping Length of Unit 10480 mm
B Width to Outside of Tracks 3190 mm
C Shipping Height of Unit 3430 mm
D Length of Track on Ground 4015 mm
E Ground Clearance 480 mm
F Track Gauge 2590 mm
G Height to Top of Cab 3030 mm
H Tail Swing Radius 3970 mm
WORKING RANGE
I Max Cutting Height 9620 mm
J Max Loading Height 6690 mm
K Max Reach Along Ground 9950 mm
L Max Vertical Wall Digging Depth 5440 mm
M Max Digging Depth 6830 mm
O Counterweight Clearance 1145 mm
N Shoe Size 600 mm
