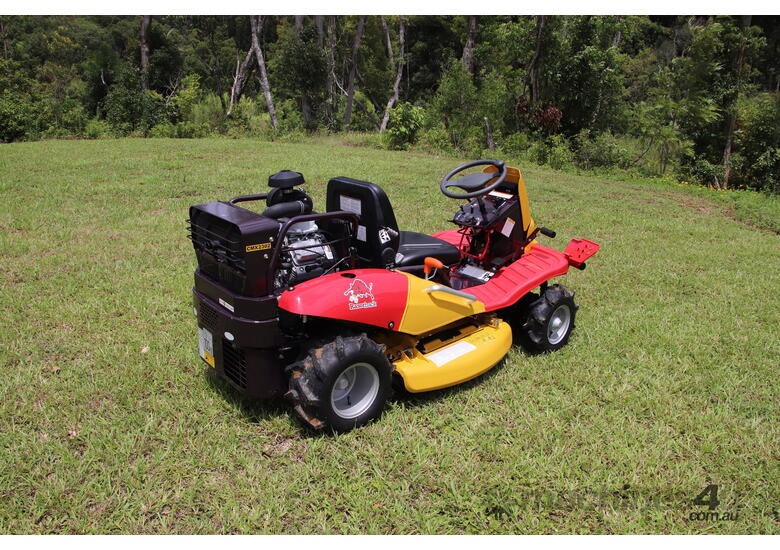

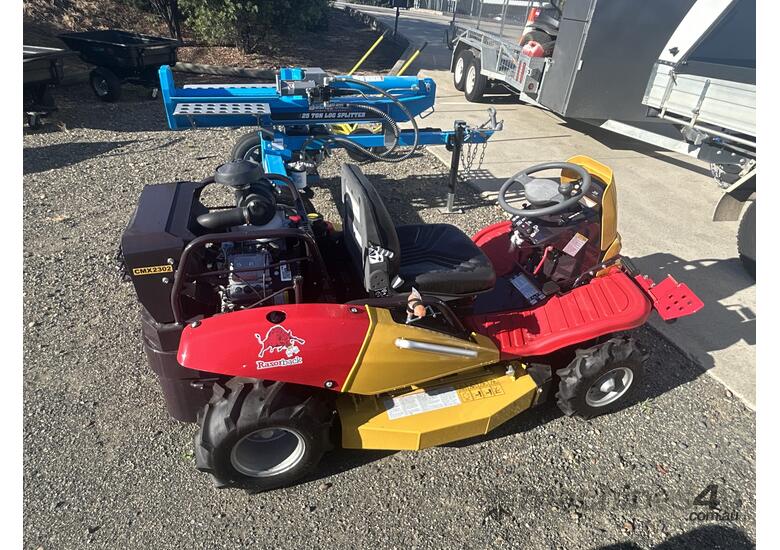

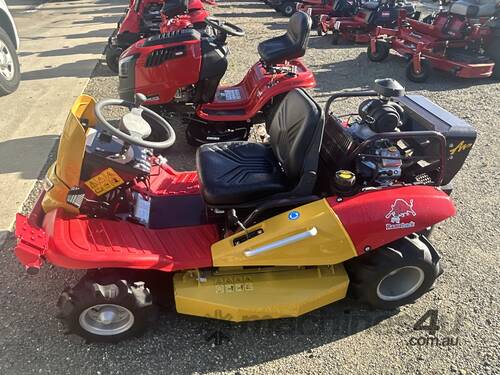

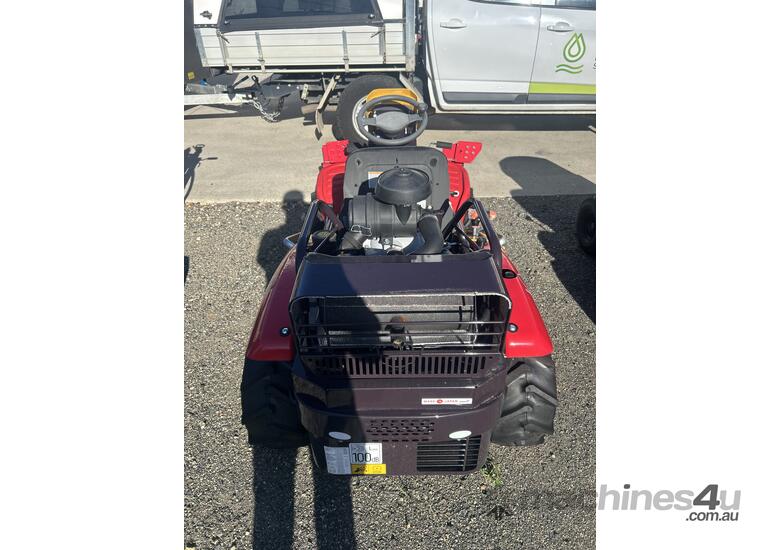

Valley Outdoors Group Razorback CMX2302

THE GRUNTIEST 4WD MOWER FOR MUD, CLIMBING, LONG AND SHORT GRASS, WEEDS, BRUSH AND SCRUB.



The CMX2302 is the ultimate extreme terrain mower! With the extra horsepower and ground clearance, the impossible can now be reached with this model. Ever thought you could change a set of blades without tools? Not only can you do this, but the deck sides open, making maintenance a breeze. Make yourself comfortable and take control of your scrub with the adjustable steering column and low seat position. This 4WD brushcutter is built for our harsh Australian conditions. See it to believe what it is really capable of!



23HP V-twin vanguard engine

Chain driven over head camshaft engine

High & low ratio gearbox

Limited slip diff lock selected from the dashboard

Specialist Diff lock for traction (works just as well climbing & descending)

Shaft driven cutter deck train

Variable speed Hydrostatic transmission complete with charge pump, oil filter & 7 litre tank

A cast iron compact tractor front axle set with planetary hubs

Foot control for forward & reverse movement

Selectable 2WD & 4WD from the dashboard on the run

Drum brakes and park brake

Dual range for increased pulling and climbing power

NO DECK BELT! Shaft driven cutting deck. Explore extreme terrain without the fear of breaking a belt / no loss of power from slipping on pullies

Low centre of gravity for amazing stability on slopes and rough terrain

Easy and safe control layout so anyone can operate

Steering column adjustable for reach, length and angle

Hour meter and grab handles

Easy tool-less blade changing – unique swinging & opening blade guard

Comfortable ride and easy operation

Low centre of gravity or amazing stability on slopes and rough terrain

Easy tool-less blade changing system with unique swinging & opening blade guard



Engine 23HP Vanguard 3864 V-Twin

Rated Net Output 17.1kW/3600rpm

Weight (fuel tank full) 450 Kg

Gradeability 25 degrees

Stability Angle 25 degrees left & right

Max Speed 13.8 km/h

Fuel Tank 20 Litres

Min turning radius 1800mm

Cutting Width 975 mm

Cutting Height 0 – 150 mm (21 heights)

Drive Train 4 Wheel Drive
