Variable Rake Guillotine MHGS3006

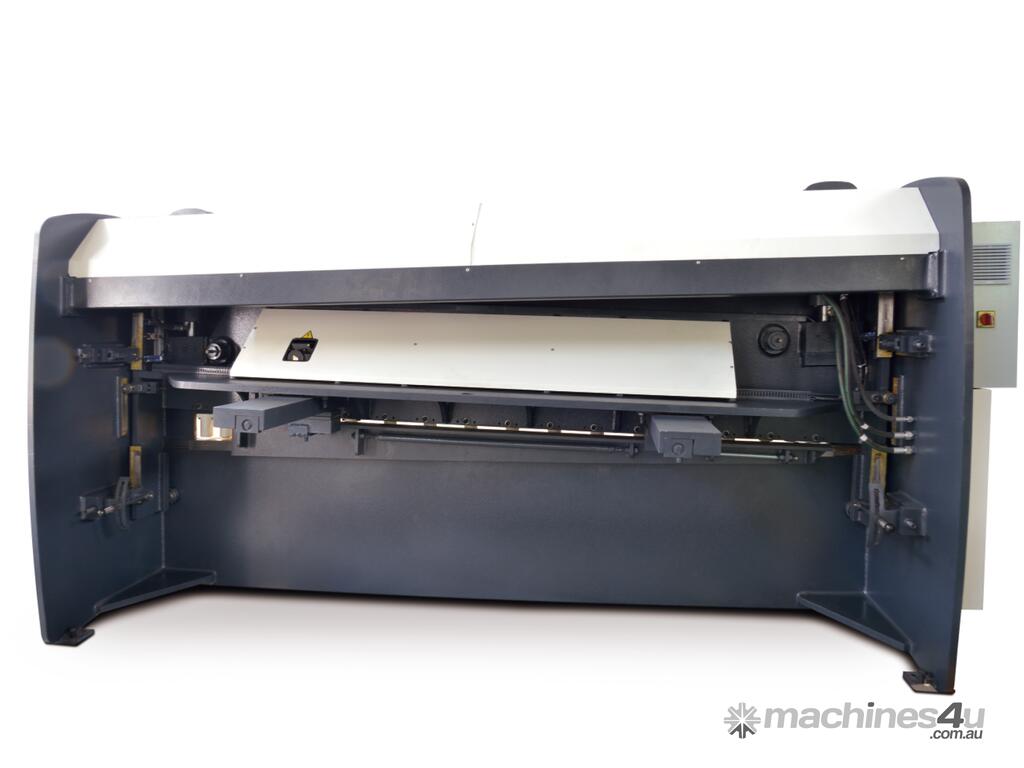

The MHGS hydraulic guillotine shears are driven by top mounted cylinders.

The fully open back provides the operator the possibility of easy removal or adapting different conveying and stacking systems to the machines.

The all-welded interlocked construction makes the machine virtually indestructible. The MHGS shears are delivered well equipped and have as standard the CTB2007C Touch Screen control.

The automatic rake and blade clearance setting on the MHGS guillotines are controlled by the CTB2007C control. We adjust the rake angle on the MHGS guillotines by pumping more oil into or releasing oil out of the right cylinder.

To set the blade gap, the CTB2007C controls 2 hydraulic cylinders which push the ram of the blade gap forward or backwards. The ram is guided between 4 spring loaded bearings.

The rake and clearance are set automatically by entering the material and thickness of the sheet to be cut.

The sheet hold-downs on the MHGS guillotine models are hydraulic controlled. The hold-downs use a separate hydraulic circuit with separate pump. A pressure activated switch is used for the right pressure setting. The hold-downs on both sides of the shear are installed closer together to cut small plates

The MHGS guillotines come standard with a shadow light function, to enable cutting of plate.

The MHGS guillotines come standard with a high speed servo-driven backgauge. The position accuracy of the backstop is 0.1mm.

All MHGS guillotines delivered to Australia are equipped with the European Safety Specifications. To allow much easier and safer access to the rear of the guillotine and to prevent injury while cutting HACO uses a CE approved light guard system.

MHGS guillotines are available standard from 2000mm x 4mm up to 4000mm x 16mm Capacity.
(Other sizes on request)


Standard Features:

Hydraulic motor-pump group arranged in front under the table of the machine, leaving the back-side completely free for easy removal of material.
2 Upper-driven push-down cylinders.
All operator controls are conveniently located at the left-hand side of the machine in the immediate reach of the operator.
CTB2007C control for automatic backstop setting, blade gap and rake angle setting
Tilting plate hold downs, pressure of which is independent from the shearing pressure, in order to clamp properly each sheet thickness.
High shock resistant premium quality blades with 4 cutting edges on all other models.
Servo driven back gauge, positioned by the CTB2007C control.
Shearing table with a number of square iron blocks, easing the sheet feed-in and increasing drastically operator's safety.
Squaring arm of 1000mm with scale, T-slot and disappearing stop, attached to the left side of the machine.
Movable foot pedal control.
Instructions and maintenance manual.
Filled oil tank.
Service tools
Installation, commissioning and training by a HACO service technician based in Australia.

Features of the CTB2007CSC90 control:

CTB-2007C is a powerful and productive Shear Control System, which offers complete solution for shear control, including back gauge, shear angle and stroke control. Its high-definition and colourful touch screen, clarity programming interface, provides the operator with better human-machine interaction.

Easy Operating
?7 inches TFT colourful touch screen and high-contrast
?Simple pages, large keys, easy for operating
?Easy management for programs
?Interactive pop-up dialog
?English and Chinese languages available

Better Shearing
?Easy setting for material
?Auto-calculation for shearing angle
?Multiple products and steps can be saved
?Back gauge (X axis) control
?Shear angle control
?Shear stroke control
?Retraction function
?Manual movement

Memory capacity : Max 16 programs with max. 20 steps per program.
Material list of max. 6 materials
Each program contains the basic cutting parameters such as material type, material thickness, blade gap and cutting angle setting
Electro-hydraulic blade gap setting
Electro-hydraulic cutting angle setting
Cutting length adjustment.
Automatic programmable retraction of the back gauge.
Backlash compensation.
Delayed sheet release selector
Mode selection Inch-Metric.
(Preset) counter with 0-stop.
Programmable backstop settings
