Variobend DB 10, 2.00 Up & Down Folder

The DB-models combine perfect interaction of precision and high speed. Using the VARIOBEND UP and DOWN Folder, you are unrivalled productive from programming to bending.

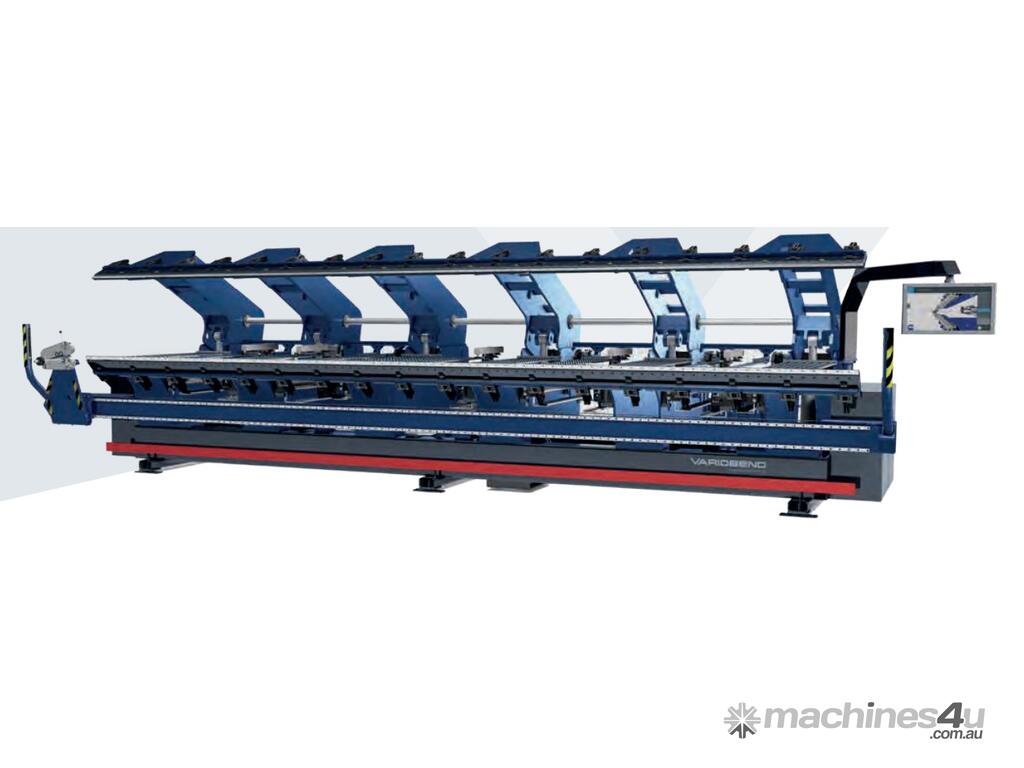

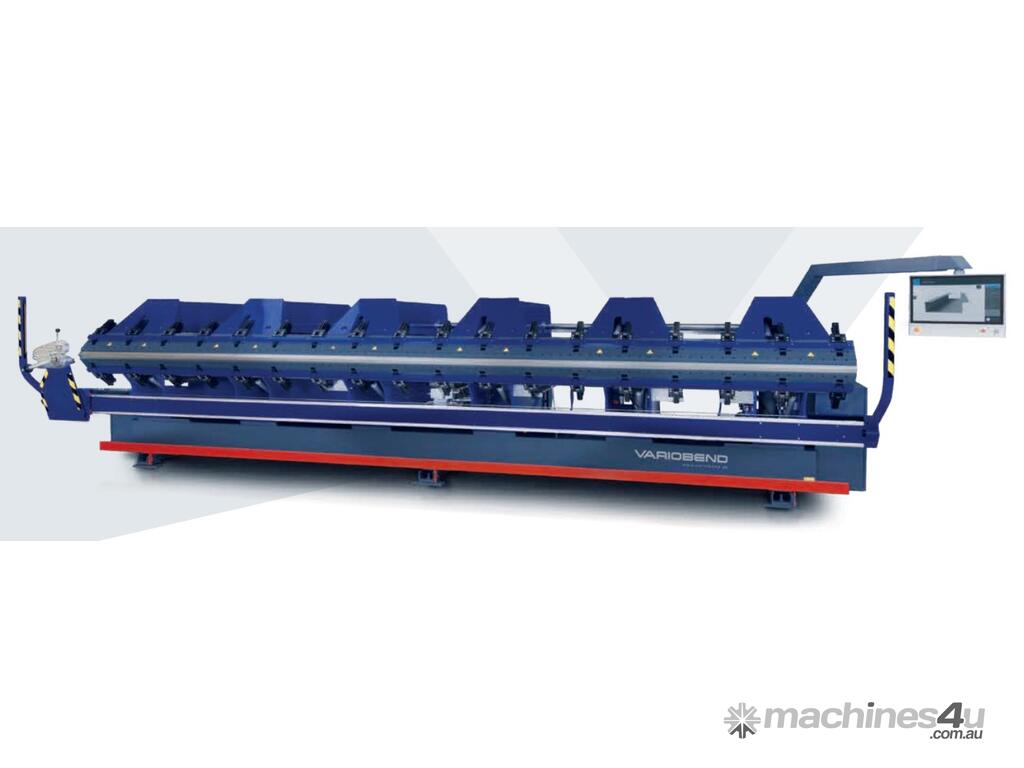

VARIOBEND UP and DOWN Folder of type DB is a high-performance long-length bending machine fitted with two folding beams. VARIOBEND innovations, such as the conical bending and slotting of profiles, the large opening height of the clamping beam, the segmented bending and clamping beams made of high strength steel as well as the patented bending system with its inclined bending beams belong to the basic equipment of DB.
The worldwide unique turning device is available for this model series as well. The models are available in lengths of 4 to
12 metres as well as with a bending capacity of 1.5 mm to 2.0 mm of steel sheet.
In combination with the servo technology used, these unique dynamics cause impressive and especially highly efficient movement patterns. The electric clamping beam crowning is an outstanding feature. The fully-automatic crowning system eliminates overbending at the outer sides of the edge parts. The clamp beam crowning and the servo technology is available for model series DB as an optional feature.

Working Length - 10.400m
Bending Capacity - 2.00mm
Insertion depth 1.250 mm

STANDARD EQUIPMENT
- Patented bending system with angular positioned bending beam
- Hydraulic Slitter up to 2,00 mm steel
- Servo Drive Motor
- Automated Crowning System
- Variobend 3D Touch Control
- Variobend Office Software package
- CNC – back gauge driven by ballscrews
- Extra hardened segments for clamping and bending beam
- Multifunction Pedal for bending, clamping and cutting operation
- Insertion depth 1.250 mm
- Variobend control on swivel arm
- Taper back gauge incl. stick together function
- Safety package incl. Light beam protection

THE PATENTED BENDING SYSTEM

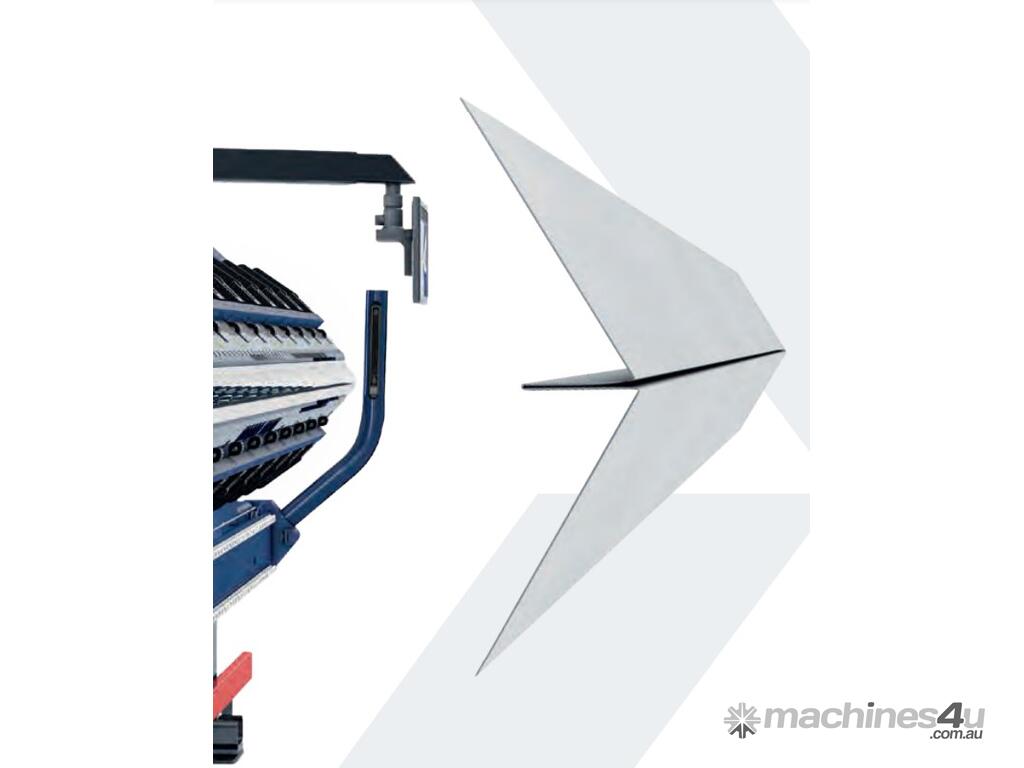

The patented bending system of Variobend with its inclined backward-bending beams enables an unprecedented variety of profiles. The large open space created by the inclined bending beams enables the production of profiles which are only possible on Variobend up and down folding machines.

VARIOBEND CUTTING DEVICE Guarantees perfect cutting results. The cutting device is attached to the chassis. This leaves the bending beam free from any guide rails

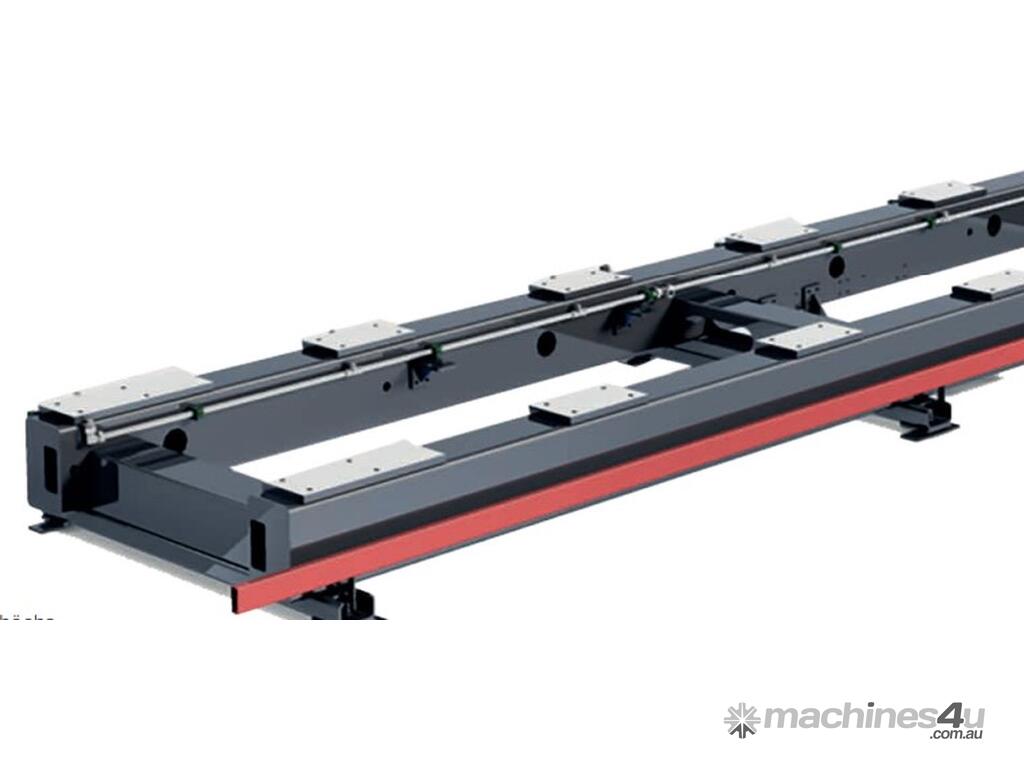

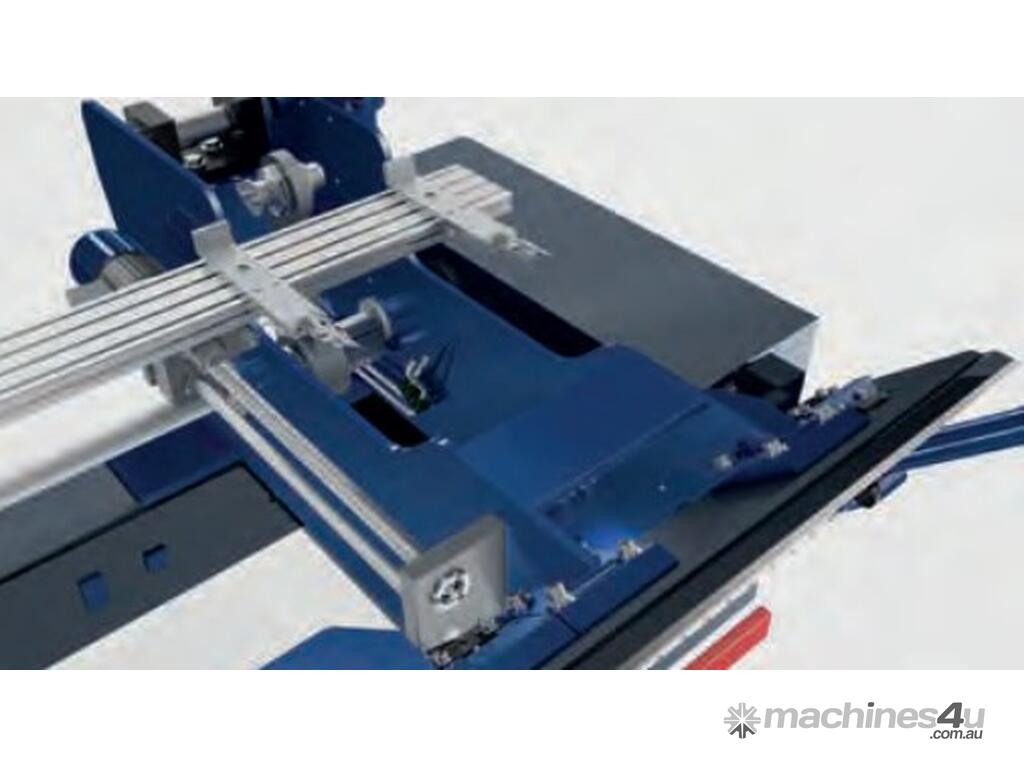

THE VARIOBEND BACK GAUGE
with a Range from 5 – 1000 / optional 1250 mm.

VARIOBEND CHASSIS
The solid base frame for the highest level of bending precision.

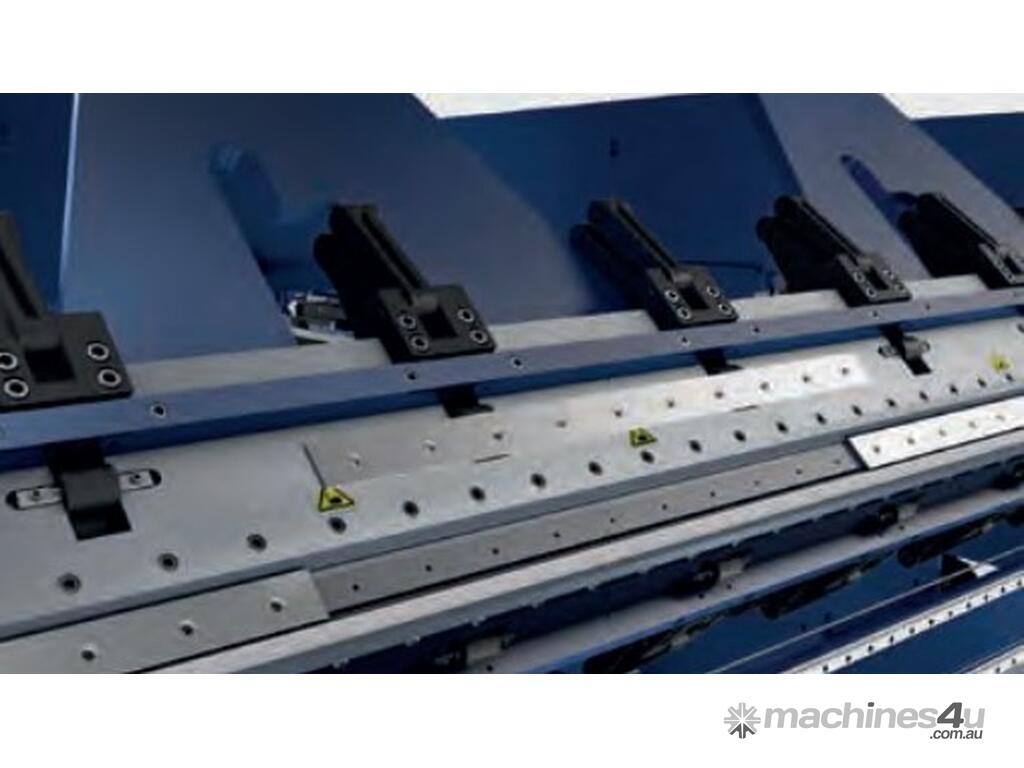

The high-strength BENDING AND CLAMPING BEAM
SEGMENTS are extra hardened. This ensures the best bending. Separate segments allow fast change.

VARIOBEND DRIVE CONCEPT
combines highest bending speed with lowest power consumption. By using a Start/Stop technology the energy consumption reaches a minimum. With the optional Servo technology much higher bending speed with an even further reduction of energy consumption can be reached.

The unique Opening Height of 700mm makes it possible for one person only to turn profiles on the machine table.
In addition this design allows the uncoiling of small coils in the machine.

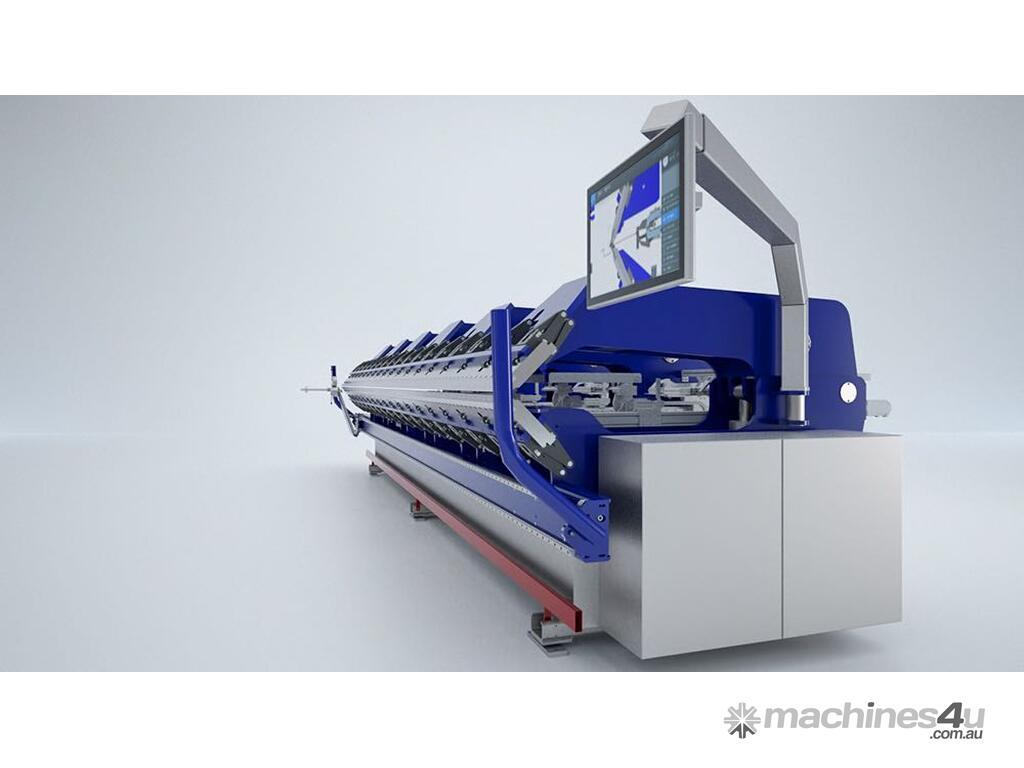

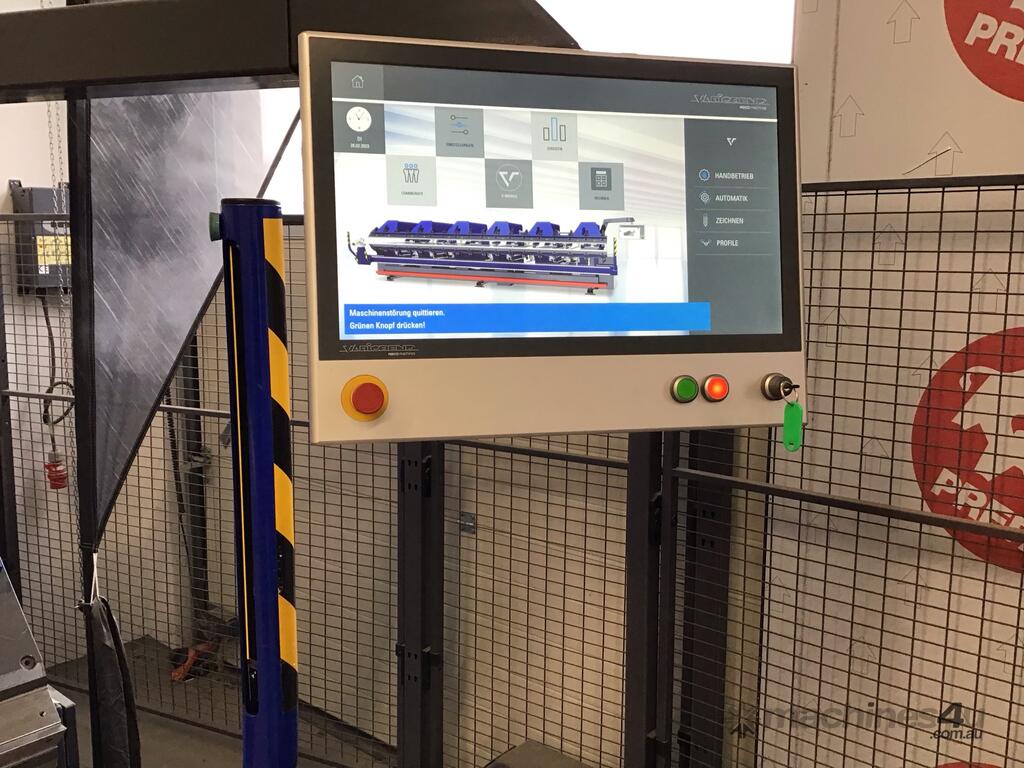

Variobend V-Touch | Machine control
• Modern dashboard for easy navigation
• Clearly arranged profile management
• New profiles can be drawn and dimensioned with a finger in a user-friendly way.
• Presentation in 2D and 3D
• Automatic cutting pattern calculation including K factor (proof sheet for leg length by bend deformation)
• Automatic bend sequence calculation to reduce material handling
• In simulation, the complete bending process can be checked for the absence of collision
• Graphic display of the colour or visible side
• Animated bending sequence in 2D to check for collisions
• Material database for automated angle correction depending on material and thickness
• Cutting program including conical cut function
• Import and export function
• Interface to several Software solutions (SEMA, BENDEX, NuIT)
• Saving of more than 10,000 profiles is possible

VARIOBEND CROWING SYSTEM
The automated crowing system reduces or eliminates overbending at the outer side of the part.

SERVO DRIVE MOTOR
Variobend RP-Technology (Start|Stop)
Higher output because of approx.. 30 % more bending speed

Variobend Pro 4.0 Desktop Software
Increase your output
Many order and small lots – this means for you that your machine operators or programmers have to programme faster – error-free! With VARIOBEND Pro 4.0 you have sufficient time for an efficient work preparation. VARIOBEND Pro 4.0 software displays
all process steps for an efficient planning process. With VARIOBEND Pro 4.0 you do not program your long-length bending machine or your twin bending machine at the machine, but in one or several workplaces, parallel to production. This process reduces auxiliary process times distinctly and thus increase the machine availability dramatically. No time-consuming training on the machine. Thus, your VARIOBEND works productively without breaks.

Optional Extras available upon request.

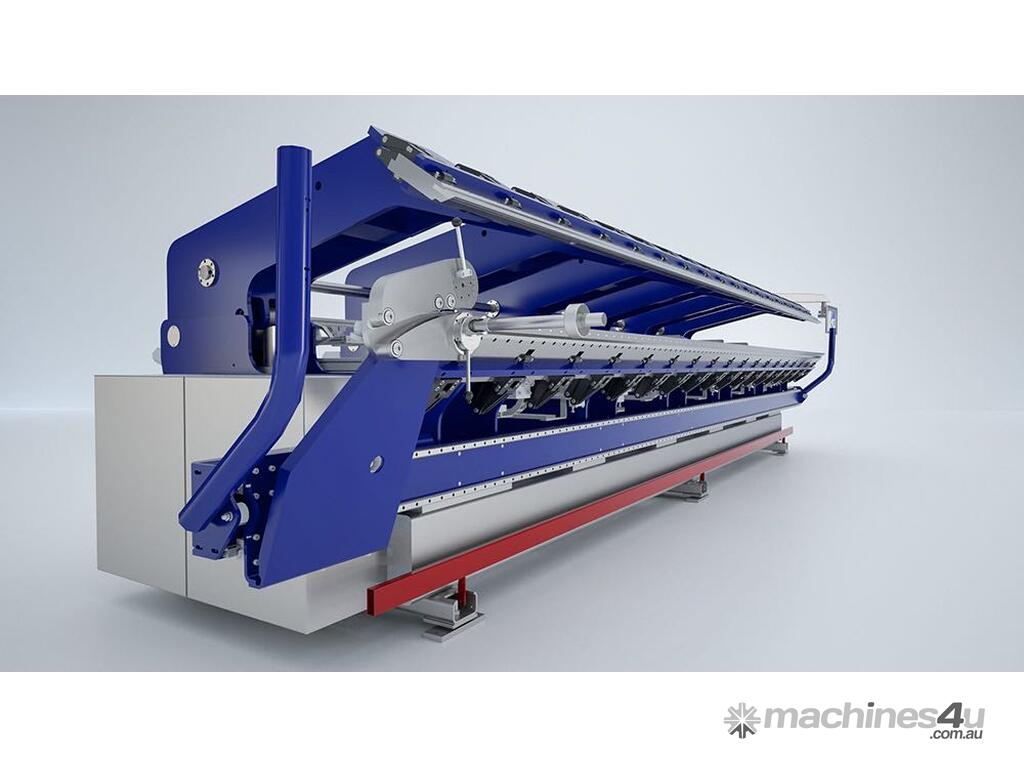

FLIPPING DEVICE
Unique and the first in the World – Sheets can be turned fully automatically over the entire working length.

CUTTING DEVICE
A worldwide industry innovation is available from now. The new optional Variobend cutting device I-Cut. This intelligent cutting device adjust itself individually to the each required material. By using modern servo technology
the overlap- and gap adjustment adapts automatically to each material. The
programming will be done over the user-friendly Variobend V-Touch machine
control. This intelligent cutter is driven by a high efficient belt drive. The max.
cutting capacity goes up to 2,50 mm steel.

THE VARIOBEND GRIPPER SYSTEM
Automated production process allows over grip of existing bends up to 38mm, perfect positioning by using ball screws.

THE AUTOMATION OF PRODUCTION PROCESSES
is becoming increasingly relevant for small and medium-sized companies. Due to the ever-increasing shortage of skilled workers, it is becoming more and more important to make effective use of one‘s employees. Variobend Automation offers an
intelligent and at the same time cost-efficient solution in this respect. The combination of Slinet or another slitting and cut-to-length machine and a Variobend Up and Down Folder with side feed makes it possible to automate the entire production process from sheet cut to the finished profile to the maximum.
The movable, smart working table represents an innovation in the industry. Here, a wide variety of jobs with different width and lengths can be processed from the slitting line without prior manual sorting. The table is monitored with the help
of the integrated camera system. In addition, the integrated scanner automatically selects the appropriate sheet blanks and then feeds them into the Up and Down Folder.
