Variobend DB 4 1,50 Up and Down Folder

The DB-models combine perfect interaction of precision and high speed. Using the VARIOBEND UP and DOWN Folder, you are unrivalled productive from programming to bending. VARIOBEND UP and DOWN Folder of type DB is a high-performance
long-length bending machine fitted with two folding beams. VARIOBEND innovations, such as the conical bending and slotting of profiles, the large opening height of the clamping beam, the segmented bending and clamping beams made of high strength steel as well as the patented bending system with its inclined bending beams belong to the basic equipment of DB. The worldwide unique turning device is available for this model series as well. The models are available in lengths of 4 to
12 metres as well as with a bending capacity of 1.5 mm to 2.0 mm of steel sheet. In
combination with the servo technology used, these unique dynamics cause impressive and especially highly efficient movement patterns. The electric clamping beam crowning is an outstanding feature. The fully-automatic crowning system eliminates overbending at the outer sides of the edge parts. The clamp beam crowning and the servo technology is available for model series DB as an optional feature.

THE PATENTED BENDING SYSTEM
The patented bending system of Variobend with its inclined backward-bending beams enables an unprecedented variety of profiles. The large open space created by the inclined bending beams enables the production of profiles which are only possible on Variobend up and down folding machines.

FLIPPING DEVICE
Unique and the first in the World – Sheets can be turned fully
automatically over the entire working length.

CUTTING DEVICE
A worldwide industry innovation is available from now. The new optional Variobend cutting device I-Cut. This intelligent cutting device adjust itself individually to the each required material. By using modern servo technology the overlap- and gap adjustment adapts automatically to each material. The programming will be done over the user-friendly Variobend V-Touch machine control. This intelligent cutter is driven by a high efficient belt drive. The max. cutting capacity goes up to 2,50 mm
steel.

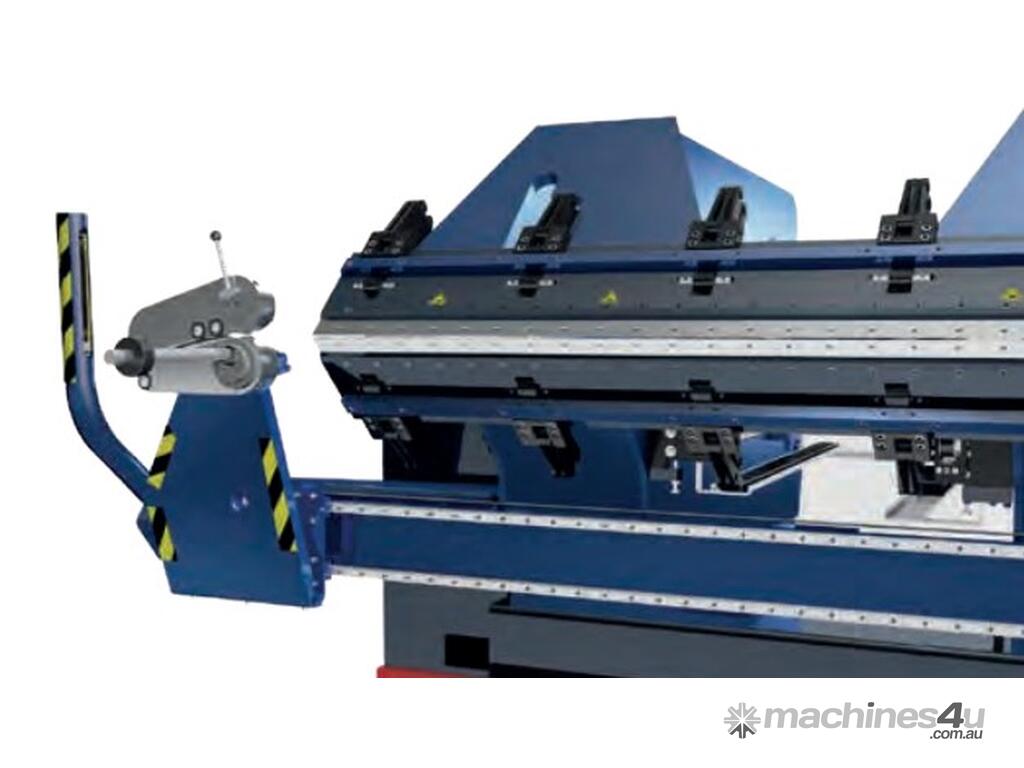

VARIOBEND CUTTING DEVICE
Guarantees perfect cutting results. The cutting device is attached to the chassis. This leaves the bending beam free from any guide rails.

VARIOBEND CROWING SYSTEM
The automated crowing system reduces or eliminates overbending at the outer side of the part.

THE VARIOBEND GRIPPER SYSTEM
Automated production process allows overgrip of existing bends up to 38mm, perfect positioning by using ball screws.

THE VARIOBEND BACK GAUGE
with a Range from 5 – 1000 / optional 1250 mm

VARIOBEND CHASSIS - the solid base frame
for the highest level of bending precision.

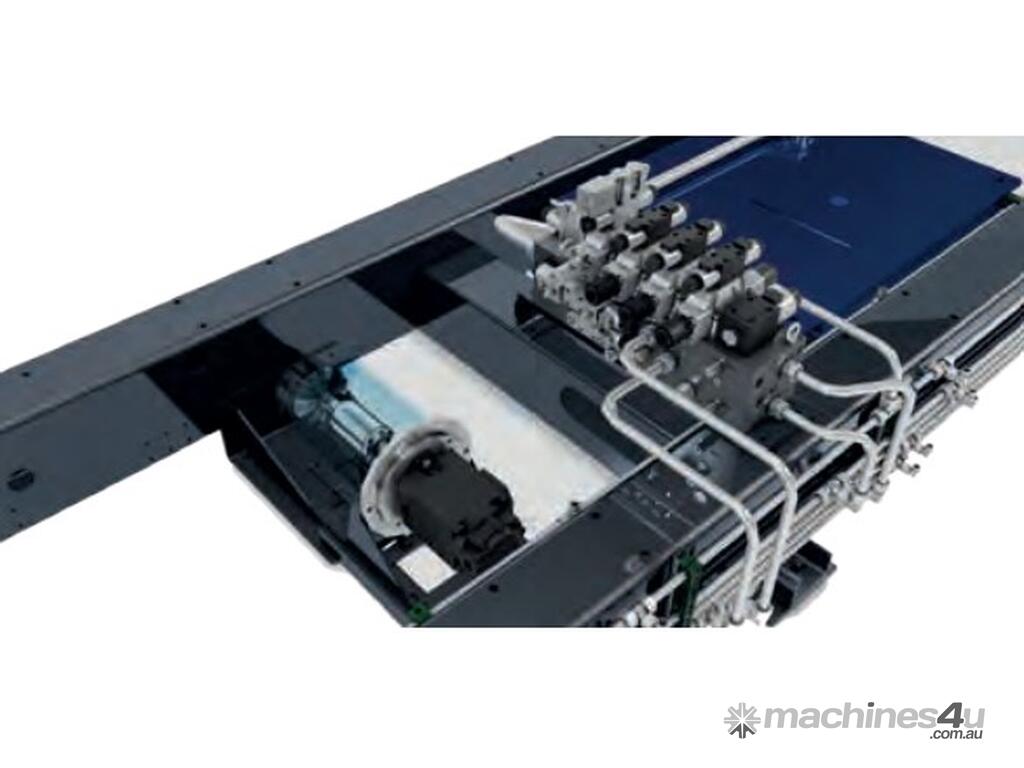

VARIOBEND DRIVE CONCEPT
combines highest bending speed with lowest power consumption. By using a Start/Stop technology the energy consumption reaches a minimum. With the optional Servo technology much higher bending speed with an even further reduction of energy consumption can be reached.

The high-strength BENDING AND CLAMPING BEAM SEGMENTS are extra harden. This ensure best bending. Seperatesegments allow fast change.

700mm Opening Height
The unique Opening Height of 700mm makes it possible for one person only to turn profiles on the machine table. In addition this design allows the uncoiling of small coils in the machine.

THE AUTOMATION OF PRODUCTION PROCESSES
is becoming increasingly relevant for small and medium-sized companies. Due to the ever-increasing shortage of skilled workers, it is becoming more and more important to make effective use of one‘s employees. Variobend Automation offers an
intelligent and at the same time cost-efficient solution in this respect. The combination of Slinet or another slitting and cut-to-length machine and a Variobend Up and Down Folder with side feed makes it possible to automate the entire production process from sheet cut to the finished profile to the maximum. The movable, smart working table represents an innovation in the industry. Here, a wide variety of jobs with different width and lengths can be processed from
the slitting line without prior manual sorting. The table is monitored with the help of the integrated camera system. In addition, the integrated scanner automatically selects the appropriate sheet blanks and then feeds them into the Up and Down Folder.
