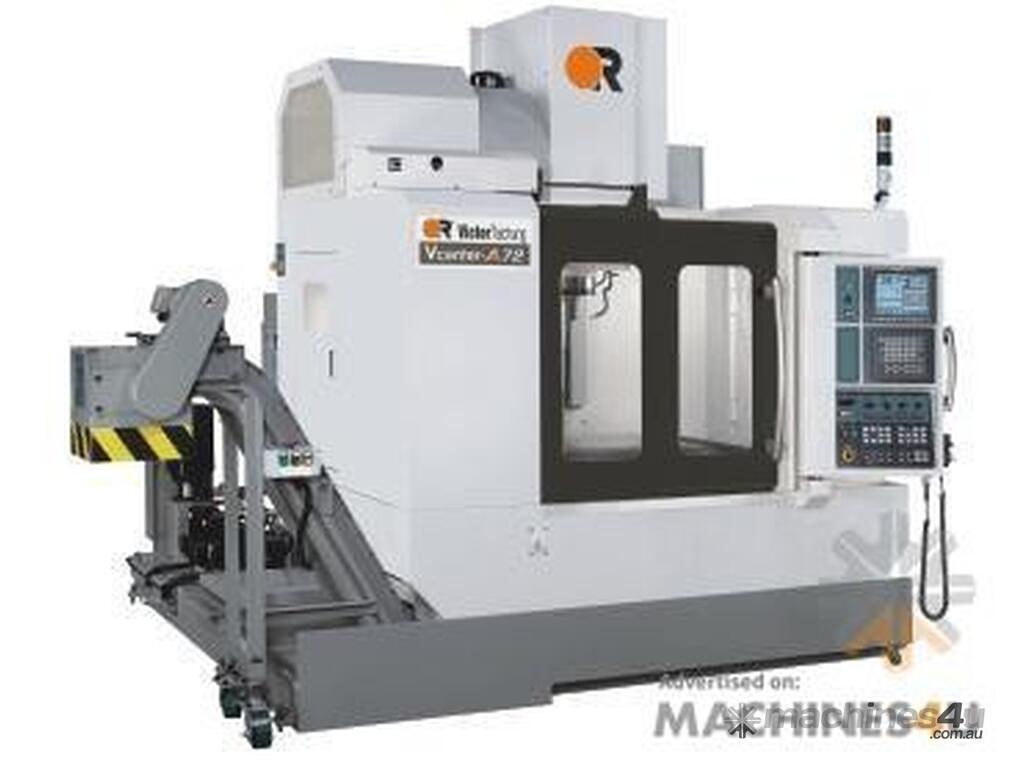

New victor taichung CNC Machining Centre for sale - Vcenter A72

Specifications:
X-axis trave: 720 mm
Y-axis travel: 480 mm
Z-axis travel: 660 mm
Table working area: 800x460 mm
Rapid feed X/Y/Z: 48/48/48 m/min
Tooling: BT-40
Spindle Speed: 12000 rpm
Spindle Power: 7.5/11/15 kW
Machine weight: 5500 kg

STANDARD FEATURES:
- Fully enclosed splash guard
- Fanuc 21i-MB control
- Spindle oil cooler
- Air conditioner for electric cabinet
- Two screw-type chip removers
- Rigid tapping
- Remote MPG
- Hand tools and toolbox
- T nuts for table slot
- 3-step warning light
- Auto power off system
- Leveling blocks
- Oil skimmer
- Air gun
- Coolant gun

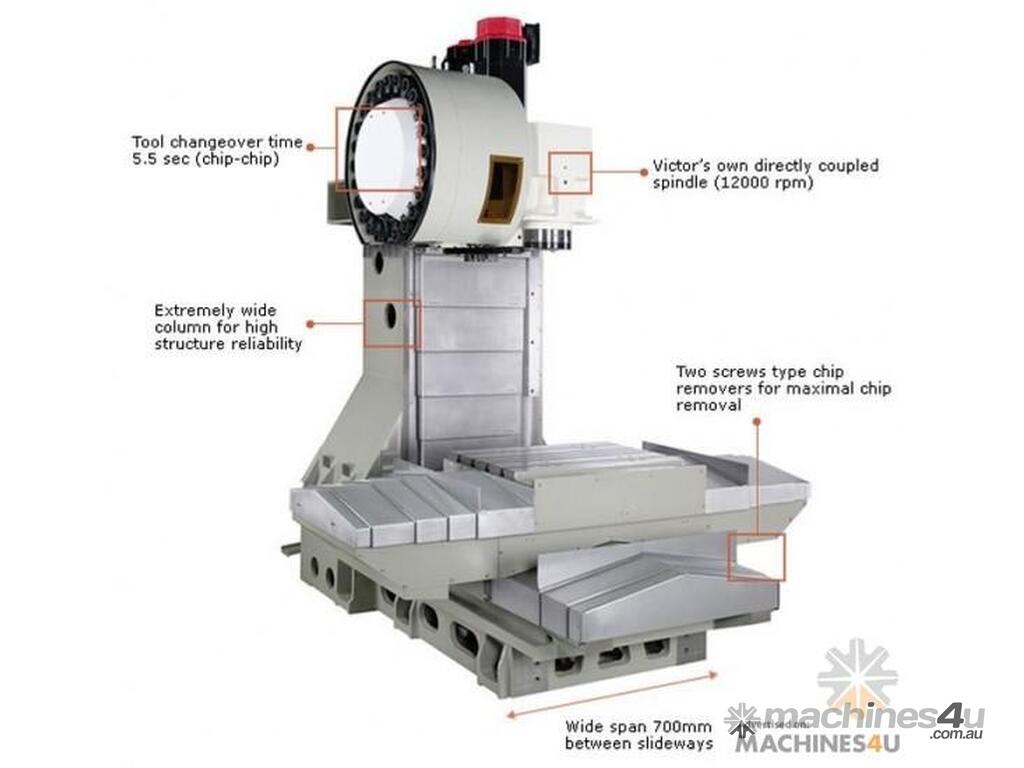

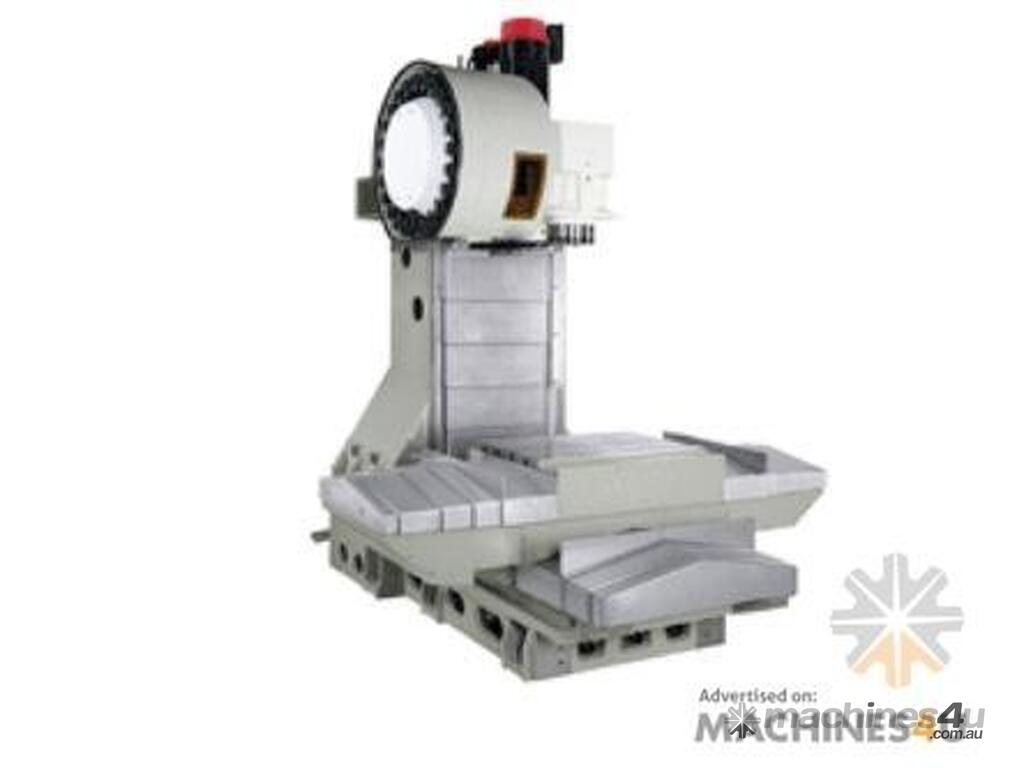

The new Vcenter machining centres have upgraded rapid feed rates up to 48 m/min on all axes with improved acceleration to maximize spindle utilization. The high rigidity dynamic structure made from Meehanite© castings enables the high acceleration and movement of the machine. The new 12.000 rpm DCS spindle is coupled to the spindle motor to avoid vibrations for improved surface finish and accuracy.

- Coupled Spindle (DCS) with 12.000rpm
- Improved rapid feed rates and acceleration
- High rigidity dynamic structure
- Easy acces to working area and optimal swarf and coolant disposal
