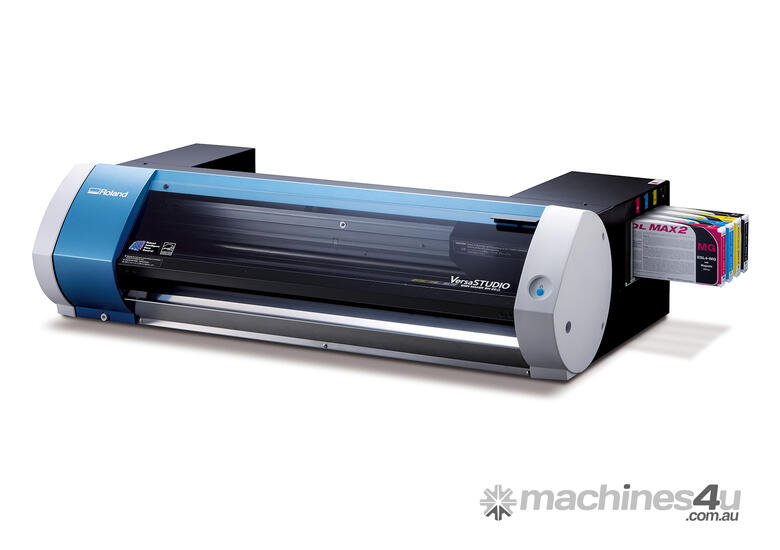

VersaStudio BN-20/20A Printer/Cutter

Print and Cut right from your desktop.
The BN-20 packs everything into one, powerful, profit-producing package. With award-winning eco-solvent inks including metallic and white options, a range of material compatibility and integrated contour cutting, the BN-20 is easily the most versatile print device in its class. The BN-20 is perfect for creating T-shirt graphics, poster prints, stickers and decals – all from the comfort of your desktop.

Achieve So Much More
Not only does the BN-20 desktop inkjet printer cutter open up a world of graphics possibilities, but it does it with the highest level of quality. Featuring a piezo inkjet print head that prints up to 1440 dpi, the BN-20 delivers exceptional quality prints with smoother gradations, richer density and deeper image saturation for photographic and vector output.

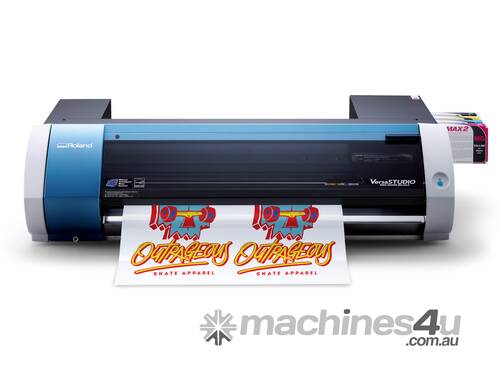

Print and Cut in One Integrated Workflow
The VersaStudio streamlines the production process by automatically contour cutting its printed output and eliminating the need to reload and reposition graphics. For laminated graphics, our Quadralign® four-point optical registration system allows users to remove prints, laminate and reload them for cutting. Quadralign automatically realigns the cutting path and compensates for skew and distortion

Distinguishing Features
Compact 20-inch inkjet with integrated printing and contour cutting
A versatile machine for printing T-shirt graphics, decals, stickers, signs, posters and more

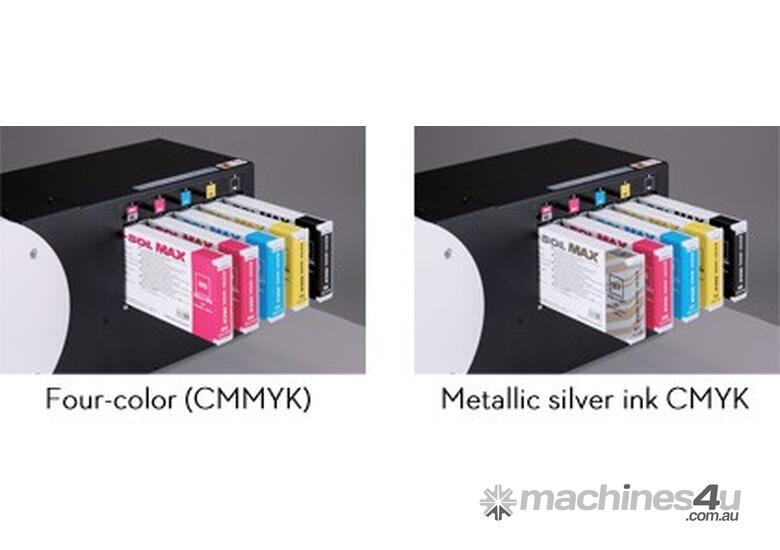

Ink options include CMMYK, CMYK+White and CMYK+Metallic Silver
Legendary Roland reliability for continuous, economical production

No Roland Has Even Been Easier to Use
All functionality of the BN-20 is handled through included software which controls basic machine functions, status and calibrations. An intuitive device, the BN-20 simplifies print production and helps users easily manage output and costs by monitoring replacement of consumable parts like wipers and contour cutting blades.

Professional Ink Options in a Desktop Device
Roland ECO-Sol MAX ink offers fast drying time, high density, a wide colour gamut, rugged scratch resistance, a low cost per square foot and broad media support. The BN-20 can be set up in for printing both standard and luxury items.

Specification:
Printing method / Cutting method Piezoelectric inkjet / Grit roller feed
Acceptable media - Width 150 to 515 mm
Acceptable media - Thickness Printing: Maximum 1.0 mm with liner
Cutting: Maximum .4 mm with liner
Acceptable media - Roll Weight Maximum 6 kg
Acceptable media - Roll Outer Diamater Maximum 150 mm
Acceptable media - Core Diamater 50.8 mm or 76.2 mm cores
Printing/cutting width *1 Maximum 480 mm
Ink cartridges - Type & Capacity Roland ECO-SOL MAX, 220 ml only
Ink cartridges - Colours 5 Colour – CMYK+Mt (Cyan, Magenta, Yellow, Black and Metallic Silver) or CMYK+Wh (Cyan, Magenta, Yellow, Black, and White)
or 4 Colour - CMMYK (Cyan, Magenta, Yellow, Black)
Printing resolution Max 1440 dpi
Cutting Blade - Type Roland CAMM-1 series cutter blade
Cutting Blade - Blade Offset Fixed at 0.250 mm
Cutting speed 10 mm/s to 150 mm/s
Blade force 30 to 300gf
Software resolution (when cutting) 0.025 mm/step
Distance accuracy (when printing) *2 *3 Error of less than +/- 0.3 % of distance traveled, or +/- 0.3mm, whichever is greater.
Distance accuracy (when cutting) *2 *4 Error of less than +/- 0.4 % of distance traveled, or +/- 0.3mm, whichever is greater.
Repetition accuracy (When cutting) *2 *5 +/- 0.1 mm or less
Alignment accuracy for printing and cutting *2 *6 +/- 0.5 mm or less
Alignment accuracy for printing and cutting when reloading media *2 *7 Error of less than +/- 0.5% of distance traveled, or +/- 3mm (0.012 in), whichever is greater
Print Heater Temperature *8 Fixed at 35C
Connectivity USB 2.0
Power-saving function Automatic sleep feature / AC 100 to 240V +/- 10%, 1.5 A, 50/60 Hz
Power Consumption - During Operation Approx. 90 W
Power Consumption - Sleep Mode Approx. 5.5 W
Acoustic Noise Level - During Operation 62 dB (A) or less
Acoustic Noise Level - During Standby 42 dB (A) or less
Dimensions/Weight 995 W x 585 D x 291 H mm, 35 kg
Operating Conditions - Power on Temperature: 20 to 32o C, humidity: 35 - 80% RH (non condensing)
Operating Conditions - Power off Temperature: 5 to 40o C, humidity: 20 - 80% RH (non condensing)
Included Items Power cord, USB cable, blade, blade holder, Rolandsoftware Package *9, VersaWorks Software, User's Manual, etc
The length of printing or cutting is subject to the limitations of the program.
Using Roland specified media, loaded correctly, temperature: 25°C (77°F), humidity: 50 %RH, all pinch rollers are used, 25 mm or more for both right and left margins and 35 mm or more front margin, excluding expansion or contraction of the emdia, and all correction and adjustment functions of this machine have been made properly.
Using Roland specified media, print travel of 1m.
Using Roland specified media, cut travel of 1m.
Range for assured repetition accuracy: Length 1,000 mm.
Provided that media length is under 1,000 mm. Excluding possible shift caused by expansion/contraction of the media and/or by reloading the media.
Using Roland specified media, data size: 1,000 mm in the media-feed direction, 480 mm in the carriage-movement direction. No lamination. Automatic detection of crop marks at 4 points when media is reloaded. Excludes the effects of skewed movement and of expansion and contraction of the media.
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. The preset temperature may fail to be reached 35°C (95°F) depending on the ambient temperature and media width.
Roland Software Package includes: Windows driver, OnSupport software, utility software and R-Works design software

Please Note, Ink, Delivery Installation not included in price
