Versatile DeltaTrack 520 | 620

MODELS 520 | 620

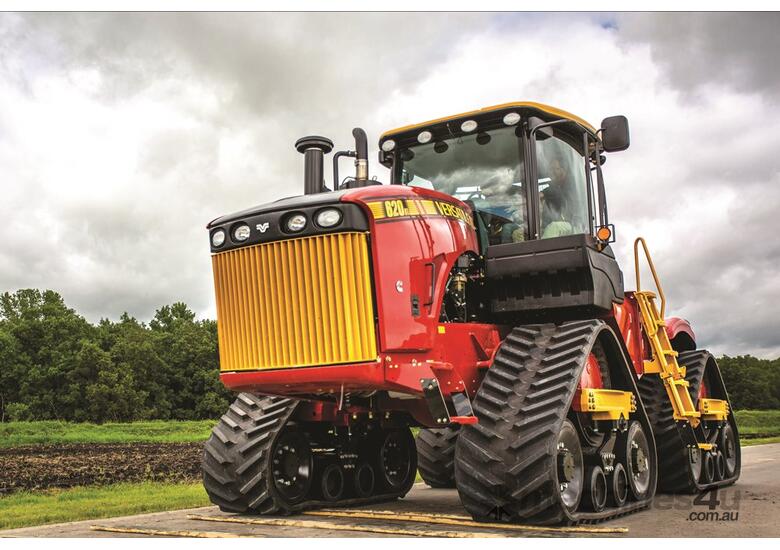

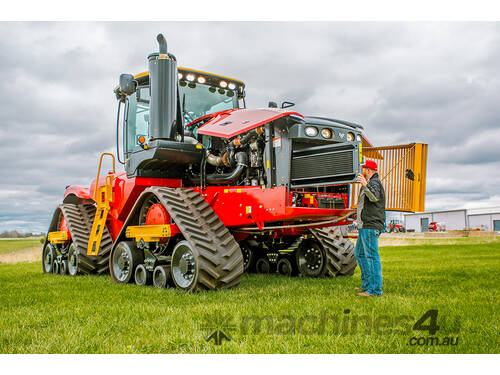

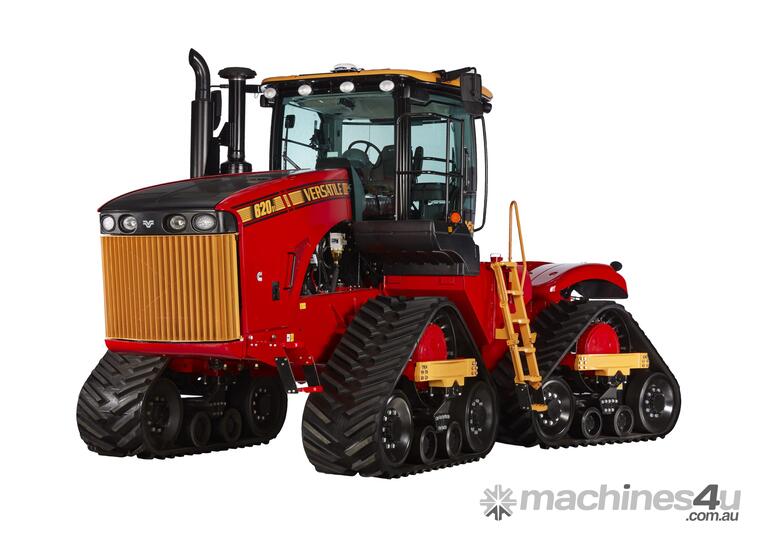

The Versatile DeltaTrack is a fully integrated purpose-built four-track system from Versatile. Available in two models, 520DT and 620DT, the DeltaTrack exceeds the performance and durability of existing track systems, employing the proven Versatile outboard planetary system to maximize power to the ground. Four independent tracks maintain balance and provide constant contact with the ground. The DeltaTrack is built using the most advanced track design in the agriculture industry and features proven Cummins engine technology, rugged CAT® powershift transmissions, and legendary Versatile reliability and serviceability.

**Cummins QSX 15L Large Capacity Engine:**
The DeltaTrack uses a responsive QSX15 Cummins engine. The unmatched engine displacement and Cummins technology help produce excellent torque response and pulling power.

**Tier 3 Diesel Only:**
The engine design complies with Tier 3 emission standards, utilizing diesel fuel only.

**16/4 CAT Powershift Transmission:**
The DeltaTrack uses the heavy-duty CAT TA22 powershift transmission. Sixteen forward and four reverse gears shift seamlessly under load to create a more comfortable operating environment. A large selection of working gears is available to match almost any application. The TA22 is fully programmable for autoshift and speed matching. Capable of road speeds up to 35 km/h, the DeltaTrack moves between fields efficiently.

**Active Leather Seat (Heating/Cooling):**
The tractor features an active leather seat with heating and cooling capabilities, enhancing operator comfort.

**Diff Locks & Drawbar Pull:**
The tractor is equipped with differential locks and a drawbar pull feature, enhancing its capabilities in various applications.

**3m Control Traffic Kit Available:**
A 3m control traffic kit is available for specific applications, providing versatility in farming operations.

**Features:**

**Track System:**
The DeltaTrack uses a positive drive system to reduce wear, friction, and heat. Track slippage is eliminated by interlocking track lugs into the drive wheel. The DeltaTrack keeps 4.6 lugs engaged with the drive wheel at all times to eliminate slippage between the track and drive wheel. The DeltaTrack uses the largest drive lugs (8-1/2``) in the industry to maximize operating life.

**Cabin:**
The new Deluxe Cab is a high-end, full-featured cab that provides the operator with every imaginable comfort for long working days. A semi-active air-ride suspension seat and the training seat are both standard in this configuration. In addition to the connectivity options available in the standard cab, the Deluxe Cab has a 110v AC power outlet and a 5-volt integrated USB port. A sub-woofer is also standard to improve sound quality in the cab.

**Cabin Suspension:**
The suspended cab on the DeltaTrack, combined with the optimization of the undercarriage, provides the best ride in the industry. The suspended cab is raised onto the four-point shock and spring system that works in tandem with the tuned torque arms that reduce or eliminate pitch and roll movement. Bringing together Versatile's double-axes bogie system and the suspended cab gives the DeltaTrack a superior system to any track-based agricultural tractor on the market.
