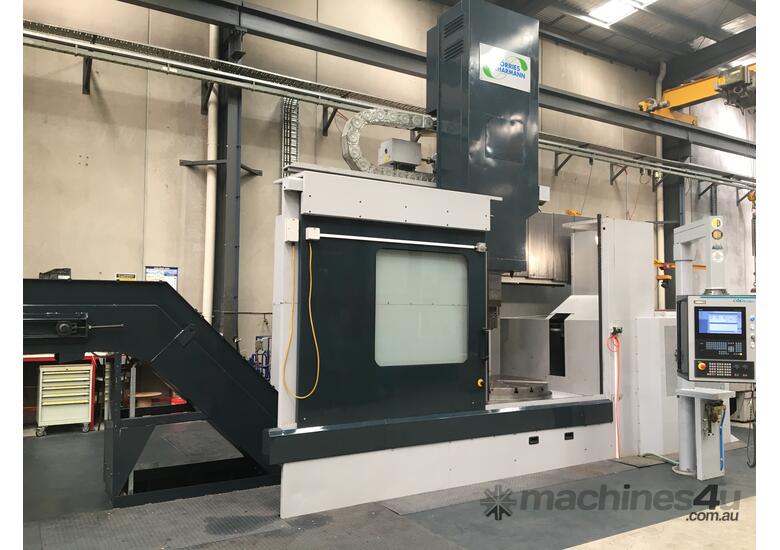

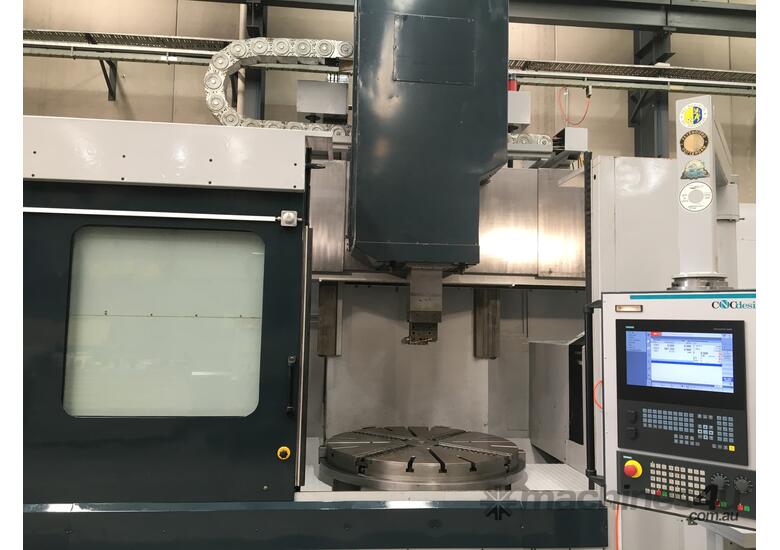

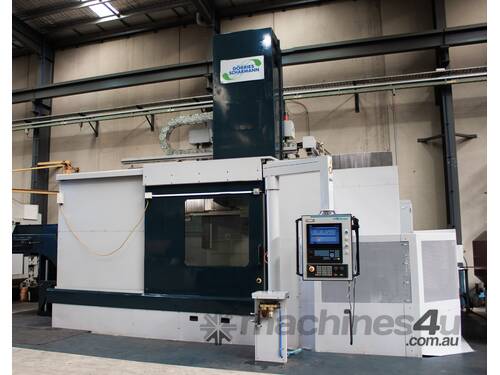

CNC Vertical Turning Lathe with Tool Changer
Doerries Scharmann Model Contumat VCE 1600/140 SM

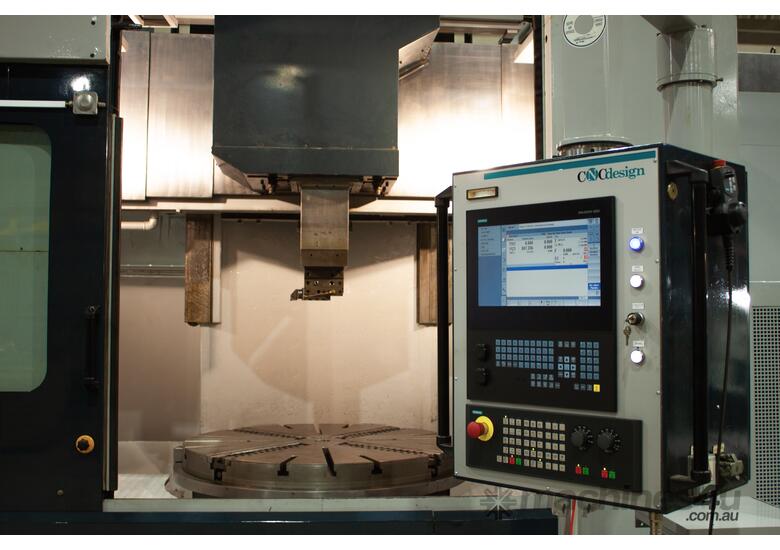

1992 Siemens Retrofit 2021 Siemens 840 DSL-828D
Undertaken by CNC Design Melbourne
The machine is in excellent condition with plenty of spare work holding Jaws, and tooling.
Flood and through coolant.
Swing diameter: max. 1900 mm
Turning diameter: max. 1800 mm
Faceplate diameter: 1400 mm
Weight on faceplate: max. 9000 kg
Turning height: max. 1500 mm
Bore entry for ram: min. 340mm
Ram cross travel: X 1900 (+/-950) mm
Ram vertical travel: Z 1000 mm
Cutting feeds: 0.1 - 6000 mm/min.
0.01 - 500 mm/rev.
Rapids: X,Z 8000 mm/min.
Hydrostatic
Table motor rating: 69 KW
Table speeds: 0 - 315 rpm
Table speed steps: I 2.8 - 78.75 rpm
Table speed step: II 11.2 - 315 rpm
Torque at faceplate: max 40000 Nm
Automatic tool changer
ATC Tool magazine positions: 20
Tool radius: max 200 mm
Tool length: max. 675 mm
Chip Conveyor
Siemens Retrofit engineers can be released upon enquiry
Machine Tool located in Melbourne and can be inspected/operated under power.
