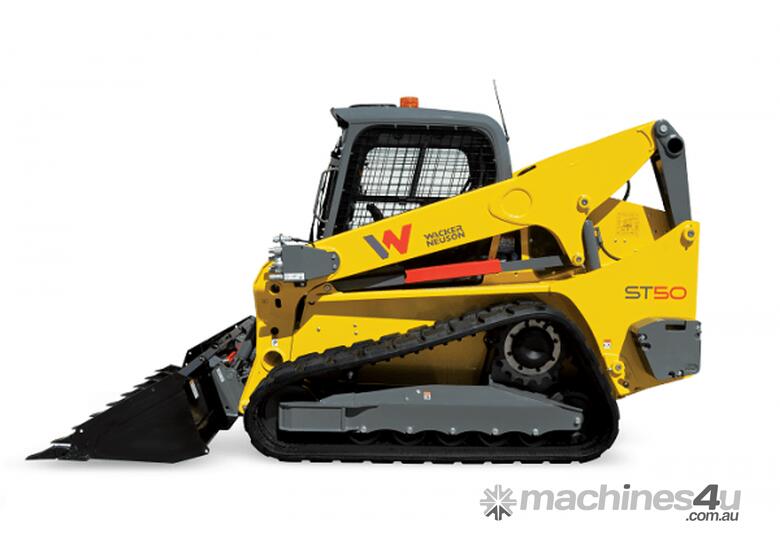

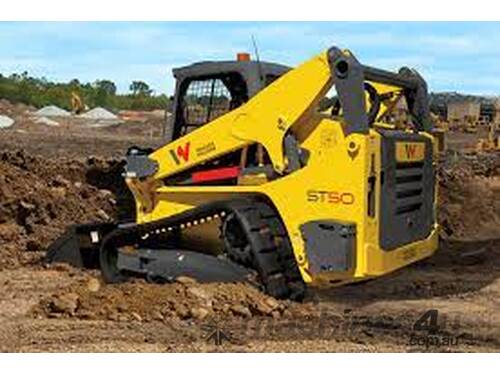

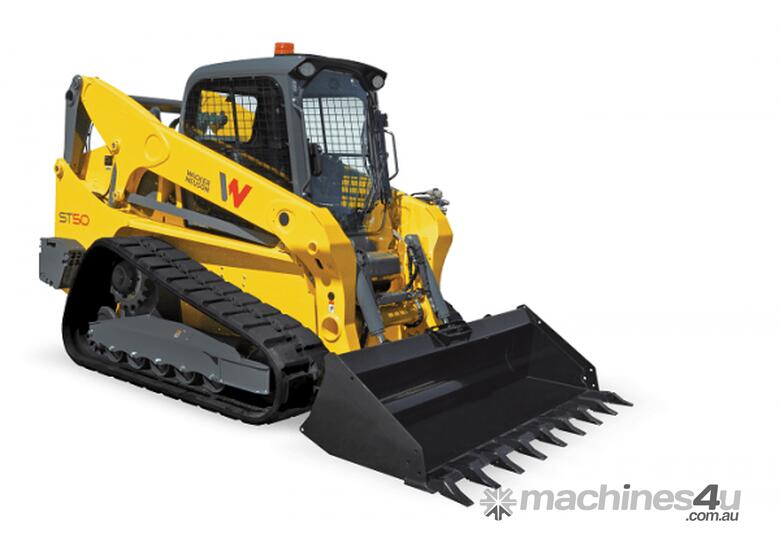

The 100 HP ST50 brings maximum power and efficiency to every job site. The ST50 delivers 5,000 pounds of rated operating capacity at 50% and a lift height up to 136.3 inches. The machine is equipped with a 4-cyl, Turbo Diesel Tier 4 Final engine. Available with EH Hand-Foot, and Selectable EH (ISO and H-Pattern) controls, the preferences of any user. The ergonomically designed controls and pressurized cab delivers comfort and visibility, reducing operator fatigue, increasing productivity.
Standard two-speed transmission increases travel time on the job sites giving the operator more time throughout the day to get more tasks completed.
Spacious extended cab maximizes room and comfort for the operator to move inside the cab.
Optional high flow hydraulics increase the range of usable attachments improving efficiency and productivity.
Quick and easy service access from the forward tilting cab and the arrangement of internal components makes it easy to maintain the machine.
Hydraulically driven fan operates on an as-needed basis allowing faster warm-up times of the engine and significantly reducing noise.
Ergonomic Cab Design:
A wide door and step as well as ergonomically located handles make entry and exit easy regardless of the size of the operator
Large, illuminated switches give quick accessibility to controls regardless of the time of day or whether the operator is wearing gloves.
With the low mounted tilt cylinders and the spaciously designed door, sloped rear engine compartment, and large side windows, operator visibility is maximized 360º.
Operator Comfort:
From switch location and layout to an angled foot rest in the floor board, the cab was purposefully designed to be stay in for long amounts of time and to significantly reduce operator fatigue.
Joysticks are mounted to the suspension/air ride seat minimizing unwanted movements in rough conditions.
Accessibility:
Best-in-class daily maintenance service access with a simple design and efficient layout means less time on daily service checks and more time on the job.

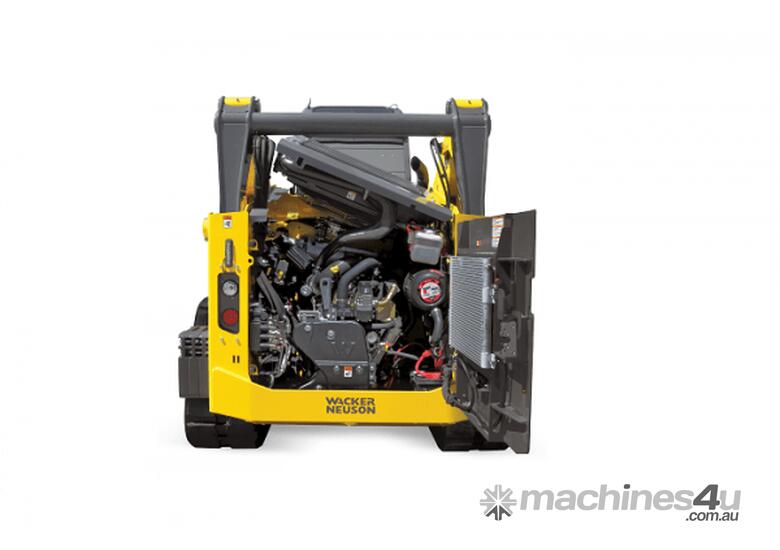

Cab fully tips forward with the arms down providing complete access to all maintenance components.
General (weight and dimensions may vary based on configuration)
Length (w/ standard bucket) / width / height: 145.4? (3693 mm) x 78? (1981 mm) x 84.7? (2151 mm)
Operating weight: 10,655 lbs (4833 kg)
Pin height: 136.3? (3462 mm)
ROC: 50% 5000 lbs (2268 kg)
Vertical path lift arm
2-speed drive maximum 9.9 mph (15.9 kph)
Engine:
Water-cooled T4F Kohler KDI 3404 turbo diesel engine with diesel oxidation catalyst and selective catalytic reduction
4-cyclinder, 205 in3 (3.4 l)
Operating power: 100 hp (75 kW) at 2500 rpm
Controls
Selectable EH (ISO and H-Pattern)
Operating Environment
ROPs / FOPS level 1 canopy w/ side screens
Keyed start ignition
Mechanical suspension operator seat
3-point 2? seatbelt
2 front single beam working lights
2 rear working lights
5.7? color display
Deluxe interior
Hydraulics
Two speed drive
Mechanical universal attachment plate (SSL)
Auxiliary hydraulics: 25.1 gal/min (95 l/min)
Auxiliary control circuit standard on the joystick
Auxiliary connections – Faster block with pressure relieving flat face couplers and non-pressurized drain line
Track Width
17.7? (450 mm)
Other Standard Features
Backup alarm
Non-locking fuel and hydraulic cap
Standard duty batteries (2) (950 cca) with disconnect
Upgrade ready for additional features to be added through Dealer Install Kits
Variable speed cooling fan
Deluxe telematics (requires subscription)
