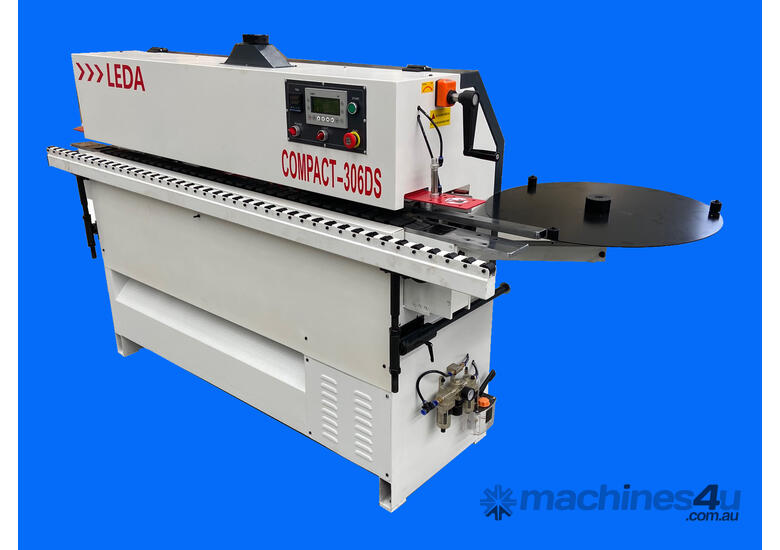

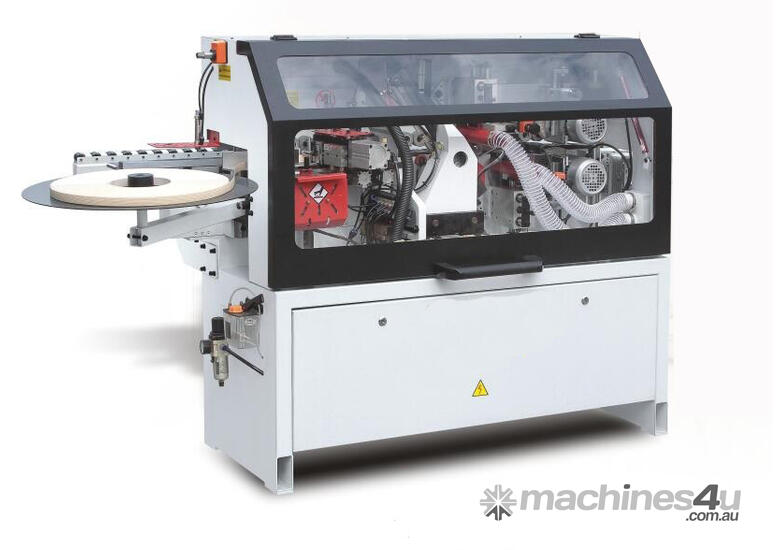

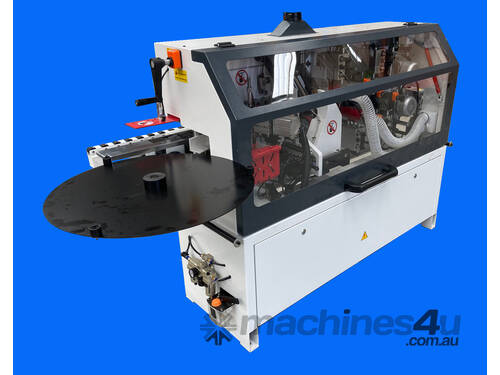

Very compact and affordable - with scraping and buffing!

Perfect for start up's or if you need a compact affordable Edgebander without compromising on finish.The new LEDA has hot melt glue tank, saws, top and bottom trimmers, scrapers and buffers so you get a great edge straight from the machine.
At 2420mm overall length its easy to find a spot for and extraction is simple too
Available in 3 phase and single phase
Full 12 month Warranty and backup nationwide through the LEDA network.
Unbeatable value for an Edgebander of this specification and finish
Take a look:

1. Hot melt glue pot application station.
2. Edgestrip application station with pneumatic guillotine.
3. Roller pressure station to apply edgestrip.
4. End trimming station – Dual high frequency, high speed cut-off saws with 100mm diameter blades.
5. Top & bottom high frequency, high speed trimming motors with 2mm radius cutters standard.
6. Top and bottom radius scraper station to fine finish PVC edging.
7. Top and bottom buffing station.

Full safety covers
Convenient electrical LED control keypad at infeed position.
Digital readouts for changes in edgestrip thickness.
Panels fed by padded chain at 9m/min.
100mm dust exhaust hose for efficient extraction.
Large windows in safety hoods for better visibility.
Precision linear bearing slideways on cut-off saws.
High frequency motors on saws and trimmers at 12,000rpm.
Buff units to leave excellent finish on top and bottom.
Solid Panel support beam at 600mm.
Nett weight of machine 590kgs.
Full twelve (12) months Warranty against faulty workmanship or material.



Technical Data
Panel thickness range 12 to 45 mm
Edgestrip thickness range 0.4 to 3 mm
Minimum panel width 80 mm
Minimum panel length 120 mm
Main dust extraction outlet 2 100mm diameter
Overall dimensions 2420 x 1100x 1450 mm

Pricing is ex the LEDA Warehouse / stock location and excludes delivery from there to your factory, Commissioning costs and GST

TRADE INS WELCOME and COMPETITIVE Finance options available T.A.P.
Contact us for details
