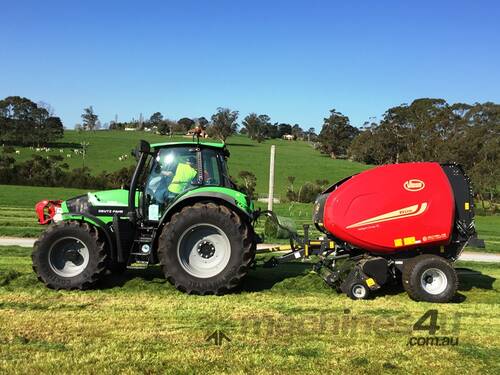

Vicon Balers RV5216 High-Performance Variable Chamber Balers

RV5216 Rotor Feed

High-Performance Variable Chamber Balers

The renowned RV 5216 features the patented PowerBind net wrapping and Intelligent Density 3D software package for easy selection of bale density. This model offers truly intelligent baling with a clean raking 2.2m five tine bar pick-up, a choice of intake systems, programmable "multi-chamber" bale density system, and user-friendly ISOBUS compatible controls. The two versions offer bale diameters from 0.60m up to 1.65m. The bale diameter is easily adjusted through the control terminal.

The Advantages:

- Intelligent Density 3D with new easy setting of bale density - pre-selectable from the tractor cab
- New PowerBind with direct net injection for fast and highly reliable netting
- 2.2m pick-up with a small diameter
- PowerFeed rotor intake for impressive intake capacity
- Drop floor for easy unblocking
- Three different core densities, pre-selectable from the tractor cab
- Easy and simple loading of the net roll
- ISOBUS control

Specifications:

RV 5216 RotorFeed

Weight & Dimensions

- Length (m): 4.48
- Width (m): 2.52
- Height (m): 2.70
- Weight (kg): 3250

Bale Chamber

- Diameter min (m): 0.60
- Diameter max (m): 1.65
- Width (m): 1.20
- Bale formation: 5 belts + 3 rollers
- Belt width (mm): 220

Pick-up

- Working width (cm): 220
- Tine rows (nb): 5
- Tine spacing (mm): 60
- Pneumatic gauge wheels: Standard

Operations

- Focus terminal: Optional
- Hydraulic outlets: 1SA+1DA+R

Wheels and Axles

- 15.0/55-17

Others

- Reversible drawbar: Standard
- PTO (rpm): 540
- Min power requirements (kW/hp): 55 / 75
