The RV 5000 series introduces the patented Vicon PowerBind net wrap system, featuring a redesigned and simplified structure with fewer elements and the removal of feed rollers. This innovation ensures one of the fastest net wrap actions available, minimizing downtime and maximizing baling time. The net smoothly enters the bale chamber through an injection arm at a flat movement angle, ensuring constant tightness and reliable net injection unaffected by external factors such as wind and crop.
Throughout the baling process, the injection arm securely retains the net, and as the bale reaches 90% completion, the arm moves forward, poised for net injection. Vicon PowerBind stands out as a top-tier net wrapping solution, delivering high speed and uptime. Additionally, it features a low loading height, providing convenience and time savings during roll replacement by simply swinging out the shaft and replacing it with a new one.
Tim Comer, Product Director at Kverneland Group Ravenna, expresses satisfaction with the groundbreaking net wrap, emphasizing its benefits, including the crucial low position of the net roll for easy replacement and the enhanced simplicity and reliability of net injection.
Key features of the RV 5116 RotorFeed include a rotor feed intake system, a large 2.2m wide five-tine bar pickup, the PowerBind direct injection net wrap system, a parallelogram hydraulic drop floor for superior unblocking, intelligent density 3D multi-chamber bale density control, easy loading of net wrap, and a central greasing system.
The optional Electronic Density Control is available for an additional cost of $1000+GST.
Specifications for the RV 5116
RotorFeed: Weight & Dimensions - Length: 4.48m, Width: 2.52m, Height: 2.70m, Weight: 2840kg
Bale Chamber - Diameter min: 0.80m, Diameter max: 1.65m, Width: 1.20m, Bale formation: 5 belts + 3 rollers, Belt width: 220mm

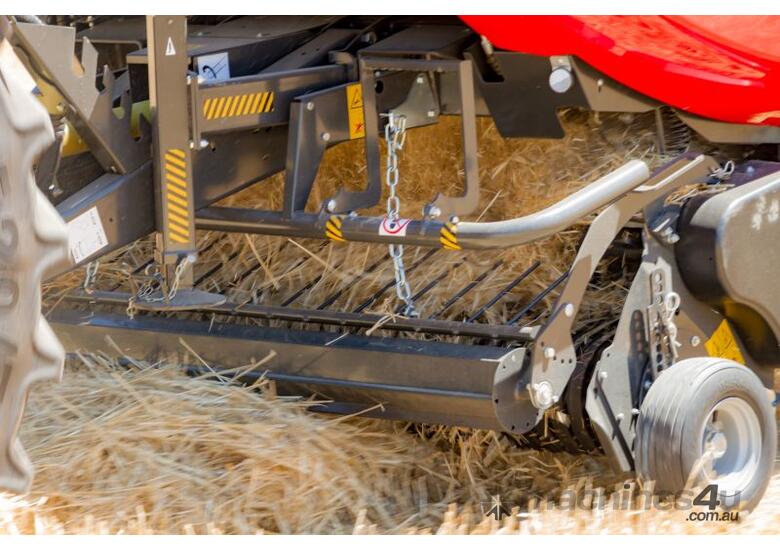

Pick-up - Working width: 200cm, Tine rows: 5, Tine spacing: 60mm, Pneumatic gauge wheels: Standard
Intake - Powerfeed rotor: Standard
Operations - Tellus GO: Standard, Hydraulic outlets: 1SA + 1DA
Wheels and Axles - 15.0/55-17
Others - Reversible drawbar: Standard, PTO (rpm): 540, Min power requirements (kW/hp): 45/64
