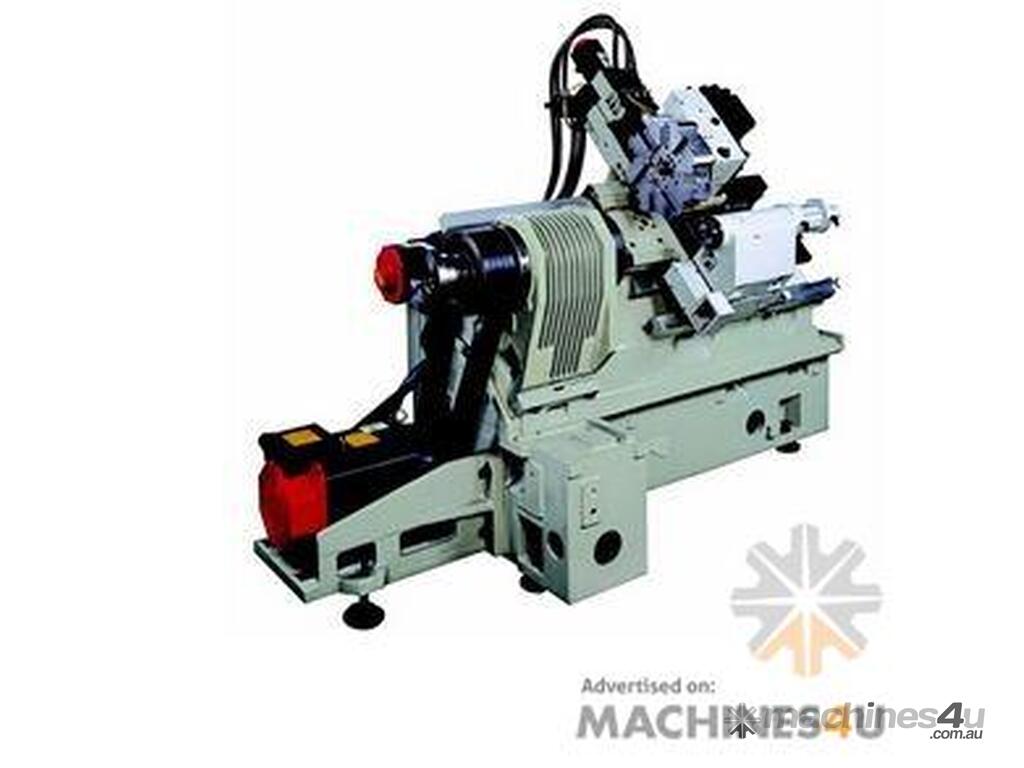

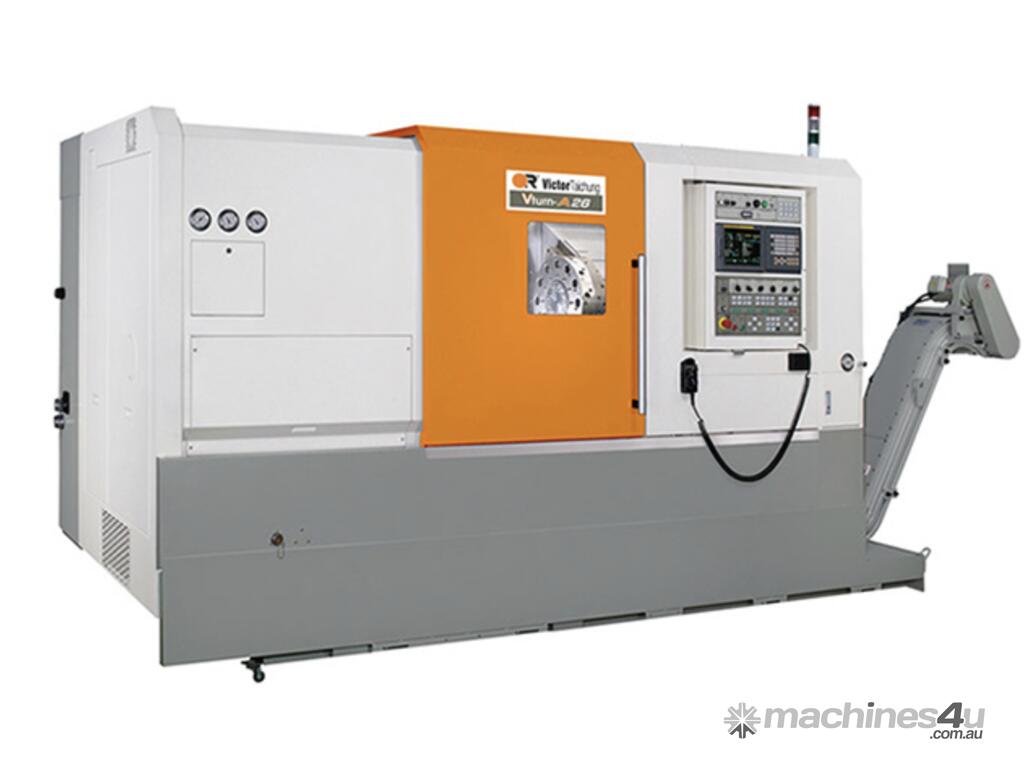

New victor taichung CNC Lathe for sale - Victor Vturn 26

Entry model for reliable heavy cutting
- Box slideways with hardness HRC 55 for heavy cutting.

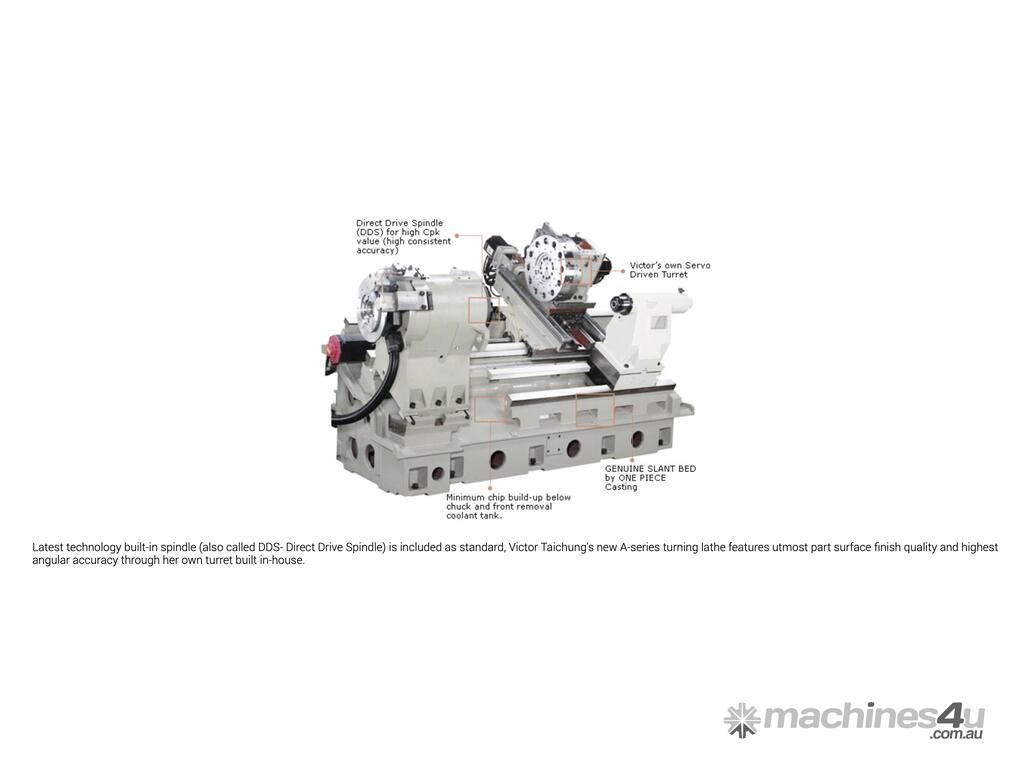

- Genuine 45 slant bed for minimum distance from Z-axis ball screw to the tool tip.
- Kitagawa® hydraulic 6"/8"/10" chuck is offered as standard.
- Programmable tailstock and chip conveyor is offered as standard.
- Wide range spindle motor Fanuc ?Pi is installed to offer high cutting force at low rpm.
- High reliability and cost-effective.
- Maximum turning length 610mm for Vturn-16/20/26 and 1090mm for Vturn-26/110.
- Special LSB option on Vturn-26 for bar capacity 91mm/2500rpm.

Specifications:
Chuck size: 10 inch
x-axis travel: 190+50 mm
z-axis travel: 610 / 1090 mm
bar capacity: 75 mm
spindle speed: 3500 rpm
spindle power: 15/18.5 kw
tool station: 10
tool shank: 25 mm
Machine weight: 5400 /6000 kg
