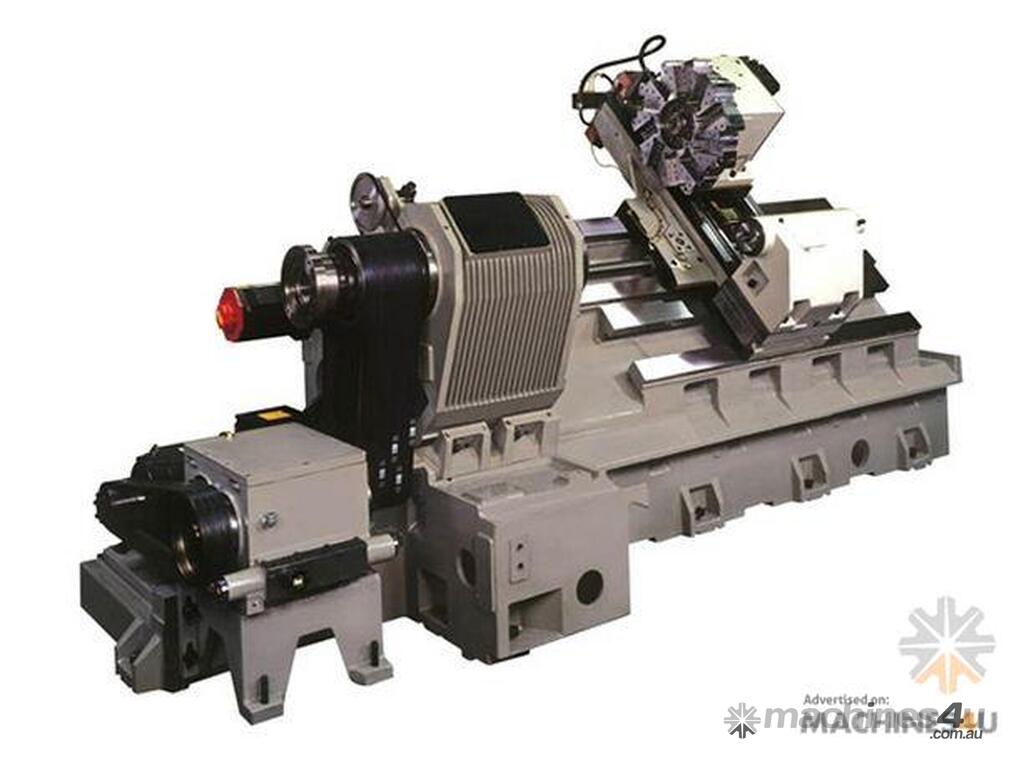

New victor taichung CNC Lathe for sale - Victor Vturn 36

Don't be fooled by its rugged exterior, this lathe may look all brawn and no brain, but this muscle bound wonder while not only capable of cutting deep can also produce a smooth surface finish that leaves others far behind. Indeed its finishing accuracy has lead this machine to become a favorite of alloy wheel manufacturers. Further to this the 2 speed gearbox offers high torque at low speeds to enable cutting of hard and wide ranging materials. With a maximum spindle power of 37kW available, no job is too hard. So whether its aluminium wheel machining or hard stainless steels this machine sees no difference.

- High powered Fanuc 22 motor as standard, opt. 30
- 90mm bar capacity on standard machine.
- Optional bed lengths offering centre distances of 35in & 50.79infor maximum flexibility.
- Tailstock with built-in quill bearings which has better load bearing characteristics and increased life over the more easily damaged dead centers
- Massive cutting capability with 20.9" max. turning dia.
- Generous swing over bed of 26.77" for those large chucking jobs.
- 2-speed automatic spindle gearbox separated from spindle for easy maintenance.
- Optional high speed traverse; X axis 787.4in/min,Y axis 590in/min
- Box slideways with hardness HRC 55 for heavy cutting.
- Genuine 45? slant bed for minimum distance from Z-axis ball screw to the tool tip.
- Kitagawa® hydraulic 12" chuck is offered as standard.
- 2-step gearbox is included to further enhance the cutting torque at low rpm.
- Maximum turning length 855mm for Vturn-36/85 and 1255mm for Vturn-36/125.

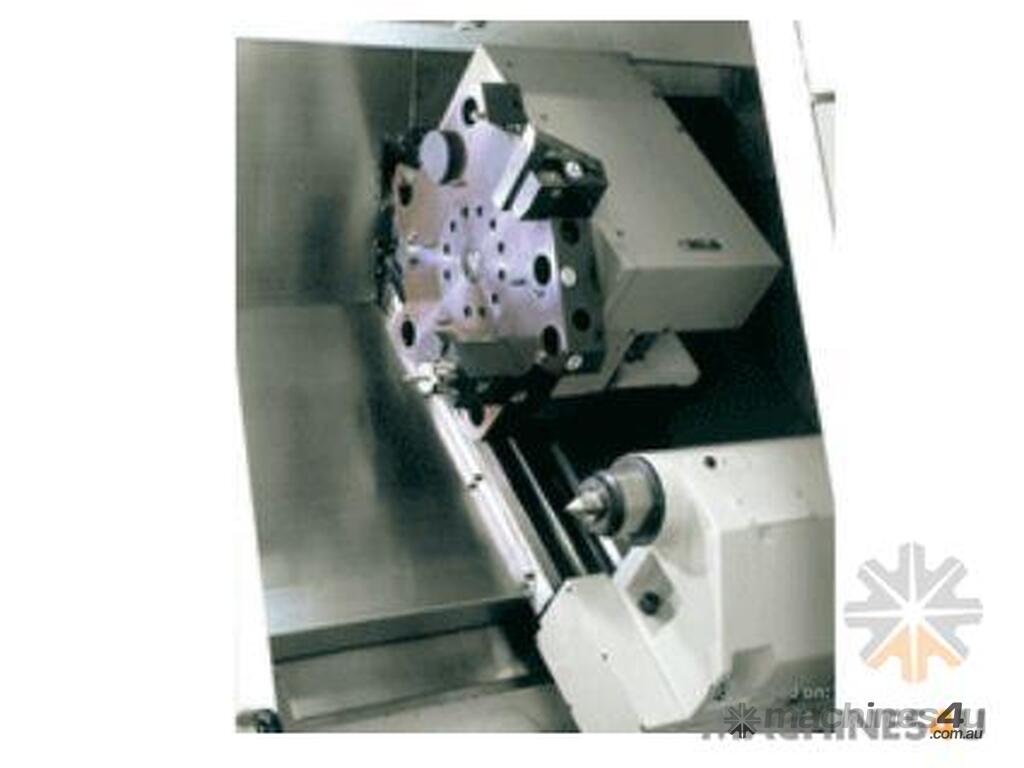

- Available with C-axis spindle and live tooling by German Sauter® VDI turret.
- Special LSB option with spindle nose A2-11 for bar capacity 160mm/1300rpm
