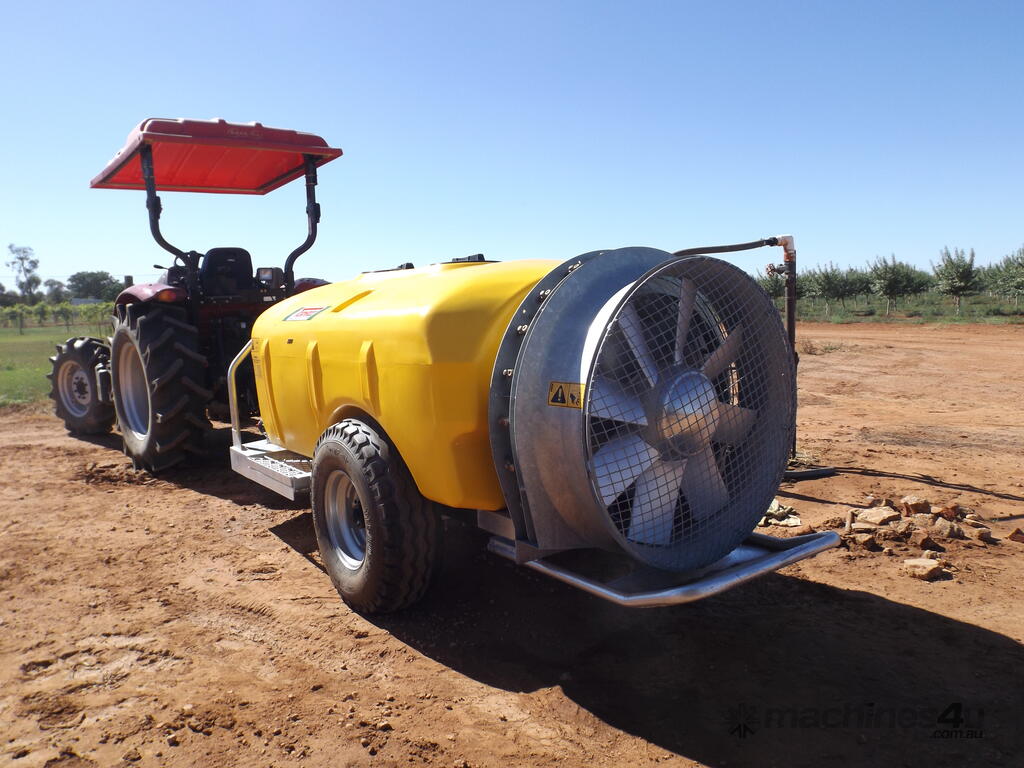

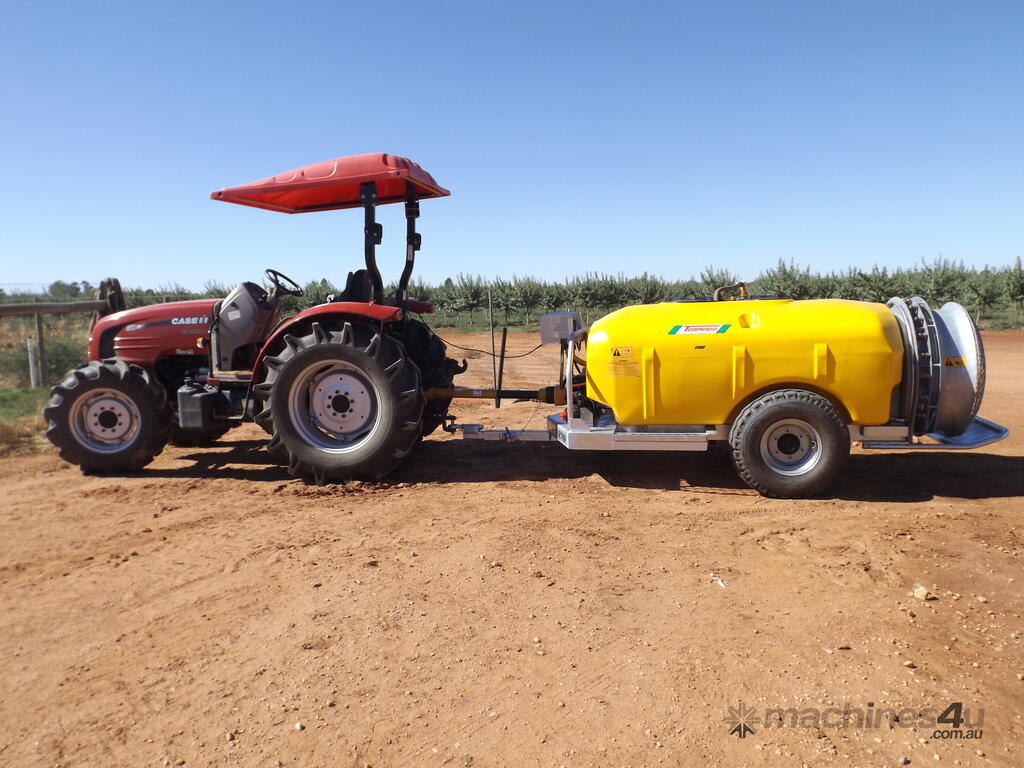

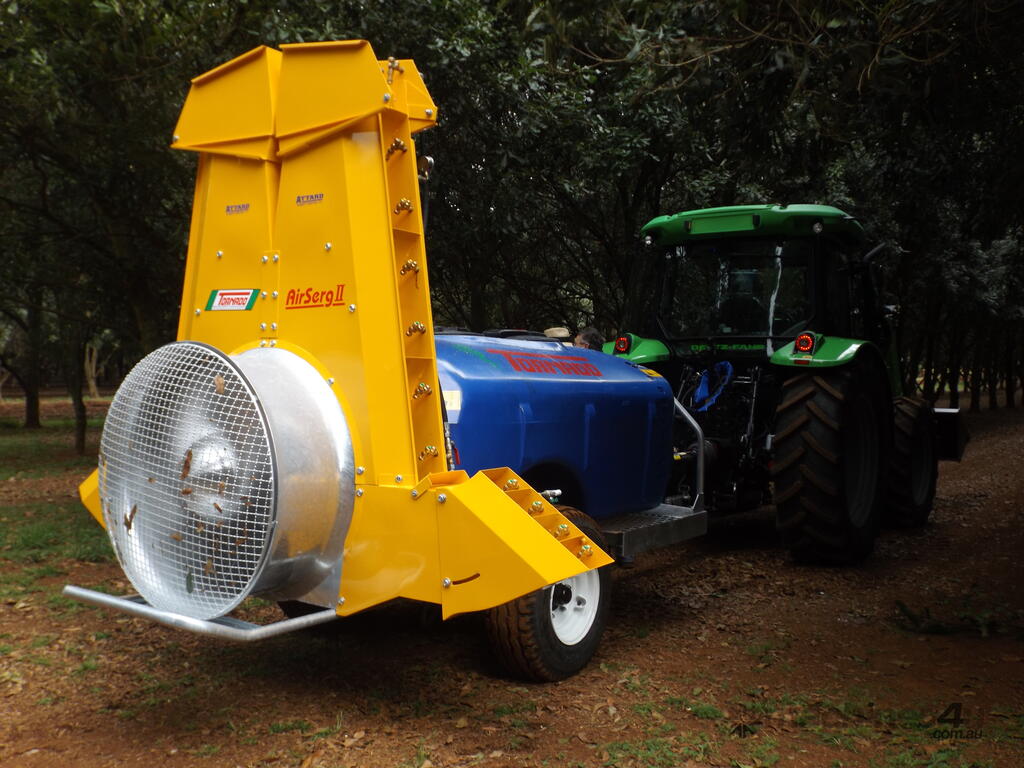

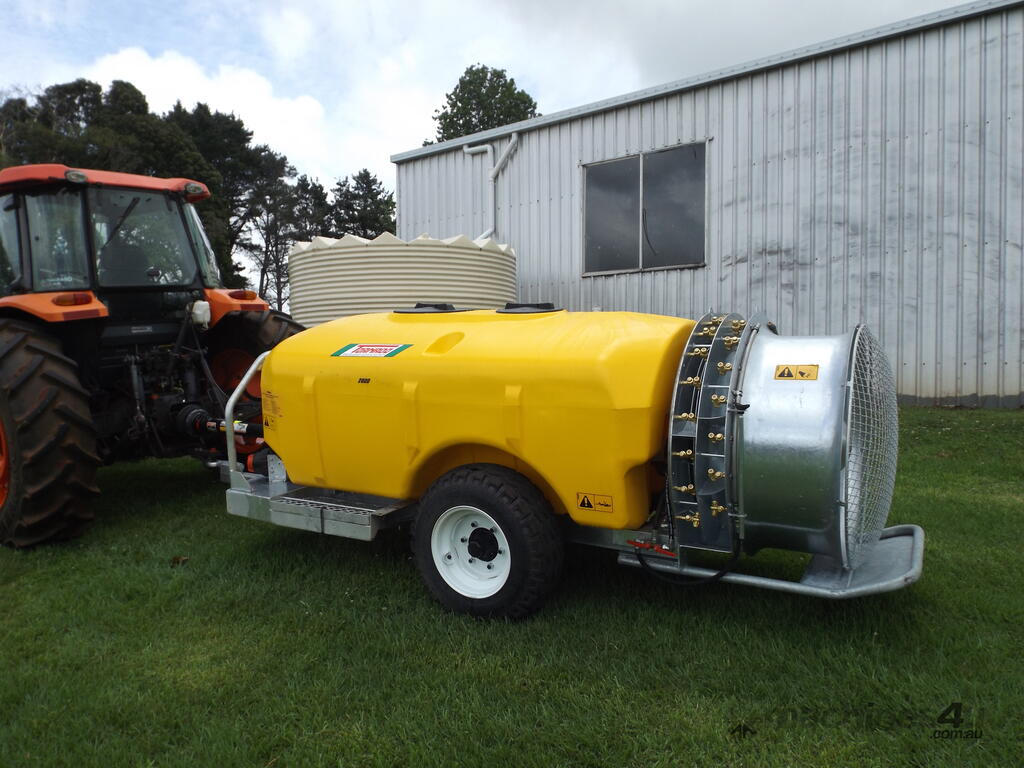

Vineyard and Orchard Sprayer

Standard features

- 2000 litre UV stabilised polyethylene tank
- Quality Bertolini PPS1615 (147 lpm) diaphragm pump
- Geoline Pilot 1 electric motor valve controls with manual pressure regulation
- Quality Ciclone 865 mm (34") aluminium vari pitch fan with a centrifugal clutch, 2 speed gearbox
and galvanised steel housing and backing plate
- Stainless steel spray manifolds with brass double flip over anti drip nozzles
- Large lids with filter baskets and in tank powder mixer
- Hydraulic cross flow tank agitation
- All high pressure hoses with crimped hydraulic fittings
- Heavy duty adjustable axles
- 10.00/75-15.3 implement flotation tyres
- Heavy duty wide angle PTO shaft
- Adjustable swivel draw bar
- Slide away step
- Extra strong fully galvanised steel chassis

Numerous options and variations are available to enable this machine to suit the needs of any vineyard or orchard. Talk to us about your specific requirements and we can design and build the machine to suit.
