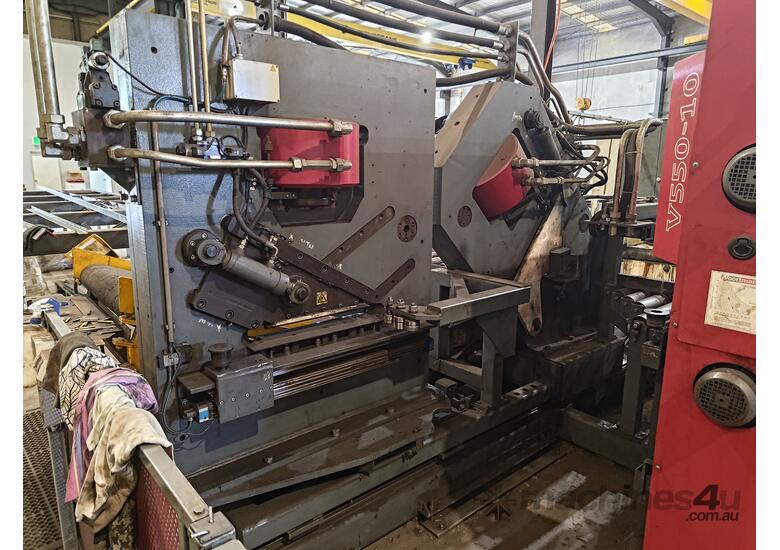

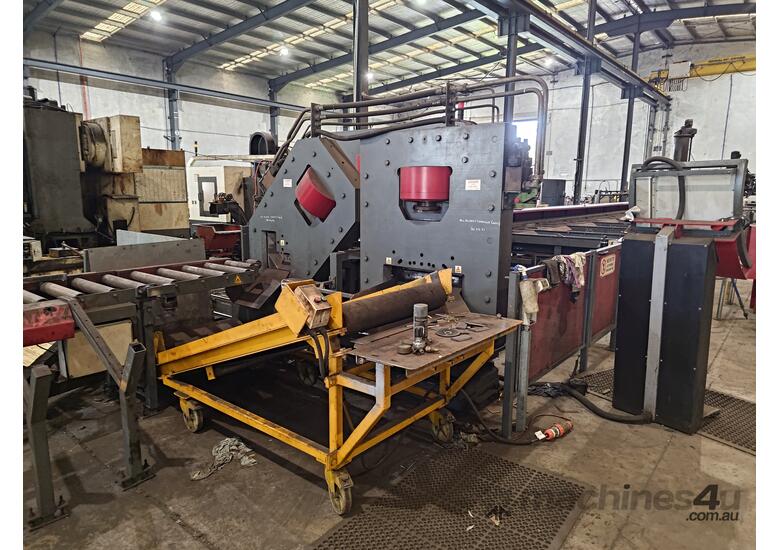

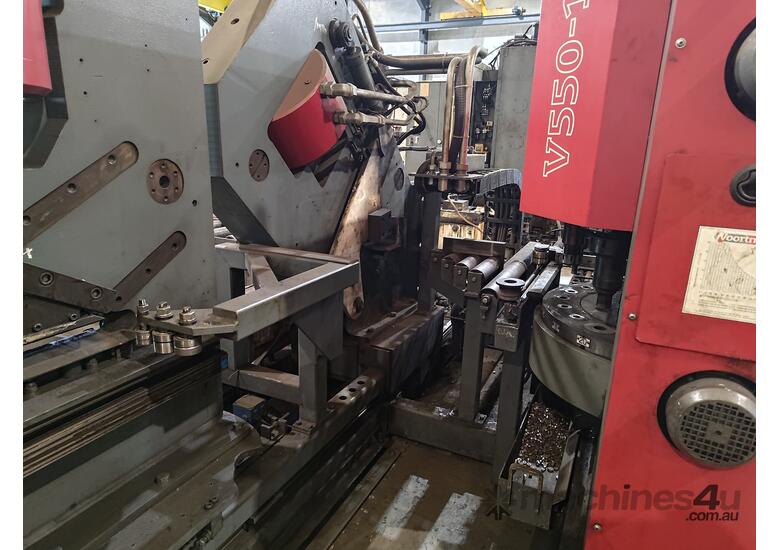

2009 Voortman V550-10 Punching and Shearing System (upgraded with 2012 operator controls and computer)
Consists of
• 12m automatic infeed, transport tables and gripper truck
• 12m automatic outfeed, transport tables and short part conveyor (modified from factory 6m)
• Two inline shears, one flat shear with + and -45 degree mitering and one straight angle shear
• An automatic turret ten station vertical punch with 20 station die for flat and one face angle punching
• A manual change single punch and die horizontal punch for second face angle punching
• A four character stamping unit for mark number stamping (A-Z, 0-9)
Capability
Flat
50mm to 500mm wide
5mm to 25mm thick
Angle
50 x 50mm to 200 x 200mm
Up to 16mm thick
Round punch 5mm to 57mm diameter
Square punch 4 x 4mm to 40 x 40mm
Slot punch 5 x 10mm to 22 x 55mm
Computer
Runs Windows 7
VACAM software that runs the machine, programming and batching
Imports NC1 files from drafting software or can manually program items on machine
