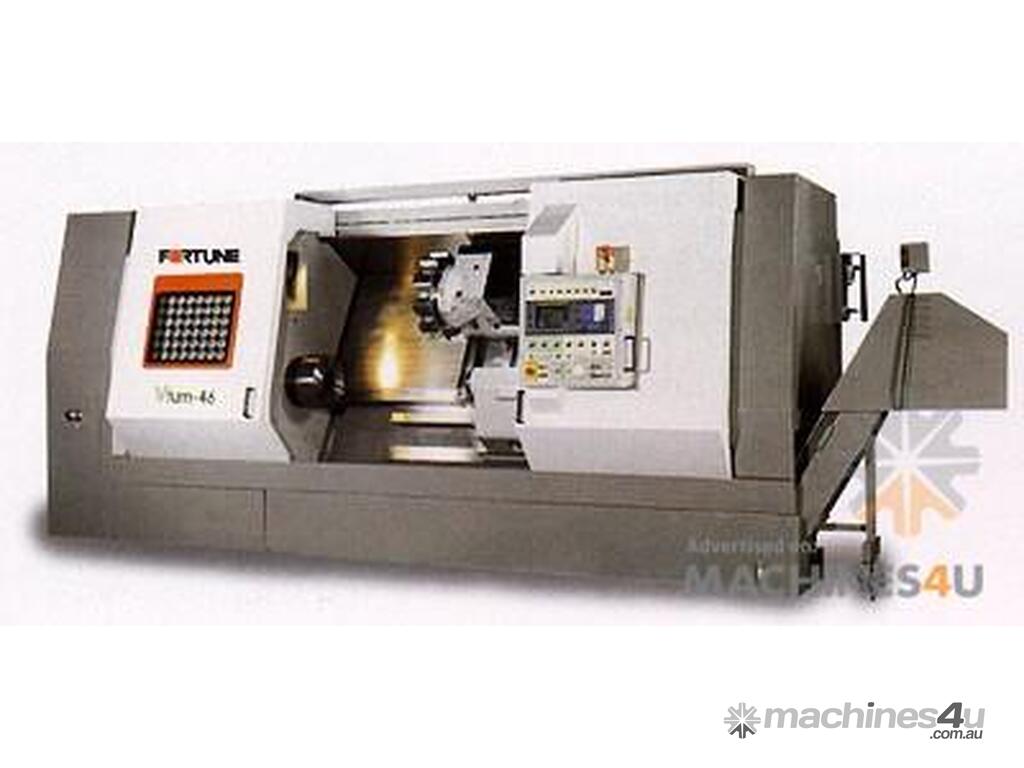

New victor taichung CNC Lathe for sale - Vturn 46

Though by far the heavyweight of our Vturn series the Vturn-46 is still as nimble and quick as its smaller brothers. With over 1.6 metres of longitudinal travel and a maximum turning diameter of 730mm this machine has the largest machining area in its class, far ahead of the rest of the field. Yet still it manages to slash idle time through fast turret indexing and high speed positioning. The slant bed of 60 degrees gives easy operator access to both the tooling and the chuck and helps to reduce set-up times while the double door opening leaves plenty of access to the machining area.

- Box slideways with hardness HRC 55 for heavy cutting.
- Genuine 60? slant bed with minimal distance from Z-axis ball screw to the tool tip so as to reduce the chip built-up.
- Kitagawa® hydraulic 15" chuck is offered as standard and optional 24" chuck is possible.
- Built-in 4-step gearbox inside the headstock further enhances the cutting torque at low rpm.
- Spindle nose A2-11.
- Maximum turning length 1650mm.
- Available with C-axis spindle and live tooling by German Sauter®VDI turret.

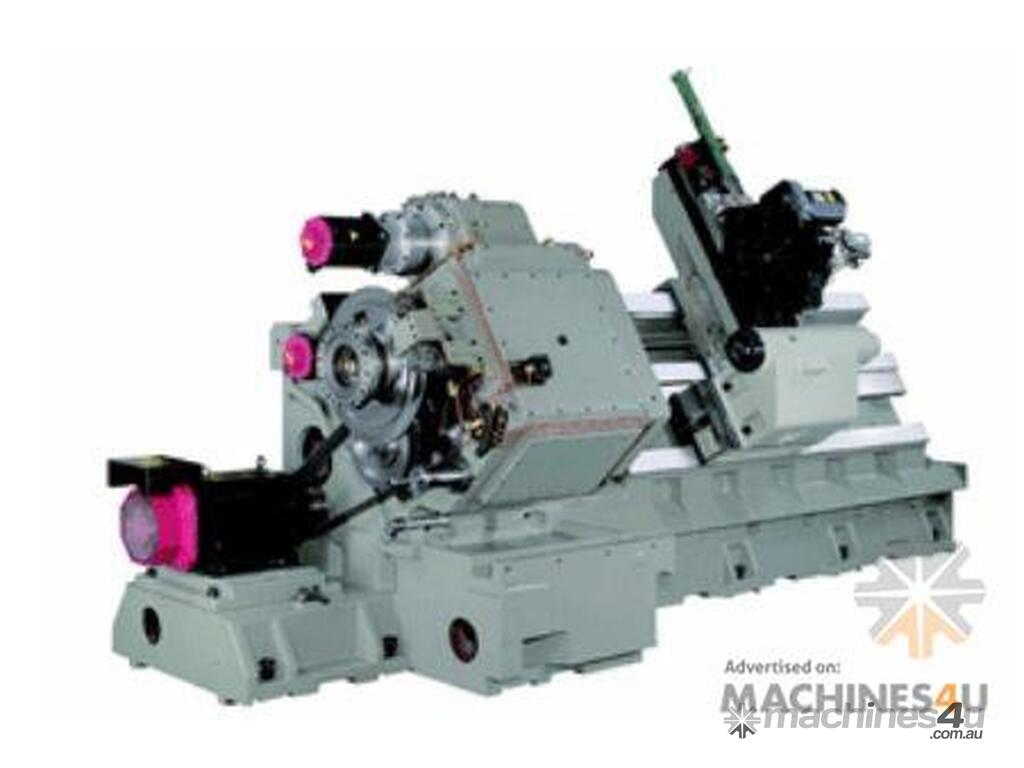

- 60 degree slant bed for extra rigidity in handling heavy workpieces.
- Four speed integral spindle gearbox offers a wide range of cutting speed with plenty of torque allowing machining of a wide variety of materials.
- Max. Torque output of 289.2 kg-m with standard 22 motor.
- Dedicated coolant system for spindle reduces thermal deformation during heavy, high speed turning.
- A2-11 spindle nose allows for up-to 18" in chucking diameter.
