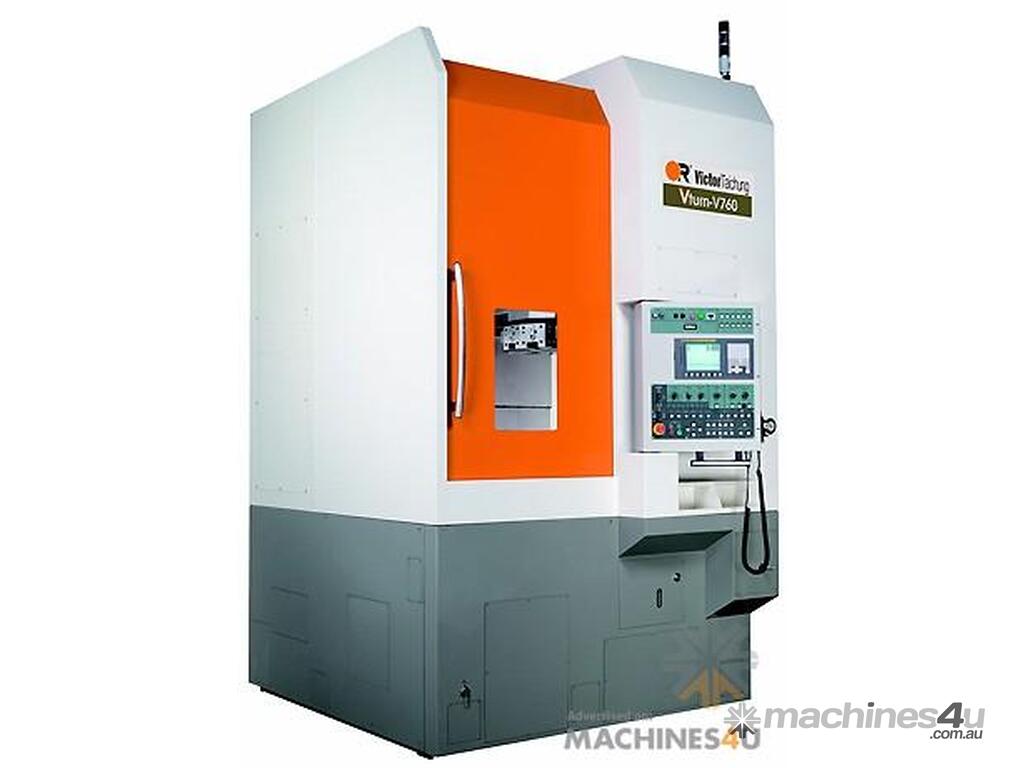

New victor taichung CNC Vertical Lathes for sale - Vturn V760

Standard accessories:
- Solid chuck with soft jaws
- Chip conveyor with cart
- Automatic forced lubrication
- Fully enclosed splash guarding
- Tool holders (exch VDI tooling)
- 3 step warning light
- Fanuc 0i-T control
- Remote MPG (handwheel)
- Oil cooler for gearbox (Vturn-V760)

Optional accessories:
- Bigger chucks (21" chuck/1700rpm, 24" chuck/1400rpm, 28" chuck/1200rpm, 32" chuck/1100rpm)
- Oil skimmer
- Bigger spindle motor
- Renishaw tool presetter (detachable)
- High pressure coolant
- Auto door
- VDI turret
- C axis and VDI turret
- Higher column (100mm more)
- Fanuc 21i-T /18i-T control
- Higher outlet chip conveyor (for Vturn-V560)
- Detachable chip conveyor (to reduce the floor space when cleaning)

Specifications:
Capacity:
Swing over bed: 900 mm
Swing over carriage: 650 mm
Max. turning length: 760 mm
Std. turning dia.: 630 mm
Travel:
X axis stroke: 380+40 (380+30 for CV) mm
Z axis stroke: 780 mm
Spindle Max. spindle speed: 2000 rpm
Spindle nose: A2-11 mm
Spindle bore: 105 mm
Inner bearing: 160 mm
Chuck diameter: 18"(Opt. 15"/21"/24"/28"/32") inches
Max. part weight (incl. chuck): 1160 mm
Turret - No. of tools no.: 12
No. of live tools (opt.) no.: 12 (VDI-50) (DIN-5480, radial type, left-hand)
Tool shank size: 32 mm
Max. boring bar dia.: 60 (opt. 63) mm
Exchange time: 1 (hydraulic) sec.
Feedrate - Rapid feedrate: X/Z = 20/20 m/min
X axis ballscrew: Ø40 x P10 mm
Z axis ballscrew: Ø50 x P10 mm
Cutting federate: X/Z=0~1260 mm/min
Motor - Spindle motor: 18.5/22 (P40i) kW
Opt.: 30/37 (30i)
Gearbox: ZF gearbox (STD)
X/Z axis servo motor: X:4, Z:7 kw
Milling motor (opt.): 7 kW
Machine Fanuc controller: 0i-T
Coolant tank Liter: 300
W × L × H (including chip conveyor): 2032 × 3915 × 3400 mm
Power requirement: 72 (88 for CV) kVA
Net weight: 10000 kg

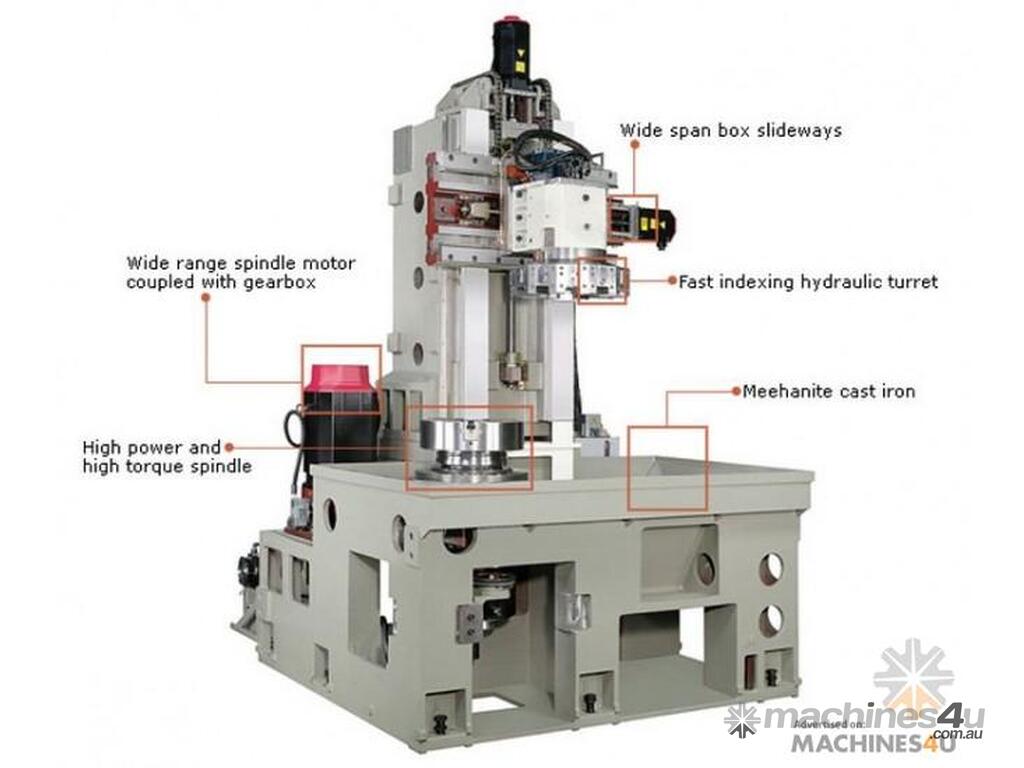

High rigidity and high reliability VTP
With a maximum turning diameter of 760mm and a swing of 900mm the Vturn-V760 meets increasing demands for large size and/or heavy part turning. The standard Fanuc aP40i wide range motor along with ZF gearbox provide high torque at extremely low spindle speeds.

Victor design one new vertical lathe Vturn-760 to meet higher roundness requirement for auto parts.

- Compact space floor requirement for easier cell layout in the factory
- Ergonomic design for easy loading and unloading for operators
- High roundness and surface finish without gravity effect on the turning process
- Integral chip disposal without coolant leakage assures clean and clear factory
