WATERTABLE CNC PLASMA & Engraver Head 1500mm x 3000mm With Fastcam Offline Software

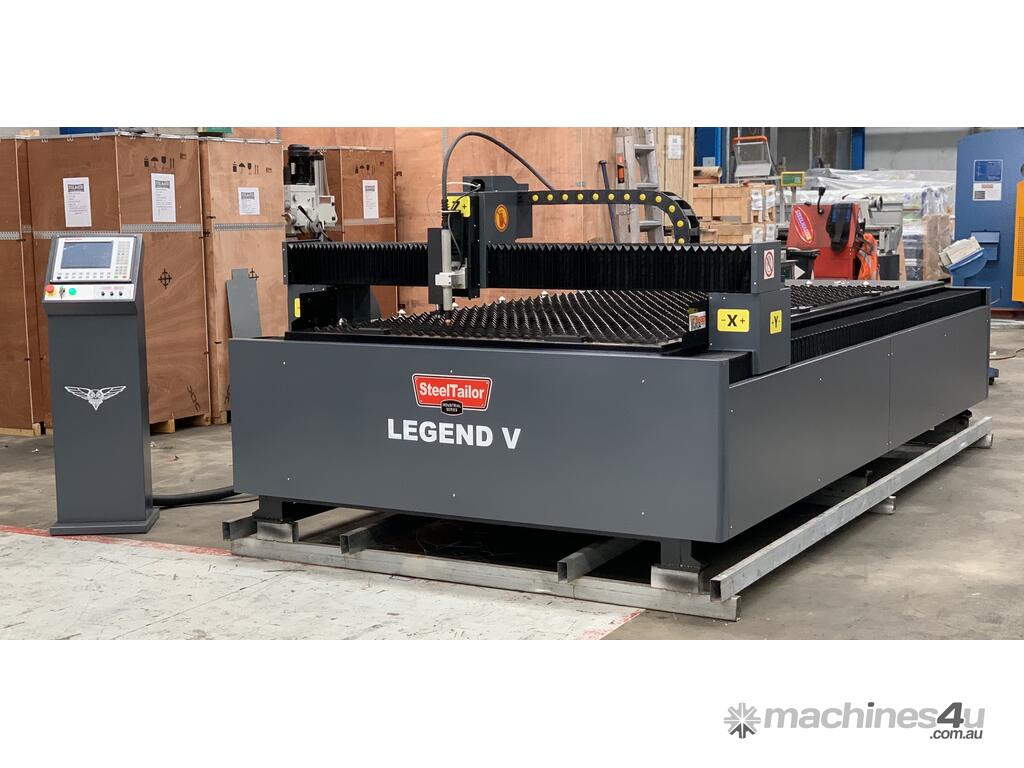

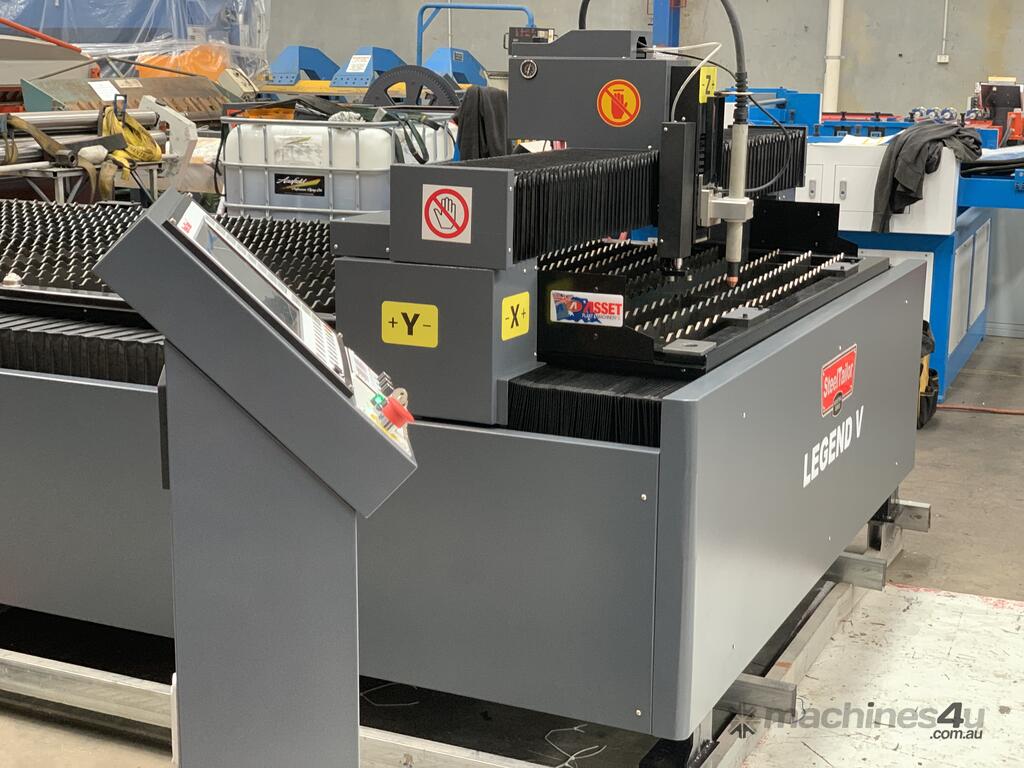

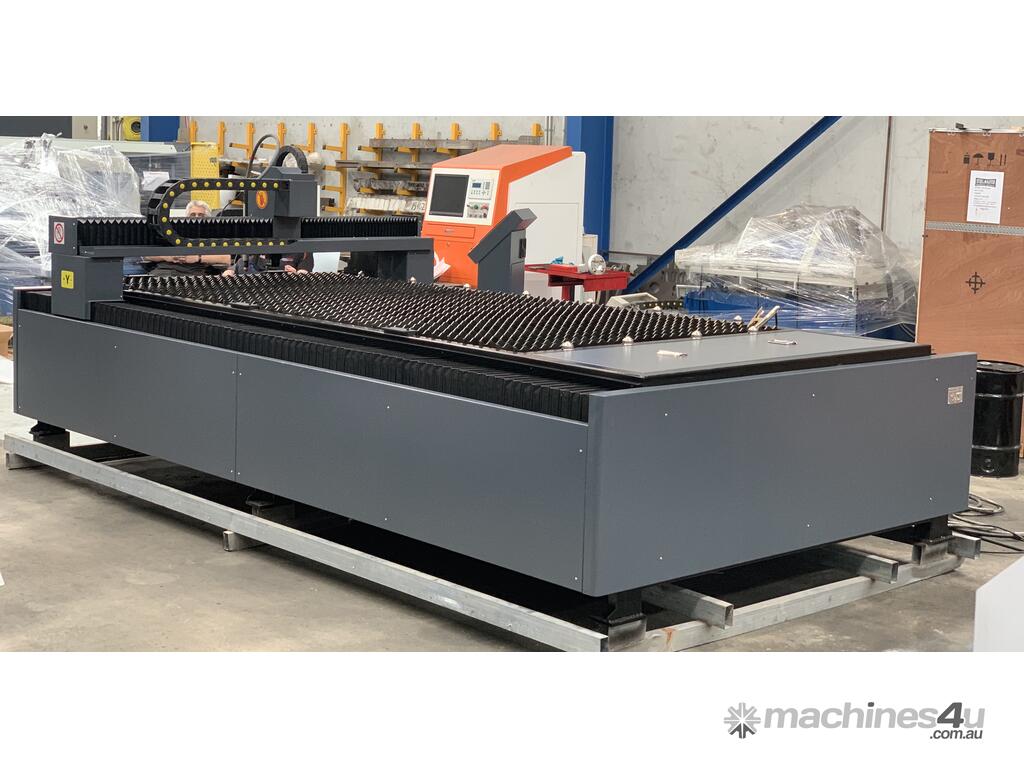

Plasma CNC – STEELTAILOR LEGEND V – 1500mm x 3000mm, Servo Drive, Water Table, ” LED Monitor Auto Torch Height Control, Anti Collision Feature, Fastcam Offline Software Included.

Description
If you have been waiting for the all in one plasma - look no further - No wonder its called the LEGEND V - One Machine Works As Two! Cut as thin as 0.5mm.

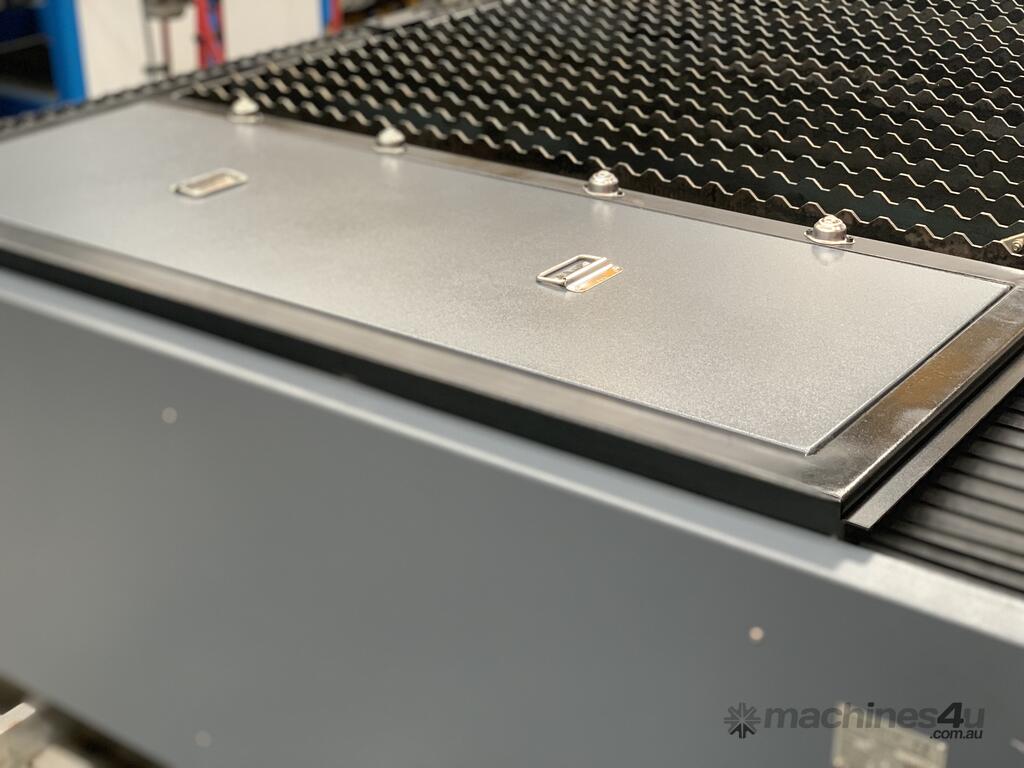

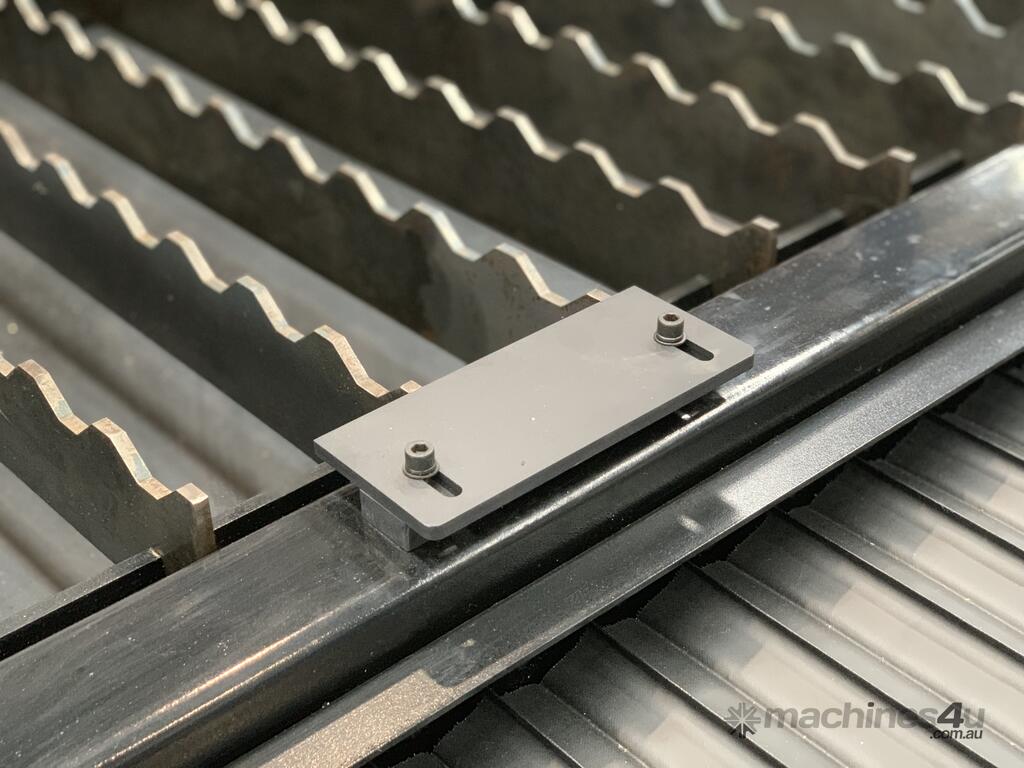

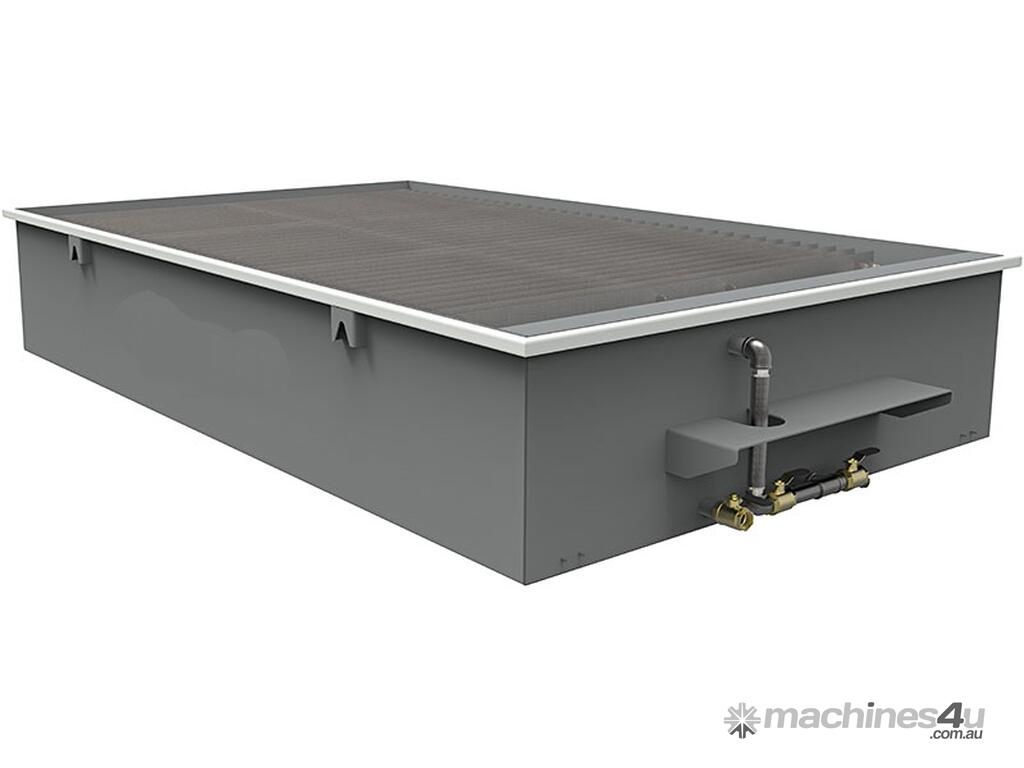

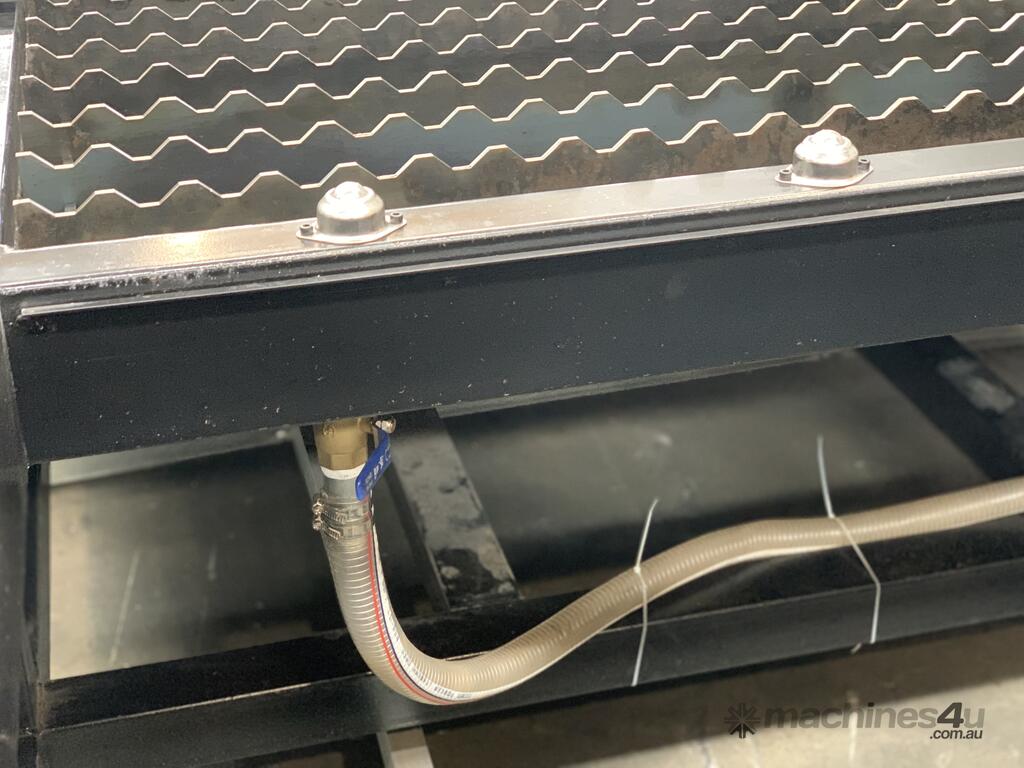

Water Table, Servo Drive, Arc voltage sensing THC & Fastcam Professional Offline Software are All Included. This Plasma cutting machine table offers ball design, cutting material loading/unloading easier.
Power Source is added based on customers cutting requirements.

Features
? 1500mm x 3000mm cutting table

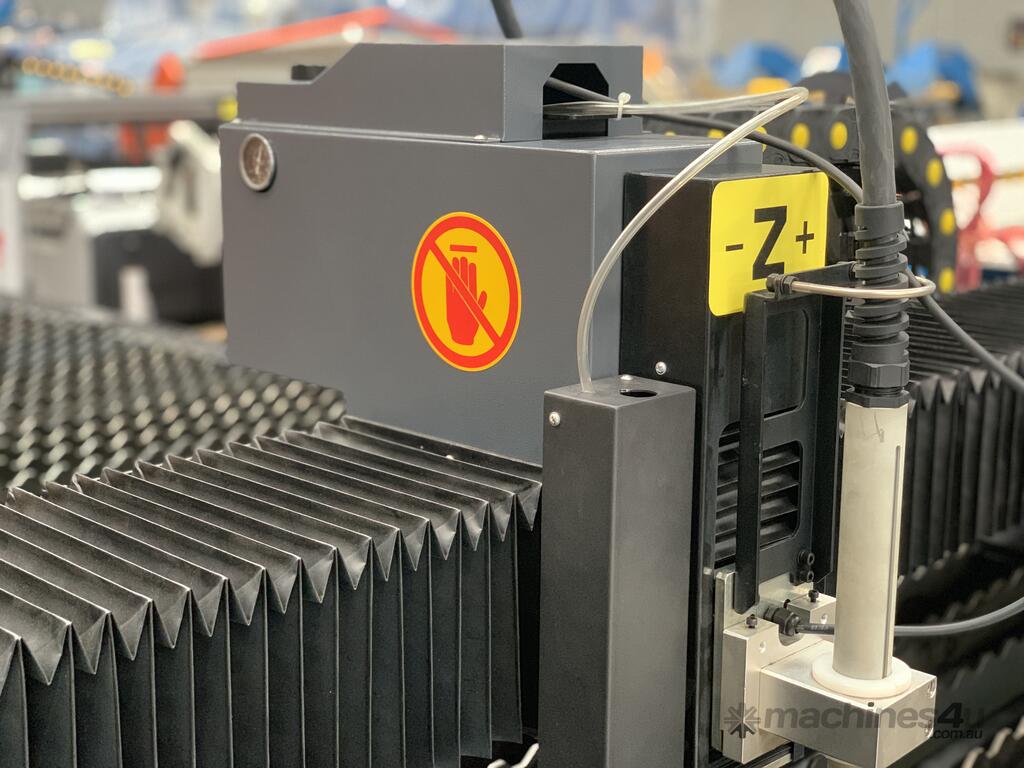

? THC torch height control fitted

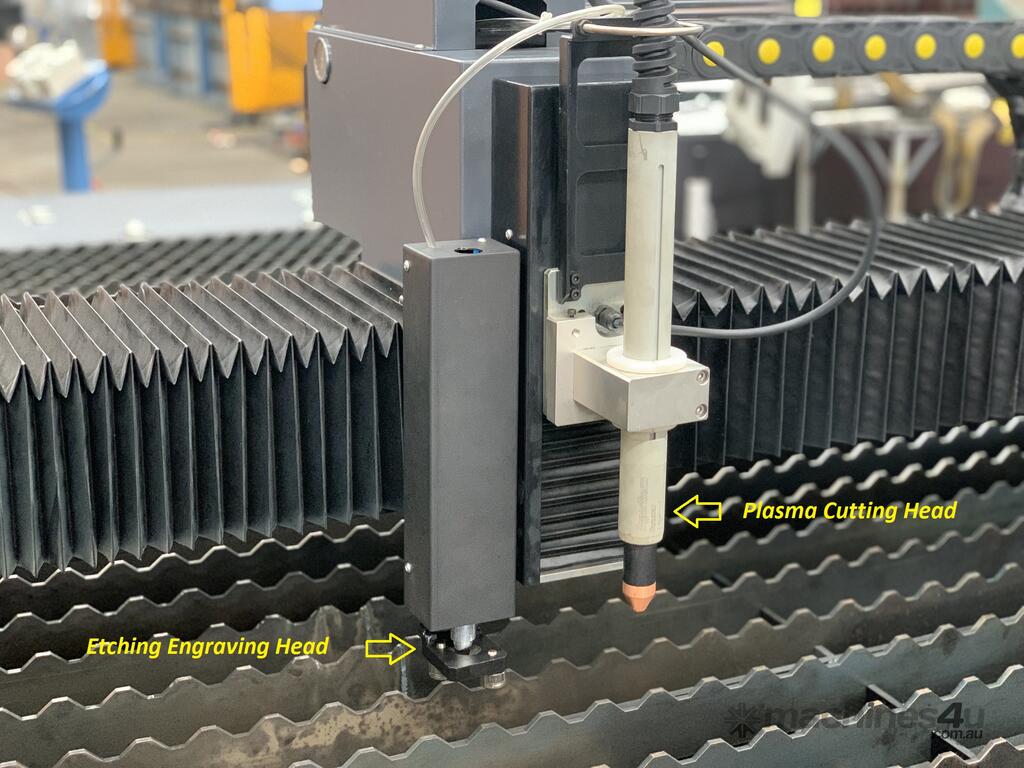

? Etching engraving head fitted
? superior cut speed, quality and stability
? servo drive ensuring optimum track speed. even for fine contours and tight radii
? Fast Cam Professional offline software supplied standard offering, nesting, dxf file conversion and so much more.

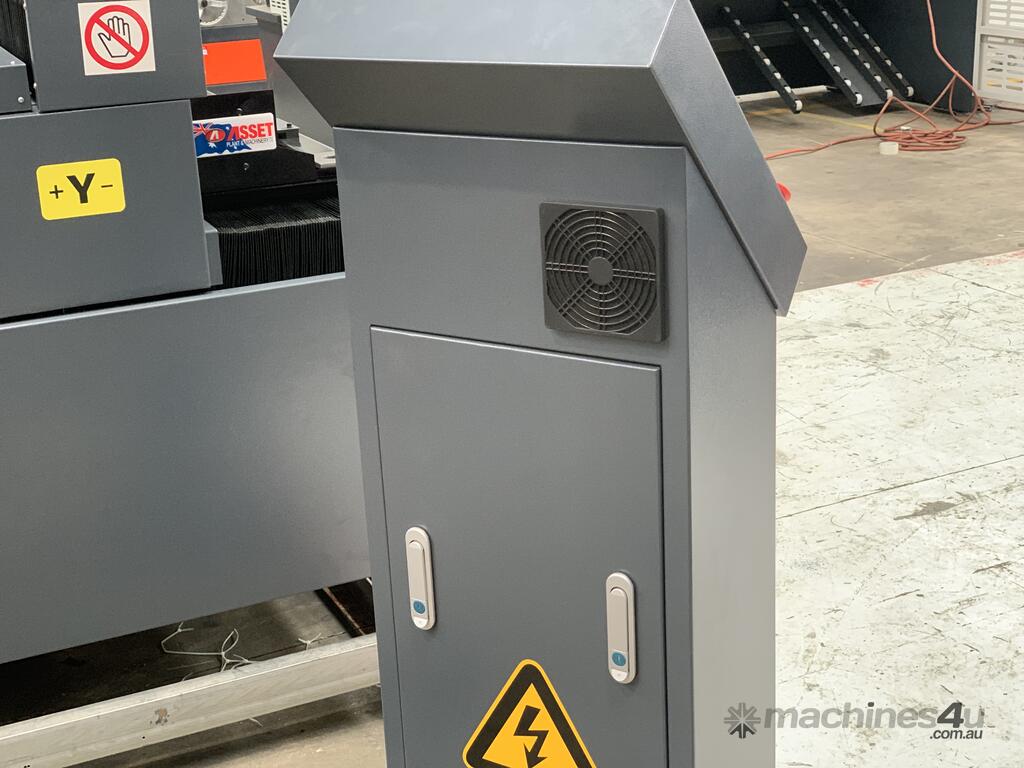

? high quality cnc controller options offering options, accepting G & M codes.
? compatible with common cutting software’s such as ARTCUT, CAXA, ARTCAM

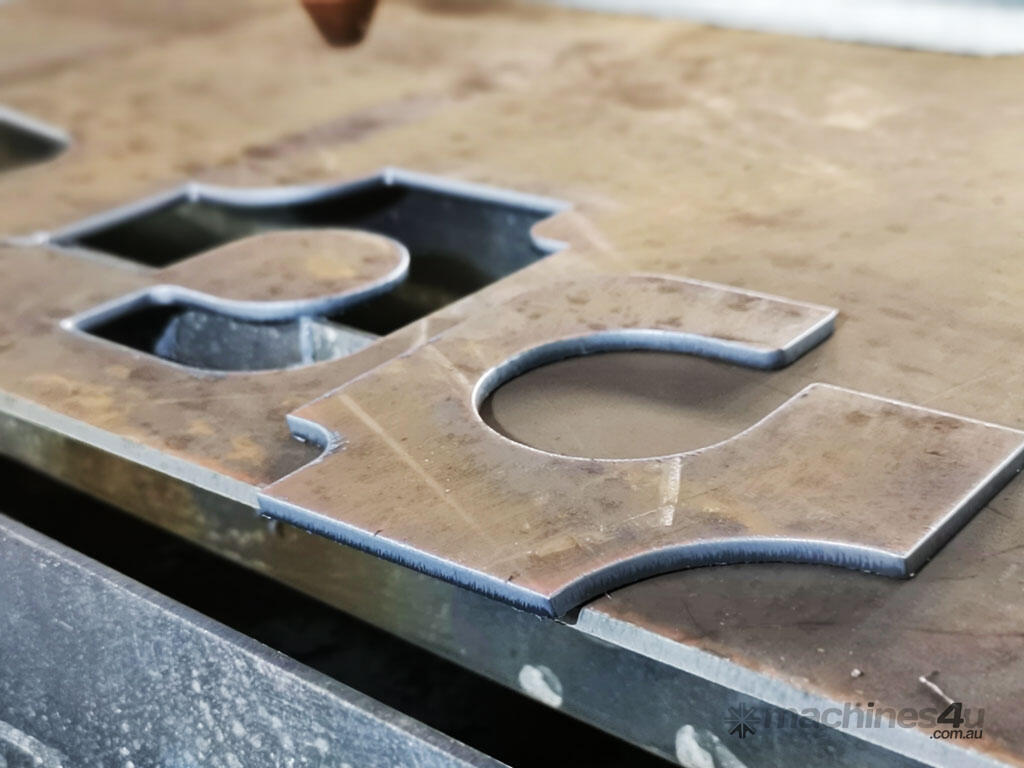

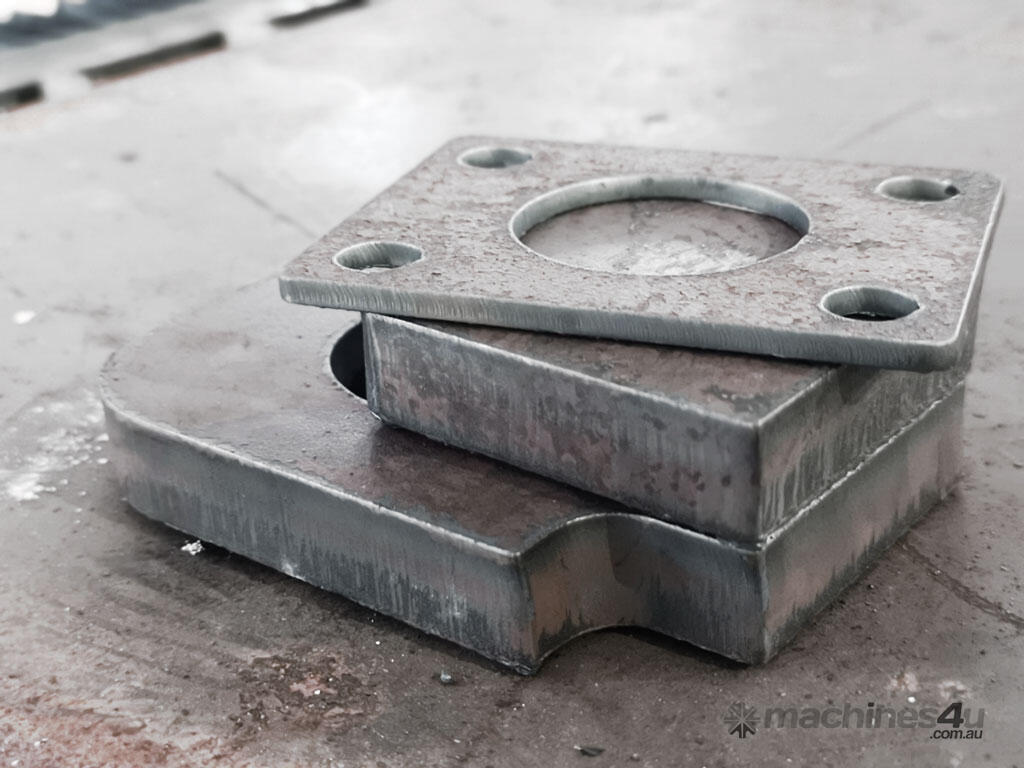

? small kerf, precise cutting, no cutting residue
? all DXF or DWG (from Autocad, Solidworks) formated files can be adapted.

Technical data
? cutting area – 1500mm x 3000mm
? bed area – 1700mm x 3300mm
? Z travel - 80mm
? larger engineered tables available to suit thicker plate
? cutting speed - 0 ~ 6000mm / min
? MAX cutting speed – 12,000mm / min
? accuracy – 0.2mm

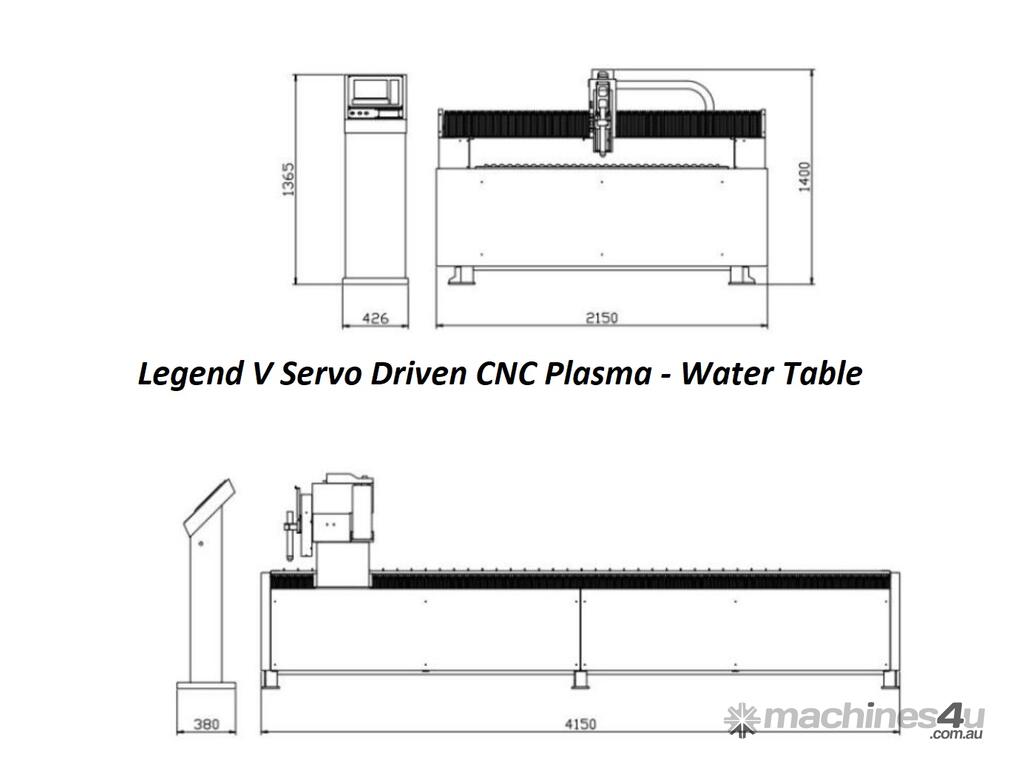

? dimensions - 3200mm x mm
? weight – 1180Kg
? power source – 240volt
? 24 month warranty

Power Source
? Power Source is added based on customers cutting requirements.

Programming

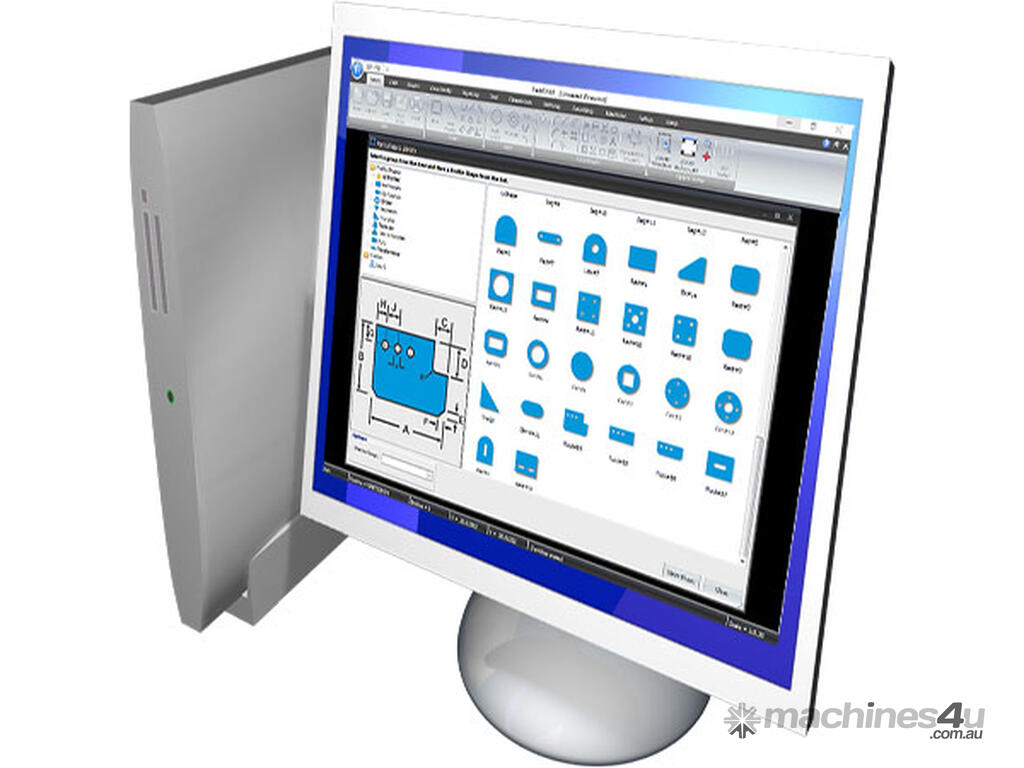

? FAST CAM Professional CNC Cutting software included with machine.
? Program(nesting shapes), drawing is done by computer in office
? DXF, cad and other file conversions direct to cutting path
? Save G code into USB
? Program is transferred to G code
? Connect USB with machine controller
? Operate controller ( for this step, no computer is needed)

Services required to be provided by customer
? electrical connection.
? compressed air.
? air dryer, filter and air micron filters highly suggested - Asset stock codes for these are 25-0258, 25+0259 & 25+0258
? Asset can offer you the above additional items on request.
