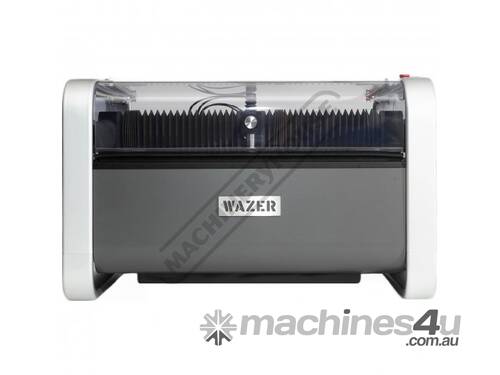

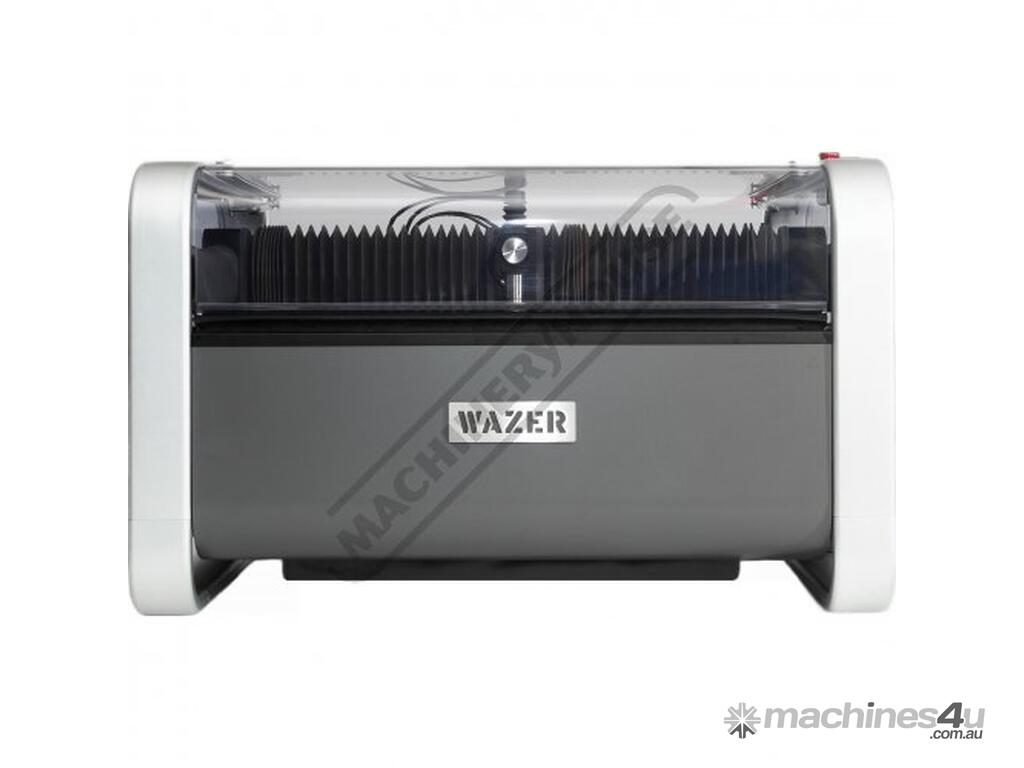

WAZER DESKTOP CNC Waterjet The world first Desktop Waterjet - CUT ANYTHING ON DEMAND International v

WAZER WAZER DESKTOP CNC Waterjet The world first Desktop Waterjet - CUT ANYTHING ON DEMAND International version
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W08720

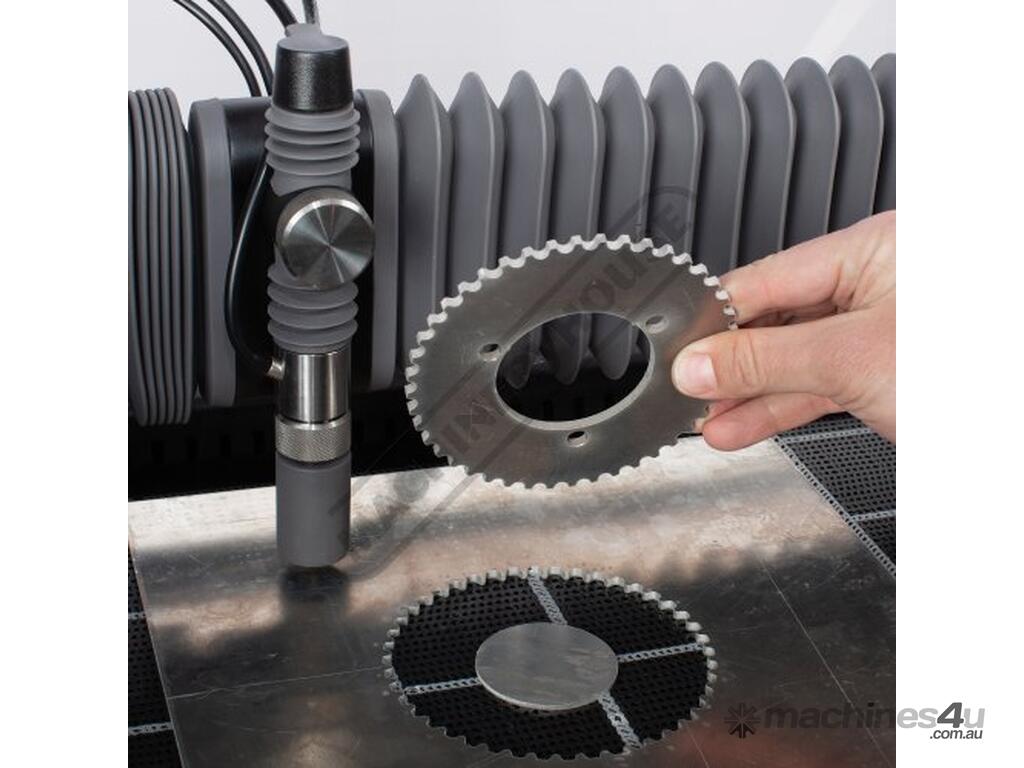

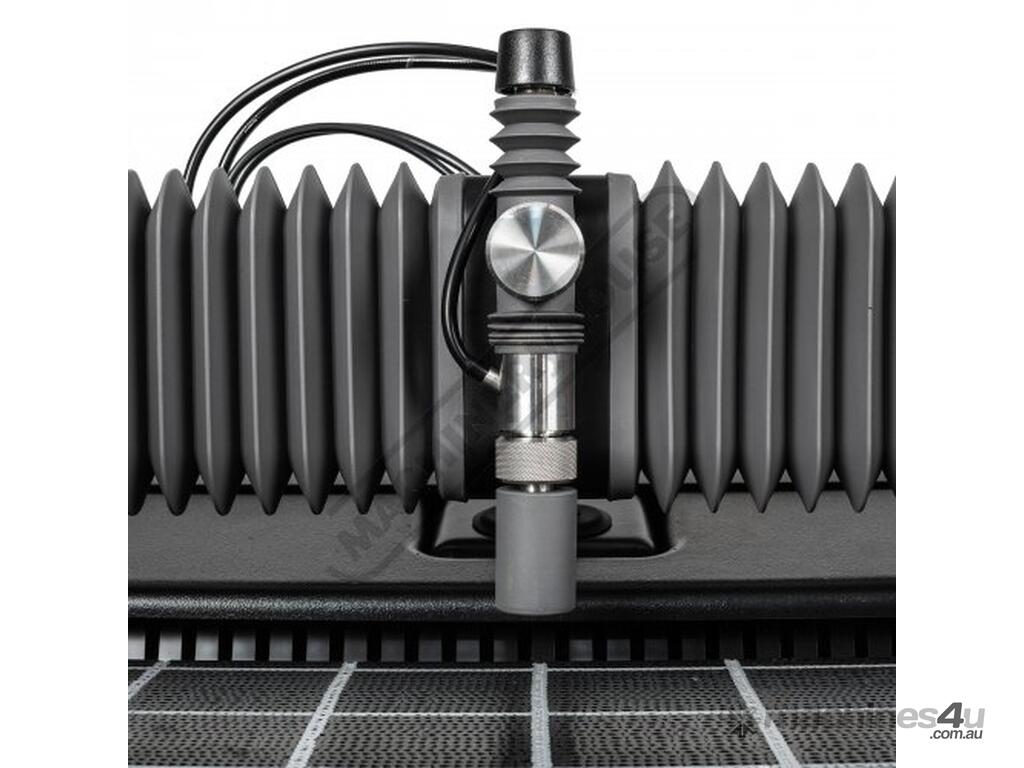

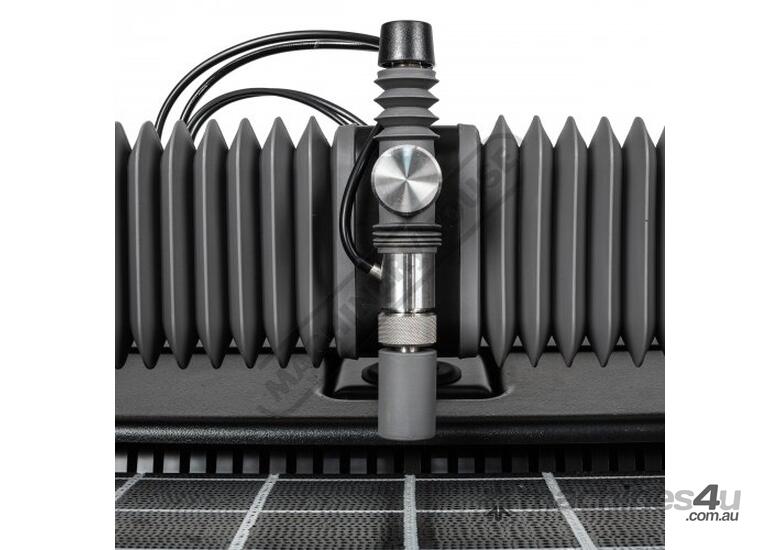

WAZER is the first desktop water jet that cuts any hard or soft material with digital precision. The high velocity jet uses a combination of high pressure water and abrasive particles to cut through the work piece. Traditional water jets cost upwards of $100,000. With WAZER, we’re bringing this advanced technology to any size workshop. What will you make?

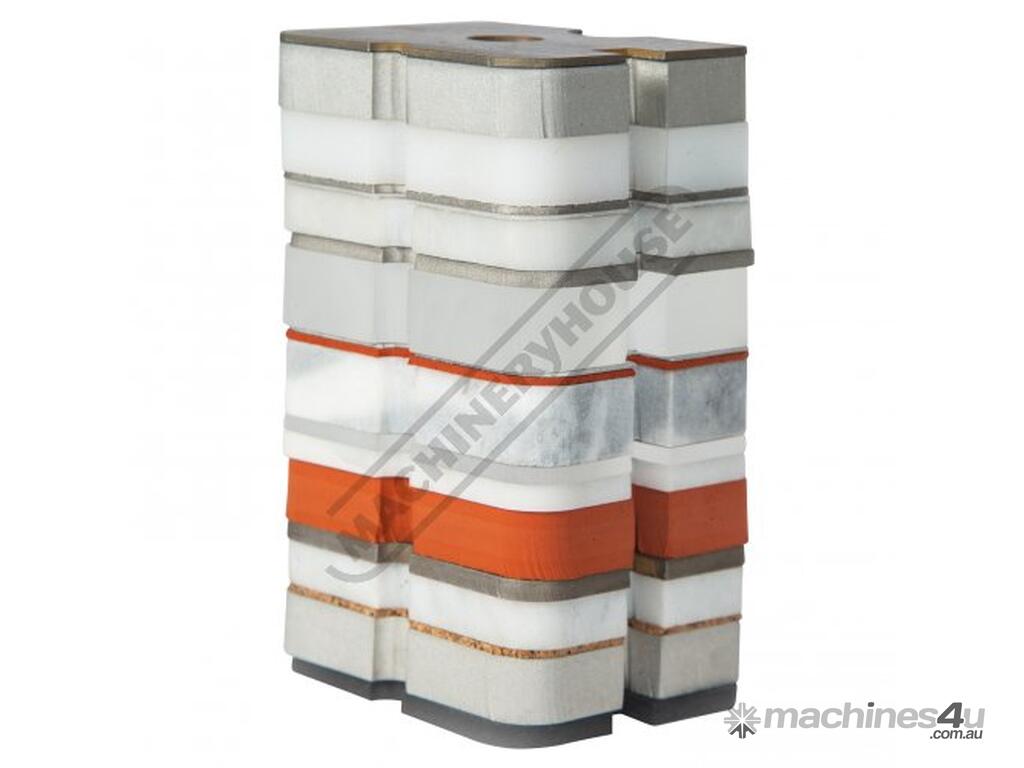

WAZER can cut through sheets of any material including metal, stone, glass, ceramic, composites, plastic, rubber, and foam. For a list of example materials and speeds please see the downloads section on this page

Cutting Area - 305 mm x 460 mm
Cut Bed Size - 330 mm x 485 mm
Kerf (width of cut) - 1.2 mm


WAZER WAM Design Software

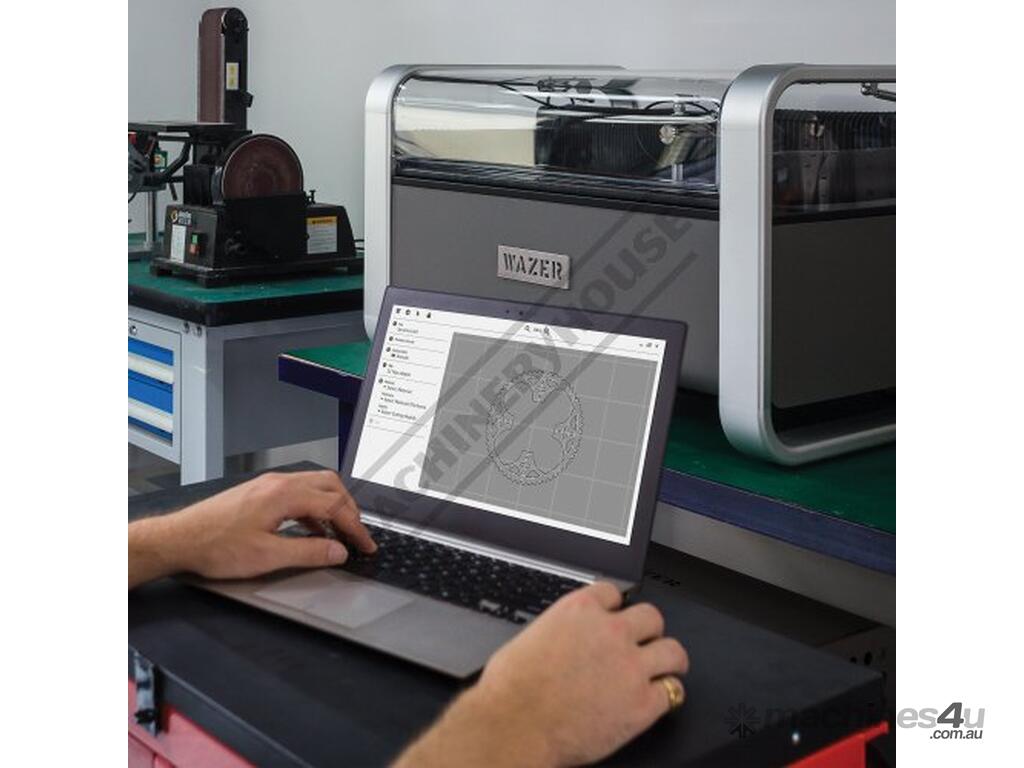

Wazer operates with an online file prep tool called WAM. WAM will work with any software capable of exporting a design as a .dxf or .svg file. WAM eliminates the need to have a laptop at the machine workstation. Here is a typical workflow:

1. Create your design in any design software/CAD program which can export .dxf or .svg files
2. Upload your file into WAM, position your design, choose a material setting and cut quality.
3. Save your cut file from WAM to an SD card.

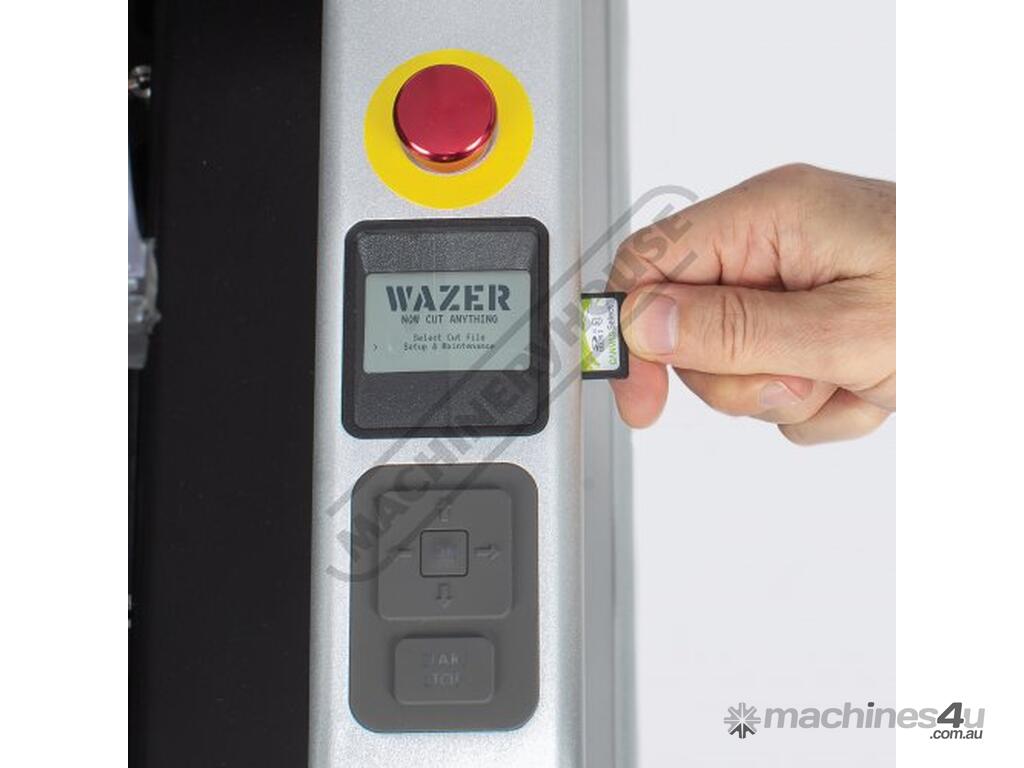

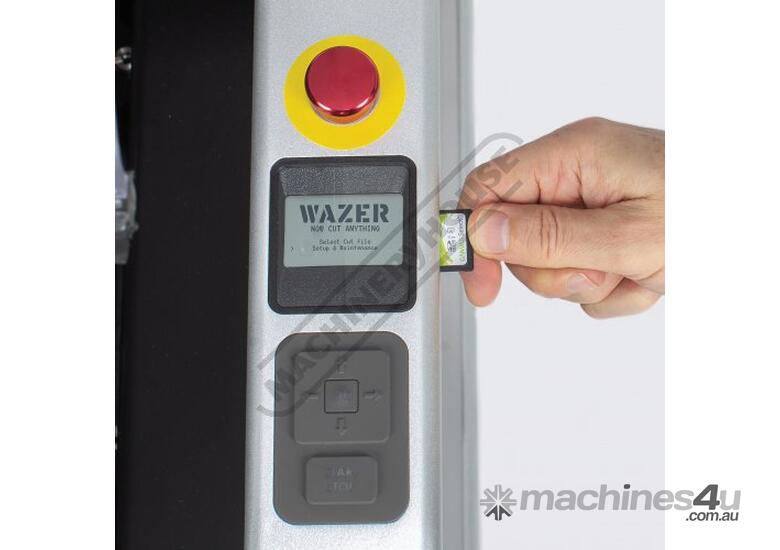

4. Insert the SD card into WAZER and cut!

Features:
Cuts Any Material: Metal Stone Glass Ceramic Composite Plastic Rubber and Foam.

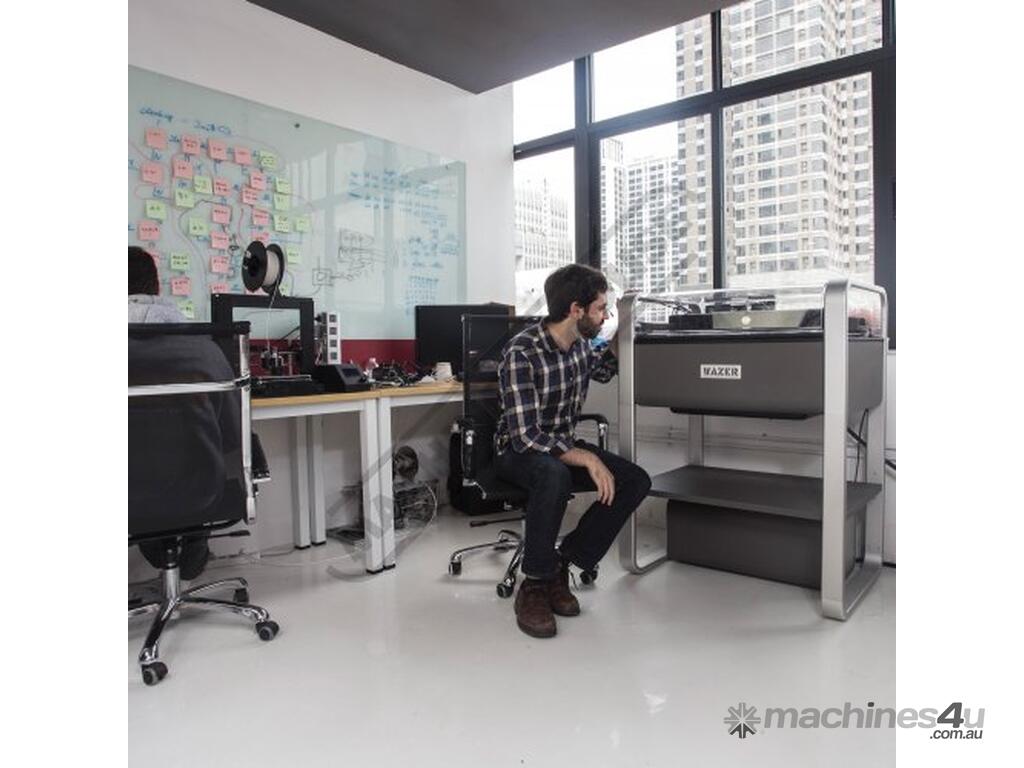

Compact size fits in any work space.
Brings professional-grade fabrication into any workshop.
Ideal for on demand cutting of custom parts.
In-house capabilities reduces costly outsourcing.
Great for prototyping manufacturing fine art and instruction.
Simple set up. Just connect to standard electricity water and drain.
Cold cutting. No heat. No fumes. No need for ventilation.
Quickly go from design to cutting. Takes any DXF or SVG file.
Assembled in the USA.

Includes:
- WAZER DESKTOP International Version
- PUMP BOX International Version
- 1 x Cut Bed
- 2 x Abrasive Bucket
- 2 x Water Sensors
- 1 x Accessory Kit
- 1 x Setup Kit
- 1 x Plumbing Kit
- 1 x Misc. Spare Parts
- 1 x User Manual


Specifications:
ORDER CODE: W08720
MODEL: WAZER DESKTOP
Cutting Table Capacity (mm): 305 x 460
Maximum Work Piece Weight (kg): ~
Maximum Cutting Thickness - (Material Dependent) (mm): ~
X Axis Travel (mm): 305
Y Axis Travel (mm): 460
Z Axis Travel (mm): Manual
Z Gantry Clearance (mm): ~
Rapid Traverse ( X and Y axis ) (mm/mm): 1500
Absolute Positioning Accuracy (mm): 0.08
Repeatability (mm): ~
High Pressure Pump (Type): ~
Max Pump Pressure (psi): 4600
Max Water Usage (L/min): 1.9
Water Capacity (L): ~
CNC System (Type): WAZER
Nesting Software: WAZER WAM
Drawing File (Type): .dxf, .svg
Garnet Delivery: 150g/min
Garnet Hopper Capacity (Kg): 13.5
Electrical Power (kW): ~
Max Current (Amps): 2 x 240VAC 10 amp plugs
Input Air Pressure (Bar (PSI)): ~
Weight (Empty) (Kgs): ~
Operating Weight (Kgs): ~
Operating Weight (Kgs): ~
