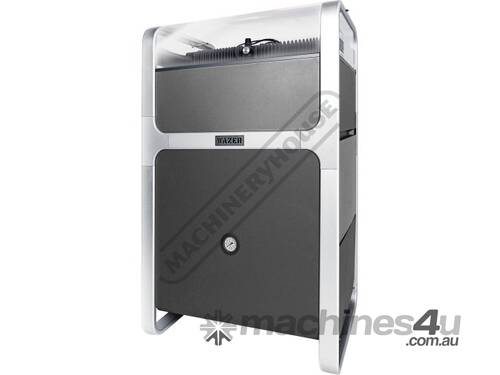

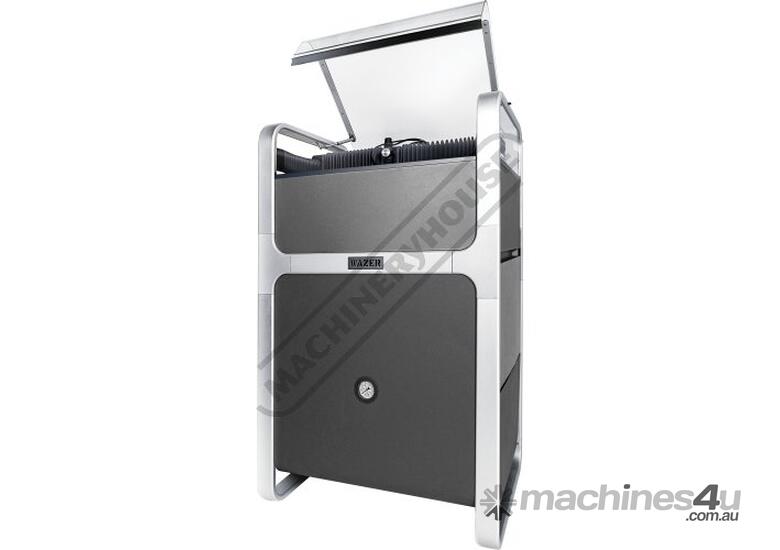

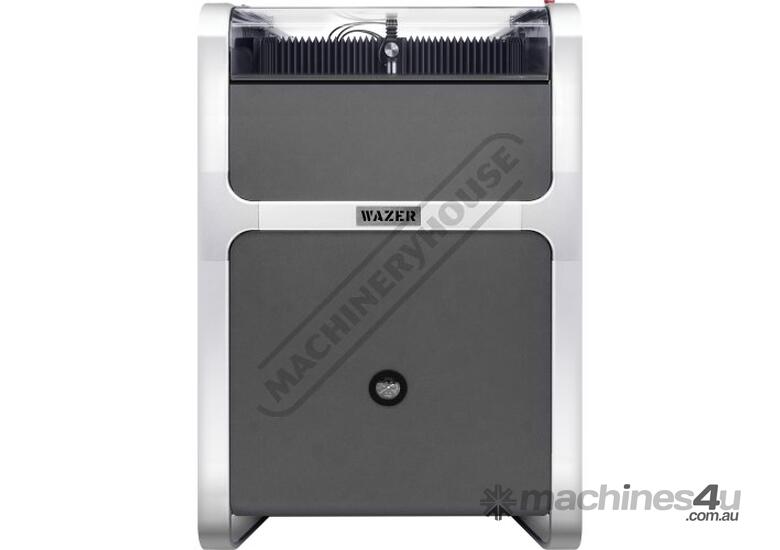

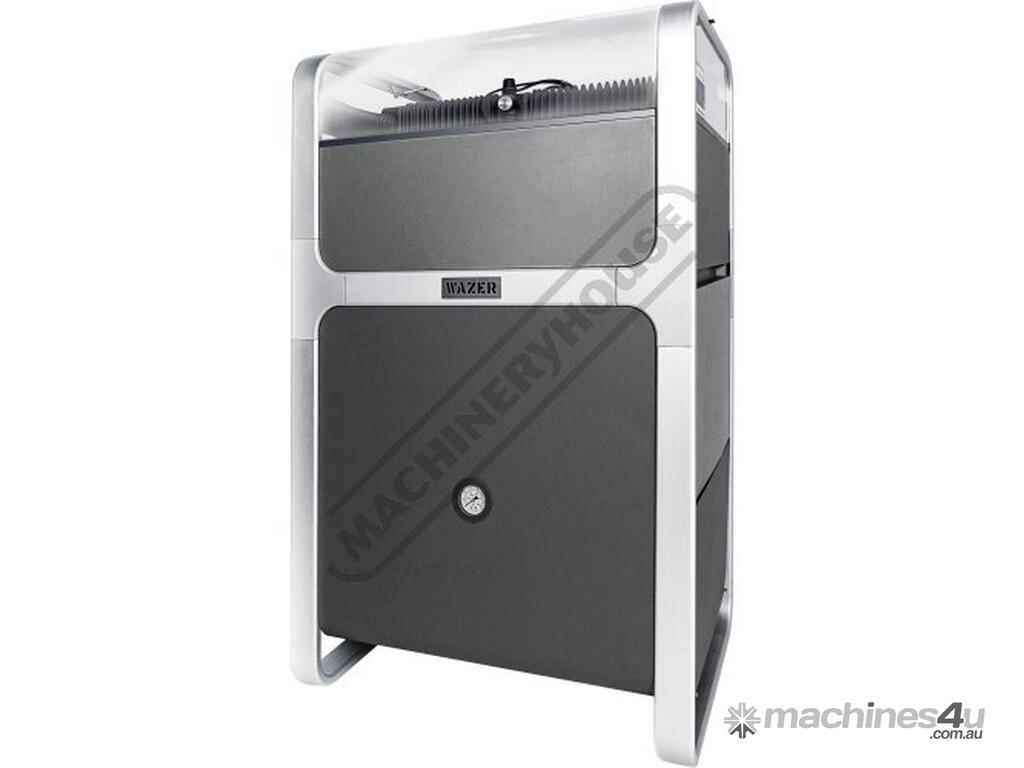

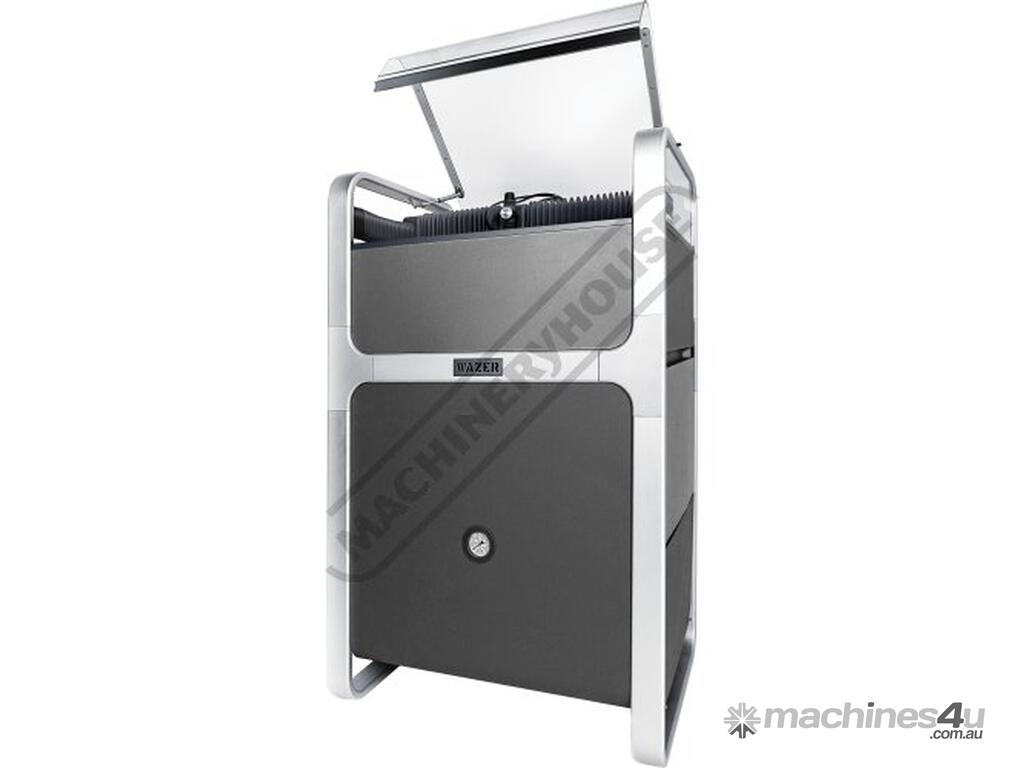

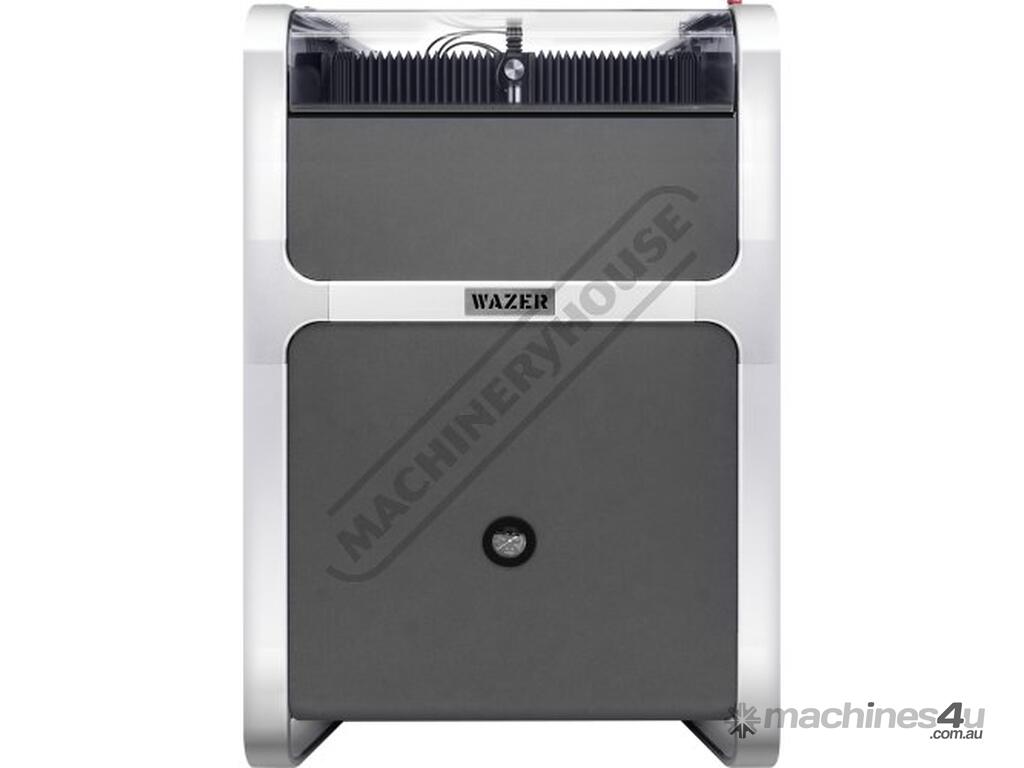

WAZER PRO CNC Waterjet The Waterjet for Any Shop - Now Cut Anything 50Hz International version

WAZER WAZER PRO CNC Waterjet The Waterjet for Any Shop - Now Cut Anything 50Hz International version
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W08725

Overview:

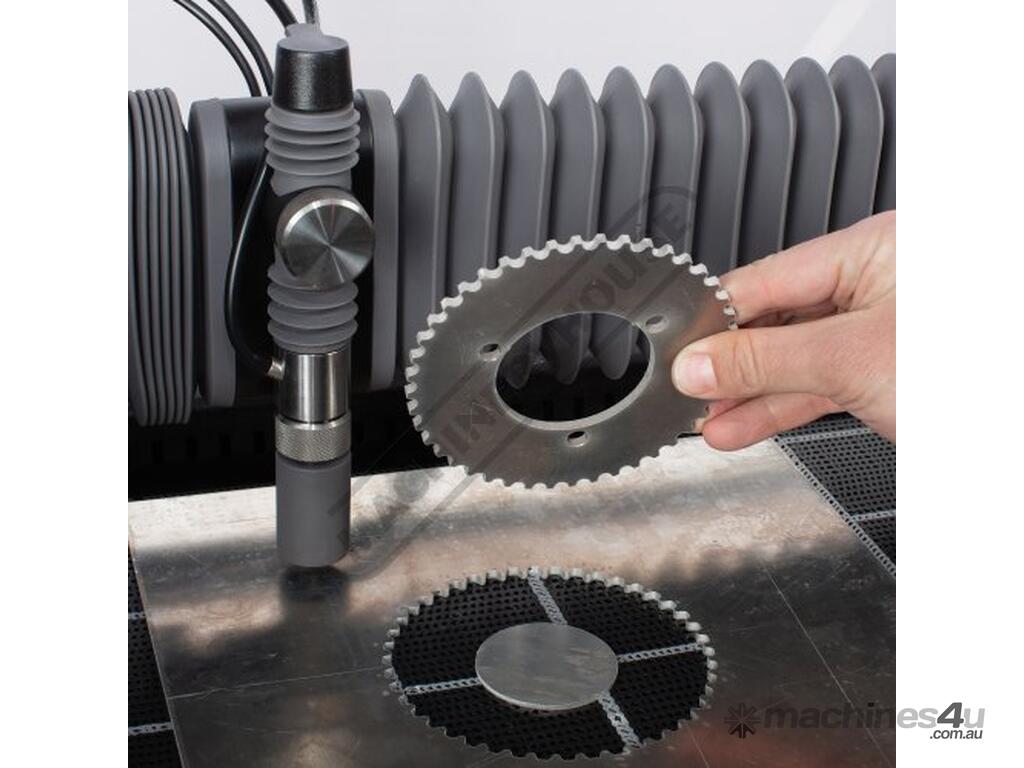

WAZER PRO can cut through sheets of any material including metal, stone, glass, ceramic, composites, plastic, rubber, and foam.

Cutting Area - 305 mm x 460 mm
Cut Bed Size - 330 mm x 485 mm
Kerf (width of cut) - 1.2 mm

Increased cutting pressures means the WAZER PRO can cut 2-4 times faster than the desktop model with the same abrasive rate, reducing consumable cost and running time considerably.

WAZER Pro cuts up to 25mm Aluminium, 10mm Mild & Stainless steel, 25mm Stone or rubber.

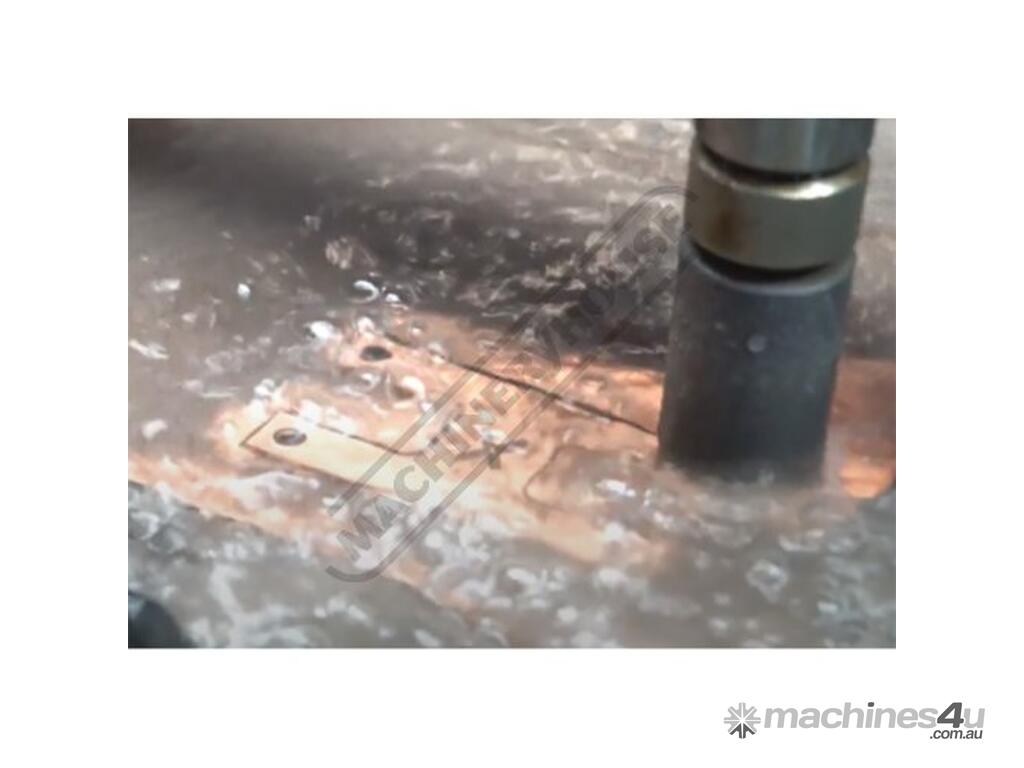

The WAZER PRO has with the ability to cut submerged up to 10mm for quieter cutting.

The absolute zero locating feature allows you to easily create re-useable fixtures for repeat jobs.

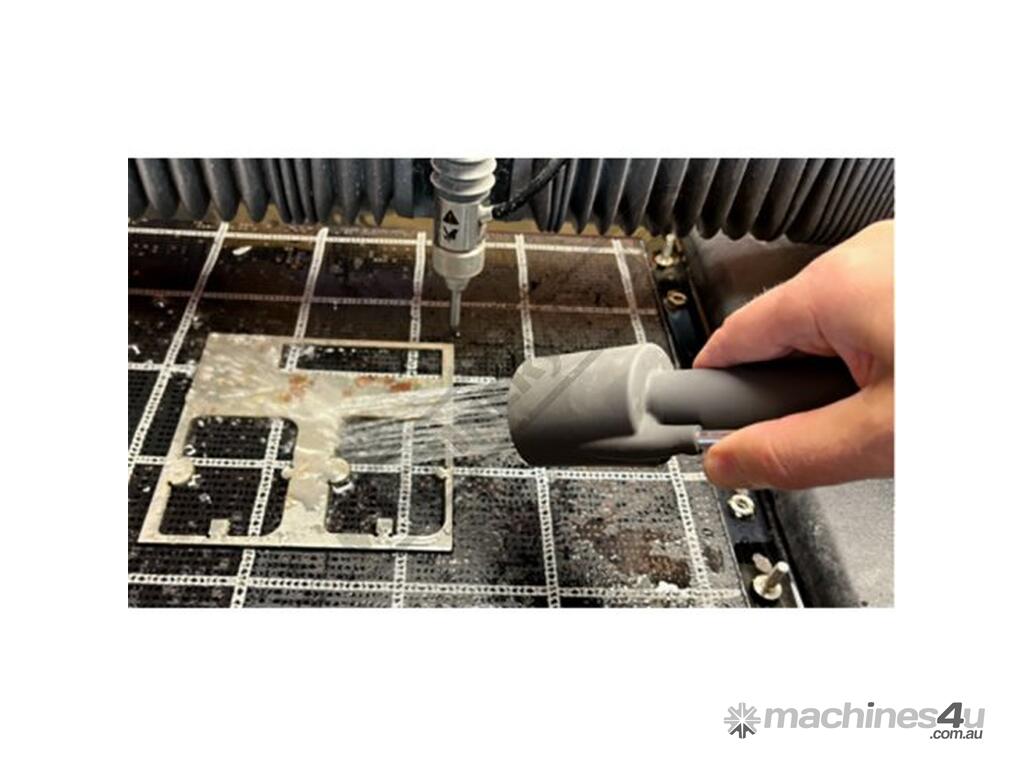

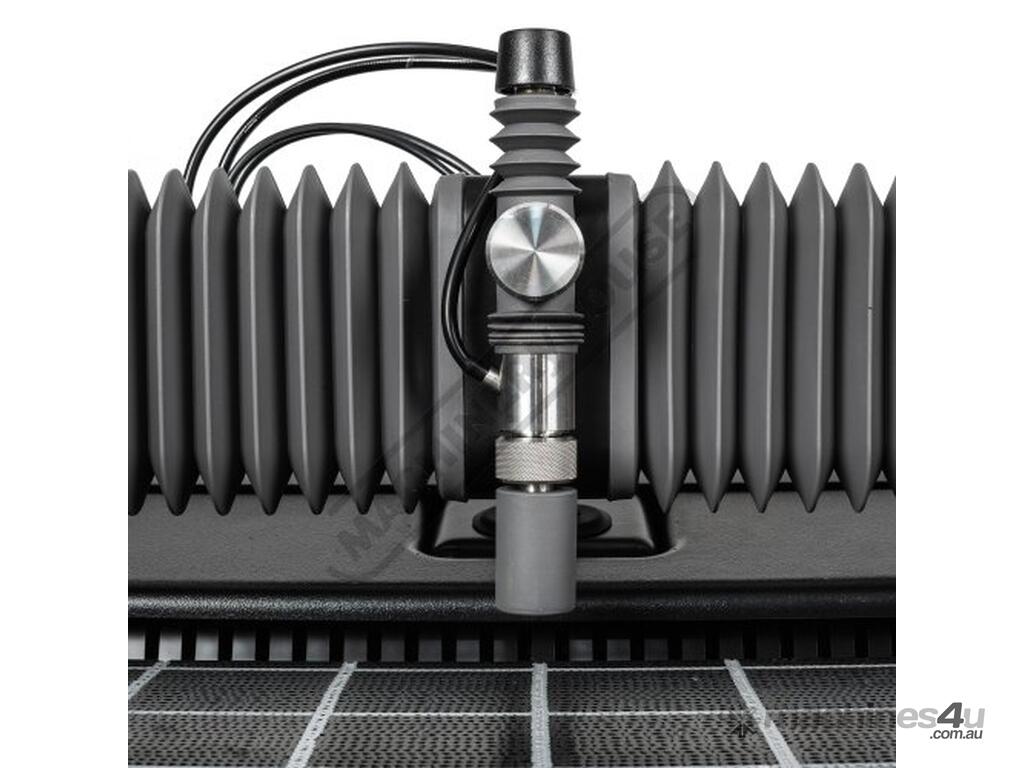

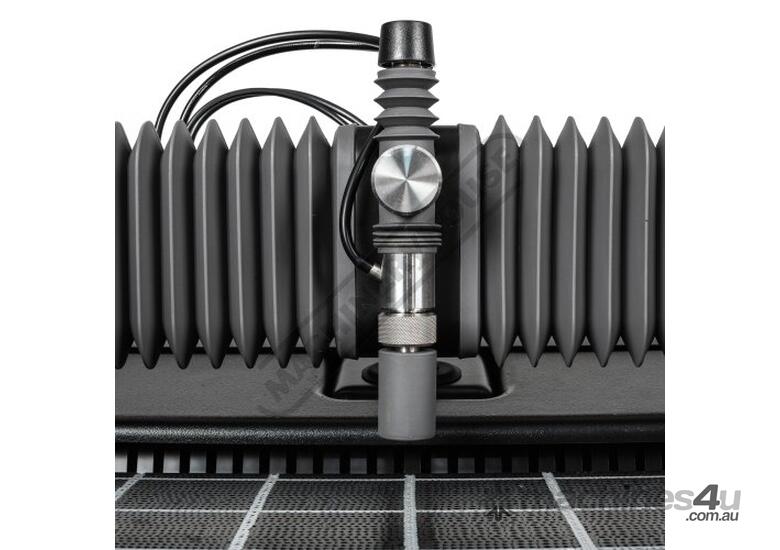

Fitted with a water spray Nozzle allowing cut components to be cleaned inside the WAZER PRO.

WAZER WAM Design Software
Wazer Pro operates with an online file prep tool called WAM. WAM will work with any software capable of exporting a design as a .dxf or .svg file. WAM eliminates the need to have a laptop at the machine workstation. Here is a typical workflow:

1. Create your design in any design software/CAD program which can export .dxf or .svg files
2. Upload your file into WAM, position your design, choose a material setting and cut quality.
3. Save your cut file from WAM to an SD card.

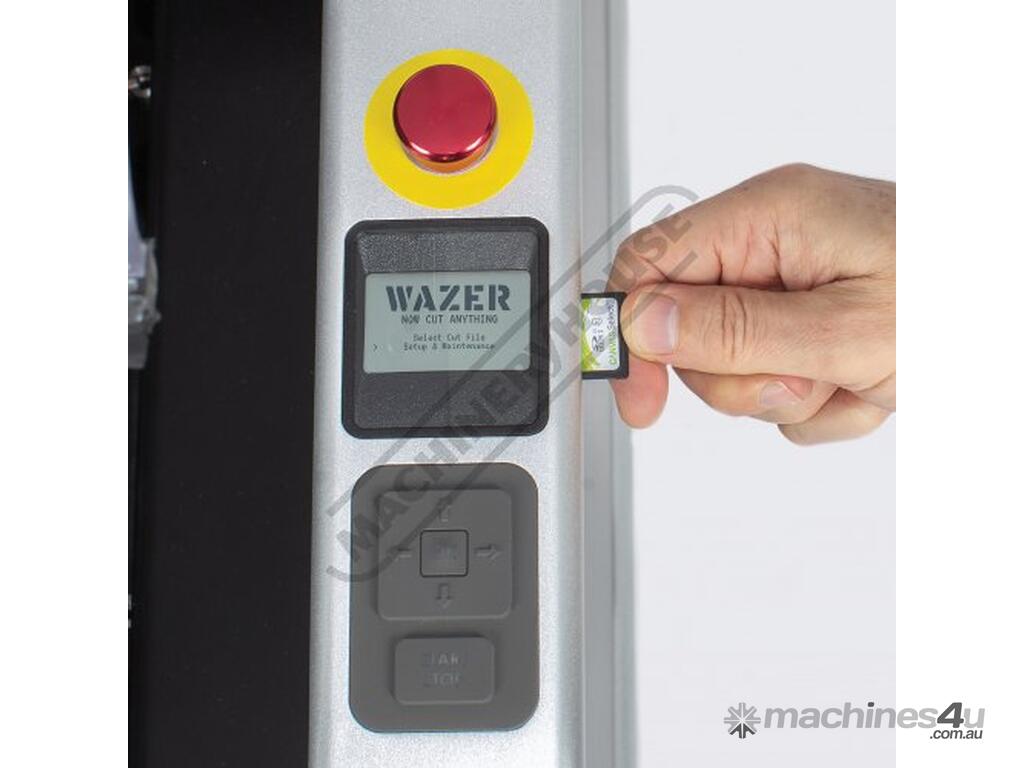

4. Insert the SD card into WAZER and cut!

Features:
Cuts Any Material: Metal Stone Glass Ceramic Composite Plastic Rubber and Foam.
Compact size fits in any work space.
Brings professional-grade fabrication into any workshop.
Ideal for on demand cutting of custom parts.
In-house capabilities reduces costly outsourcing.
Great for prototyping manufacturing fine art and instruction.
Simple set up. Just connect to standard electricity water and drain.
Cold cutting. No heat. No fumes. No need for ventilation.
Quickly go from design to cutting. Takes any DXF or SVG file.

Includes:
- WAZER PRO 50Hz International Version
- 1 x Cut Bed
- 1 x Spray Nozzle
- 2 x Abrasive Bucket
- 2 x Water Sensors
- 1 x Accessory Kit
- 1 x Setup Kit
- 1 x Plumbing Kit
- 1 x User Manual


Specifications:
ORDER CODE: W08725
MODEL: WAZER PRO
Cutting Table Capacity (mm): 305 x 460
Maximum Work Piece Weight (kg): ~
Maximum Cutting Thickness - (Material Dependent) (mm): ~
X Axis Travel (mm): 305
Y Axis Travel (mm): 460
Z Axis Travel (mm): Manual
Z Gantry Clearance (mm): ~
Rapid Traverse ( X and Y axis ) (mm/mm): 1500
Absolute Positioning Accuracy (mm): 0.08
Repeatability (mm): ~
High Pressure Pump (Type): ~
Max Pump Pressure (psi): 8600
Max Water Usage (L/min): 1.9
Water Capacity (L): ~
CNC System (Type): WAZER
Nesting Software: WAZER WAM
Drawing File (Type): .dxf, .svg
Garnet Delivery: 150g/min
Garnet Hopper Capacity (Kg): 19.1
Electrical Power (kW): ~
Max Current (Amps): 240VAC 15 amp
Input Air Pressure (Bar (PSI)): ~
Weight (Empty) (Kgs): ~170
Operating Weight (Kgs): ~360
Operating Weight (Kgs): ~
