WEINIG OptiCut 200 Extreme

The powerhouse for maximum performance
Powerful feed via chain infeed system
Unique length measuring system
Pneumatic saw stroke
Cutting of cross-sections up to 260 x 12 mm or 160 x 80 mm is possible
Saw blade diameter 520 mm
Integrated waste gate as standard
Measuring wheel in front of saw blade
Min. fixed length behind saw blade: 140 mm
Cutting tolerance ± 0.8 mm to 1000 mm length

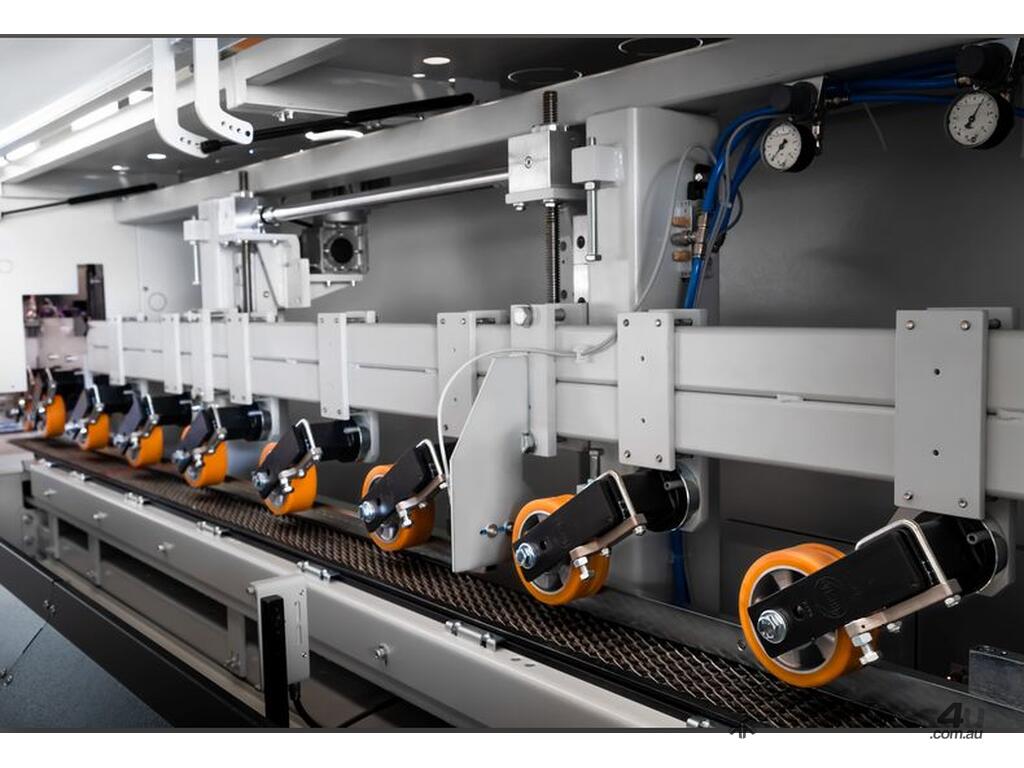

The OptiCut 200 Extreme is available for difficult and lower grade wood. Even tapered or highly irregular workpieces are transported safely via a robust chain infeed. A special measuring system reliably records the entire length of the wood, so that even the undersized areas can be treated in a controlled manner in the saw. Chain transport ensures a high degree of dimensional accuracy, as the workpiece does not slip during transport. The measuring wheel in the saw ensures exact cutting of the OK parts - independent of slippage. Powerful motors enable maximum daily capacity. Not only do you benefit from the wood savings provided by the standard full optimization, but the OptiCut 200 Extreme also becomes considerably more productive thanks to its performance, high technical availability and simple operation. In addition, the cross-cut saw has the unique intelligently controlled waste gate.
