Strong concept for profitable, high performance cross cutting
5 driven feed rollers from below, pressure rollers from above
Pneumatic saw stroke

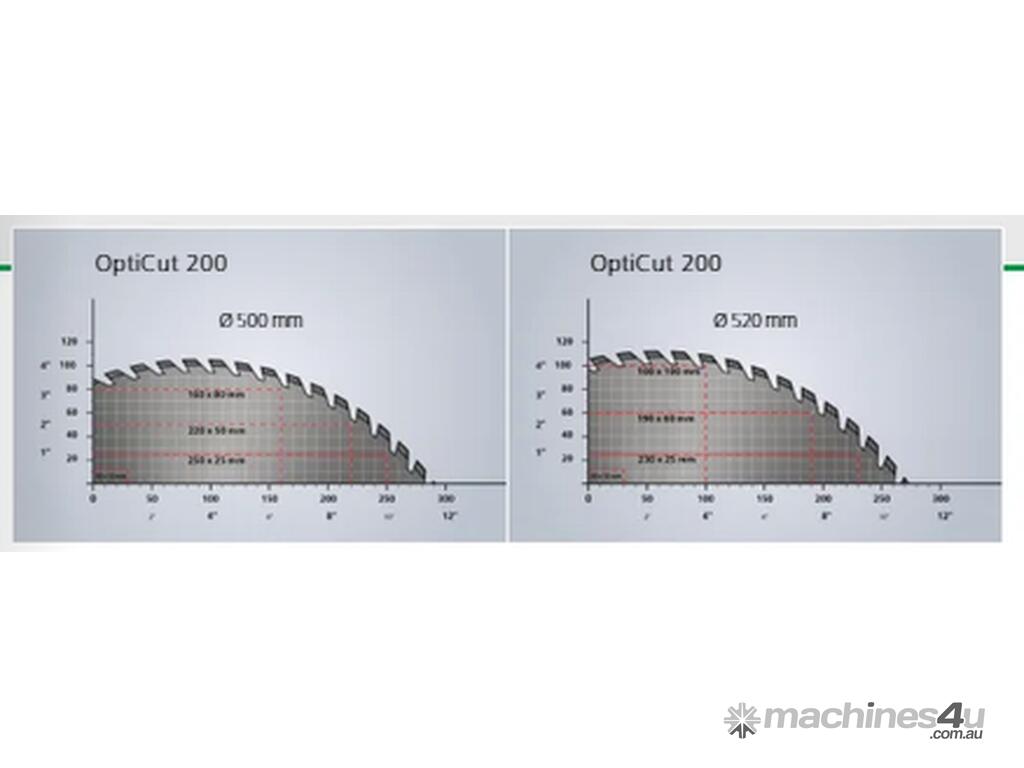

Cutting of cross-sections up to 260 x 12 mm or 160 x 80 mm is possible
Waste disposal via blow-out device
Saw blade diameter 500 mm
Measuring wheel in front of saw blade
Min. fixed length behind saw blade: 140 mm
Cutting tolerance ± 0.8 mm to 1000 mm length
Automatic sorting as standard

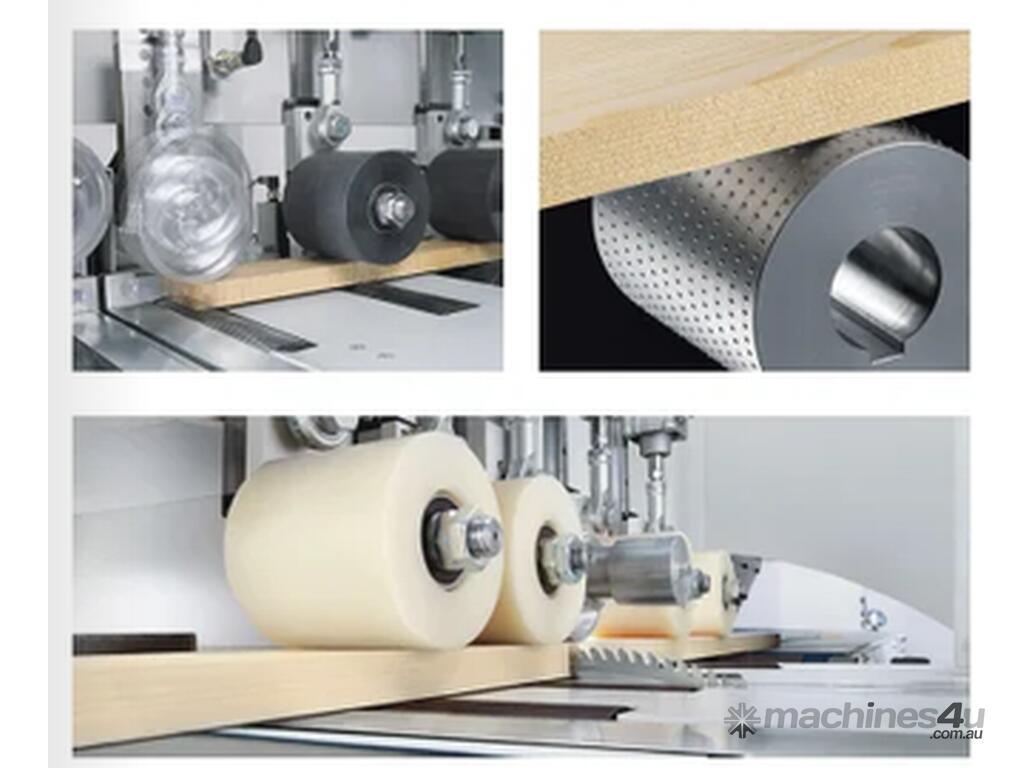

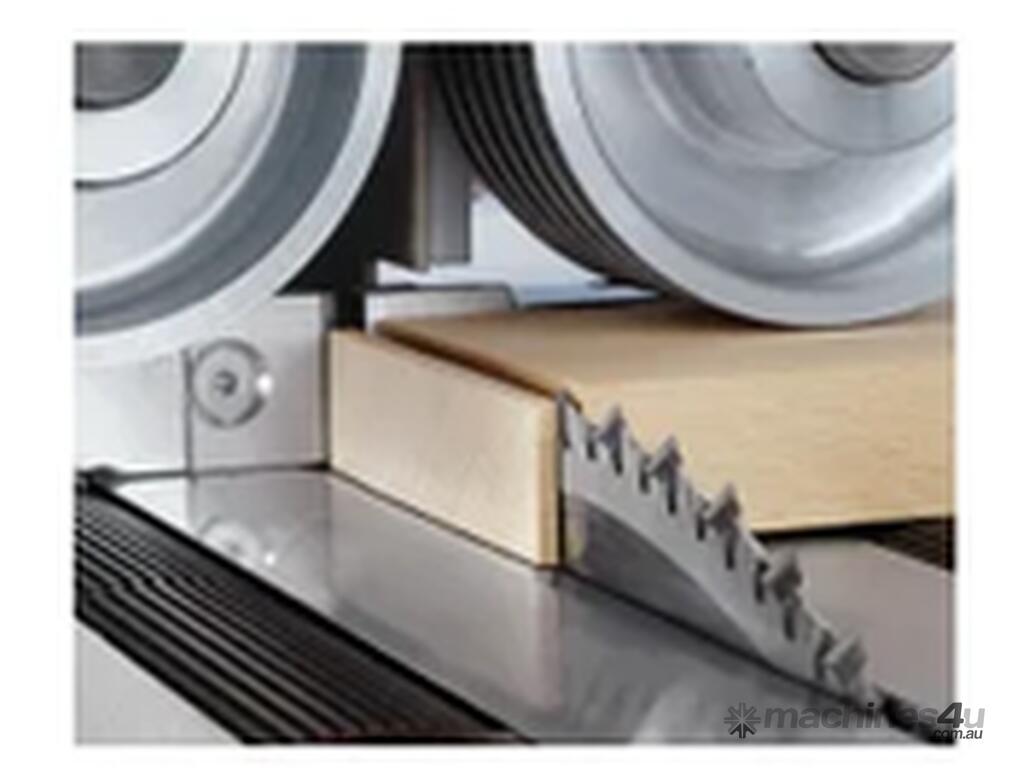

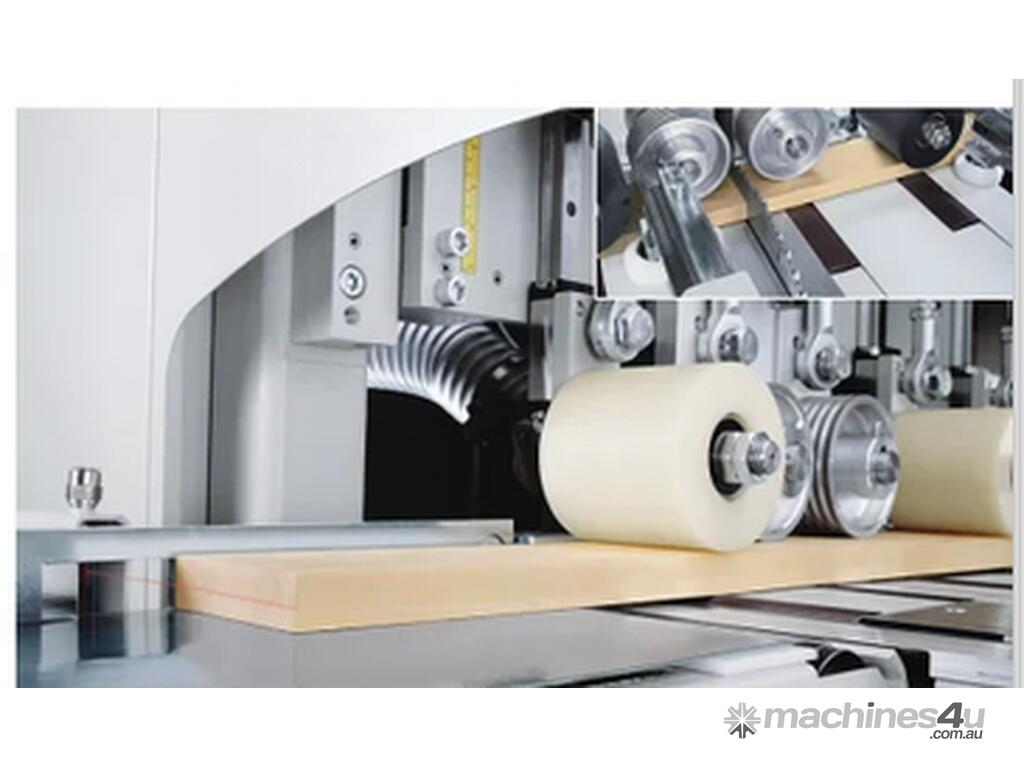

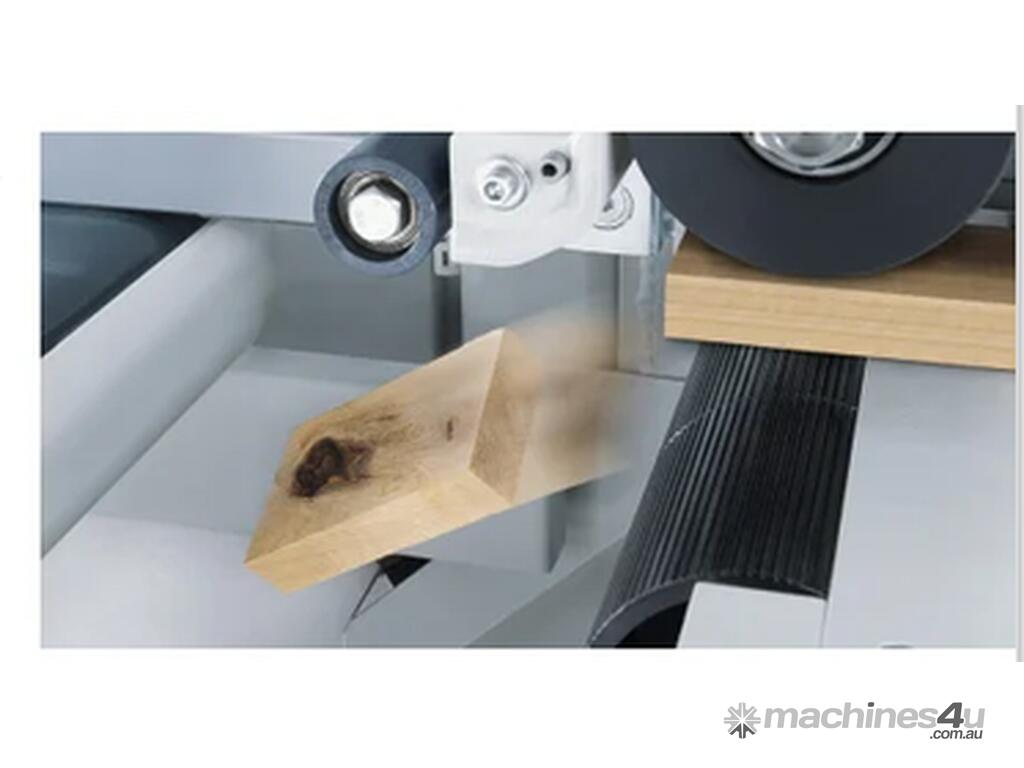

The wide feed rollers hold the wood securely. The rollers are deeply embedded in the table, preventing tipping of short lengths and maintaining straight, precise cutting. Individually cycled pressure rollers from above create the required counter-pressure for rapid and precise positioning without correction runs the impact performance. The pressure rollers only lower after the start of the board, meaning vibration-free and low-wear operation. The strong drive unit guarantees high long-term performance.

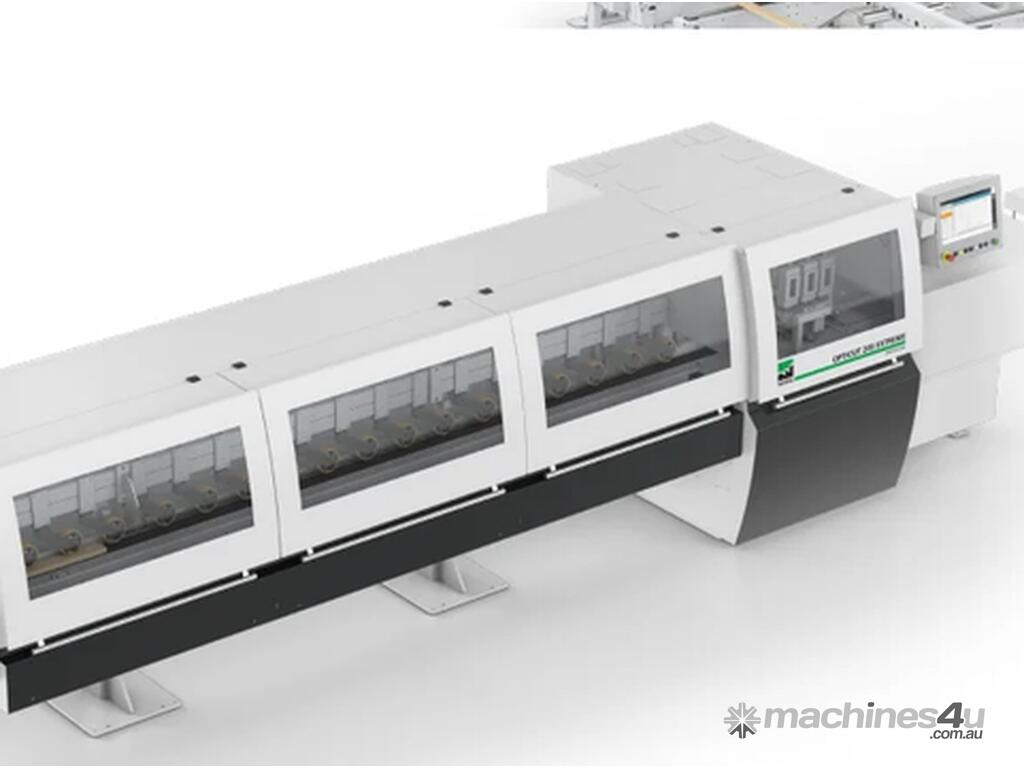

The OptiCut 200 cuts at breathtaking speed and it knows all of the cut lengths. This means consistency when subsequently sorting by length and/or quality. Particularly with order-specific production. This simplifies logistics and saves on personnel.

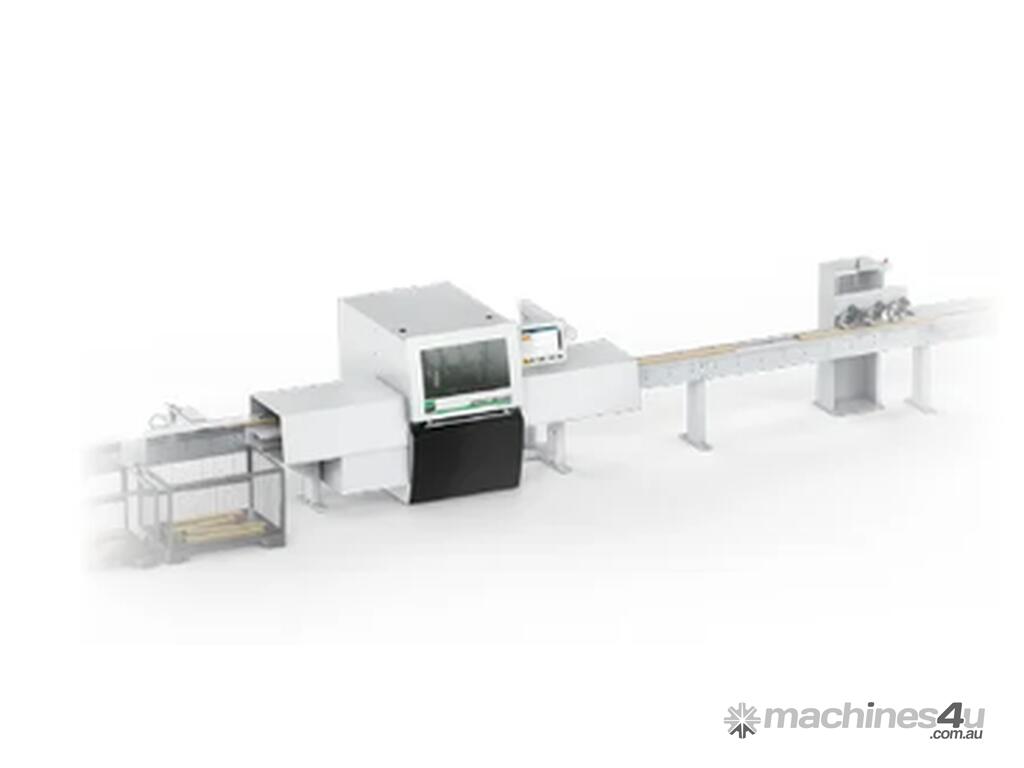

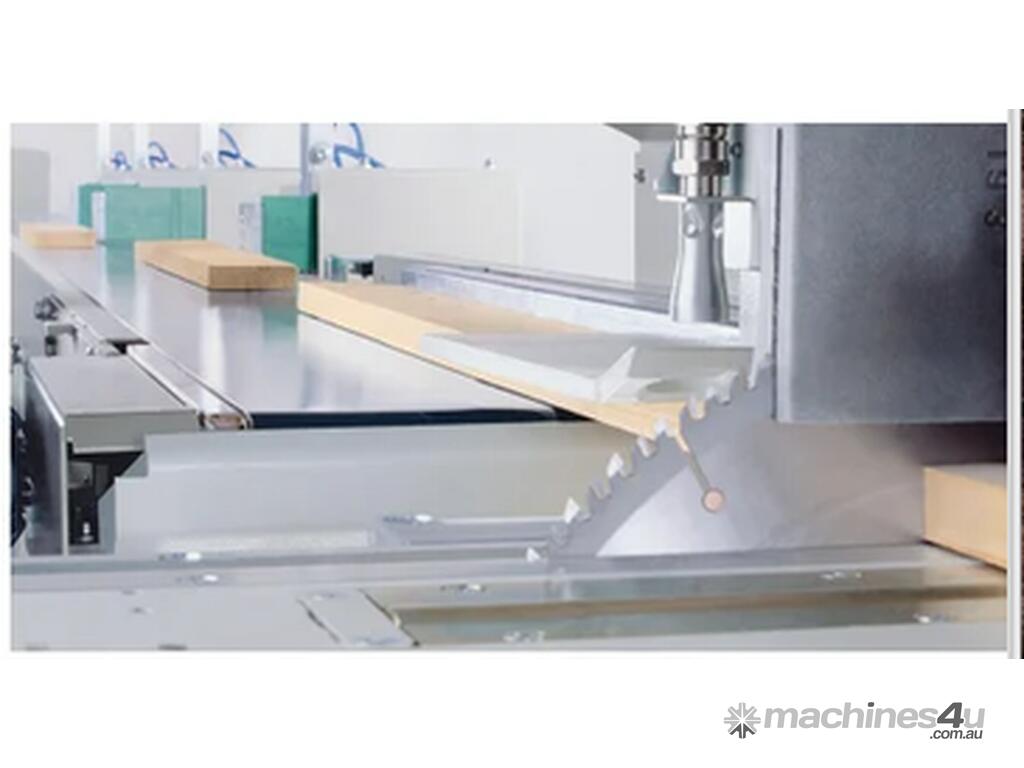

From the marker table to sorting, the OptiCut guarantees continuous and secure workpiece guidance. For example, inside the cross-cut saw, a continuous fence ensures a clean and exact alignment and a right-angled cut of the workpieces.
