WEINIG ProfiJoint: Enormous performance potential for those starting out

The newly developed ProfiJoint entry model uses the same technology as the “big ones”. A wise investment with an outstanding cost-performance ratio. Due to the modular design, the line can be upgraded to a shaper combination. Just one of the many plus points, including the quick return it offers.

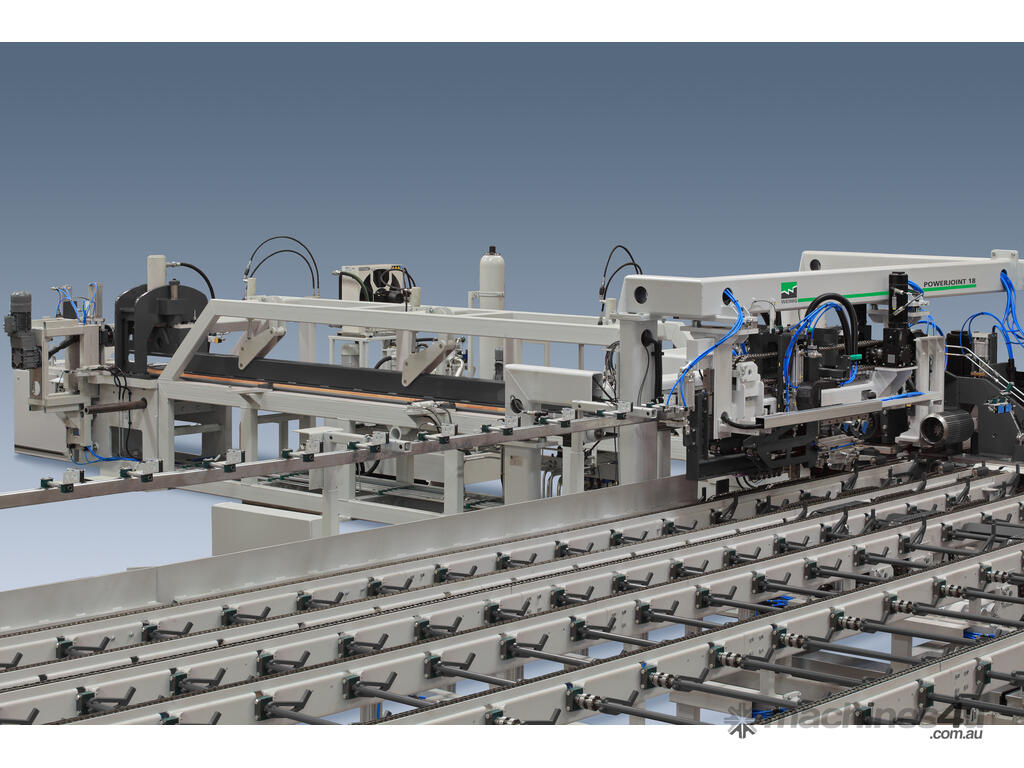

This production line can process wood widths up to 150 (170) mm, wood thicknesses up to 50 (80) mm and wood entry lengths between 150 and 700 mm without any problems.

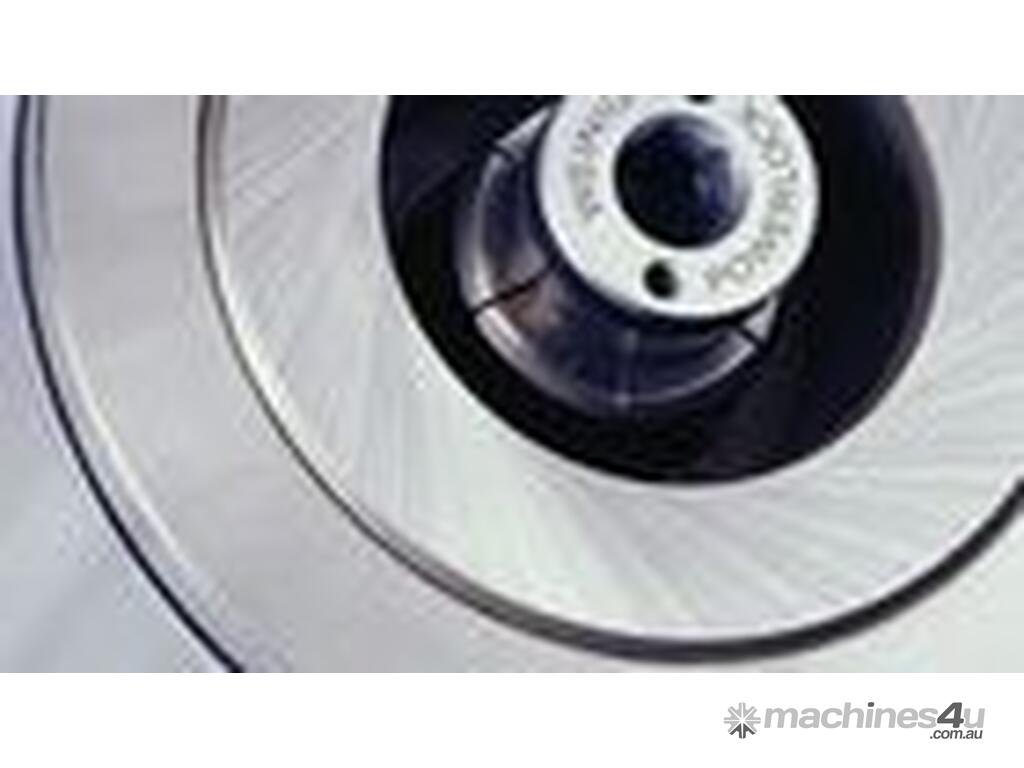

The cast iron body reduces vibrations in the area where the precision of the finger jointing is paramount. And not forgetting the tool technology: Regardless of whether you are marking vertically or horizontally with pre-sc

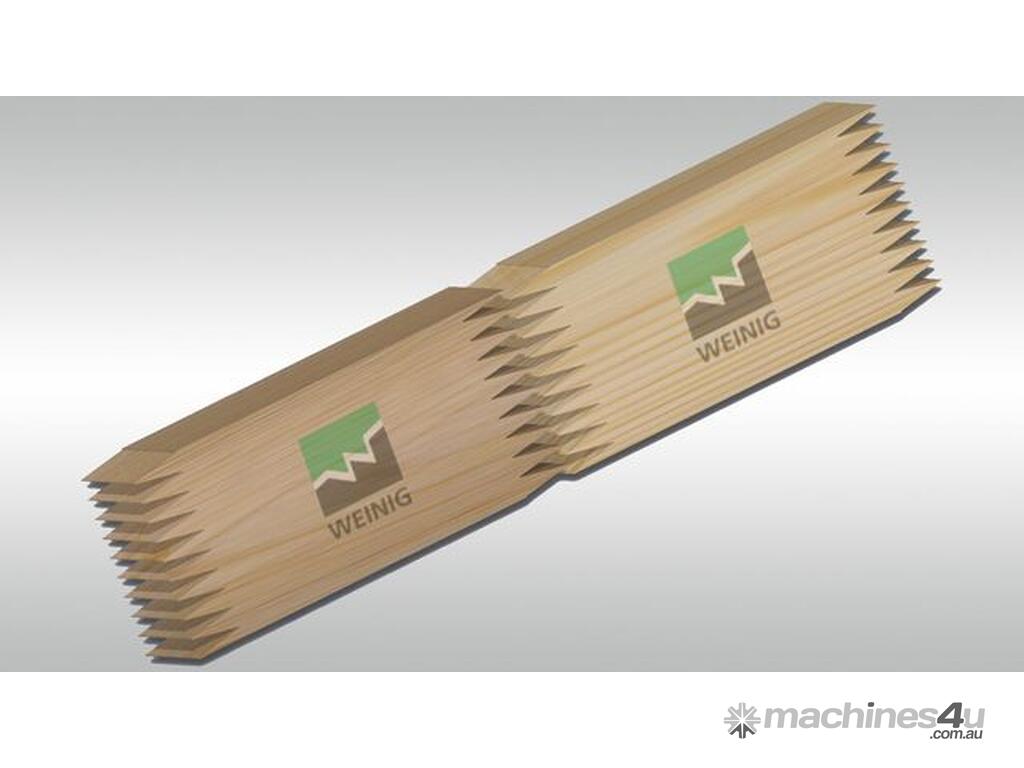

Finger joint profiles for all areas of use
Maximum precision and stability of finger joints
Robust and powerful
High operational capacity, up to 200 pieces/min (28 km/8h-shiftr)
Convenient and user-friendly
Processing with one and two component glue
Compact and efficient production process
Statistics and production data recording
Customized level of automation - from manual to fully automatic
Expandable using peripheries, such as feeding systems and stacking systems

Incredibly easy to operate
Compact option
Shortest depreciation time
For vertical and horizontal finger joints
For 4 mm, 10/11 mm and 15/16.5 mm finger joint lengths
One-person operation possible
Almost all types of glue can be used with the relevant adhesive pump.
Up to 6.1 m starting length (20 foot)
