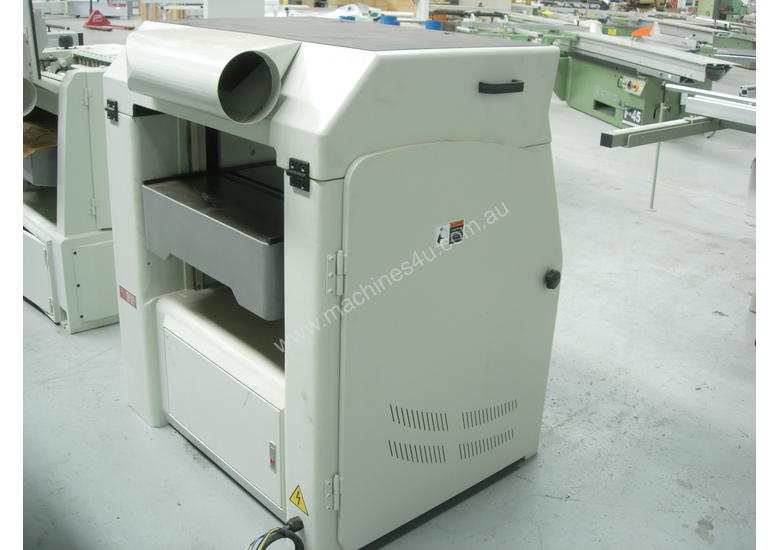

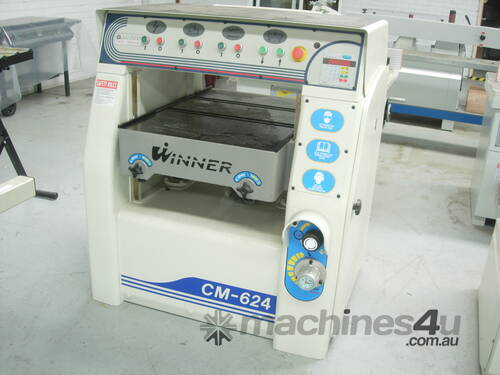

WINNER CM 624 THICKNESSER

Winner CM-624 Heavy Duty Thicknesser With Programmable Working Height.

Optional : Spiral cutter head block,14 x 14 x 2mm disposable cutters

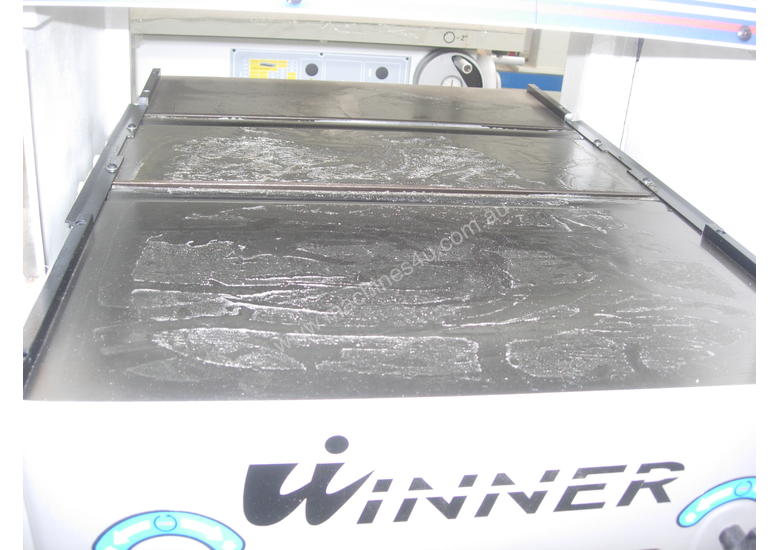

• table area (LxW) 640 x 900 mm, max. width 609 mm
• max./min. planing thickness 300/4 mm
• max. cutting depth, 10 mm, min. planing length 263 mm
• cutterhead dia. 120 mm, cutterhead speed 5000 rpm
• blade quantity 4 PCS, feeding speed 4~16 m/min
• table vertical motor ½hp, dust outlet 5” x 2
• feeding motor 1hp, main motor 15hp, 415V

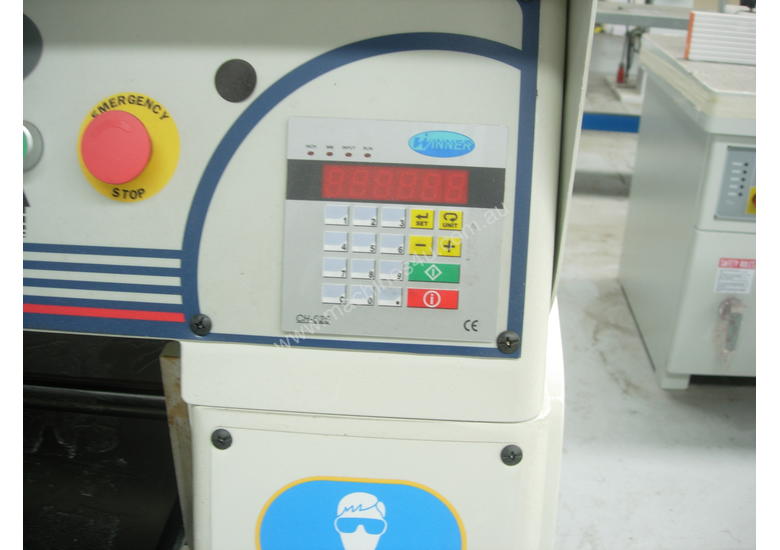

• with DP525 programmable controller
