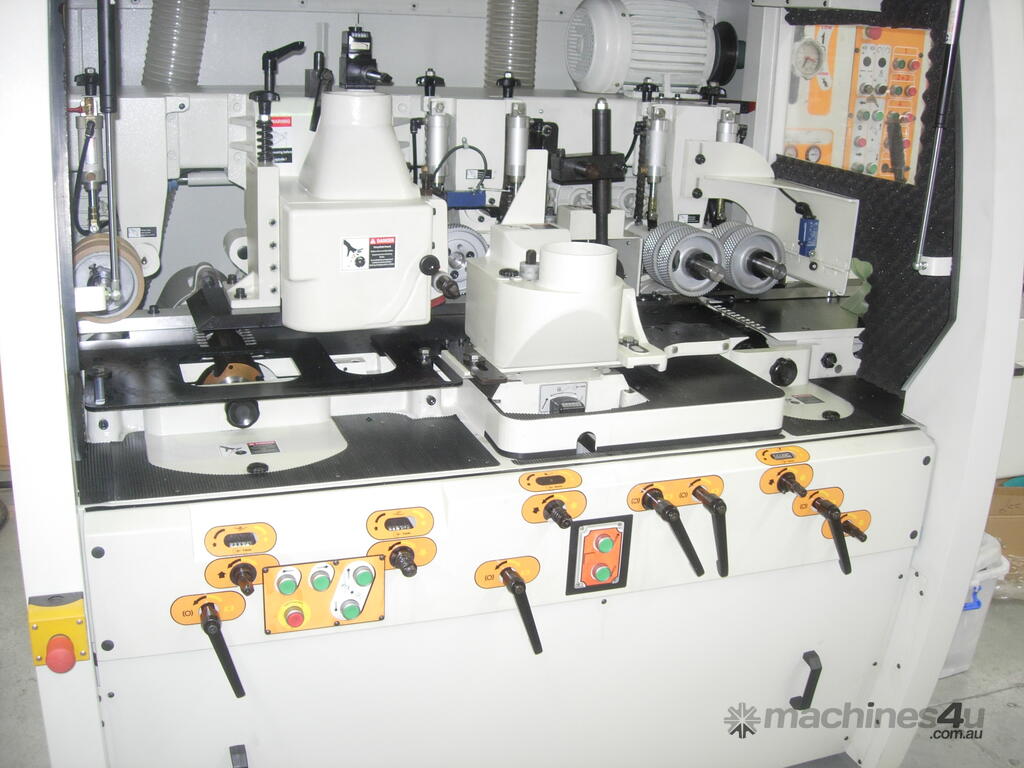

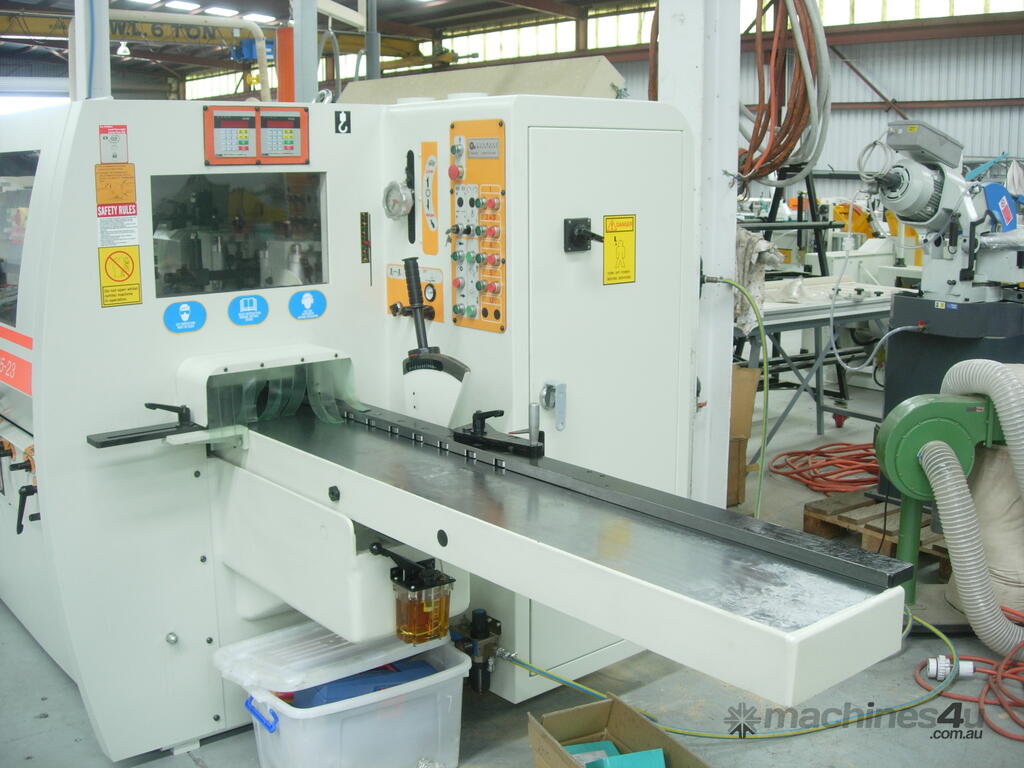

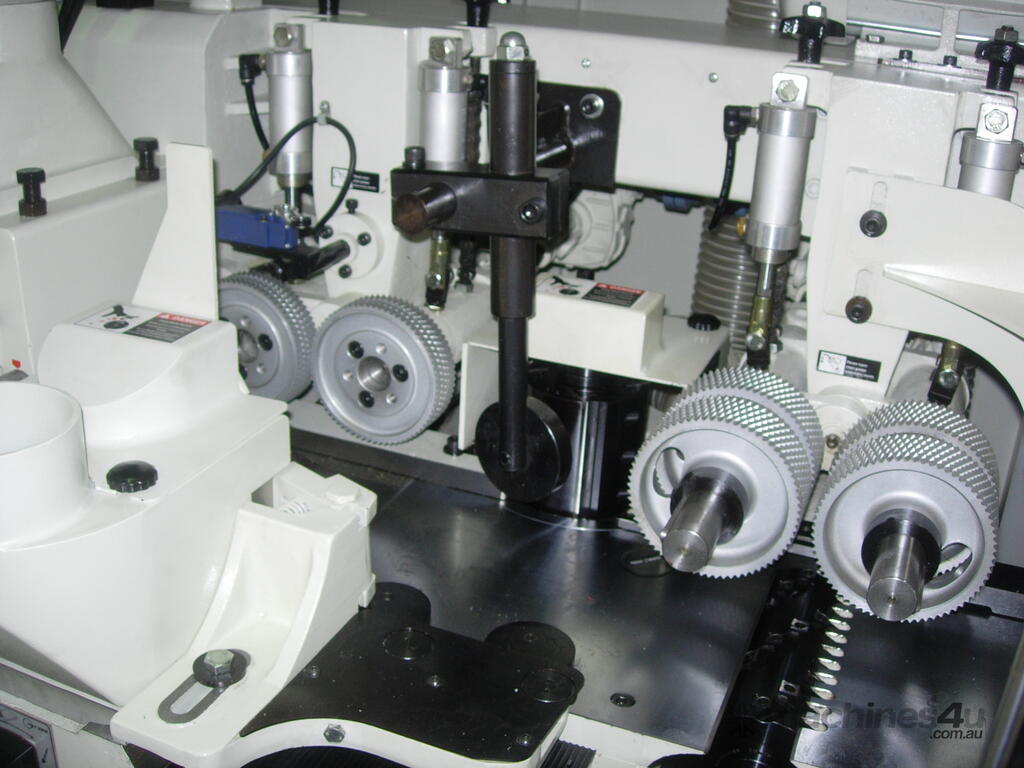

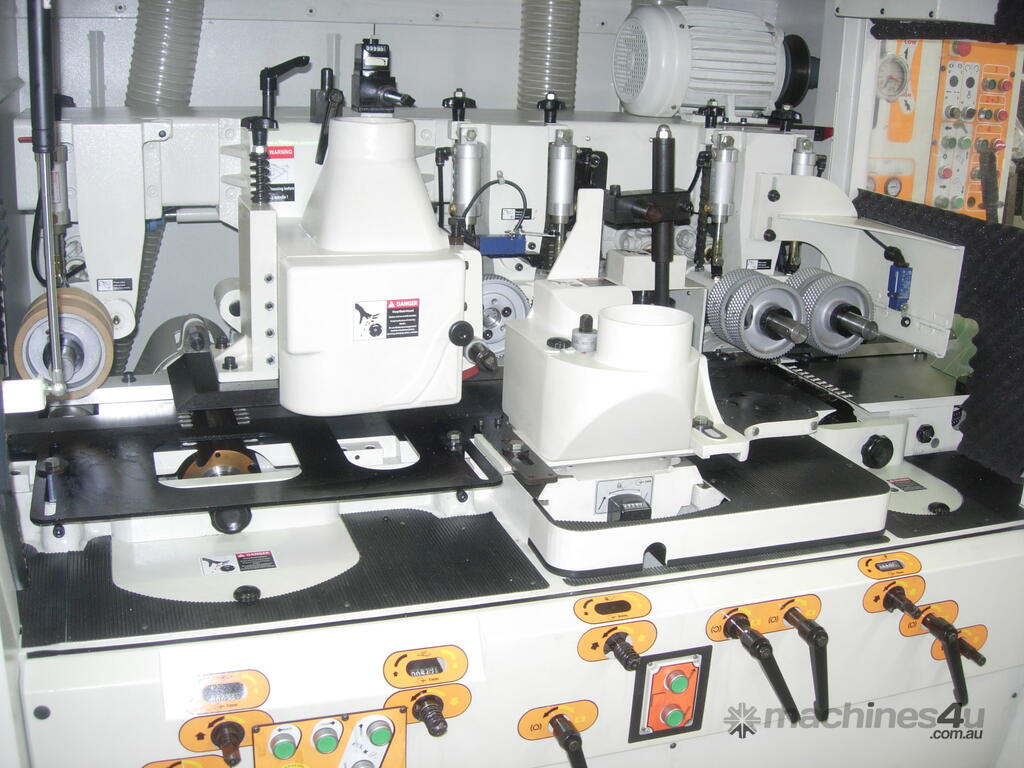

WINNER SPRINTER SP523

New Winner FourSider/Moulder:
To increas moulding productivity and profits, the Sprinter SP523 is for you. The advanced design concepts and superior quality,makes the Winner moulder extremely good value.The machine frame is made in one piece high quality cast iron (FC-25) for maximum stability.
FEATURES:
- The control panel provides easy, convenient, safe and efficient operations
-3 x electrical digital position controller fro read out width & height (1 tops,4th & 3rd left vertical)

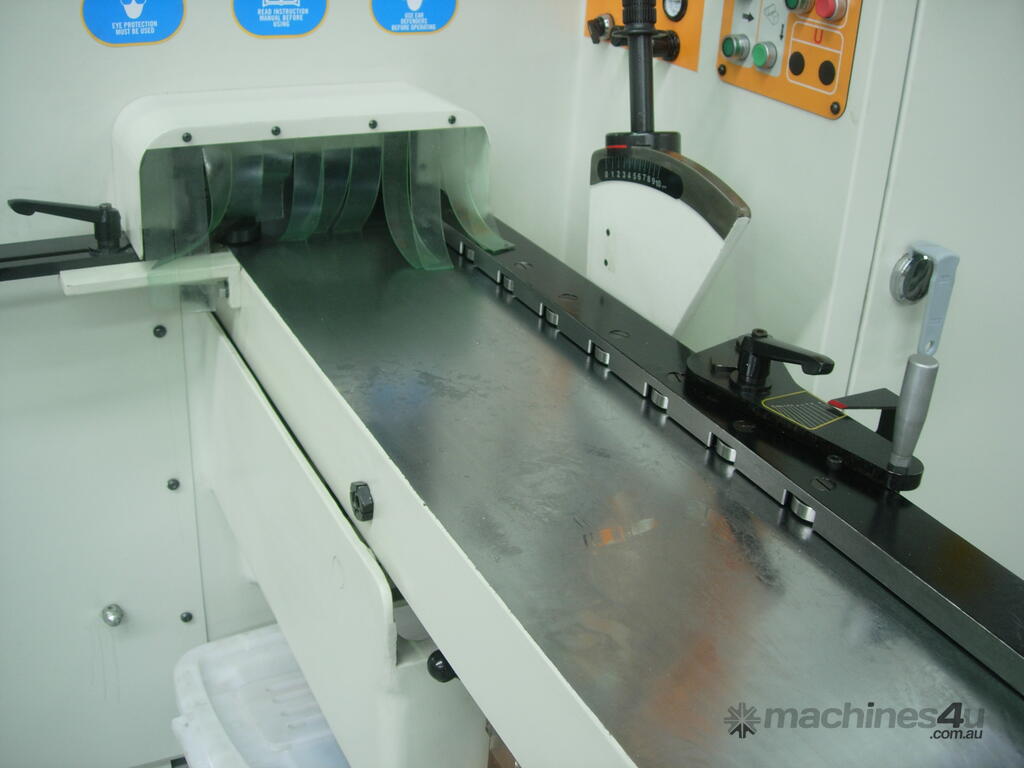

- The table is hard chromed to high hardness and has central lubrication
- The totally enclosed guarding ensures maximum safety and high standard.
SPECIFICATIONS:
Planning width 18-230mm
Planing thickness 6-125mm
Feed speed 6-28m/min
Spindle motor 7.5Hp, 10Hp
Feed motor, 5HP
Min. board length 200mm
Spindle speed 6000RPM
Spindle diameter 40mm
Adjustment of vertical spindle 45mm
Adjustment of horizontal spindle 35mm
4.Cutting Circles
(1)First bottom horizontal spindle:100-160mm
(2)Right vertical spindle:110-200mm
(3)Left vertical spindle:110-200mm
(4)Top horizontal spindle:110-200mm
(5)Second bottom horizontal spindle:100-250mm

New 5 Head 4 sided Planer & Moulder, ***CLEARANCE***
