WL-14V Mini Wood Lathe Ø356mm Swing x 470mm Between Centres Electronic Variable Spindle Speed with D

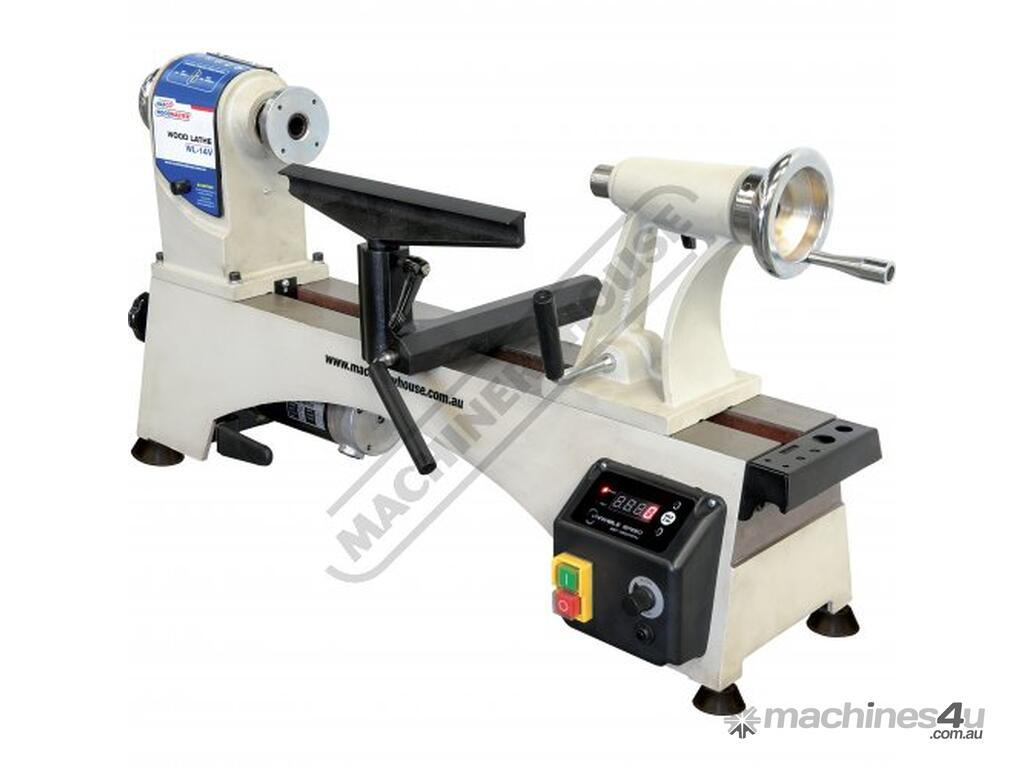

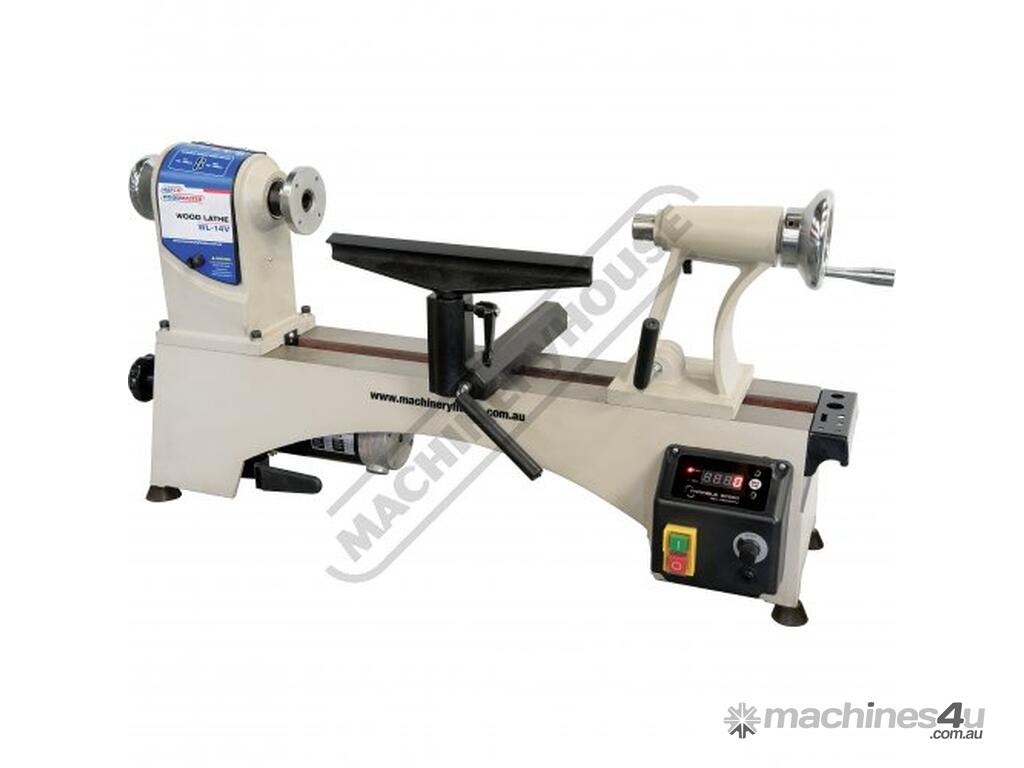

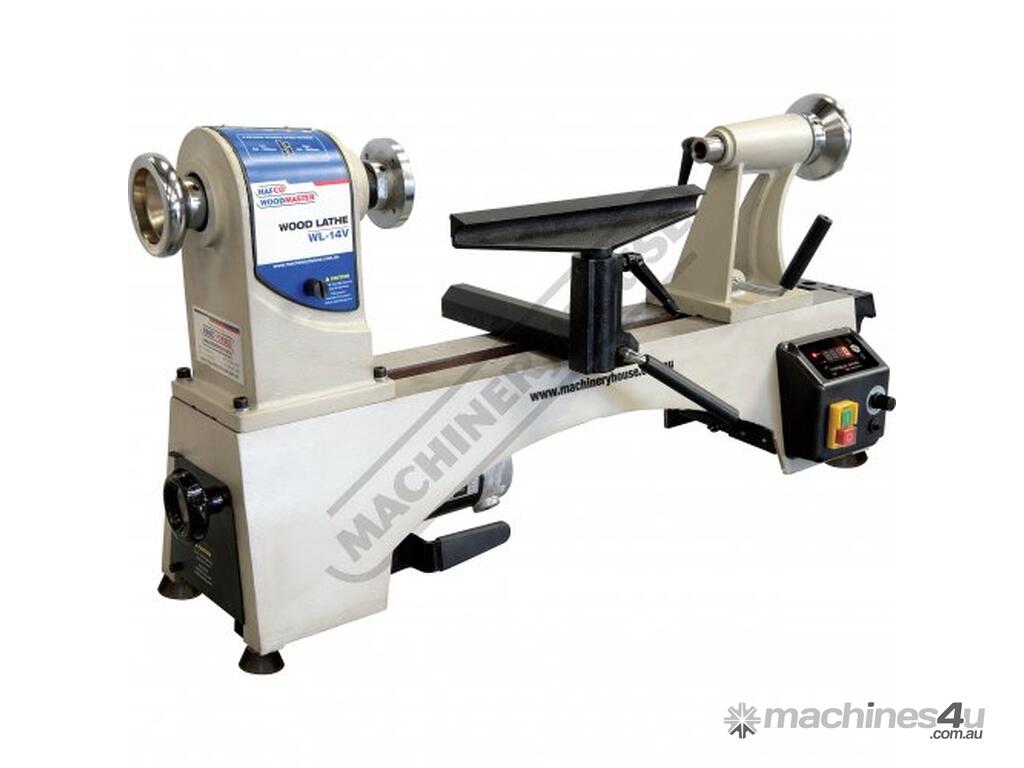

HAFCO-WOODMASTER WL-14V Mini Wood Lathe Ø356mm Swing x 470mm Between Centres Electronic Variable Spindle Speed with Digital Readout Display
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W385

The WL-14V wood lathe is perfect for the seasoned pen turner or enthused hobbyist looking for a reliable & sturdy mini lathe; but it does not stop here. The powerful 0.55kW/0.75hp motor is controlled via an electronic variable speed dial that certainly makes this lathe the perfect option for the professional turner as well. The lathe is also capable of reversing the rotation, which in turn is ideal for sanding and finishing.

Solid Construction
Well proven design. The critical components of the WL-14V variable speed Wood Lathe are made from cast-iron for strength, rigidity and vibration reduction.

Speed Range

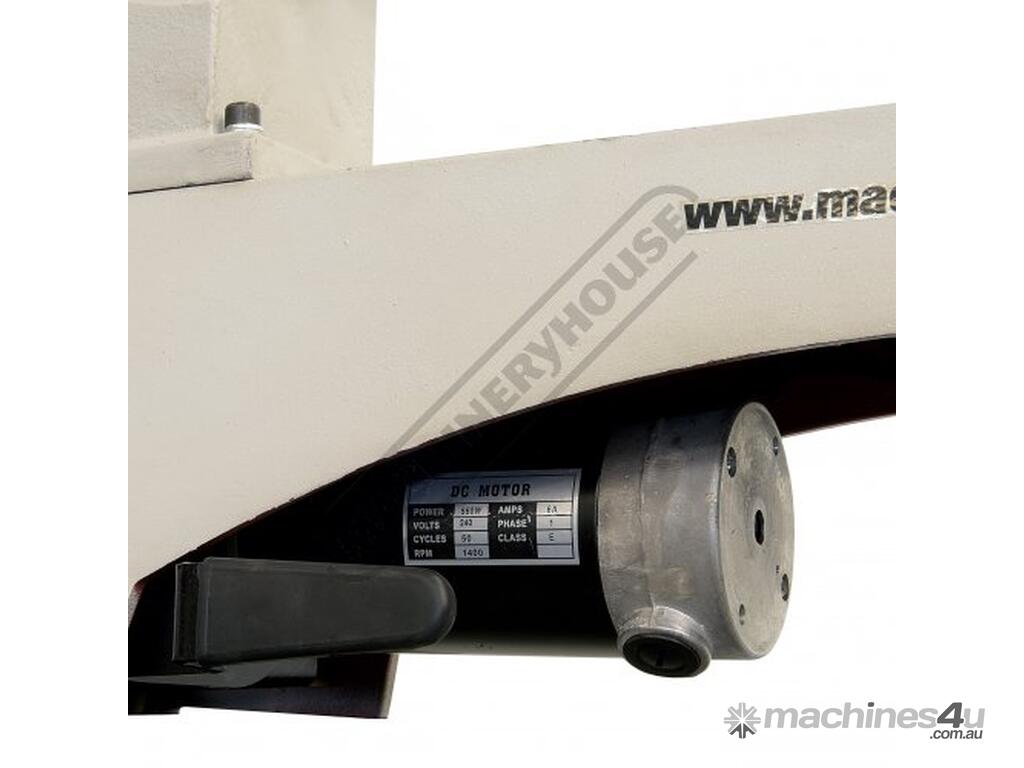

Fitted with a 2-step Electronic Variable Speed motor with a low range for slower speeds from 450rpm up to 1800rpm. The high speed range from 900rpm up to 3850rpm ideal for miniature turning work. The electronic variable speed allows for quick dial-in of the correct speed required for your job.

Reverse Option
The WL-14V has the capability, at the flick of a switch, to change direction from forward to reverse. This feature enables the turner to sand with the lathe in reverse, eliminating problem areas which cannot normally be sanded smooth in the forward direction.

Optional Bed Extension System
An optional 650mm bed extension can be added to expand the turning length up to 1120mm. (WL-14X - W385X).

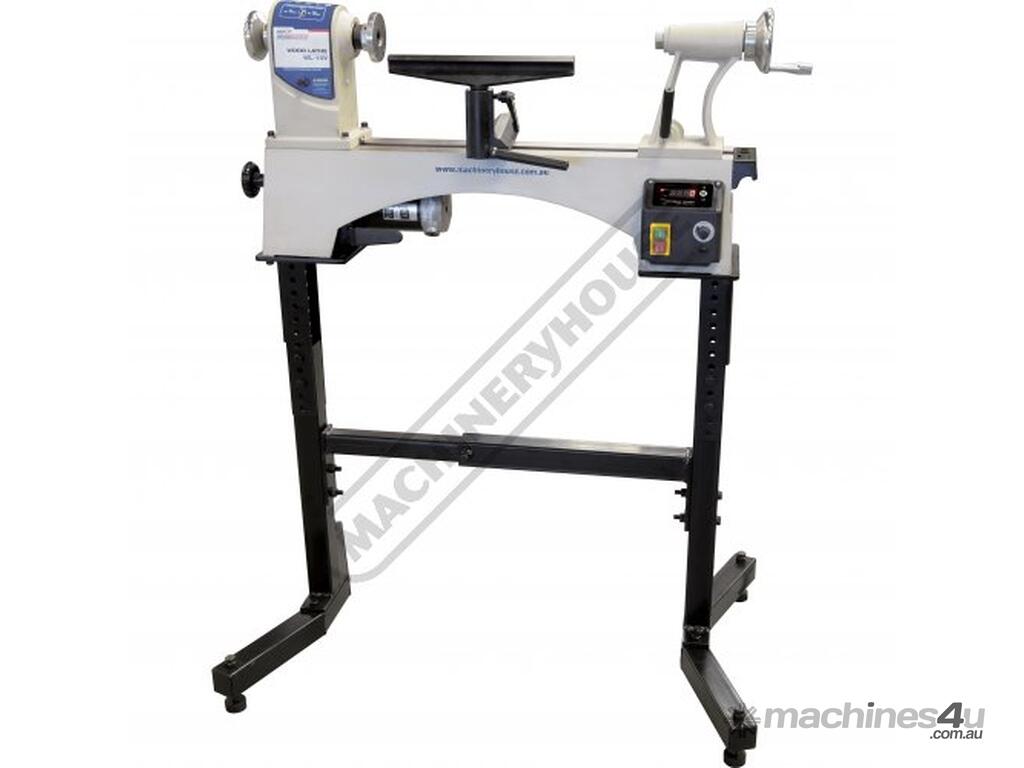

Optional Lathe Stand
Optional stand can be added to raise the lathe at a safe working height and freeing up valuable work bench space (WLS-1824 - W379).

Please note:
If adding optional bed extension (WL-14X - W385X) to your wood lathe, you will also need the optional stand extension (WLS-1824X - W379X) to suit stand (WLS-1824 - W379)

Features:

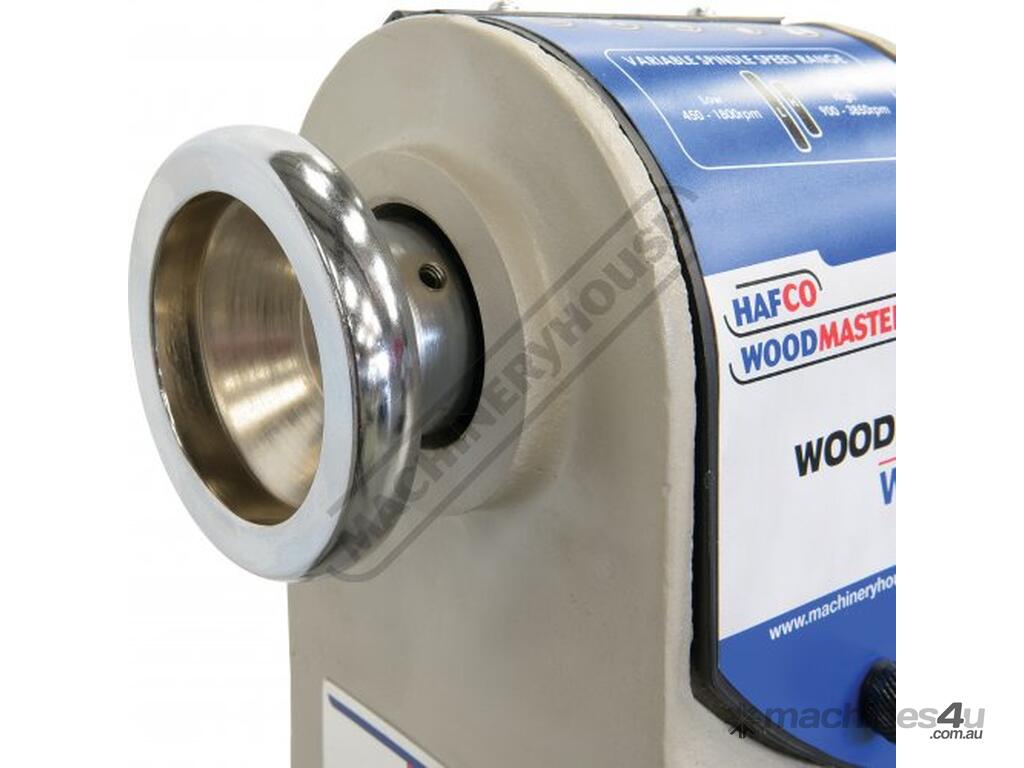

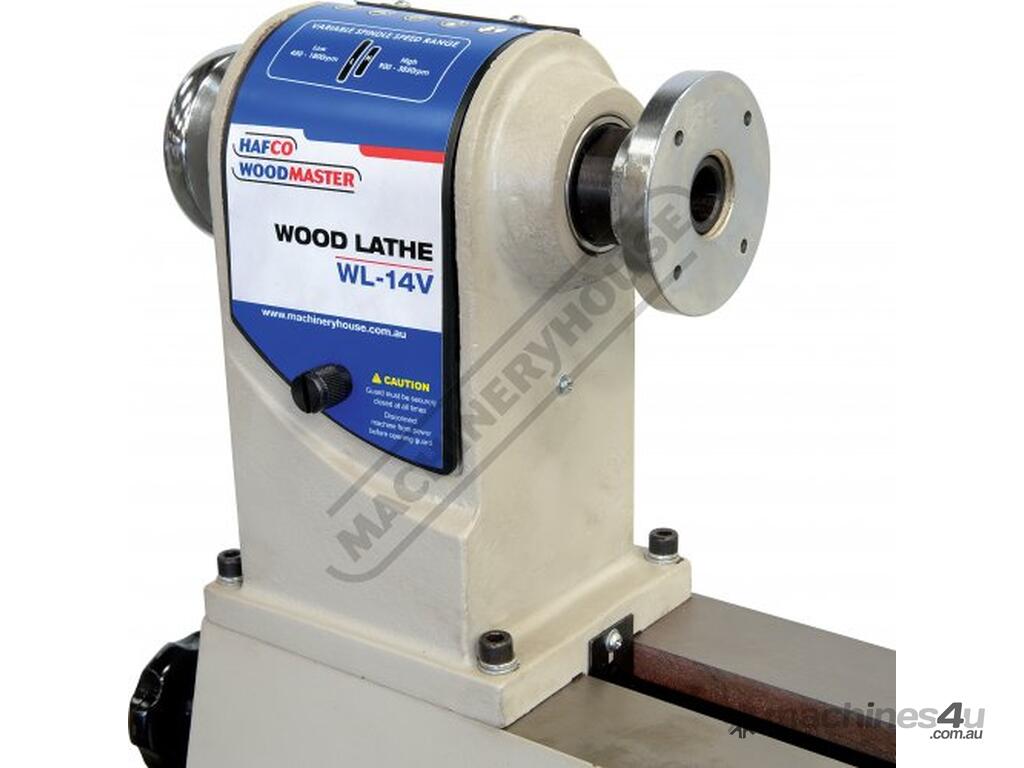

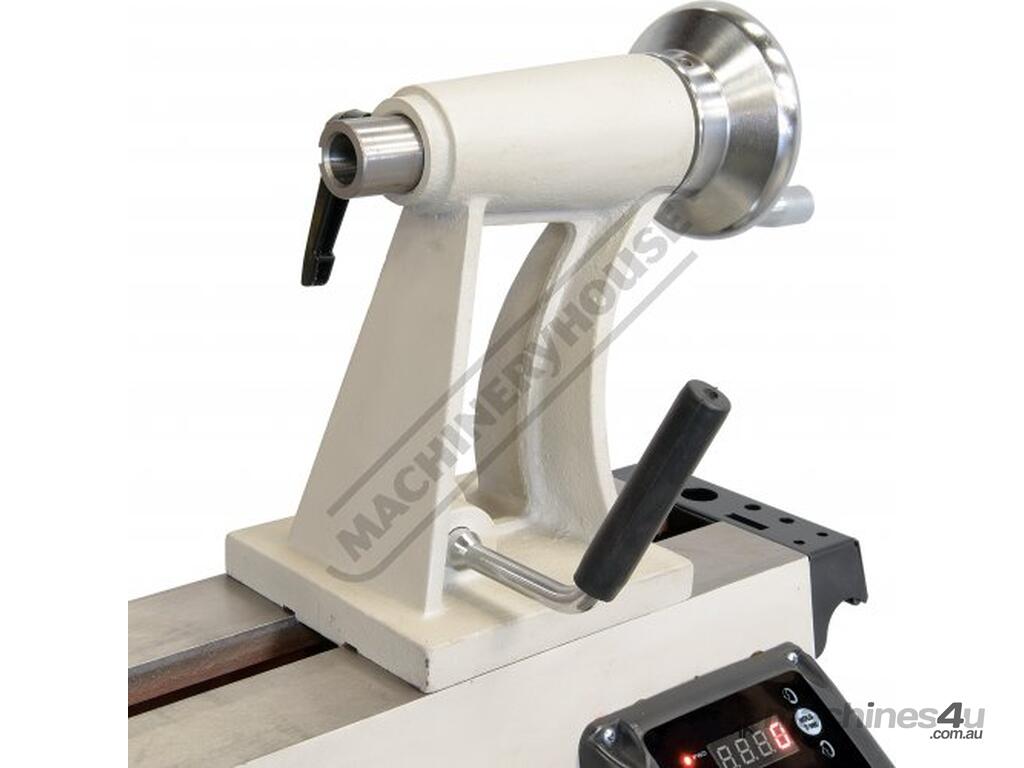

Cast iron construction bed head and tailstock

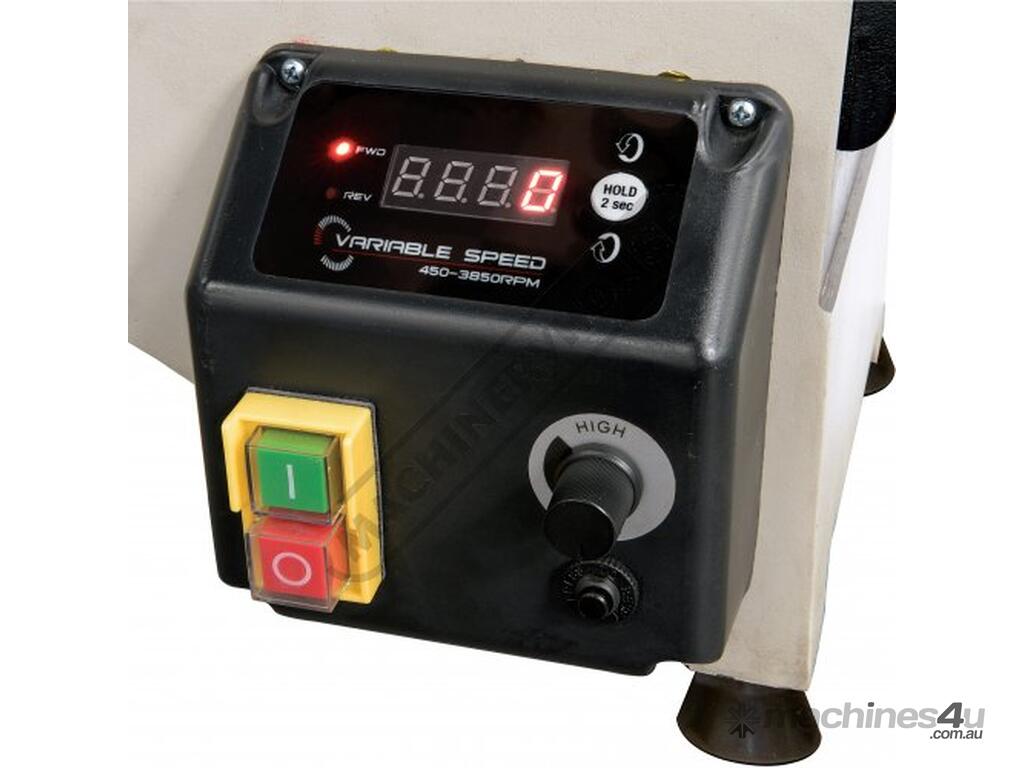

Electronic variable speed dial (450-3850rpm)
Digital readout speed display
12 position spindle indexing lock
Dust proof magnetic safety switch

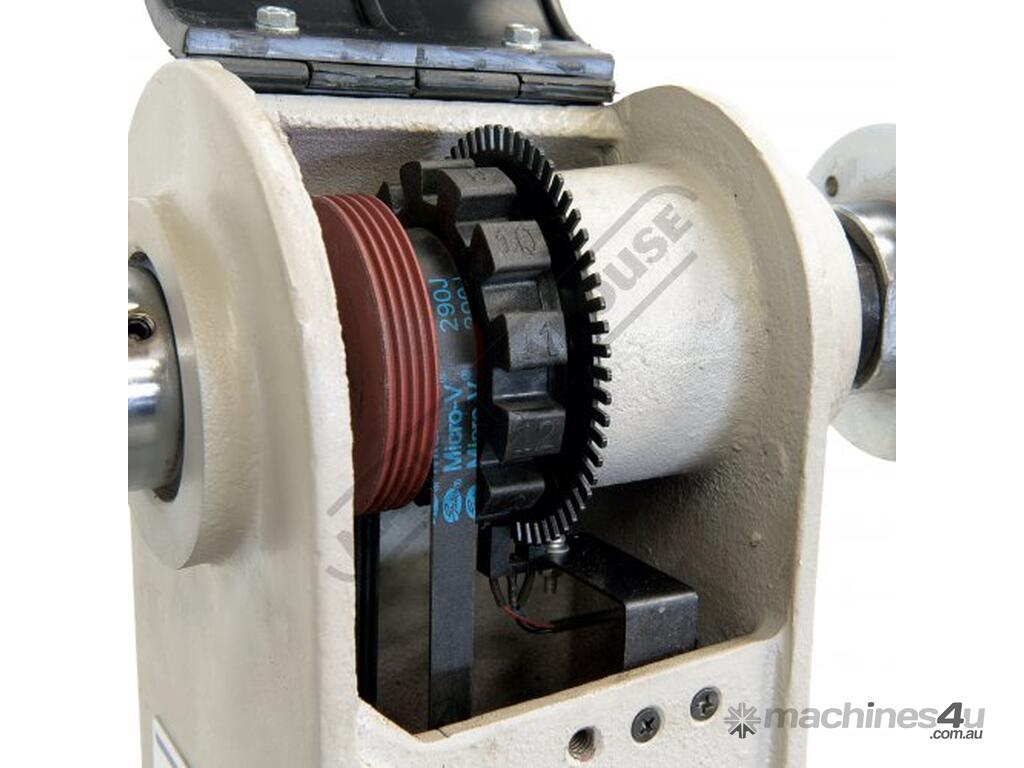

2 speed belt change system for maximum torque

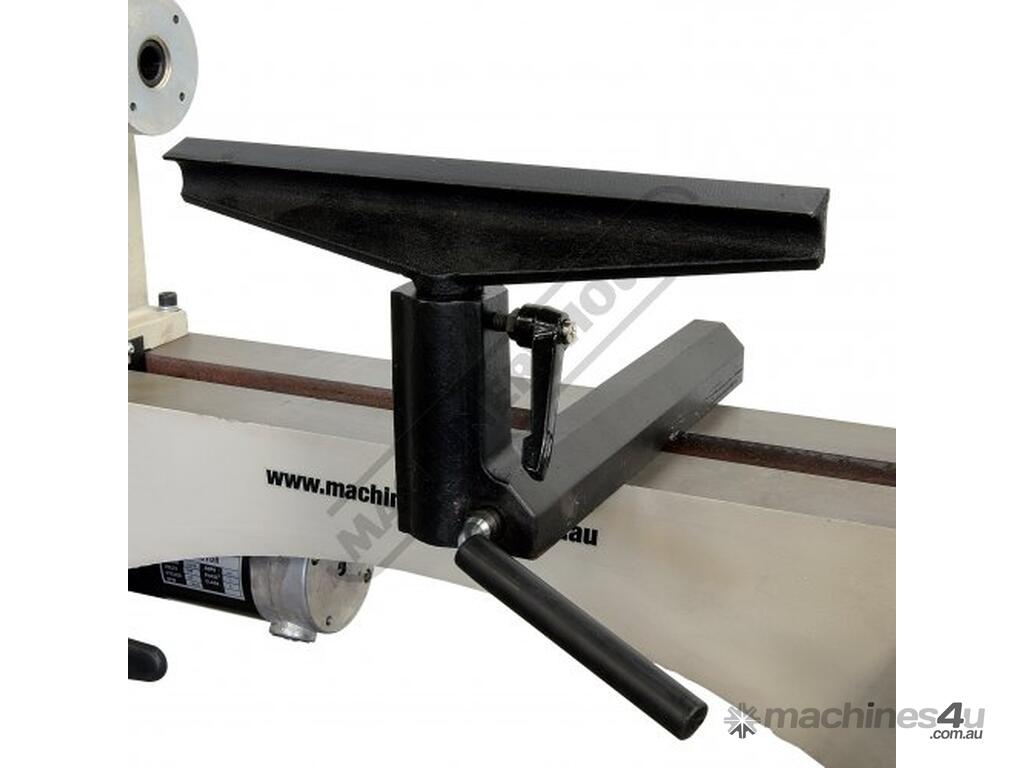

300mm & 150mm tool rests for those smaller and larger jobs

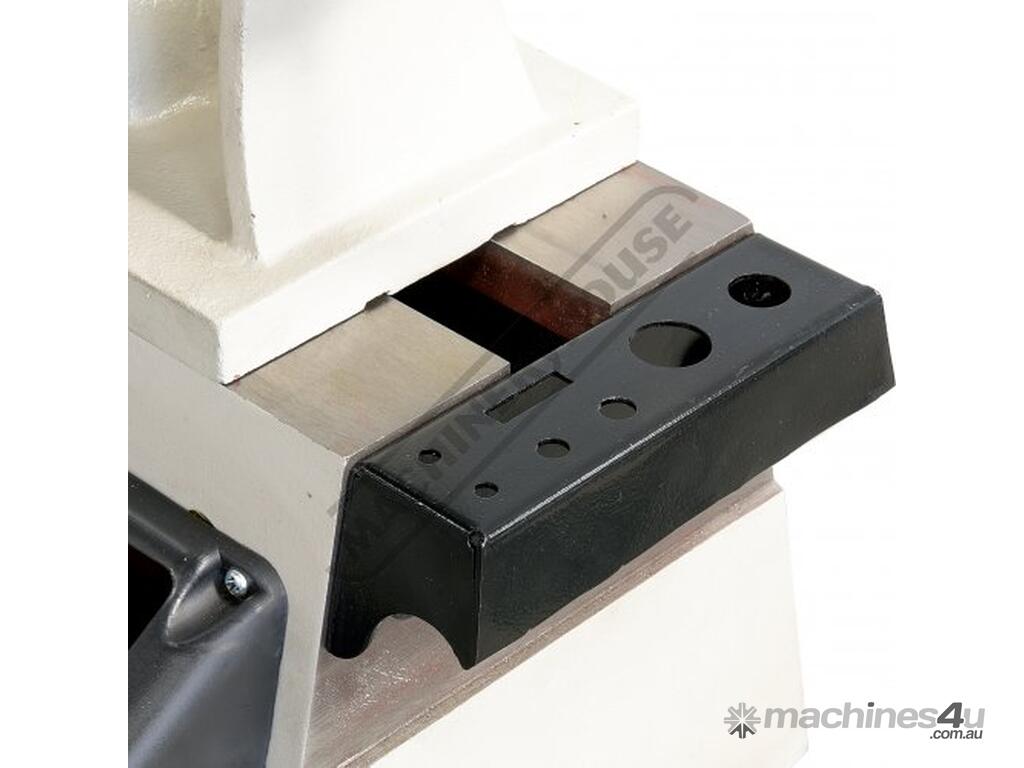

Tool storage tray for quick & easy access

Includes:
- 2MT live centre
- 2MT spur drive centre
- 150mm tool rest
- 300mm tool rest
- 80mm faceplate
- Drawbar
- Spanner
- Hex keys
- Power lead



Specifications:
ORDER CODE: W385
MODEL: WL-14V
Swing Over Bed (mm): 356
Between Centres (mm): 470
Spindle Nose Thread: M30 x 3.5 Pitch
Spindle Nose Taper (MT): 2
Spindle Speeds (rpm): 2 Steps, Variable Spped
Spindle Speeds (rpm): 450~1800 & 900 ~ 3850
Tailstock Taper (MT): 2
Motor Power (kW / hp): 0.55 / 0.75
Voltage / Amperage (V / amp): 240 / 10
Floor Space (W x D x H) (mm): 1000 x 350 x 460
Floor Space With Option Stand (W x D x H) (mm): 1050 x 620 x 1220
Nett Weight (kg): 46
