WL-18 Swivel Head Wood Lathe Ø310mm Swing x 900mm Between Centres Variable Speed 500 ~ 2000rpm & Swi

HAFCO-WOODMASTER WL-18 Swivel Head Wood Lathe Ø310mm Swing x 900mm Between Centres Variable Speed 500 ~ 2000rpm & Swivelling Headstock
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W382

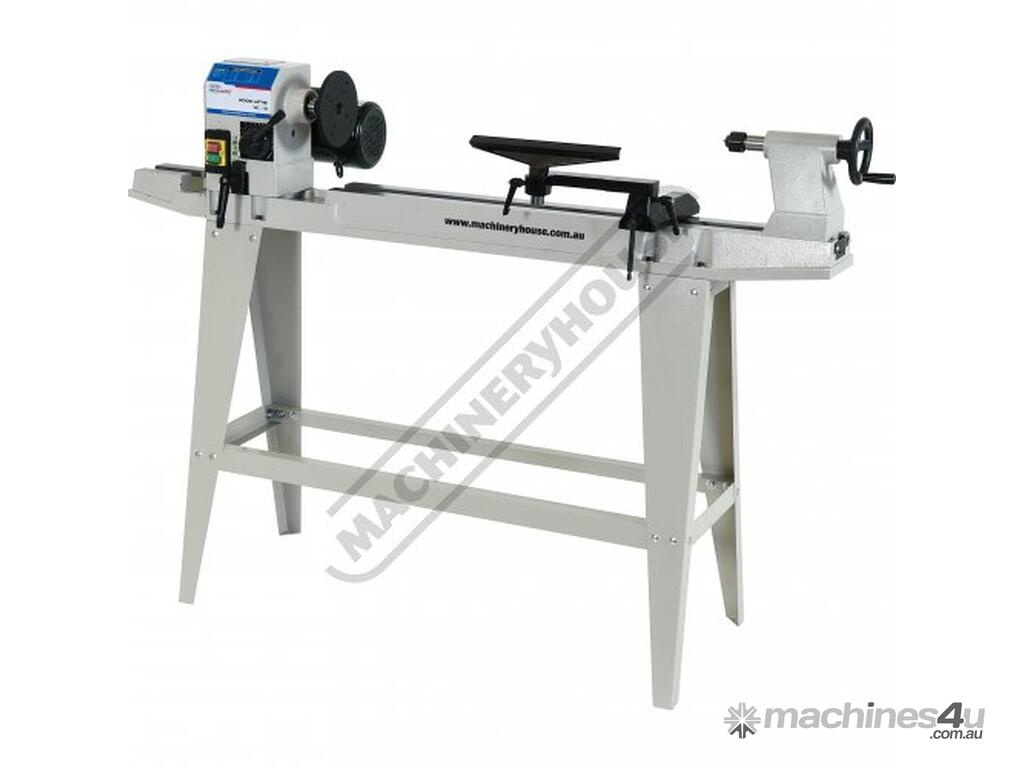

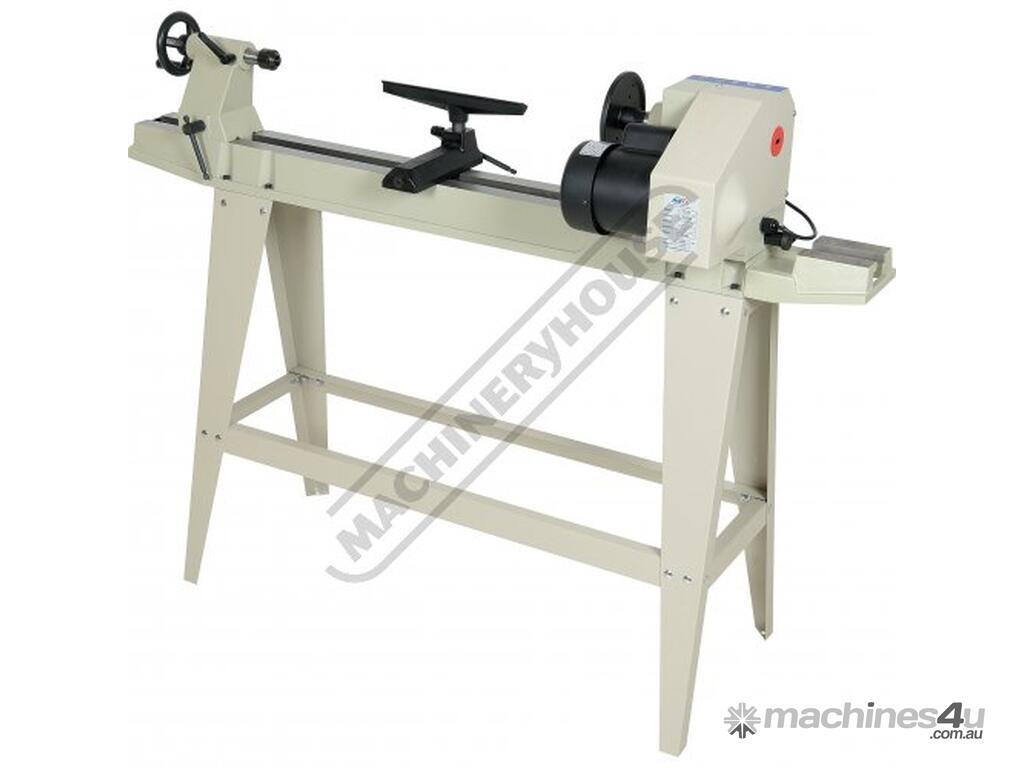

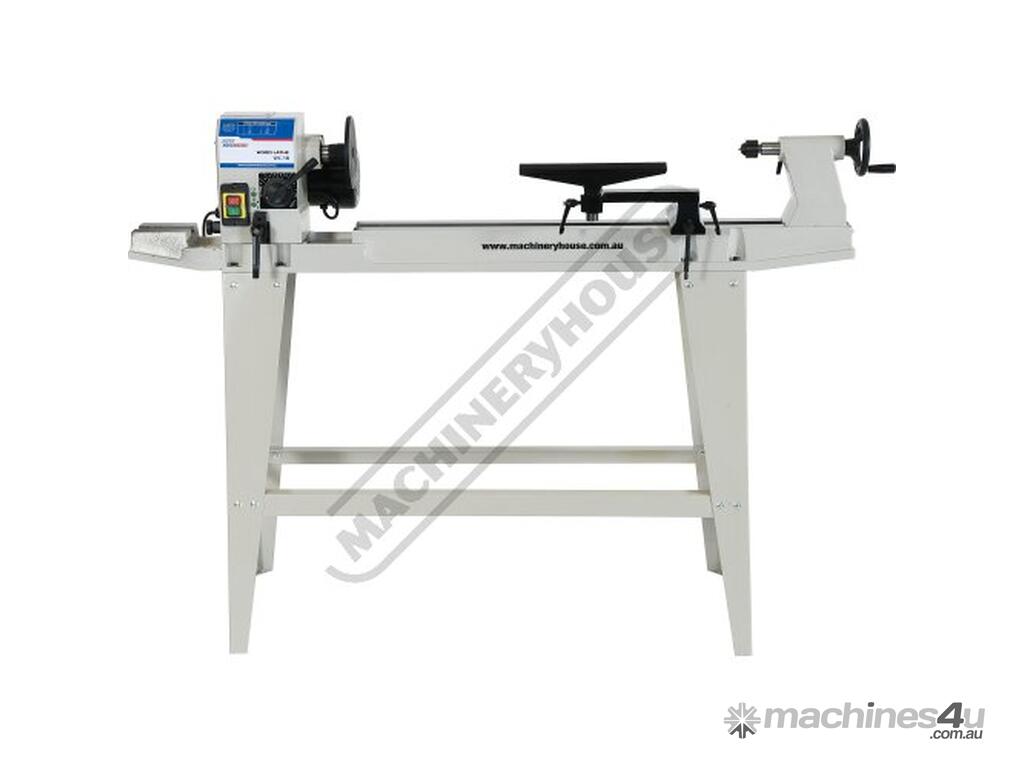

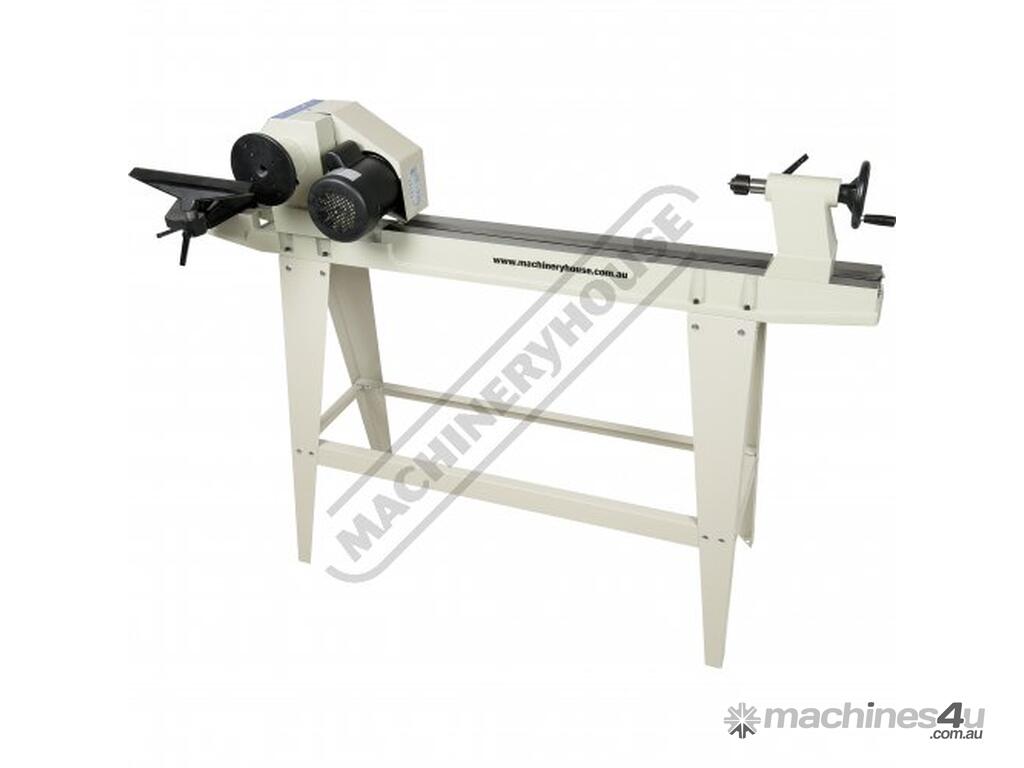

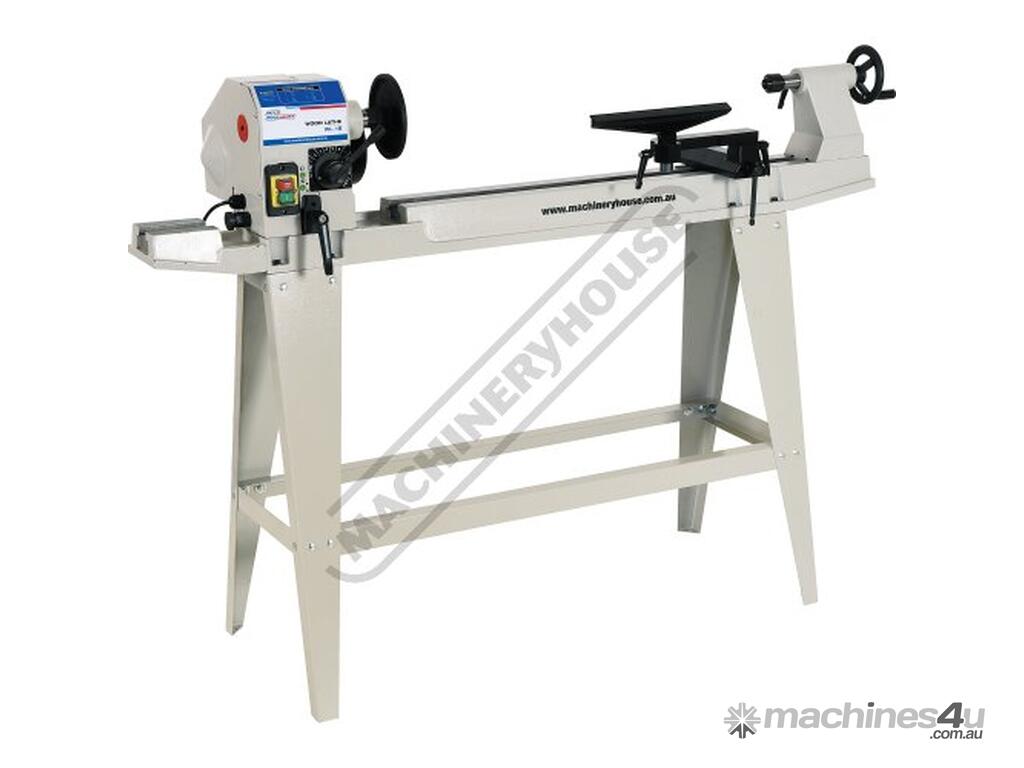

The WL-18 wood lathe is an excellent "value for money" floor standing lathe, perfect for getting the green wood turner started in the craft with a minimum of outlay.

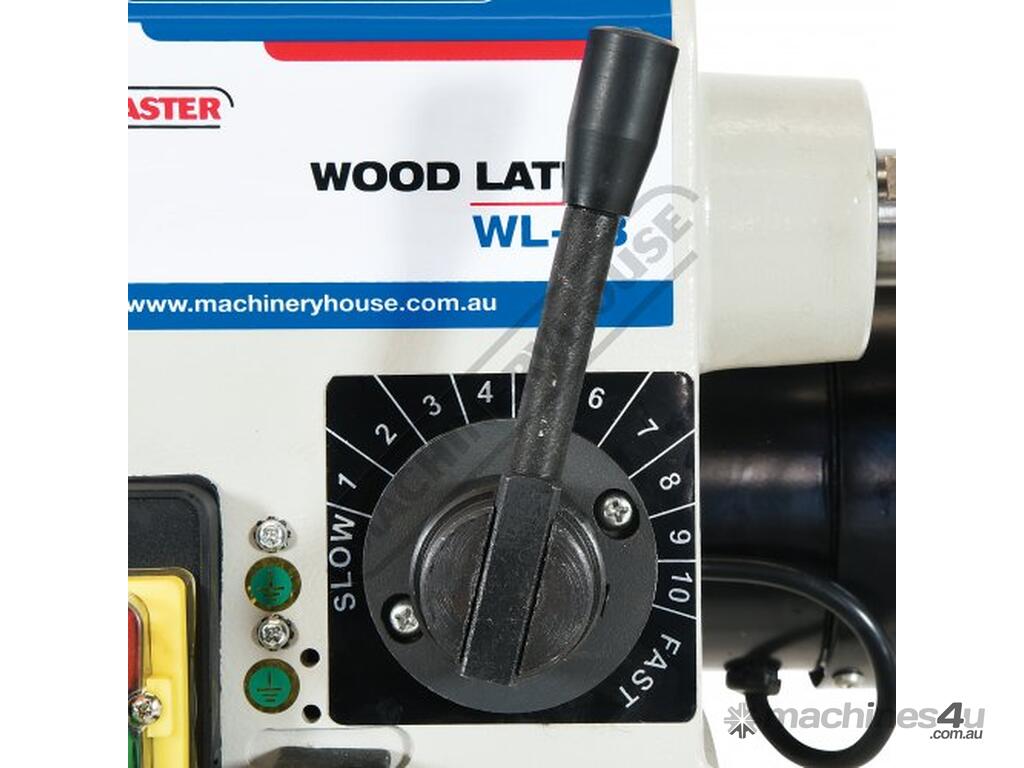

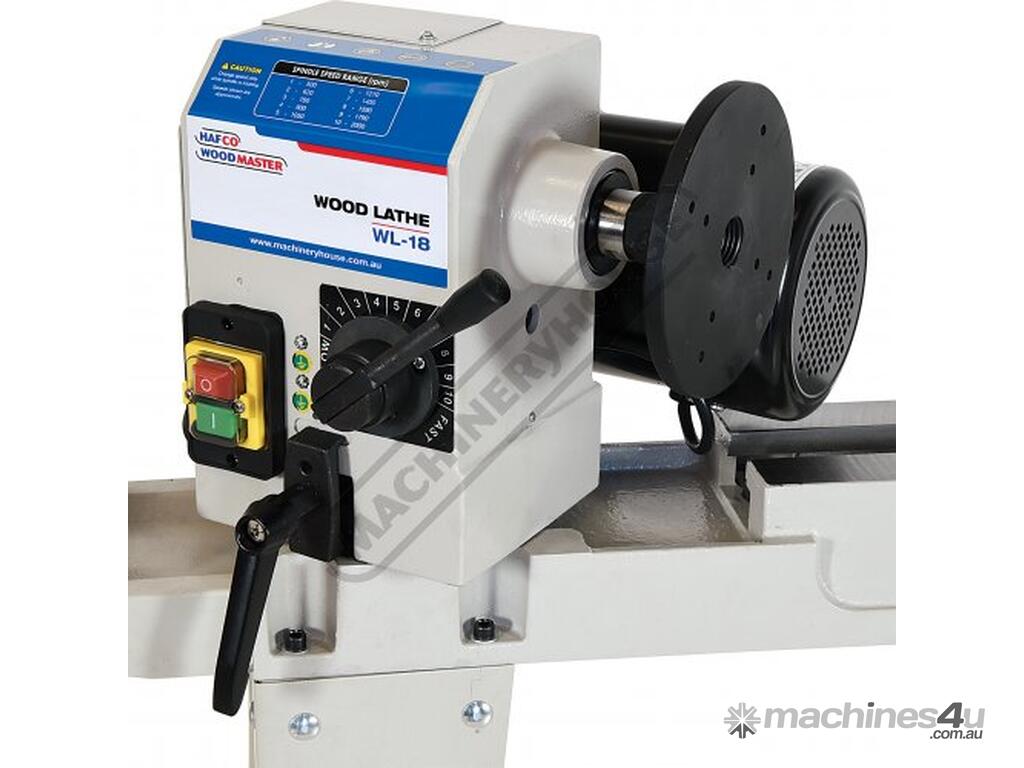

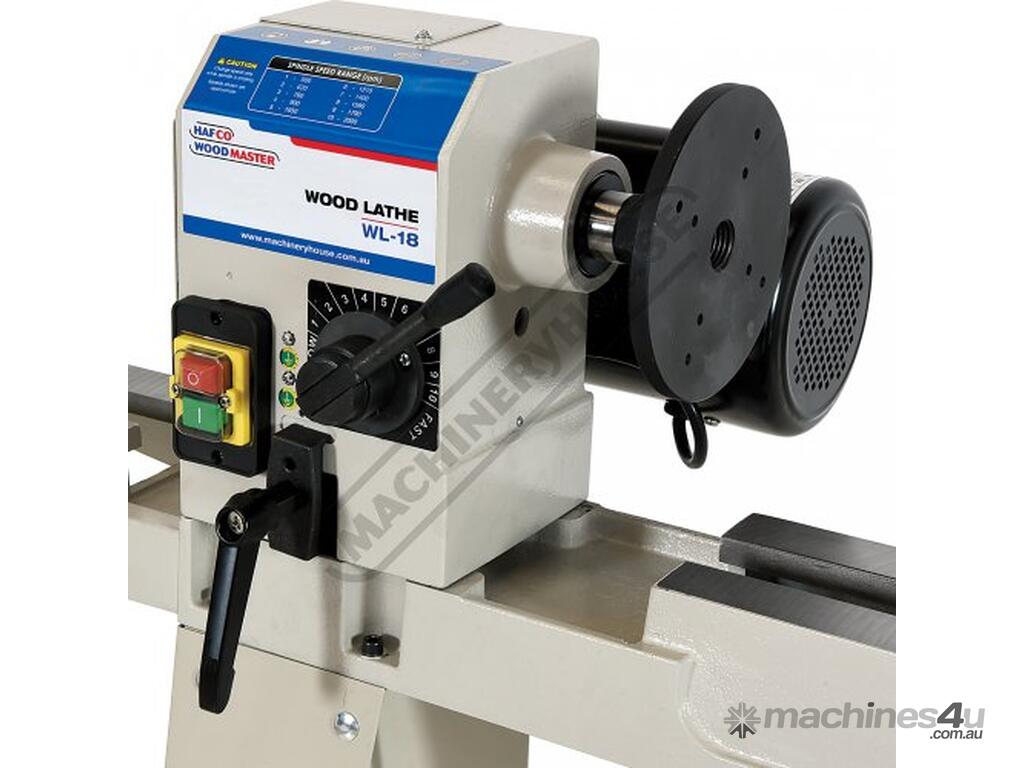

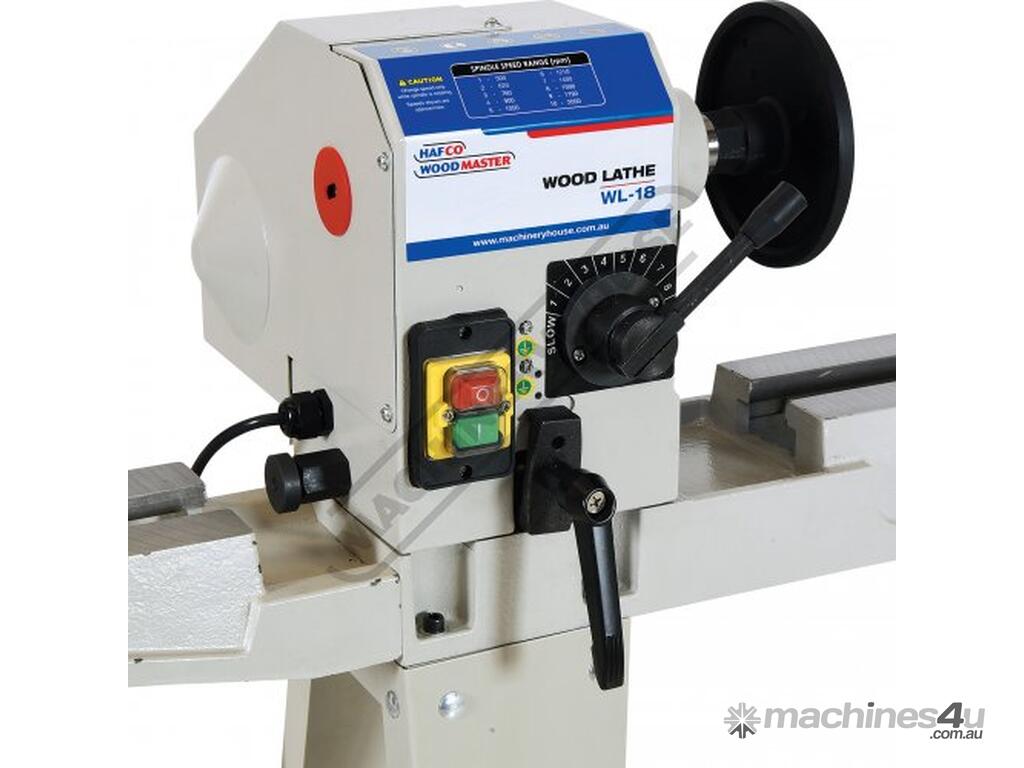

The WL-18 lathe is mainly made up from cast iron to provide the rigidity that's required and needed in all good wood lathes. Changing the spindle speed from 500 to 2000rpm is extremely easy via the stepless variable speed control lever mounted on the front of the head. The headstock can be swivelled and locked in position to allow bowls to be turned in front of the lathe; the 45° and 90° positions are indexed for ease of selection.

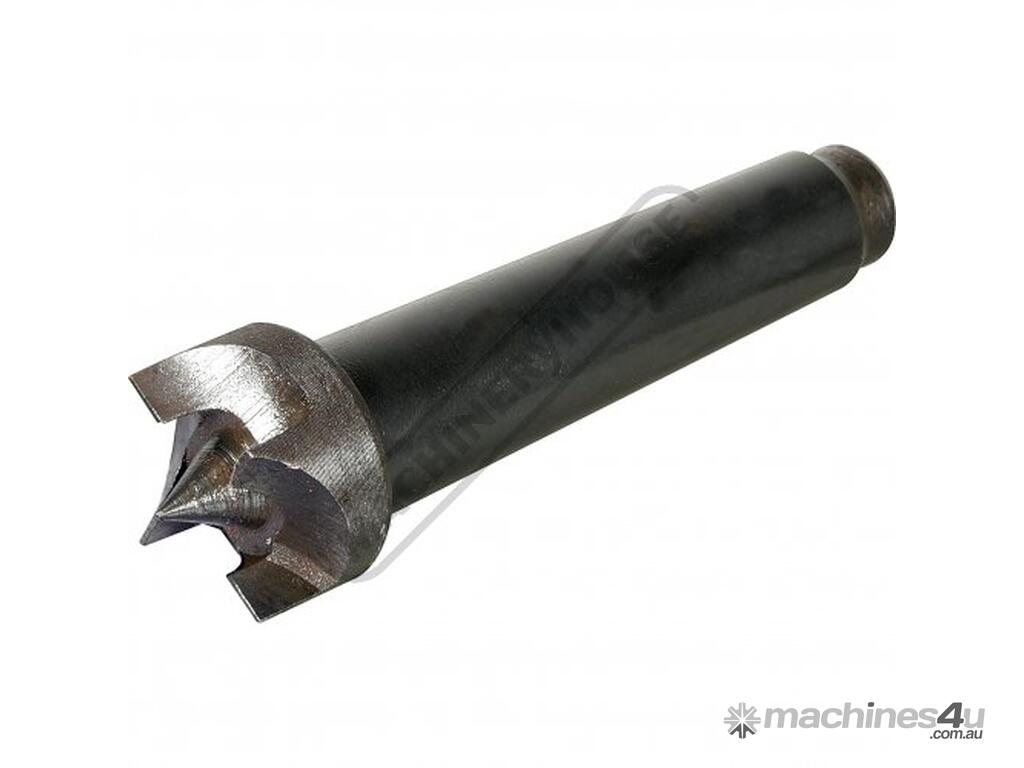

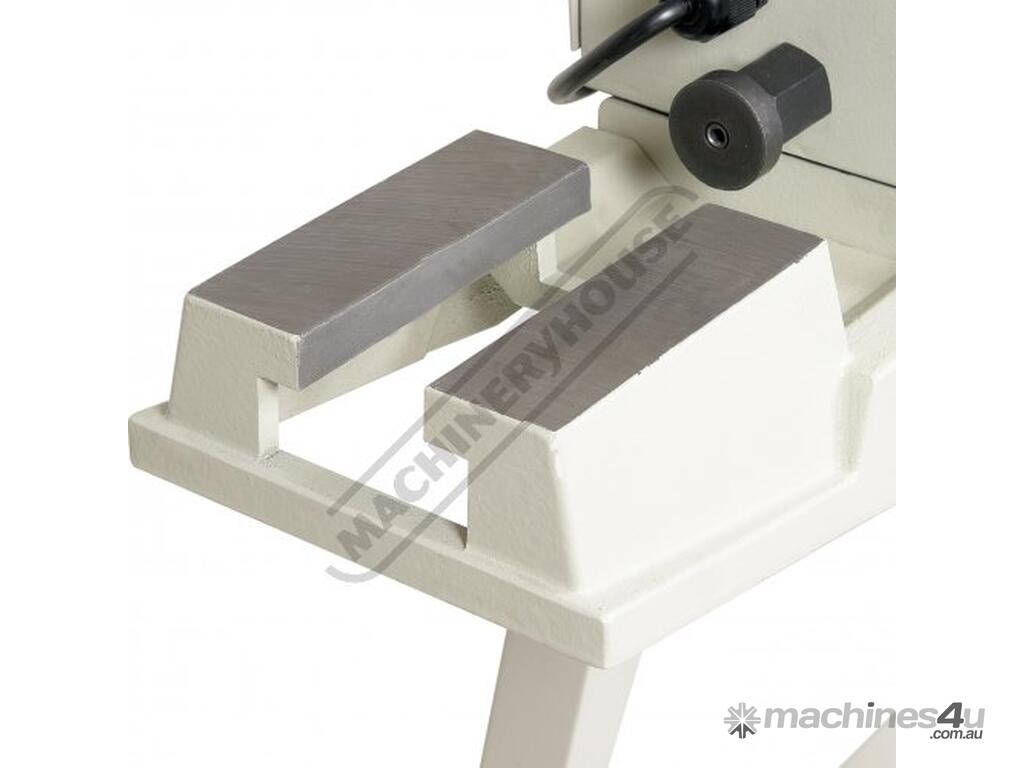

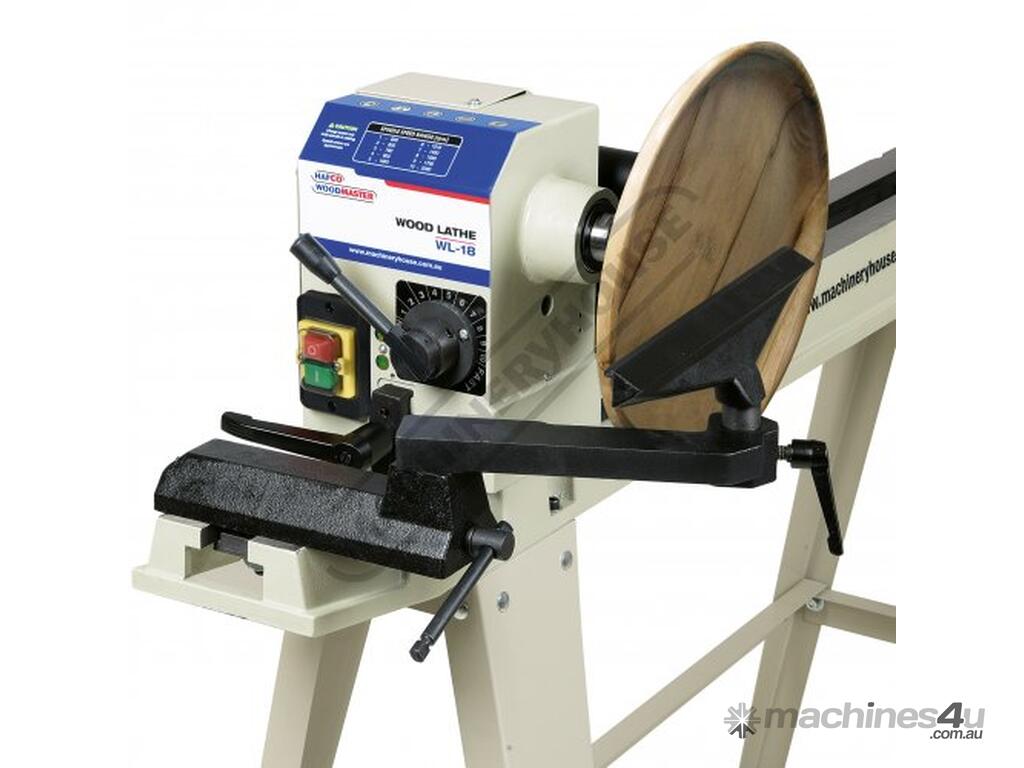

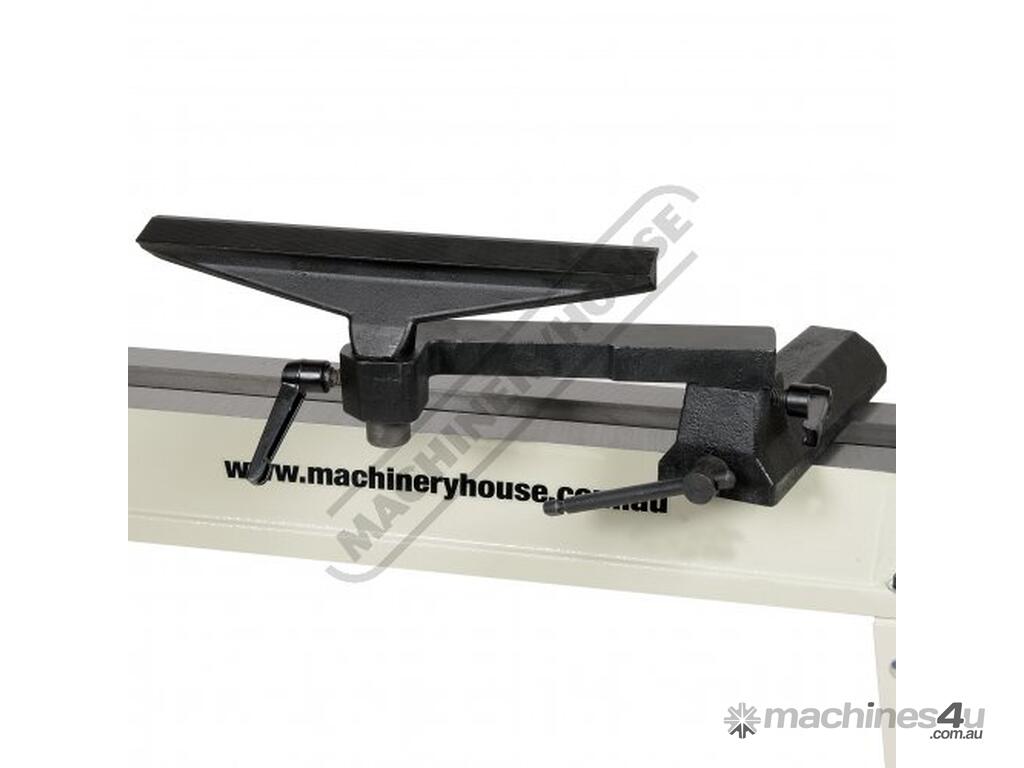

The lathe comes complete with an outboard tool rest extension which is used to get the bowl rest into the best position when turning with the head rotated. The head and tailstock both have 2 morse tapers and the drive spindle thread is a common 1" x 10tpi. Supplied as standard with the machine is a 4 prong drive centre, revolving tailstock centre & faceplate.

Features:

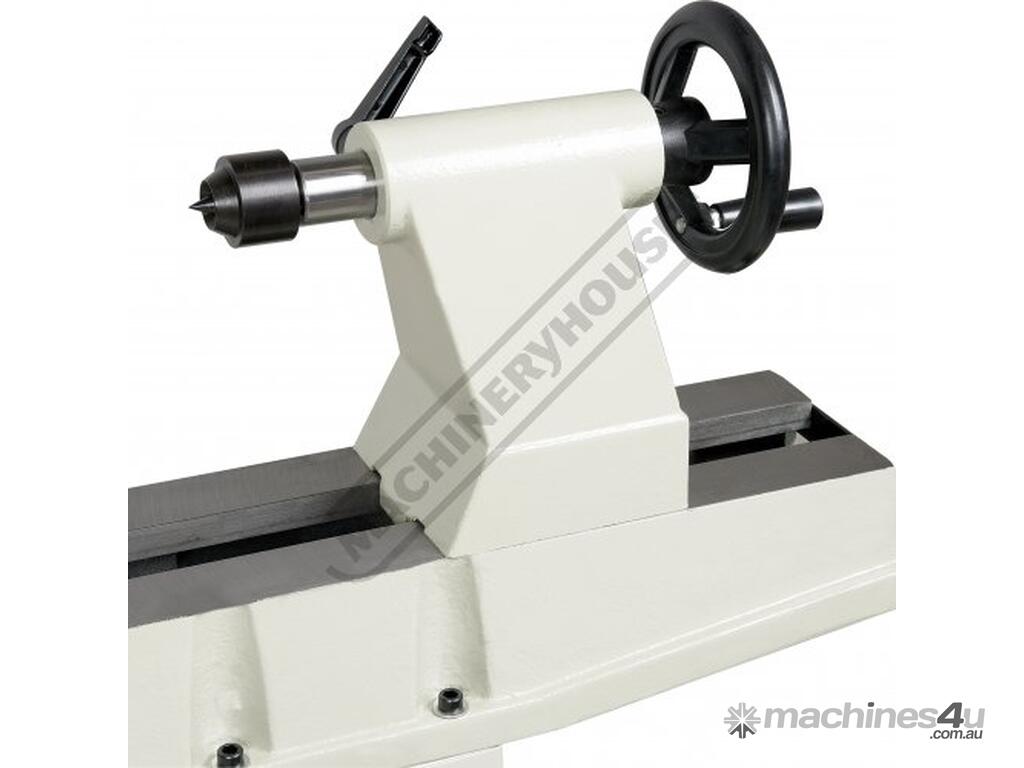

Cast iron construction bed head and tailstock
Variable speed control 500-2000rpm
Swivelling headstock can be locked in position
Outboard tool rest extension

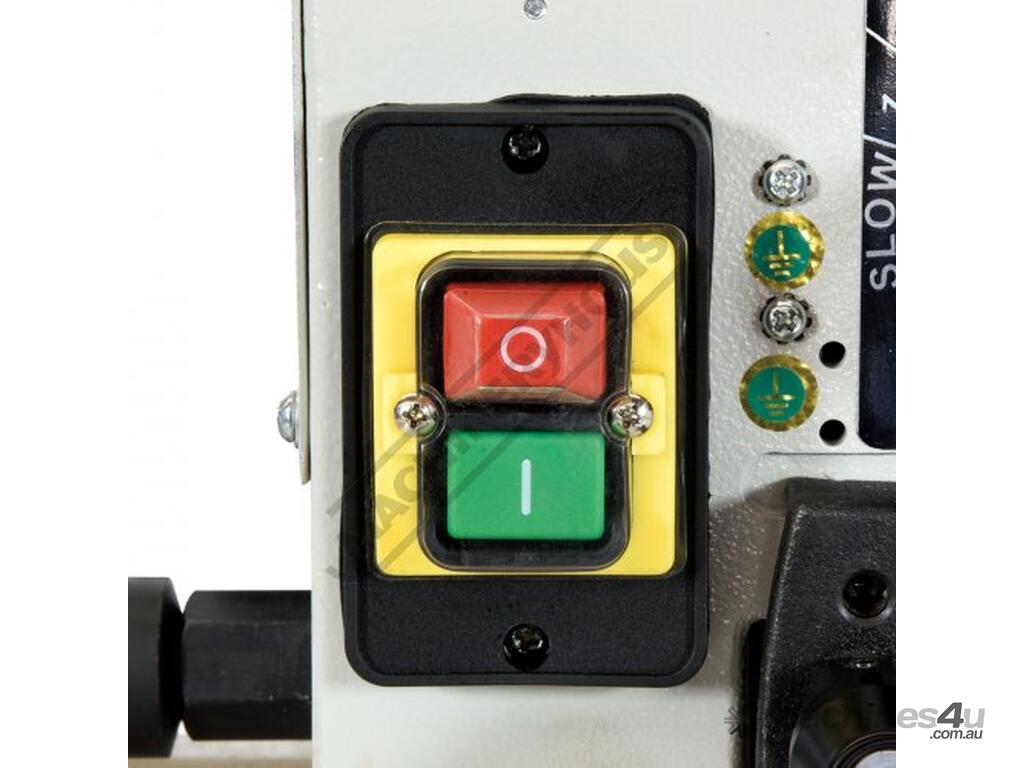

Dust proof magnetic switch
Headstock and tailstock have 2 Morse tapers 1" x 10tpi spindle thread

Includes:
- Bowl turning attachment

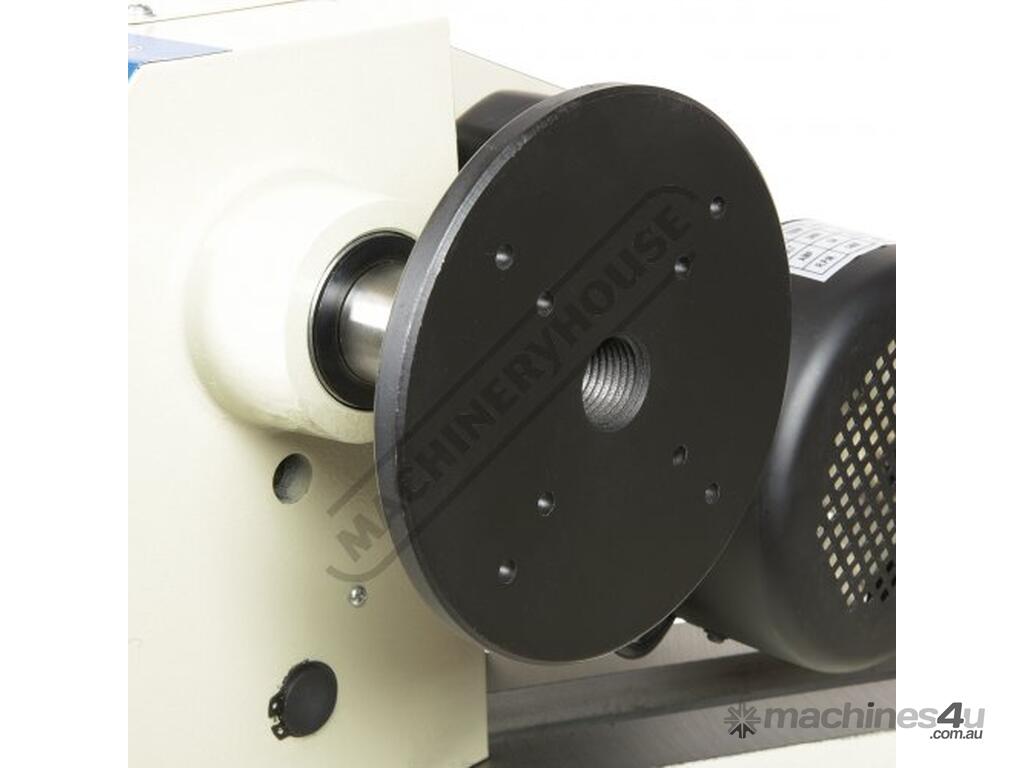

- Faceplate
- Drive & live centres

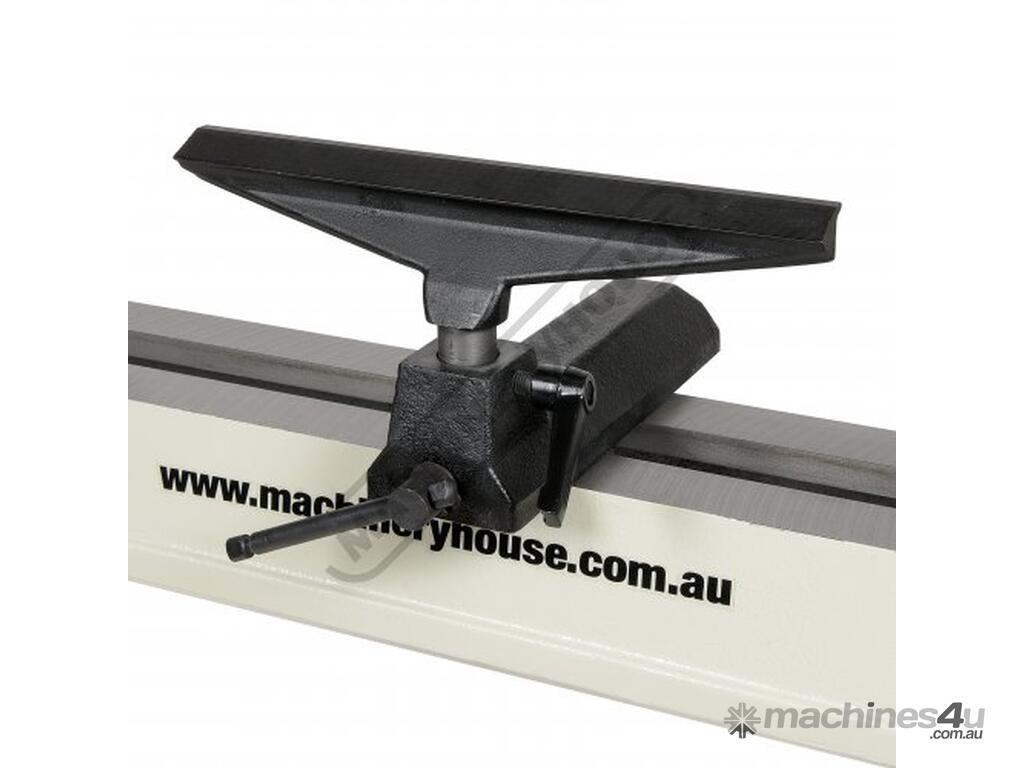

- Tool rest
- Stand



Specifications:
ORDER CODE: W382
MODEL: WL-18
Swing Over Bed (mm): 310
Between Centres (mm): 900
Spindle Nose Thread: 1" x 10TPI
Spindle Nose Taper (MT): 2

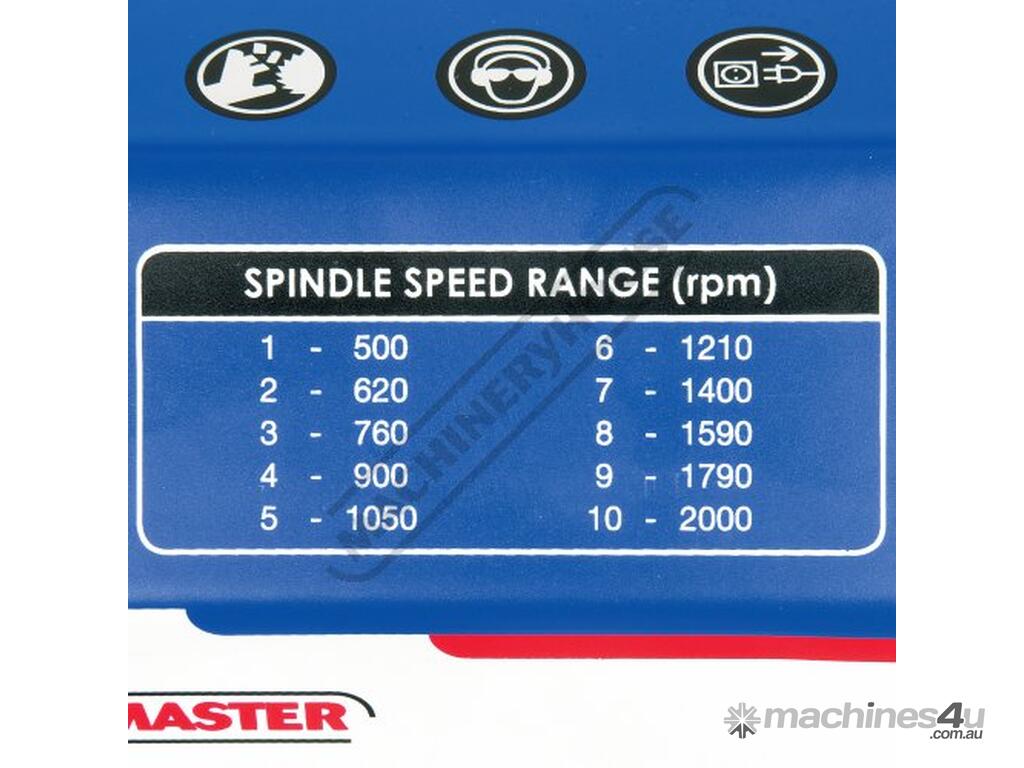

Spindle Speeds (rpm): Variable 500 - 2000
Spindle Speeds (rpm): ~
Tailstock Taper (MT): 2
Motor Power (kW / hp): 0.75 / 1
Voltage / Amperage (V / amp): 240 / 10
Floor Space (W x D x H) (mm): 1610 x 650 x 1120
Floor Space With Option Stand (W x D x H) (mm): ~
Nett Weight (kg): 85
