WL-46A Electronic Variable Speed Wood Lathe Ø462mm Swing x 1194mm Between Centres Electronic Variabl

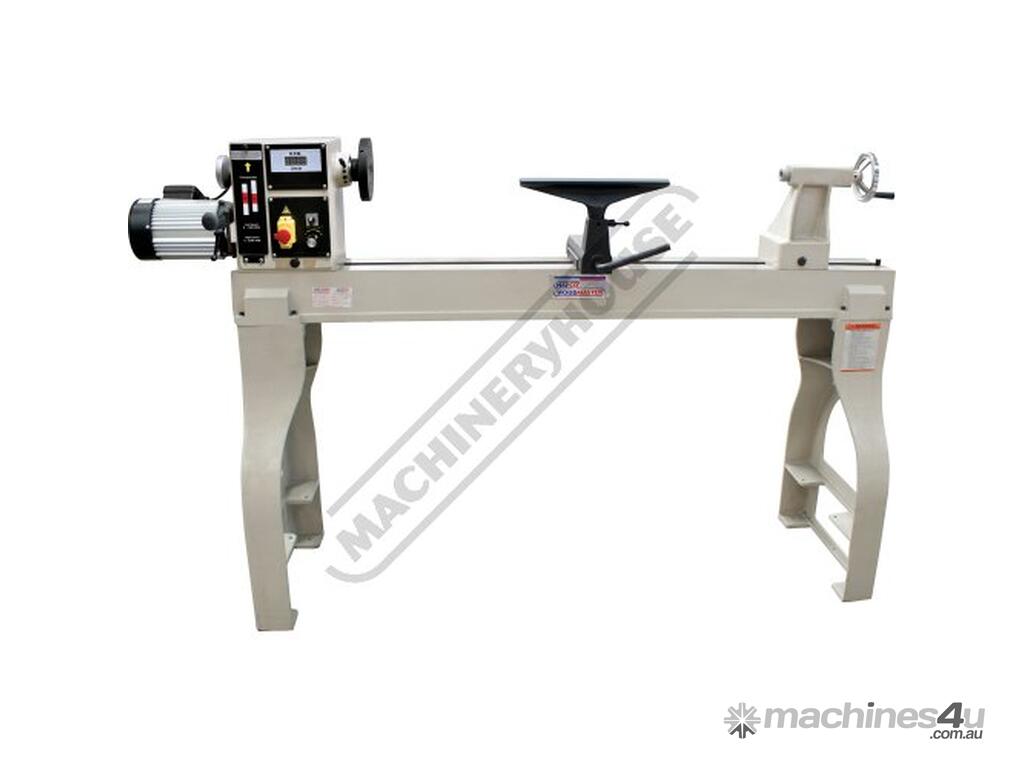

HAFCO-WOODMASTER WL-46A Electronic Variable Speed Wood Lathe Ø462mm Swing x 1194mm Between Centres Electronic Variable Speed 100 ~ 3200rpm & Heavy Duty Cast Iron Legs
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W387

The WL-46A is built to a high standard and capable of turning a 462mm diameter bowl over the bed and the bed is long enough to turn a 1194mm table leg or spindle. All the major castings are made up of thick section cast iron which gives a very solid feel to the lathe and guarantees a vibration-free experience in most applications.

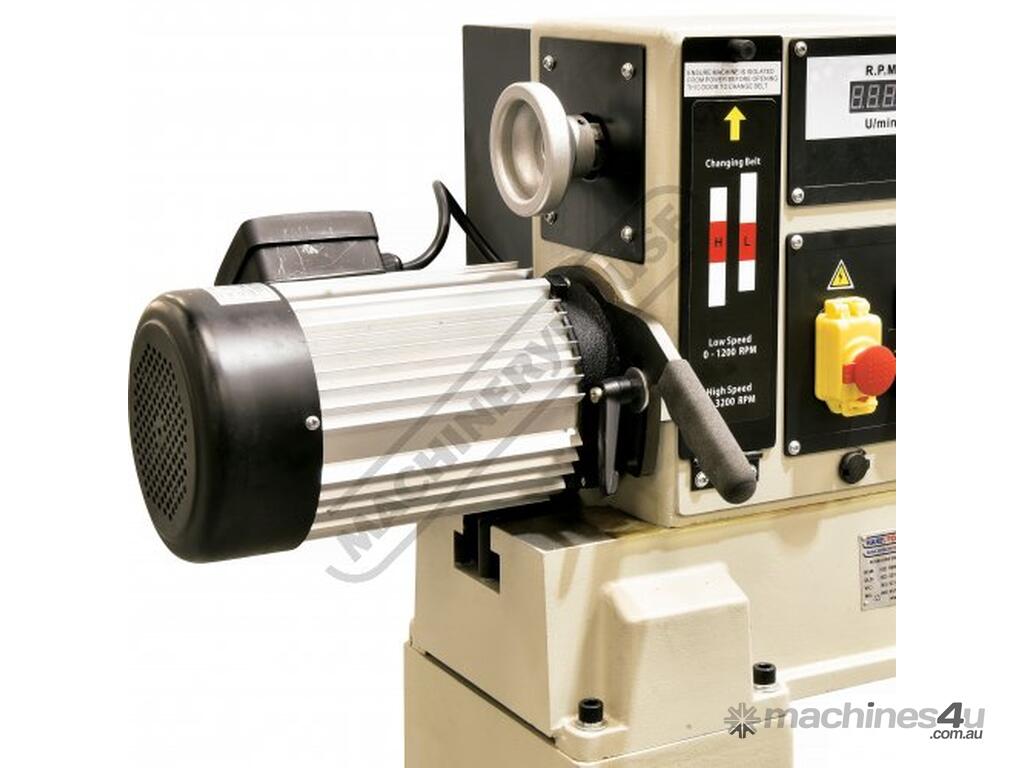

Power is provided by a 1.5kW / 2hp motor driving the spindle through a pair of pulleys and controlled by a variable speed control situated at front of the head. The low speed range provides plenty of torque for the big turning jobs whilst the high speed range allows the necessary adequate speeds for smaller components that's required for finishing.

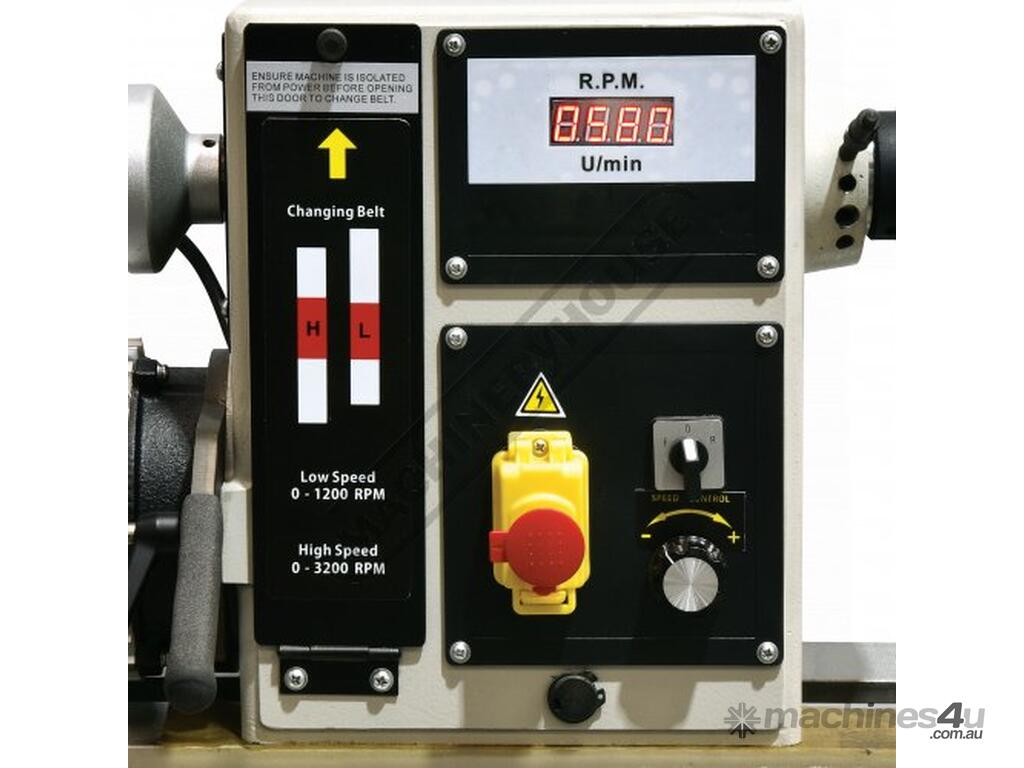

The front panel of the head has a digital rpm speed indicator, a safety on/off switch, a forward & reversing switch and an access panel for changing the belt pulley positions. Includes four prong drive centre, revolving tail centre, tool rest & faceplate.

Features:
Cast iron construction bed head and tailstock
Electronic variable speed (100-3200rpm) with a digital readout
Headstock is free to slide along the length of the bed
Forward & reversing spindle direction switch
1.5kW / 2hp 240V motor
Dust proof magnetic switch
Heavy duty cast iron legs

Includes:
- Stand
- Drive Centre
- Live Centre
- 150mm Faceplate
- 355mm Toolrest
- Tailstock



Specifications:
ORDER CODE: W387
MODEL: WL-46A
Swing Over Bed (mm): 462
Between Centres (mm): 1194
Spindle Nose Thread: 30 x 3.5mm
Spindle Nose Taper (MT): 2
Spindle Speeds (rpm): Variable 100 - 3200
Spindle Speeds (rpm): ~
Tailstock Taper (MT): 2
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 240 / 10
Floor Space (W x D x H) (mm): 2130 x 630 x 1220
Floor Space With Option Stand (W x D x H) (mm): ~
Nett Weight (kg): 228


To Purchase Online Please Visit The Machineryhouse & Search For 'W387'
