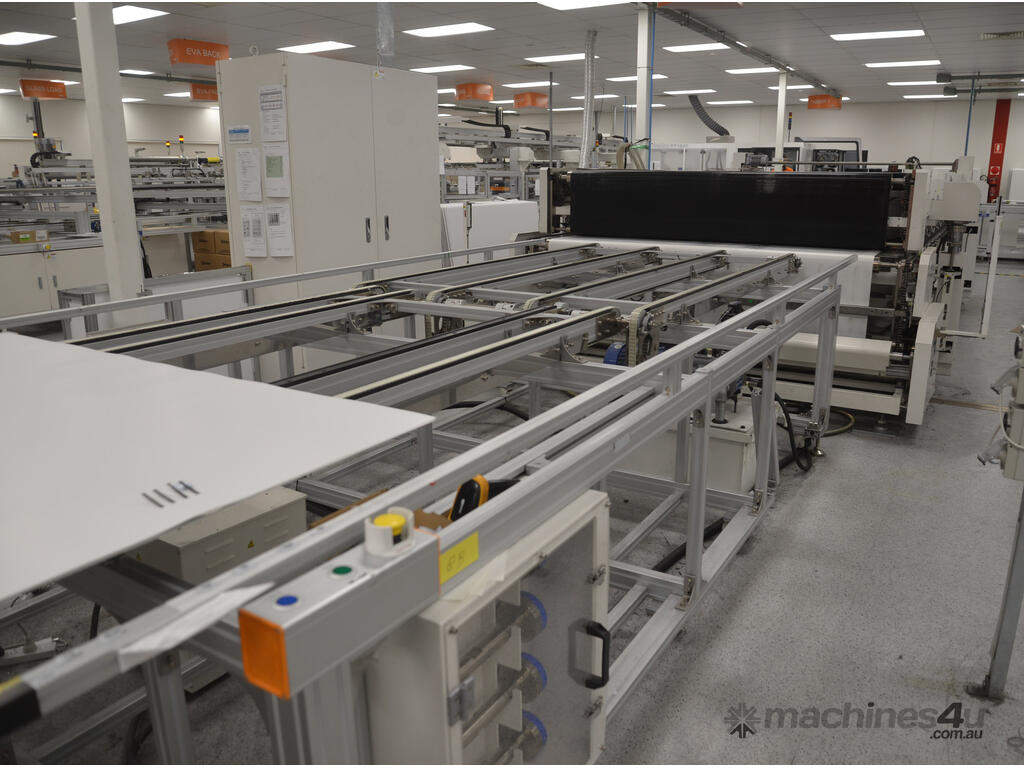

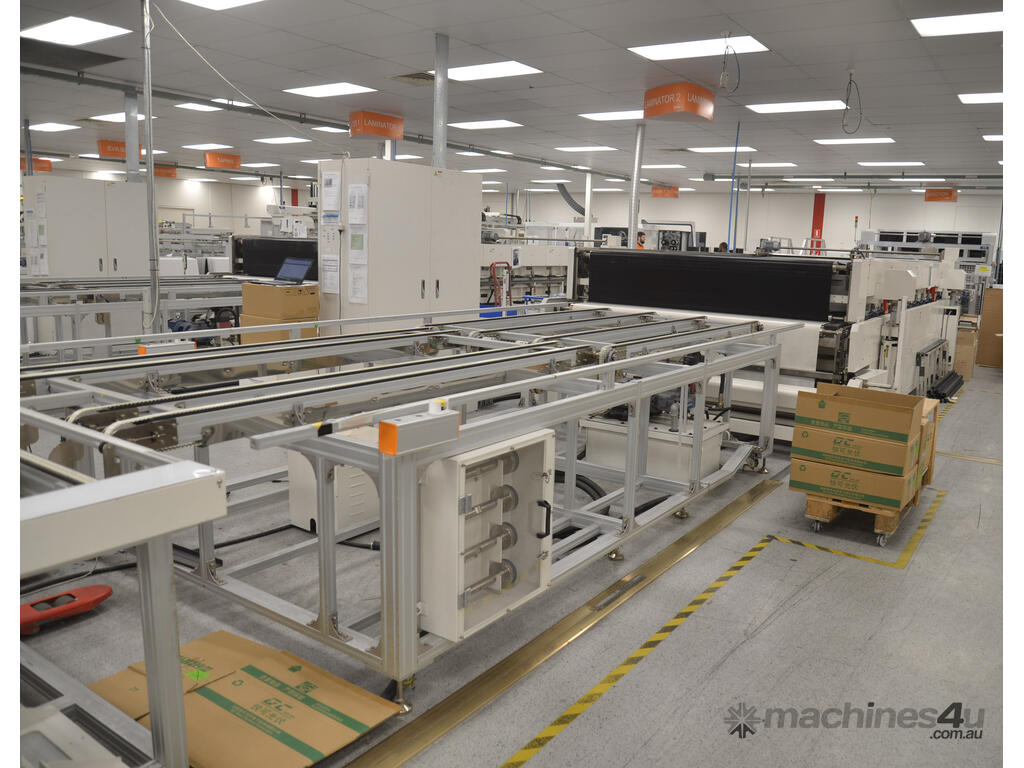

Laminator - WOOIL HIGHTECH PV Module Line LAYUP SYSTEM LU-7200A & MEGALAM-2246 with Loading and Unloading Conveyor.

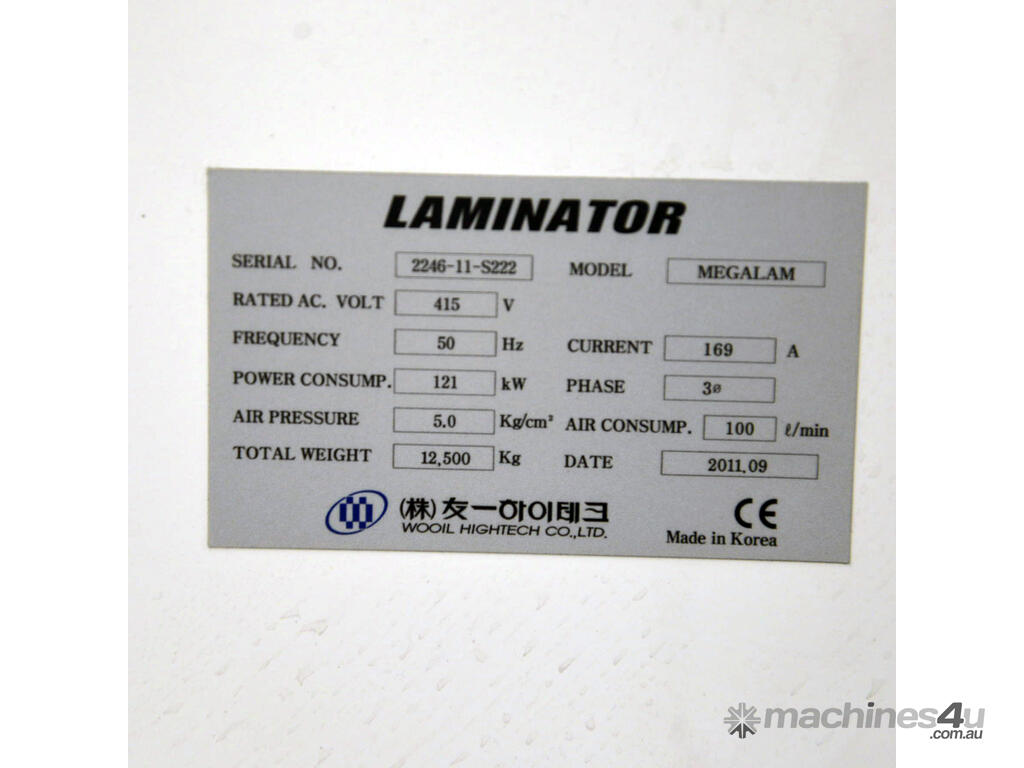

MEGALAM-2246
Serial 2246-11-s222
Manufactured 09/2011 in South Korea
ex TINDO SOLAR - for making solar panels, using EVA as the thermoplastic bonding material, could also be used for ballistic and other special composite applications.

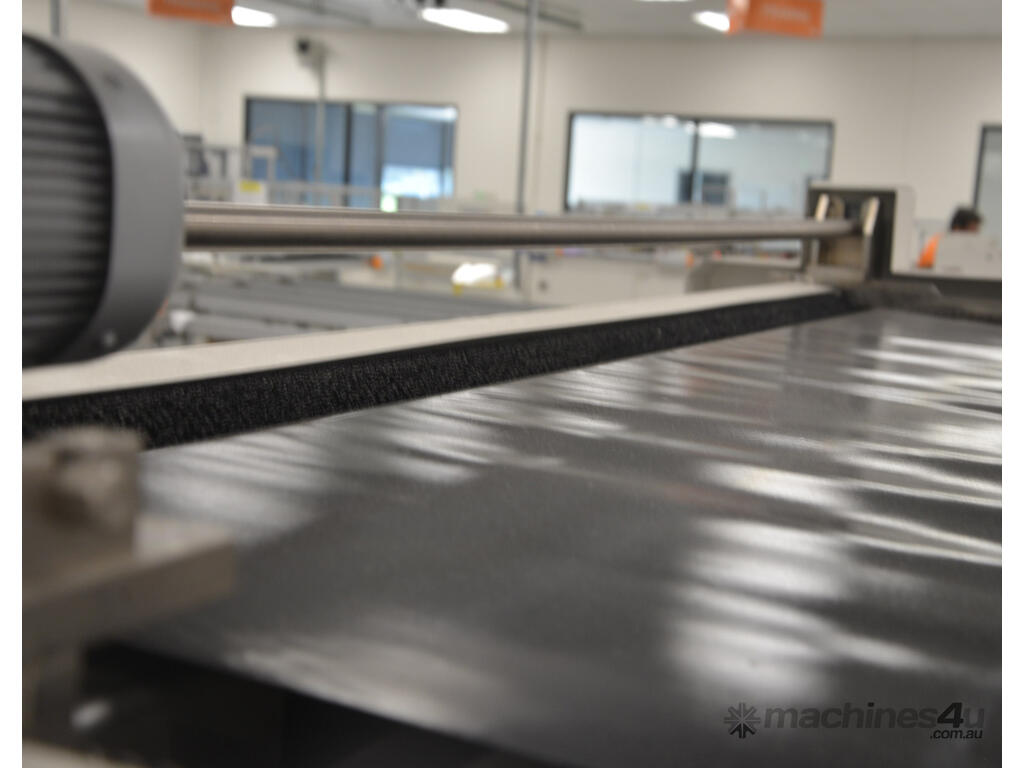

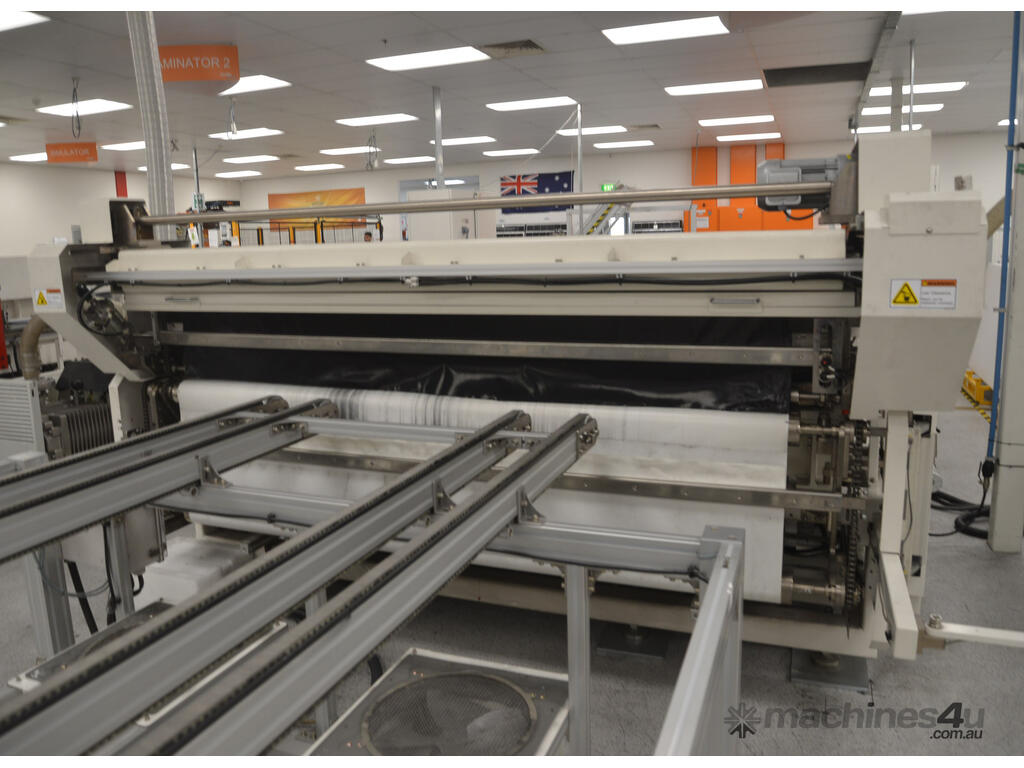

Vacuum chamber opens and shuts hydraulically , product enters on a thin PTFE conveyor that passes through the seal face, the chamber is heated and evacuated for a programable period before air it allowed into the top of the chamber above a high temp silicone rubber diaphragm that then applies pressure the the glass sheets below. This machine was in use right up to the day we started decommissioning and is in good fully operational condition.
including:

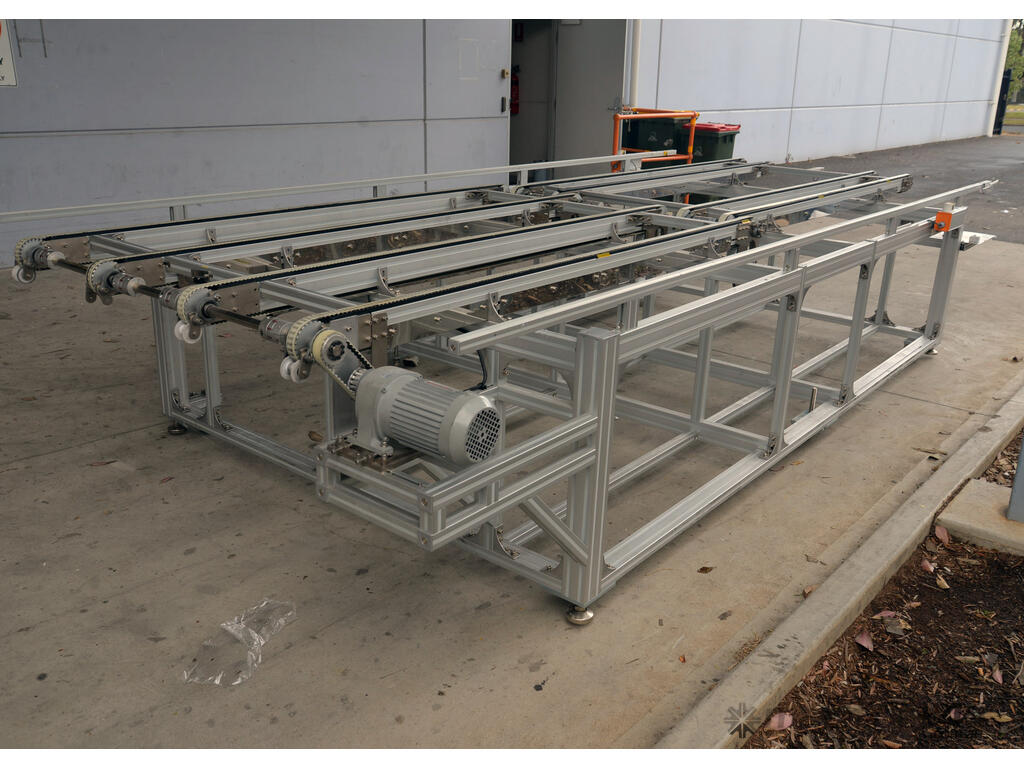

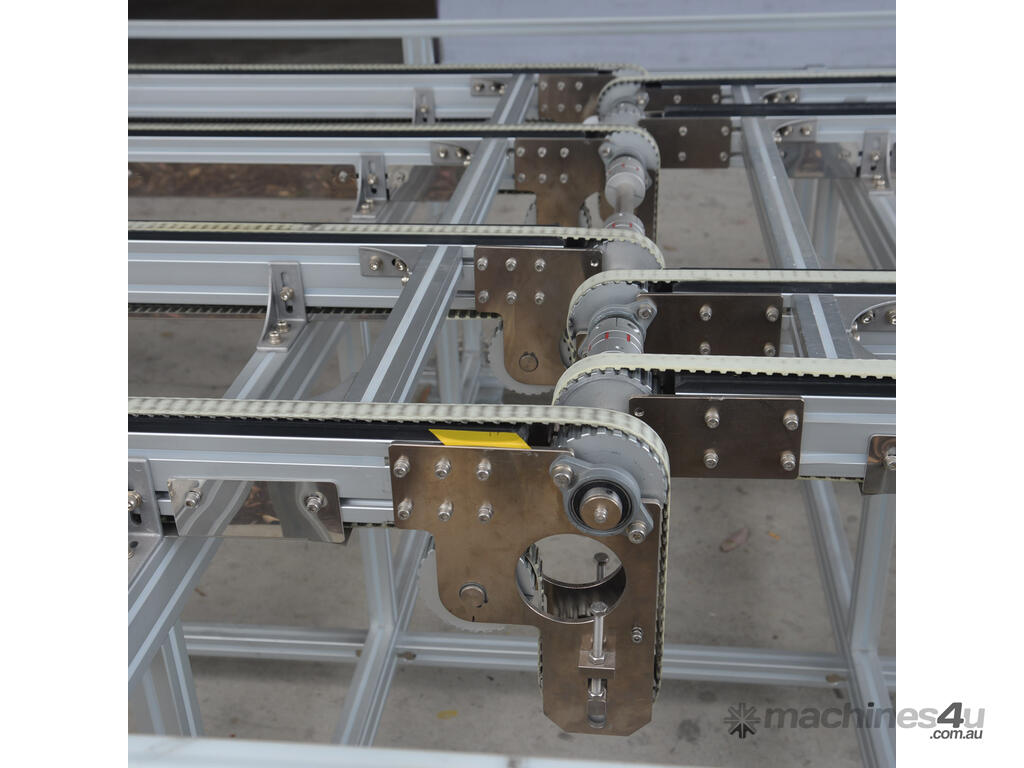

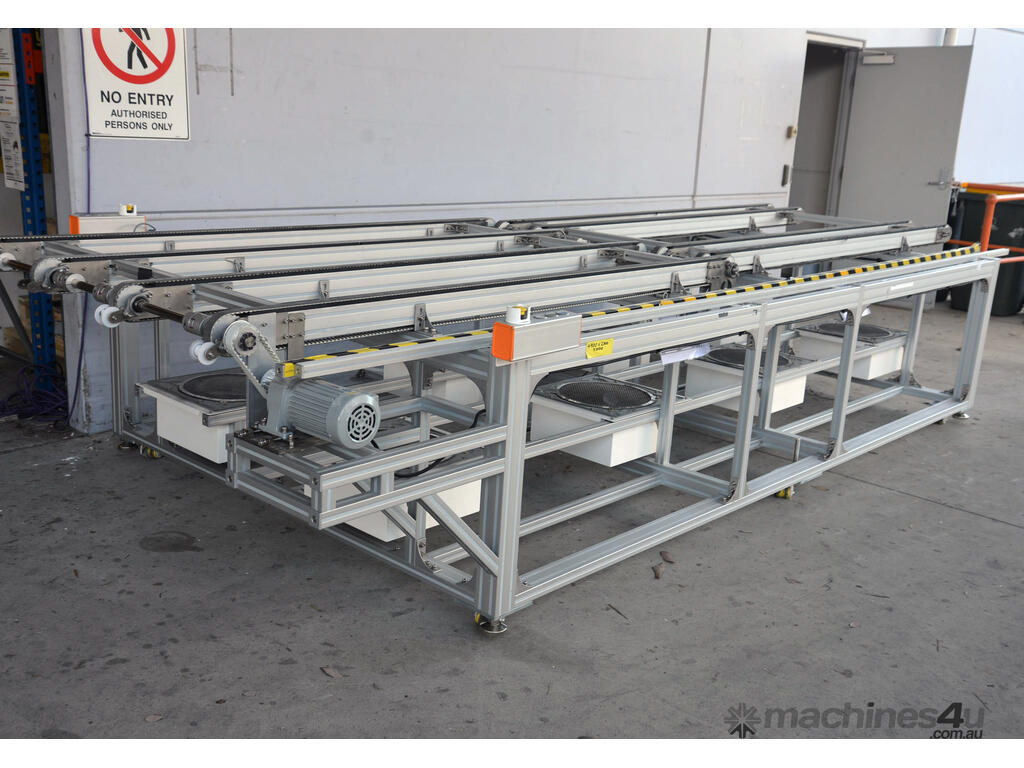

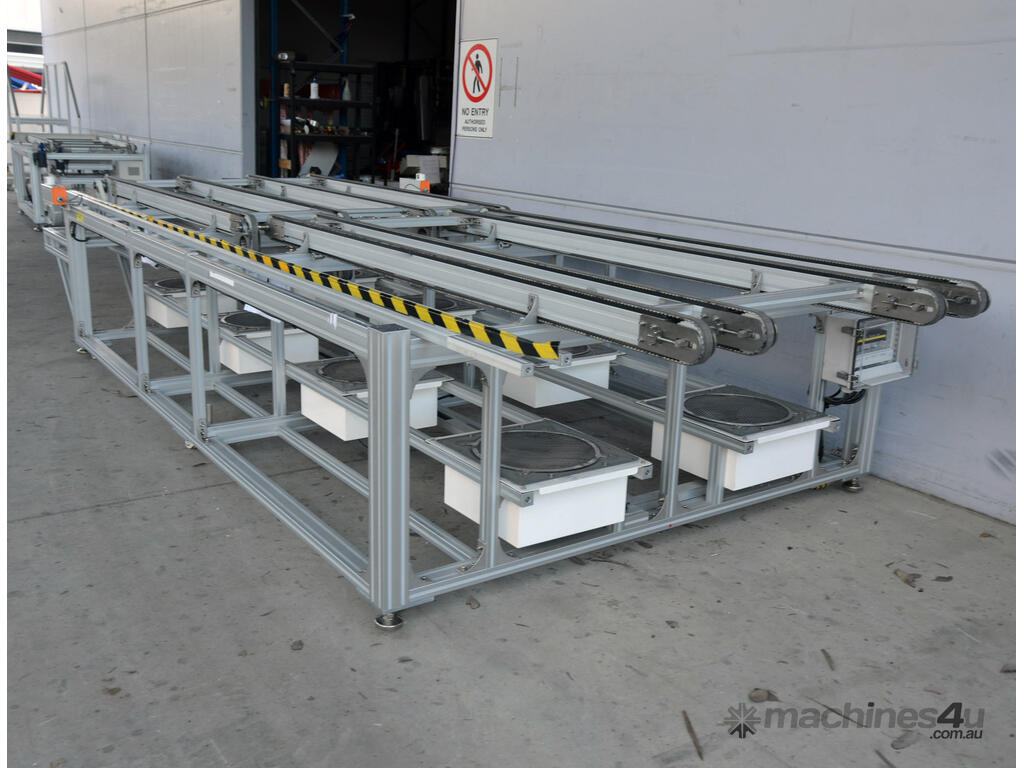

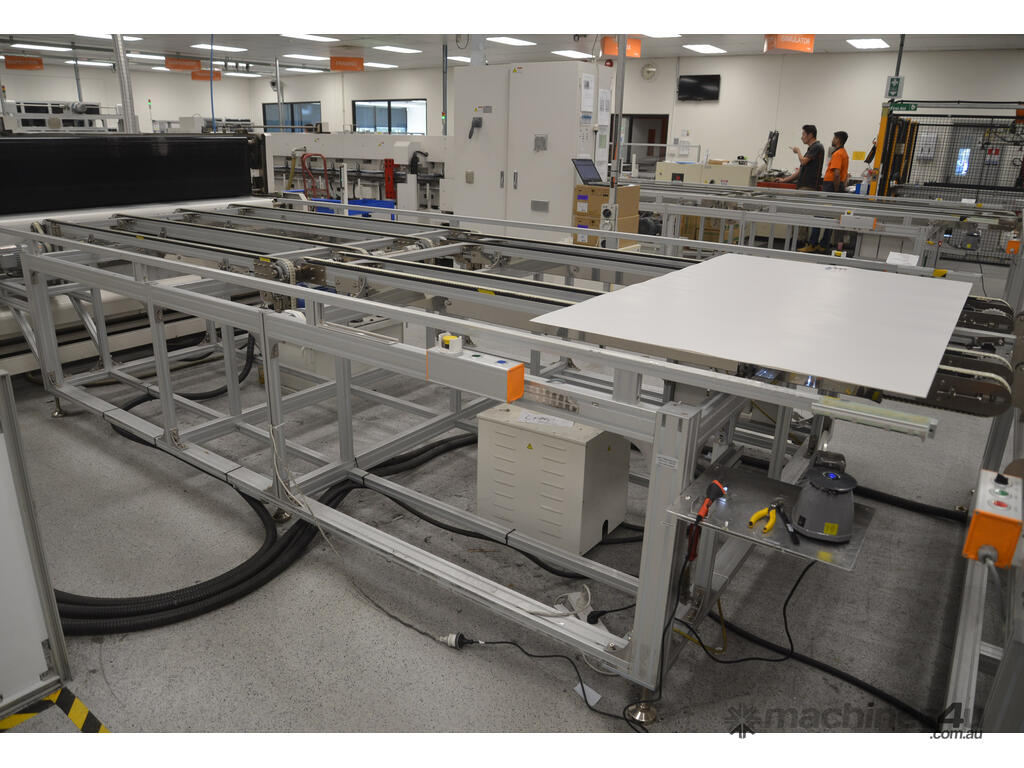

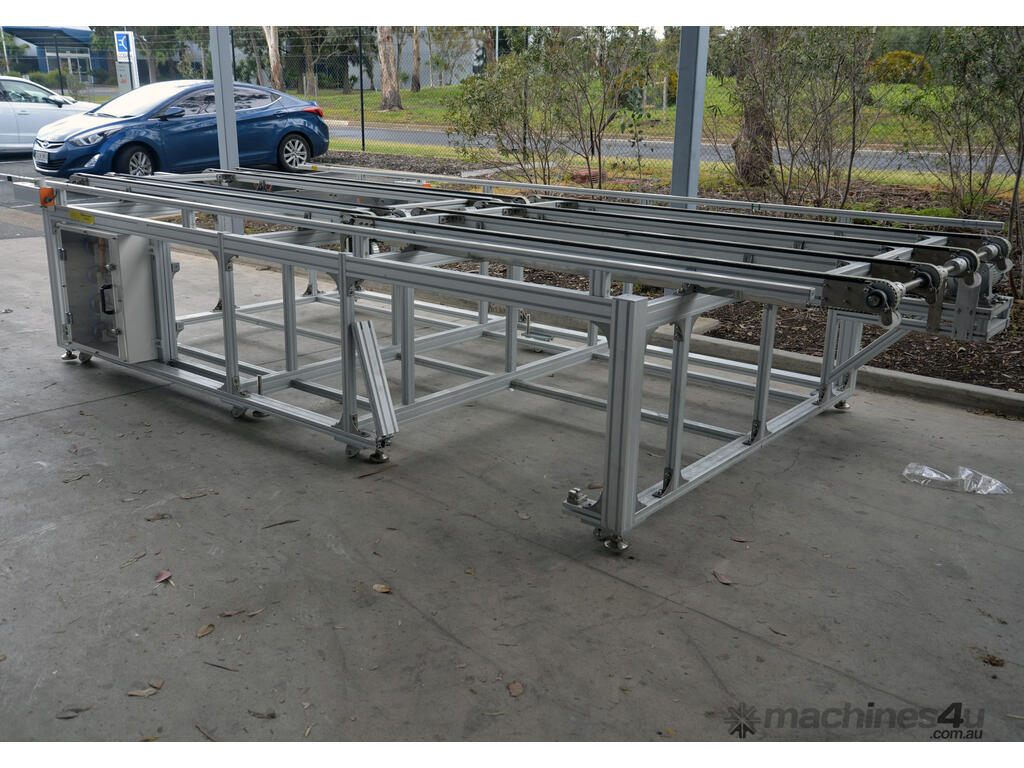

Infeed and outfeed conveyor systems

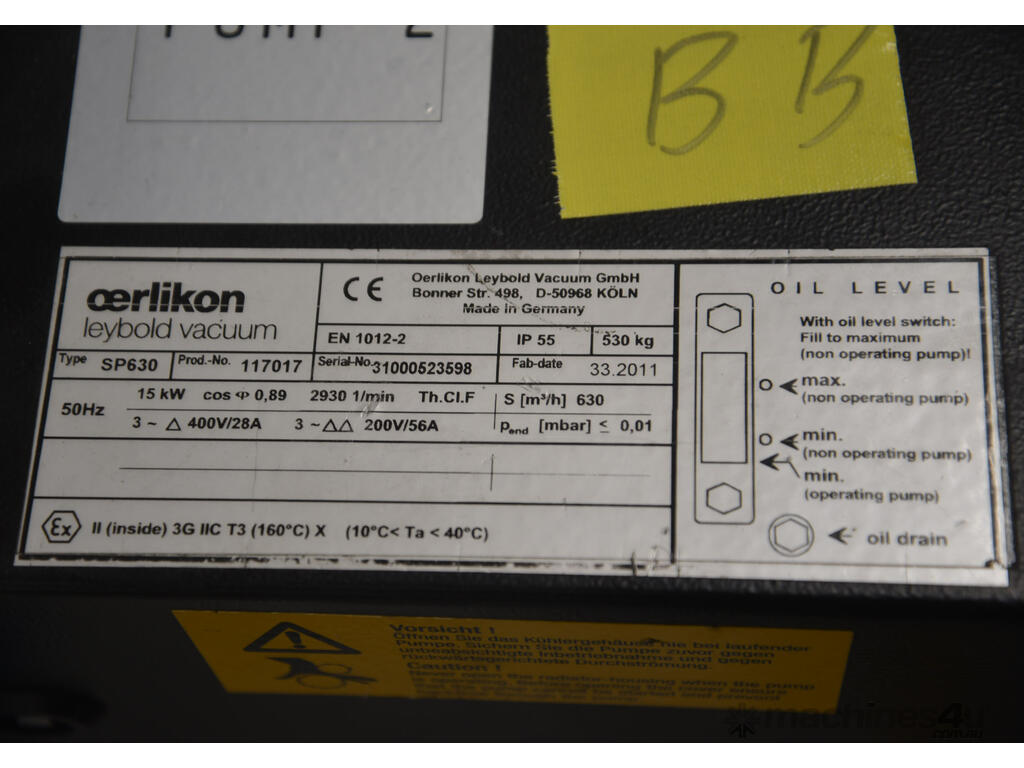

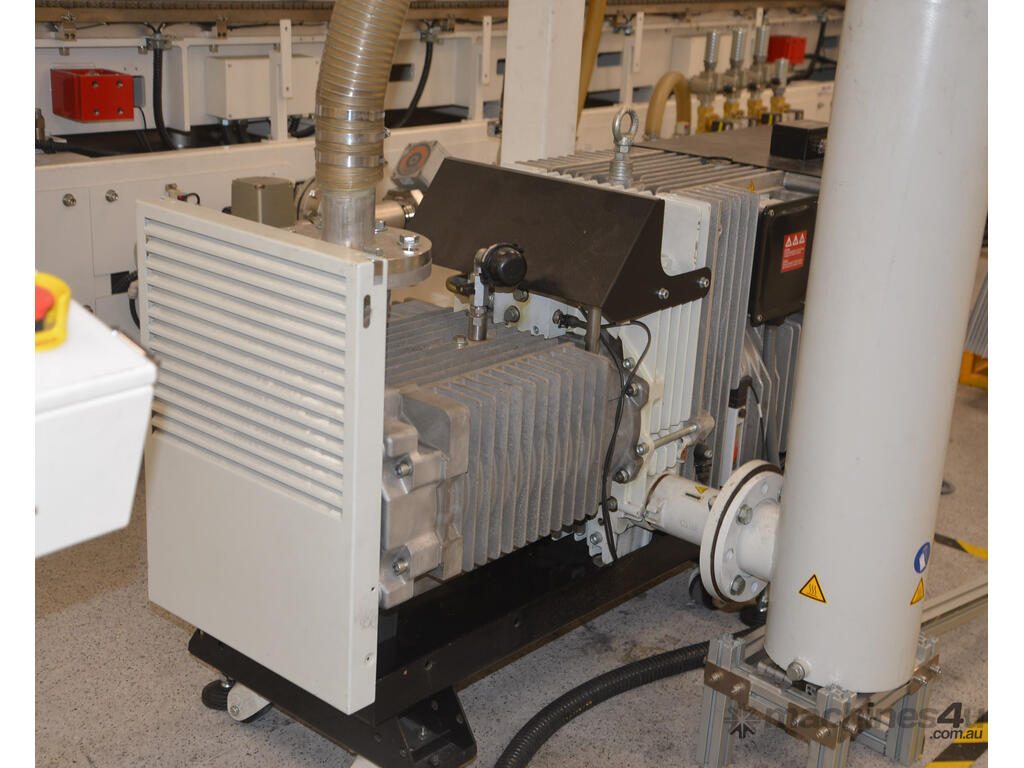

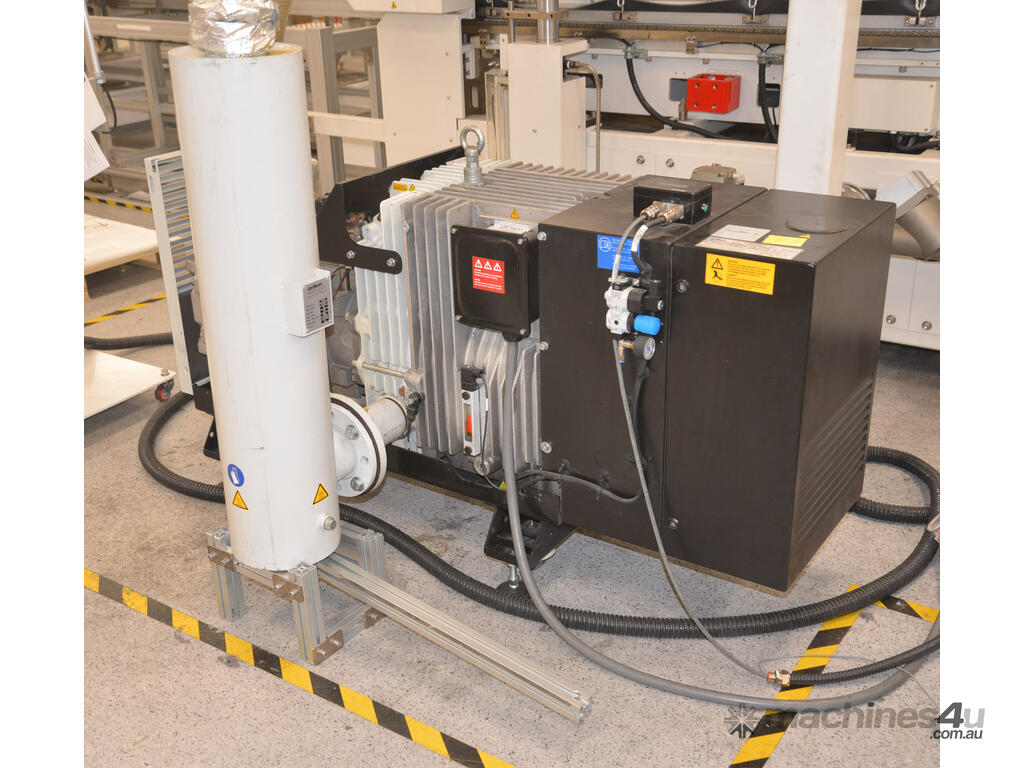

oerlikon SP630 15kW 3 PHASE LEYBOLD VACUUM PUMP
Hydraulic power pack

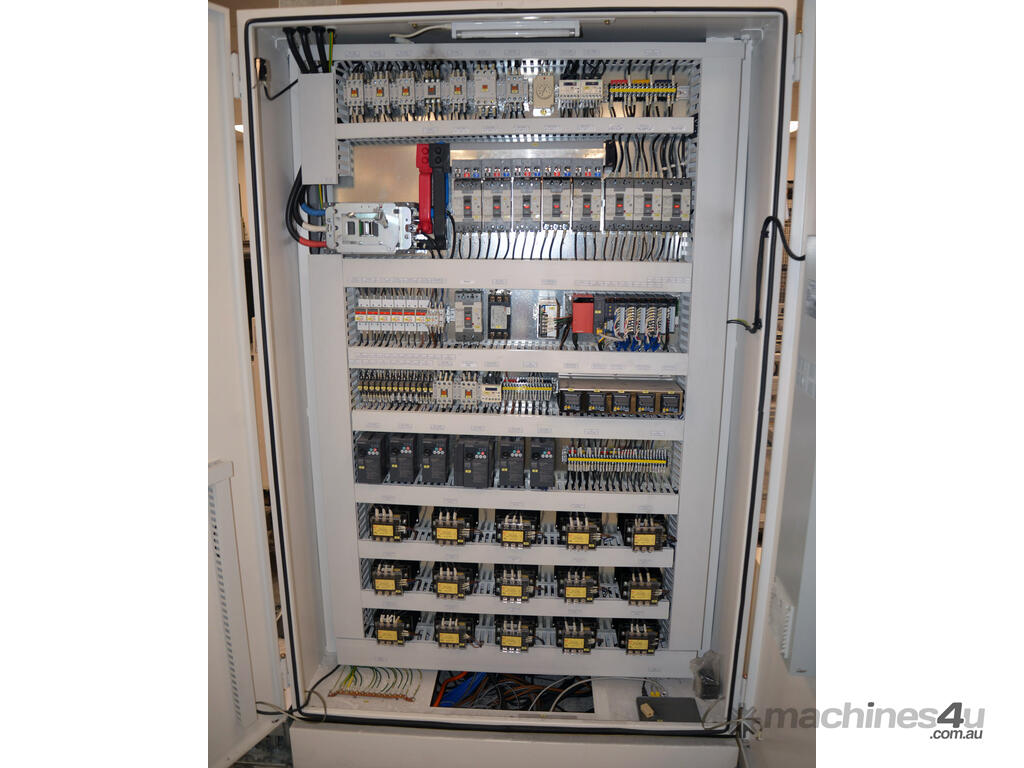

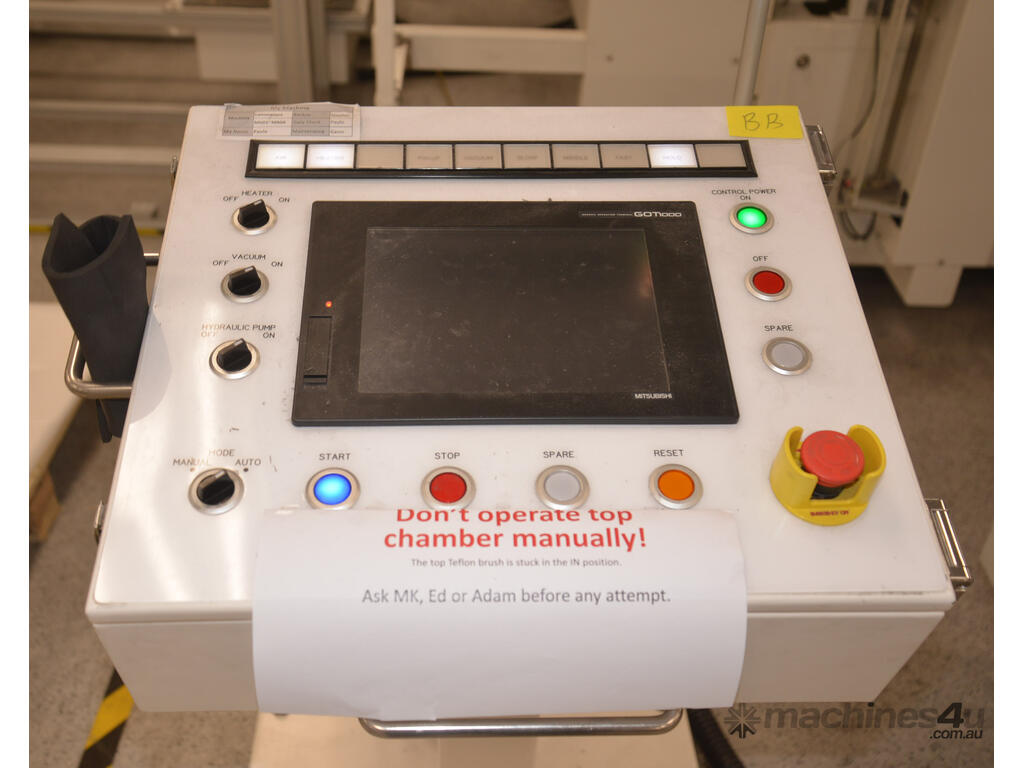

Pedestal HMI control panel.

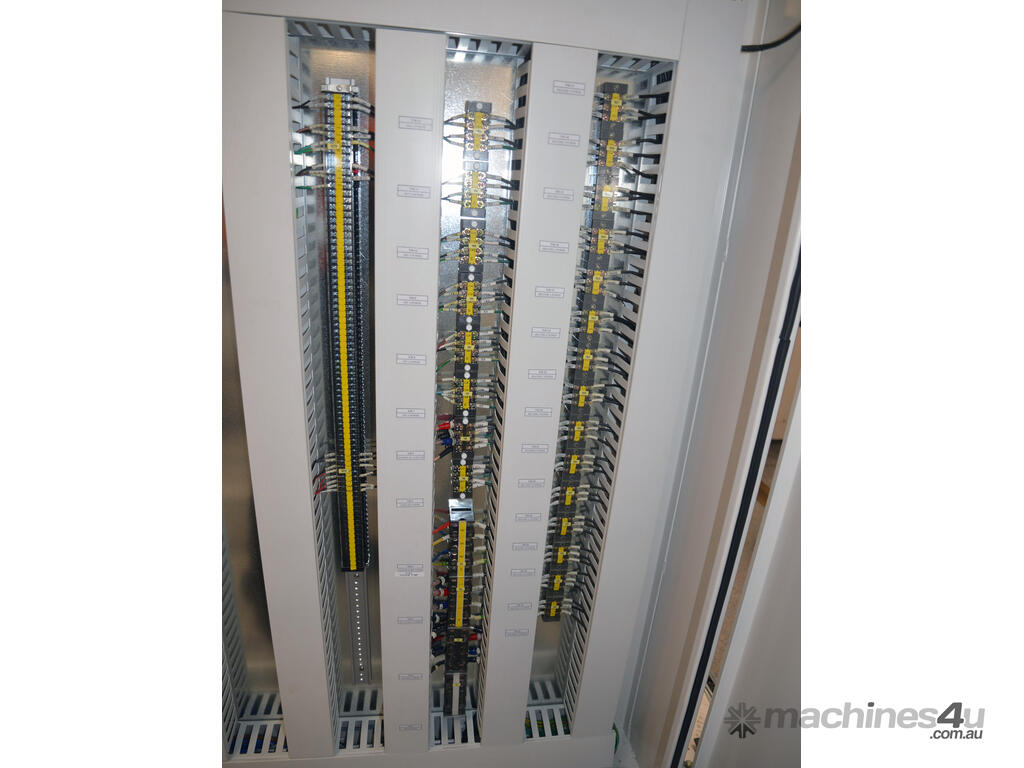

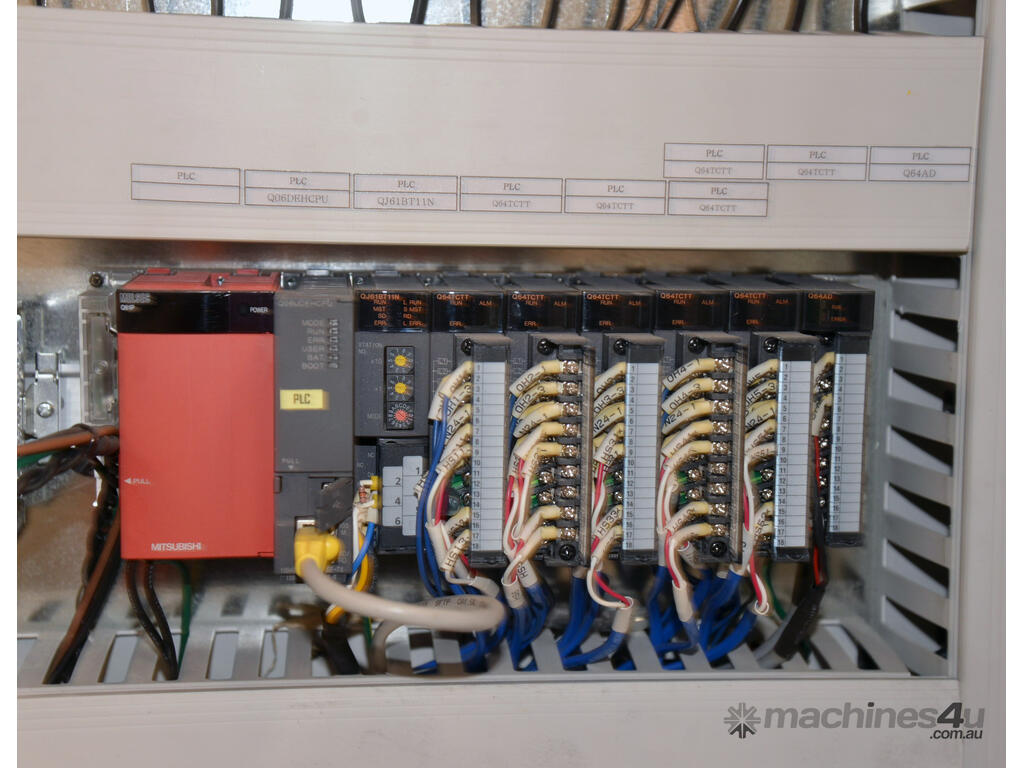

Mitsubishi MELSEC PLC SYSTEM
including:
oerlikon SP630 15kW 3 PHASE LEYBOLD VACUUM PUMP
Pedestal HMI control panel.
Mitsubishi MELSEC PLC SYSTEM
We have more photos available.
We have manuals and wiring diagrams, etc.
approx 14000 kg
