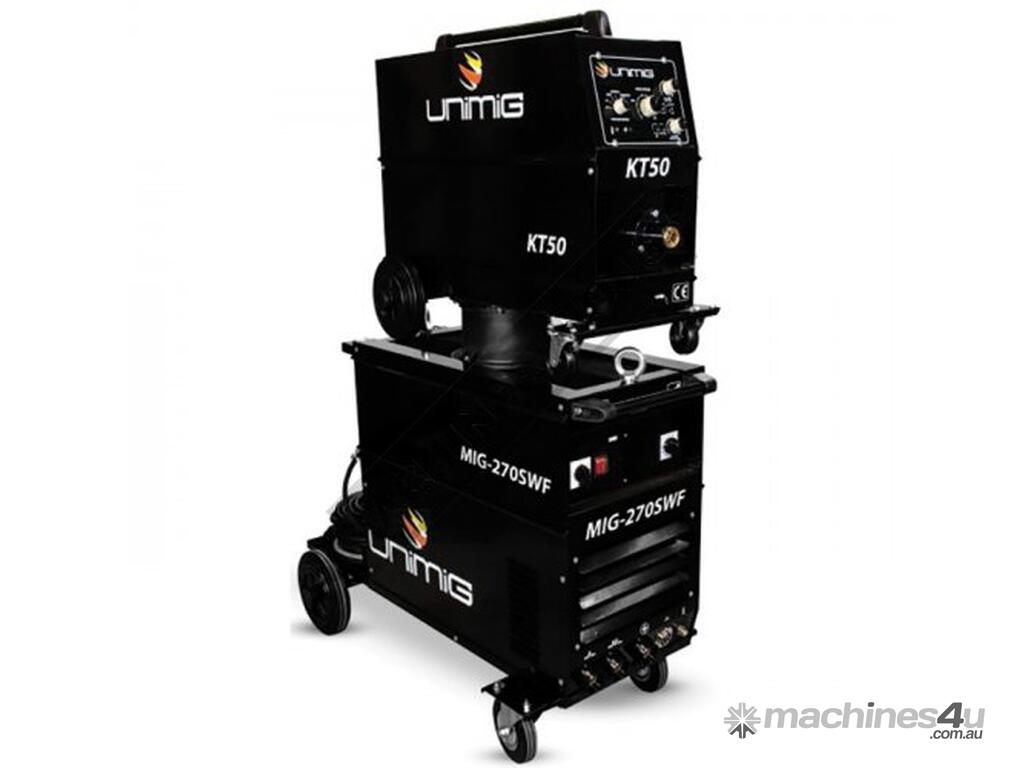

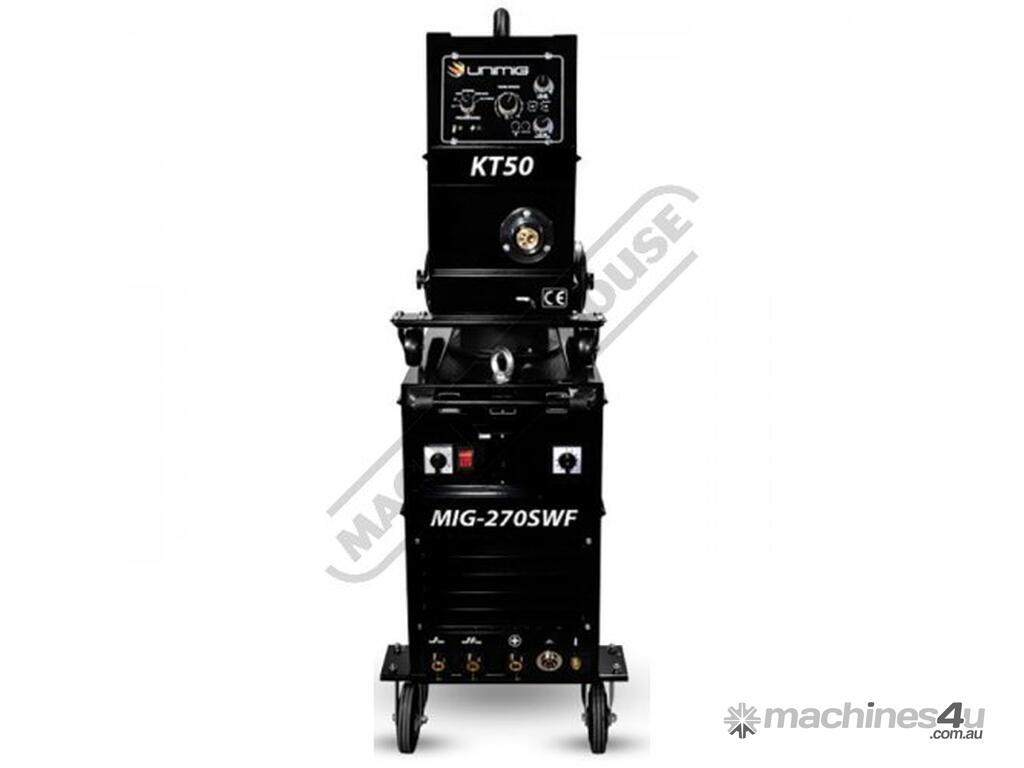

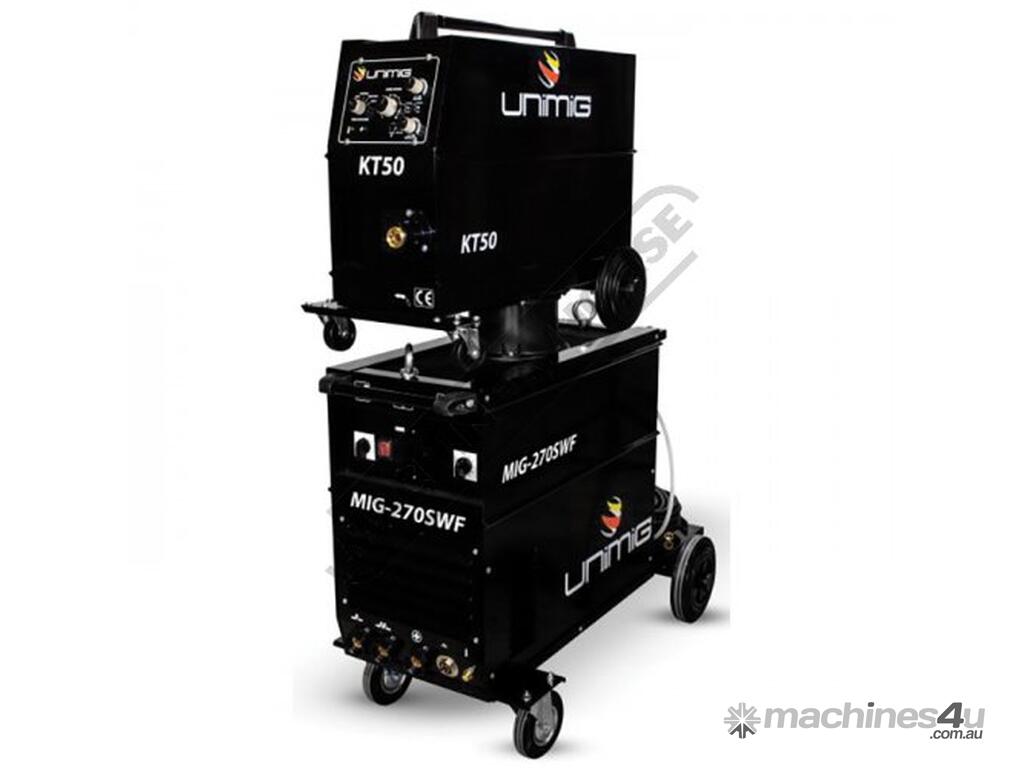

WORKSHOP 270 SWF MIG WELDER #KUM270SWF 30-270 Amps Welding Current Range

UNIMIG WELDERS WORKSHOP 270 SWF MIG WELDER #KUM270SWF 30-270 Amps Welding Current Range
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W249

The top of the Single Phase range UNI-MIG 270 SWF is one of the most powerful MIGs in its class. Combining an exceptionally high duty cycle and power with very smooth arc characteristics, it is designed for use in medium to heavy fabrication, as well as rural applications.

If 3 phase ower is unavailable, the Unimig 270 SWF will give you the reliability and power you need to get the job done. Fitted standard with a geared four roller drive system ensuiring consistent wire feed and smooth welding.

The UNI-MIG 270 SWF is supplied with a completely enclosed KT 50 wire feed unit which helps prevent dust and moisture fouling your wire and contaminating your weld. It comes with a set of fully covered 10 metre interconnecting cables, a swivel turntable for the wire feed unit and wheels for increased maneuverability.


High Duty Cycle operation 70% at 250 Amps
21 Voltage positions
Dual inductance settings for optimum arc characteristics on thin or thick materials
2T-4T trigger operation
Stitch and Spot welding modes
Adjustable Burnback

Features:
Four wheel geared wire drive system
Separate Wire Feeder
Maximum portability and reach with 10 metre interconnecting cables
Dual inductance for exceptional arc control
High strength steel construction
Heavy duty copper wound transformer
Exceptional high duty cycle 70% 250 amps
European made quality manufactured in Hungary

Includes:
- KT 50 Separate Wire Feeder complete with 10 metre interconnecting cables
- SB24 4M Uni-Mig Ergo MIG torch with Euro connection
- 10M Earth lead with 35/50 Dinse style connections
- UNI-FLAME Twin Gauge Argon Regulator
- Gas Hose with Fittings



Specifications:
ORDER CODE: W249
MODEL: WORKSHOP 270 SWF
Type: MIG WELDER
Type: ~
Part Number: KUM270SWF
Voltage (V): 240
Recommended Plug Amperage (amp): 32
Welding Current Range - MIG (amp): 30 - 270
Welding Current Range - STICK (amp): ~
Welding Current Range - TIG (amp): ~
Duty Cycle (% amp): 70 250
Duty Cycle (% amp): ~
Wire Spool Size (kg): 5 & 15
Ferrous Wire Size - Range (mm): 0.6 - 1.0
Stainless Steel Wire Size - Range (mm): 0.6 - 1.0
Aluminium Wire Size - Range (mm): 0.9 - 1.2
Recommended Generator (KVA): ~
Dimensions (mm): 1270 x 920 x 460
Nett Weight (kg): 139
