WORKSHOP 425 SWF MIG WELDER #KUM425SWF 40-400 Amps Welding Current Range

UNIMIG WELDERS WORKSHOP 425 SWF MIG WELDER #KUM425SWF 40-400 Amps Welding Current Range
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W253A

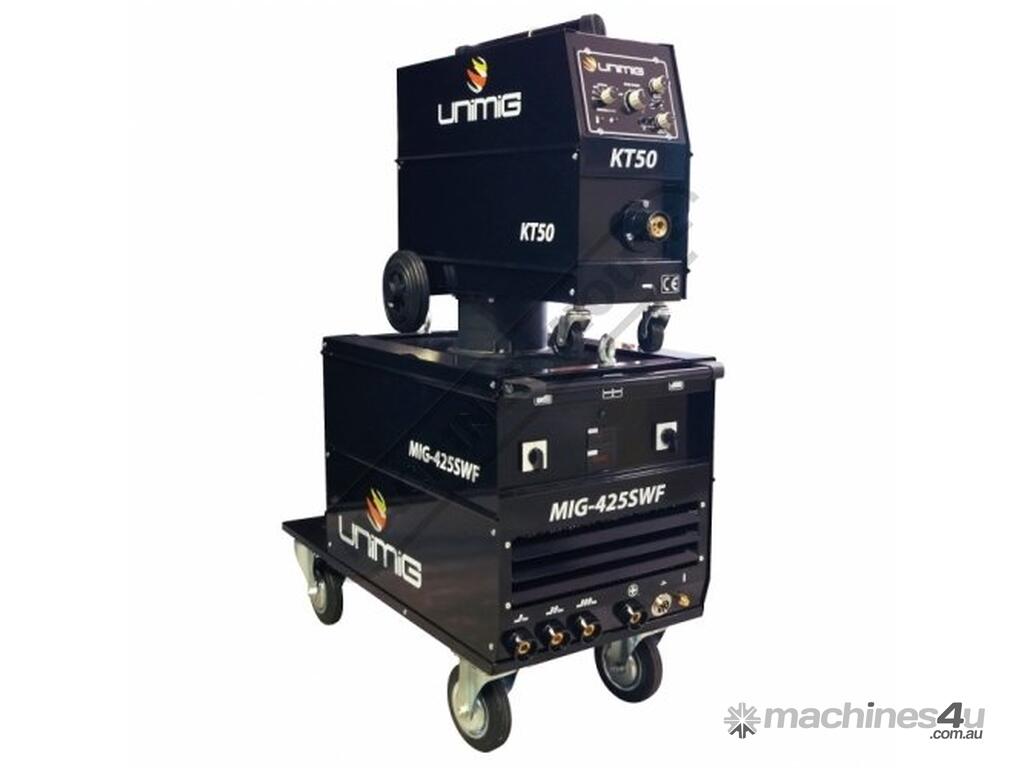

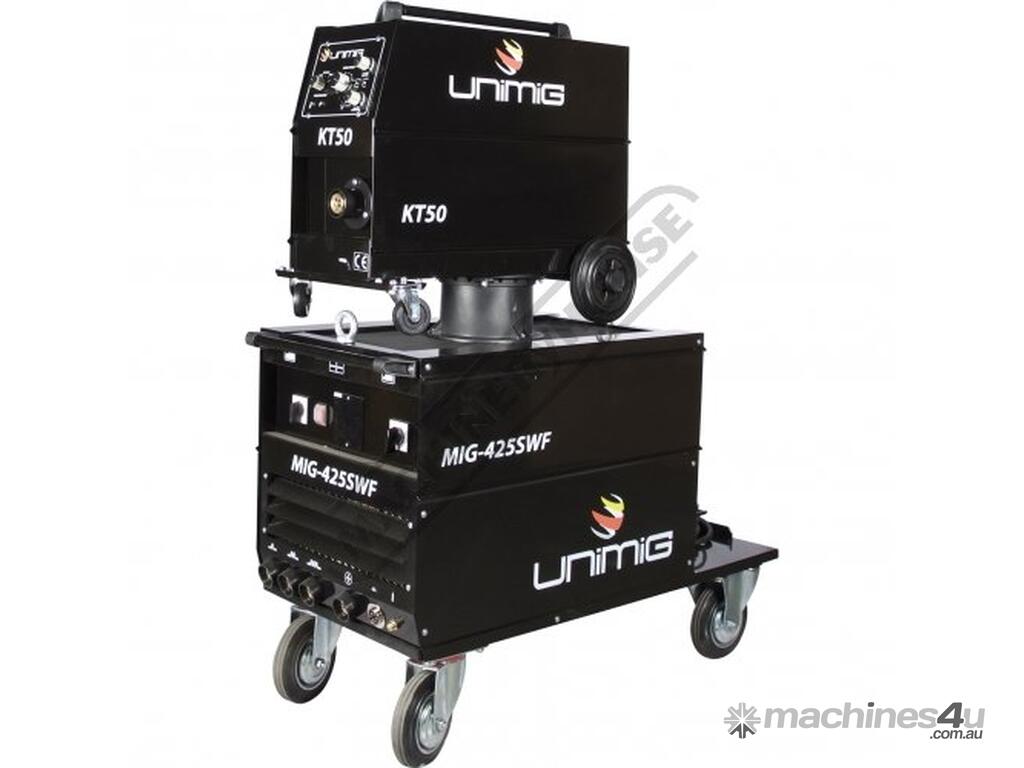

The UNIMIG 425 SWF is a powerful workhorse with an exceptionally high duty cycle. It is ideally suited for medium to heavy fabrication industries as well as rural applications. Combining smooth arc characteristics with complete reliability, the UNIMIG 425 SWF is the unit to satisfy all the demands of the professional welder.

The UNIMIG 425 SWF features a completely enclosed KT 50 wire feed unit which helps prevent dust and moisture fouling your wire and contaminating your weld. Fitted standard with a geared four wheel roller drive system ensuring consistent wire feed and smooth welding. It comes with a set of fully covered 10 metre interconnecting cables and wheels for increased maneuverability.

High Duty Cycle operation 50% at 400 Amps
30 Voltage positions
Triple inductance settings for optimum arc characteristics on thin or thick material
2T-4T trigger operation (MIG Only)
Stich and Spot welding modes
Adjustable Burnback control

Features:
Four wheel geared wire drive system
Separate Wire Feeder
10 metre inter connecting cables
Triple Inductance for exceptional arc control
High strength steel construction
Heavy duty copper wound transformer
Exceptional high duty cycle 50% 400 amps
European made quality manufactured in Hungary
Robust cabinets with steel/rubber wheels
SWF models come with wheels and a swivel platform for wire feed unit
SWF accommodates 15kg wire spools
Thermal overload protection ensures efficiency

Includes:
- KT 50 Separate Wire Feeder complete with 10 metre interconnecting cables
- SB36 4M Ergo MIG torch with Euro connection
- 10M Earth lead with 35/50 Dinse style connections
- UNI-FLAME Twin Gauge Argon Regulator
- Gas Hose with Fittings



Specifications:
ORDER CODE: W253A
MODEL: WORKSHOP 425 SWF
Type: MIG WELDER
Type: ~
Part Number: KUM425SWF
Voltage (V): 415
Recommended Plug Amperage (amp): 32
Welding Current Range - MIG (amp): 40 - 400
Welding Current Range - STICK (amp): ~
Welding Current Range - TIG (amp): ~
Duty Cycle (% amp): 50 400
Duty Cycle (% amp): ~
Wire Spool Size (kg): 5 & 15
Ferrous Wire Size - Range (mm): 0.6 - 1.6
Stainless Steel Wire Size - Range (mm): 0.6 - 1.6
Aluminium Wire Size - Range (mm): 0.9 - 1.6
Recommended Generator (KVA): ~
Dimensions (mm): 1270 x 940 x 600
Nett Weight (kg): 182
