WSC-100 Scroll Chuck -100mm Suits Wood Lathes Note: Requires Insert Adaptor To Suit Your Lathe

HAFCO WSC-100 Scroll Chuck -100mm Suits Wood Lathes Note: Requires Insert Adaptor To Suit Your Lathe
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W370

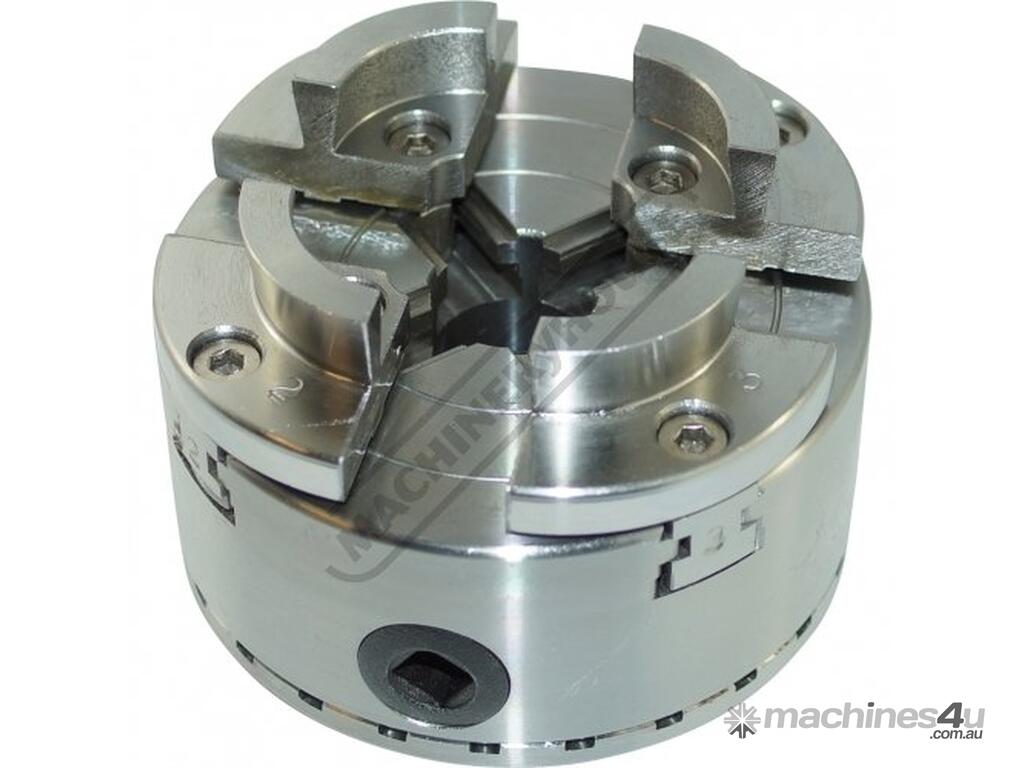

The WSC-100 4 Jaw self-centring chuck is capable of gripping large timber pieces internally or externally with its universal jaws. This great quality chuck is precision manufactured to 0.2mm tolerance and possessing great holding power and load bearing ability to handle more delicate work as well.

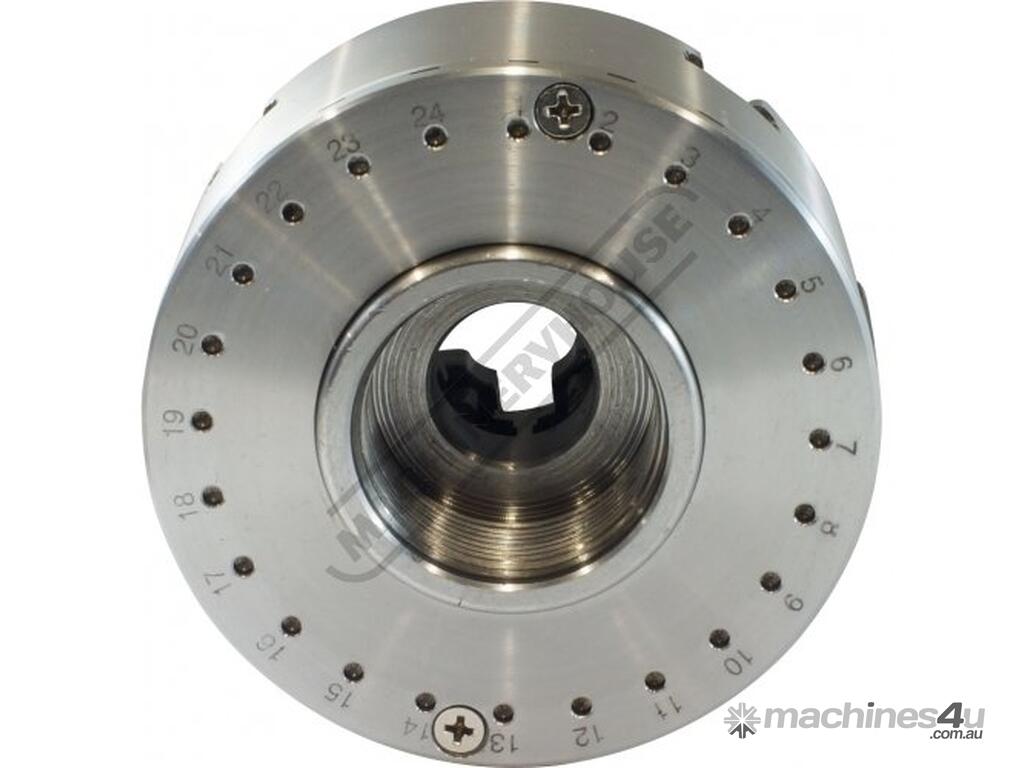

Another handy feature to note is it incorporates 24 indexing holes in the rear back plate of the chuck, many wood turners use them for several applications for e.g., marking out equal hole positions to drill on your work piece. To sum up this chuck, it certainly offers all round professional performance at an exceptional value.

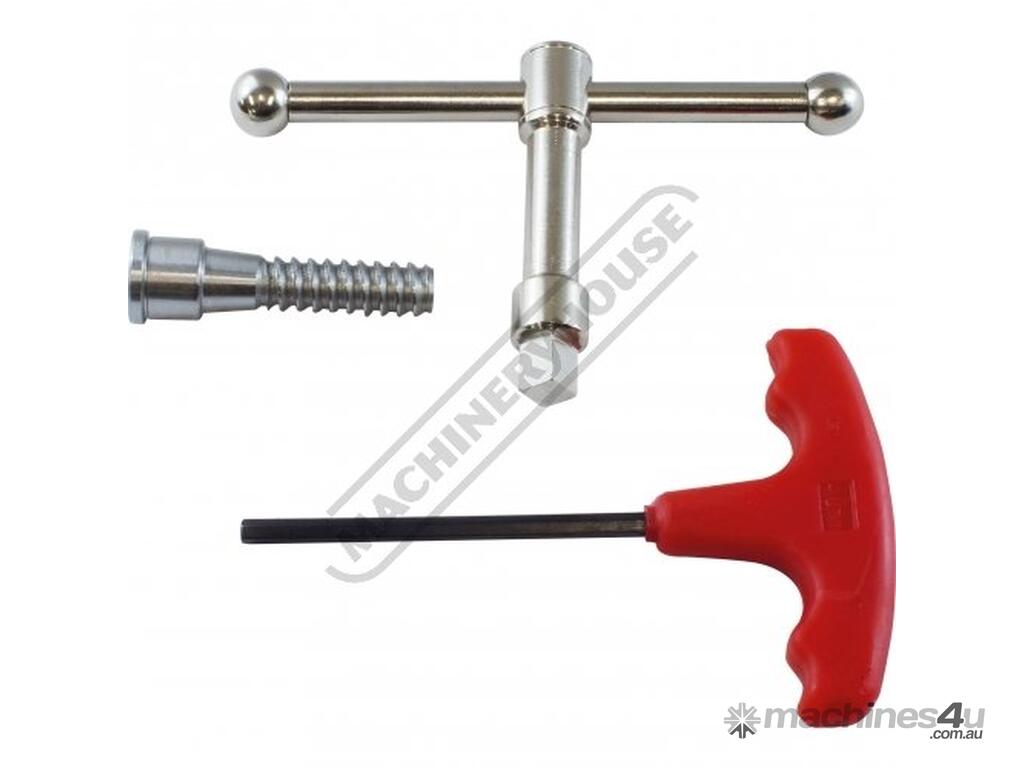

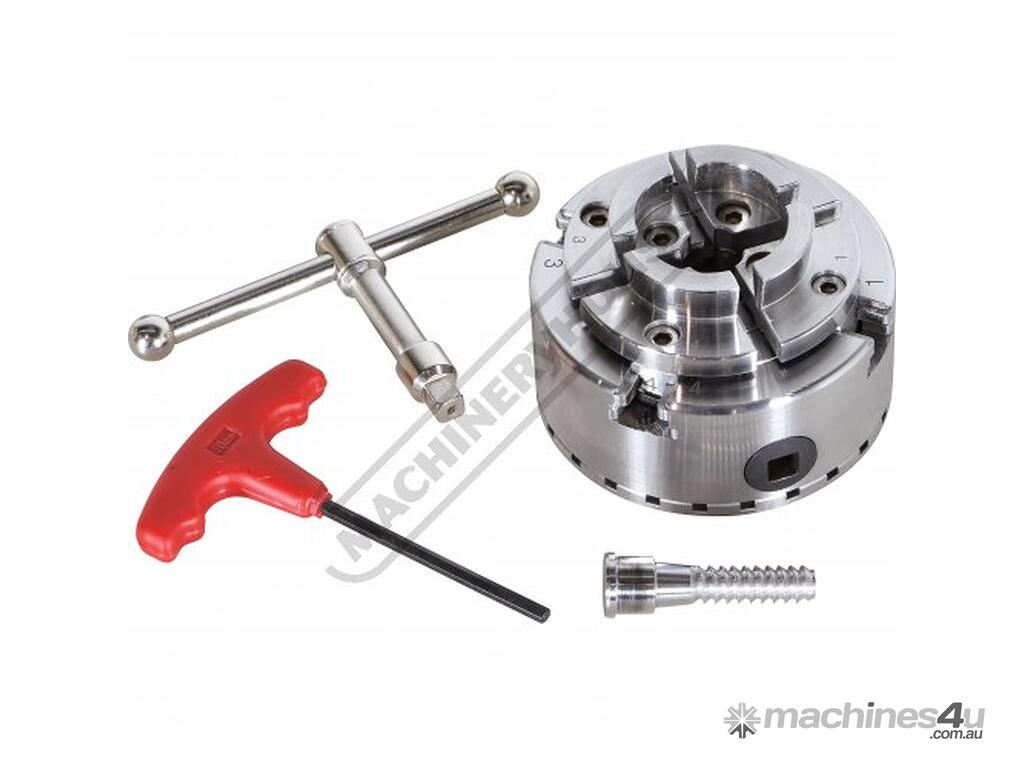

Supplied complete with a threaded wood turning screw, 1 x Allen type T-Key for removing the chuck jaws & 1 x Square type T-Key for opening & closing the chuck jaws.

NOTE: Thread Insert NOT included

Features:
4 jaw self centring scroll chuck
Gripping internally and externally
24 Indexing plate
0.2mm tolerance
Suits insert adaptor thread M40 x 2.0mm

Includes:
- 1 x Allen type T-Key for removing the chuck jaws
- 1 x Square type T-Key for opening & closing the chuck jaws

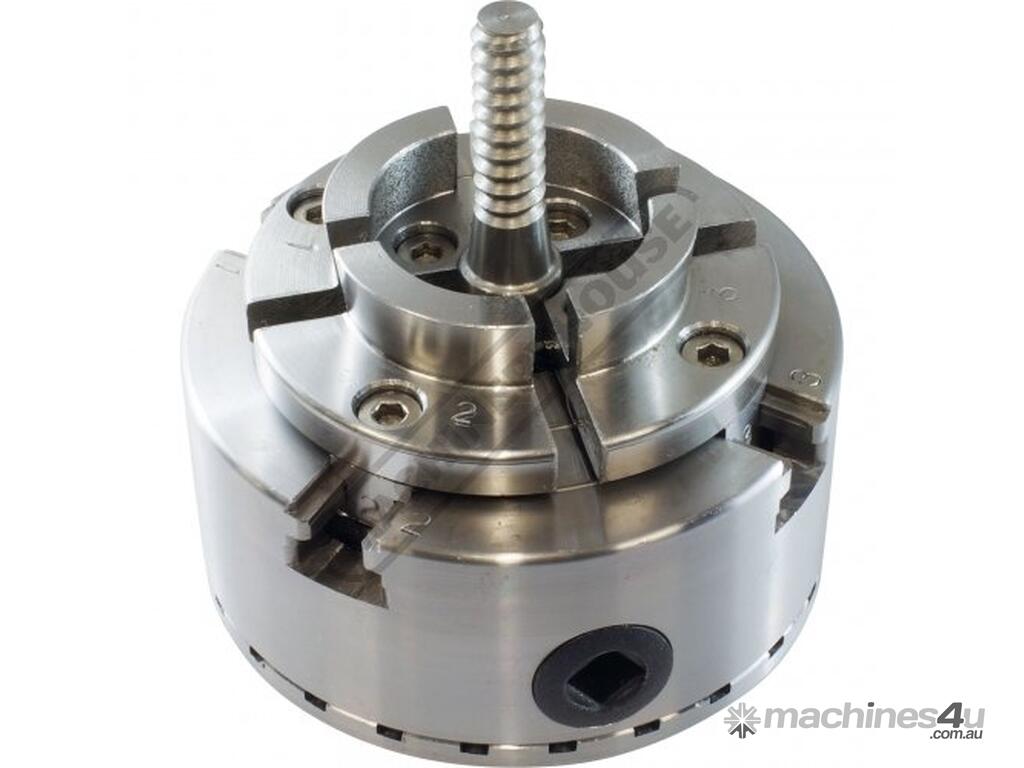

- Threaded wood turning screw that clamps into the chuck



Specifications:
ORDER CODE: W370
MODEL: WSC-100
Type: Scroll Chuck
Size: 100mm
Internal Thread: M40 x 2.00mm
External Thread: ~
Suits: Wood Lathes
