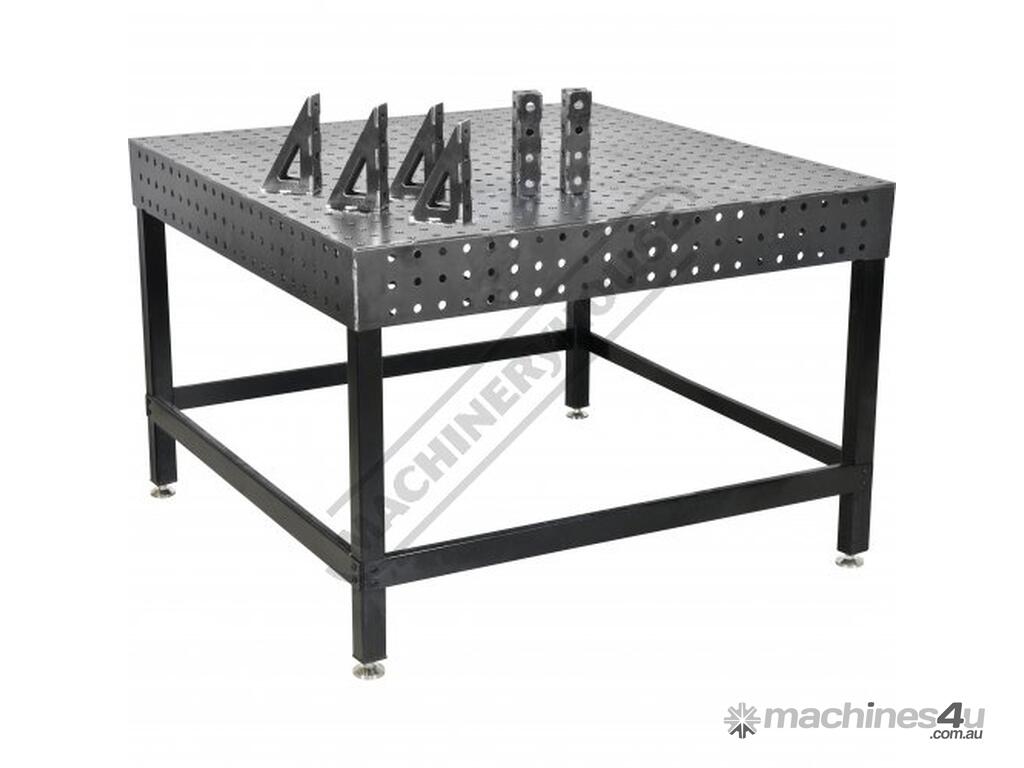

WT3D-1212 1200 x 1200mm 3D Welding Table 6mm Steel Plate Construction

HAFCO WT3D-1212 1200 x 1200mm 3D Welding Table 6mm Steel Plate Construction
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W08465

Our deluxe range of self-weld welding tables feature components that are precision laser cut from 6mm steel, it has been designed with 150mm high sides along with 150mm inter-locking solid steel ribs to ensure the table surface remains flat during & after assembly. Complete with 16mm laser cut holes with an industry standard 50 x 50mm grid pattern making it the perfect solution for both welding and clamping applications.
Our deluxe range is supplied standard with 4pcs of 150 x 150 x 50mm welding squares, 2pcs of 200 x 50 x 50mm riser blocks to assist in fixturing of your welding projects. It comes complete with powder coated 50mm square tube steel legs complete with adjustable leveling feet ensuring a stable working surface, along with this we also supply caster wheel mounting plates for your convenience, simply cut the legs to match your desired working height, weld on the caster mounting plates & bolt on optional caster wheels to make your welding table a mobile welding station.
NOTE - THIS ITEM COMES FLAT PACKED & REQUIRES ASSEMBLY & WELDING. Additional equipment including a welder is required for assembly, please review our construction guide via our downloads for a list of the required items

Features:
1200 x 1200mm tabletop size
6mm steel plate construction

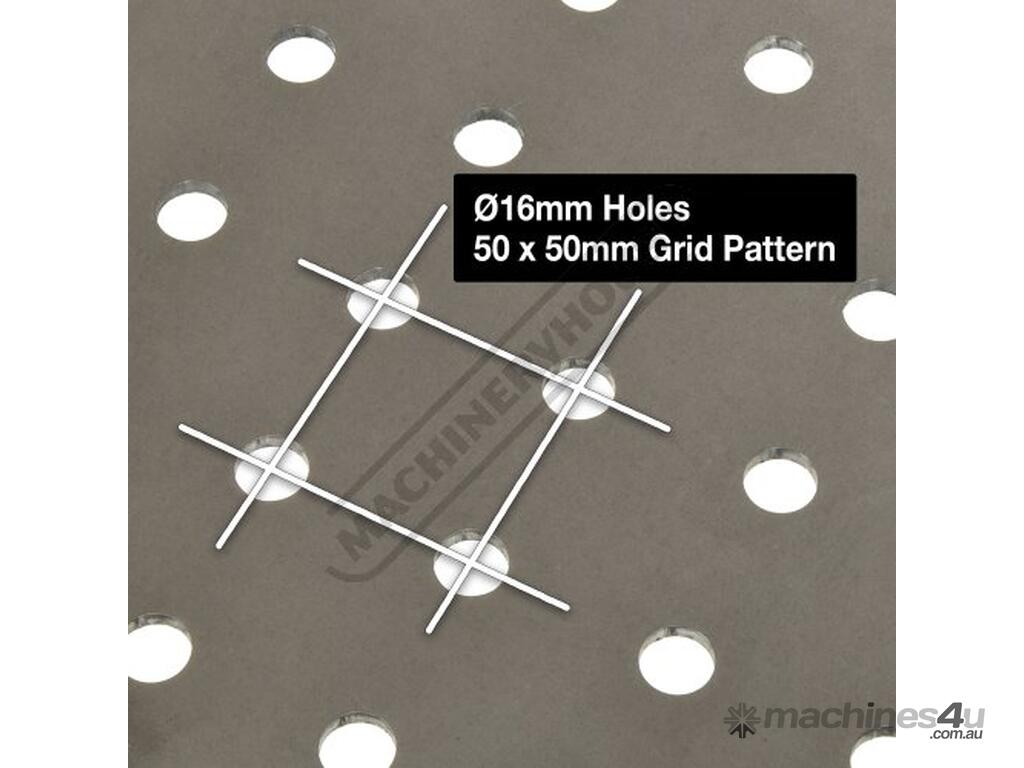

16mm laser cut fixing holes at 50mm centres
50 x 50mm hole grid pattern
Heavy 50mm square steel tube legs with adjustable feet

Includes:
- 4pcs of 150 x 150 x 50mm welding squares
- 2pcs of 200 x 50 x 50mm riser block

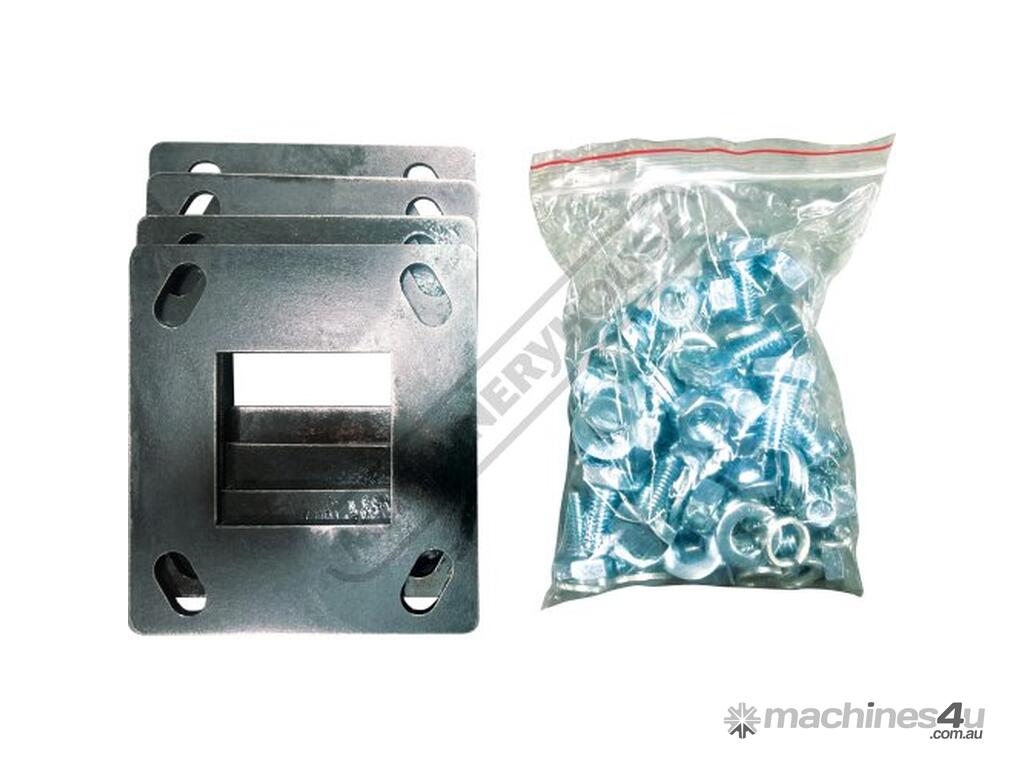

- 4pcs of caster mounting plates to easily turn your table in a mobile welding station



Specifications:
ORDER CODE: W08465
MODEL: WT3D-1212
Type: 3D
Table Hole Diameter (Ø): 16mm
Table Top Size (mm): 1200 x 1200
Table Height with Stand (mm): ~
Table Side Height (mm): 150
Top Plate Thickness (mm): 6
Grid Pattern (mm): 50 x 50
Table Slots (mm): ~
Table Load Capacity (kg): ~
Nett Weight (kg): 170
