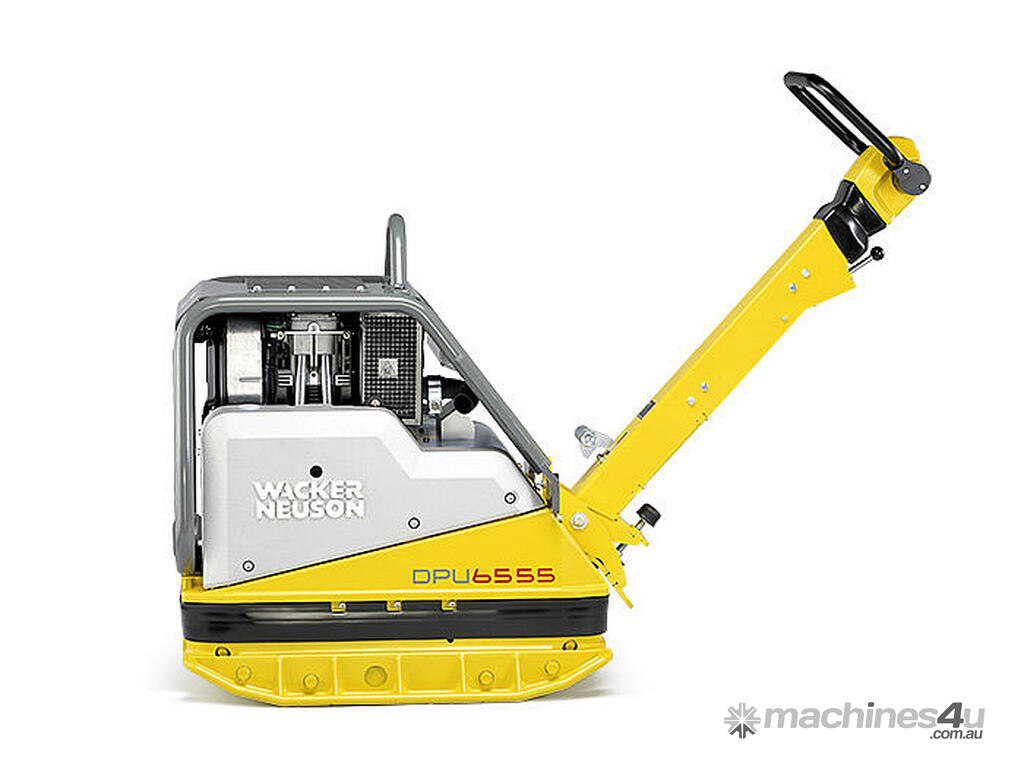

Wacker Neuson DPU6555Hec offers an extremely high level of productivity. It is a very versatile machine for all construction sites where extreme demands are placed on the performance efficiency. In addition, it offers excellent characteristics in terms of service life and operating comfort. Optimal application areas are the compaction of frost coverings and bearing layers in street, path and parking lot construction as well as backfilling buildings. Thanks to a frequency of 69 Hz, the DPU6555Hec is universally applicable and even reliably compacts heavy interlocking paving stones. The model version DPU6555Hec is equipped with Compatec, the compaction control by Wacker Neuson.
SPECIFICATIONS
Operating weight kg 495
Centrifugal force kN 65
Base plate size (W?x?L) mm 550 x 900
Base plate thickness mm 12
Height (ground clearance) mm 861
Operating width (with extension plates) mm 710
Frequency Hz 69
Hand-arm vibrations m/s² 1.3
Advance travel max. (dependent on soil and environmental influences) m/min 28
Surface capacity max. (dependent on soil and environmental influences) m²/h 1,200
Transport height mm 1,521 1
Transport length mm 1,060
Transport width mm 780
Shipping weight kg 501
Engine / Motor
Engine / Motor type Air-cooled, single-cylinder, four-cycle diesel engine
Engine / Motor manufacturer Hatz
Engine / Motor 1D81S
Displacement cm³ 667
Engine performance (rated power) (IFN DIN ISO 3046) kW 9.6
at rpm rpm 2,800
Operating performance (DIN ISO 3046) kW 6.8
at rpm rpm 3,010
Fuel consumption l/h 1.9
Tank capacity (fuel) l 6
Power transmission From the drive motor via centrifugal clutch and V-belt to the exciter.
Fuel type Diesel
