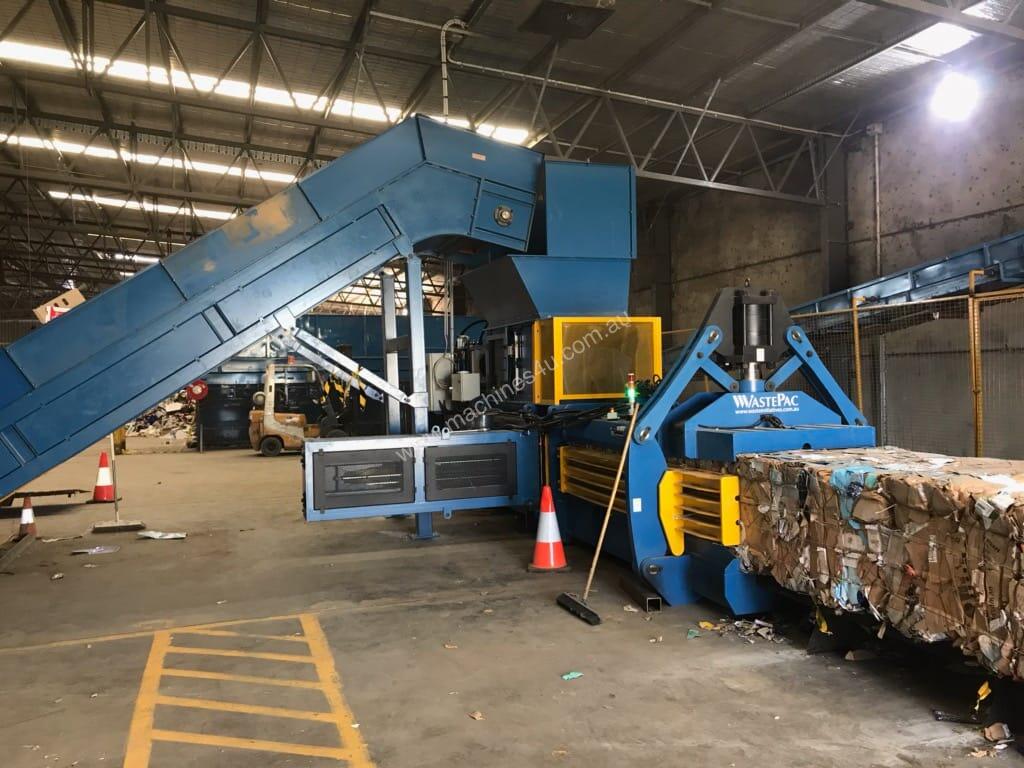

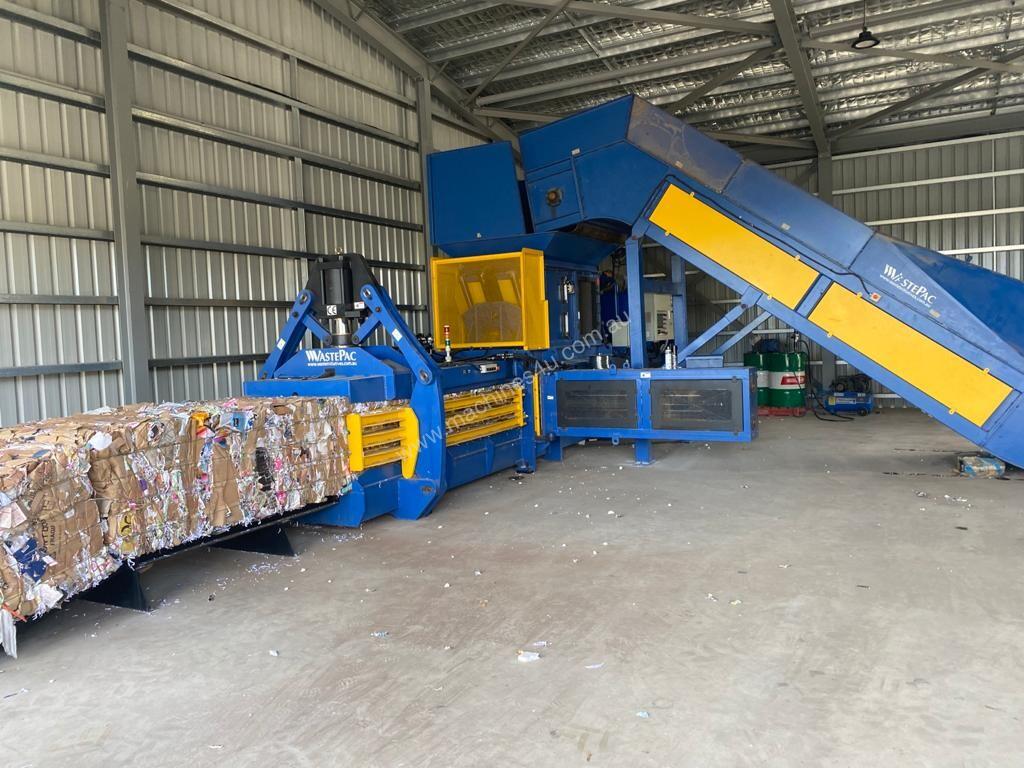

WastePac CB90 Automatic Horizontal Baler

Main Motor Power 40HP
Bale Size (Width x height x length) 1100 mm x 750 mm x 1500mm
Main RAM Cycle Time 20 sec (When the hopper is empty)
Oil Tank Capacity 1200 litres
Throughput Capacity 5-8ton/hour (OCC)
Bale Weight Up to 1000kgs (OCC)
Number of Ties 4
Wire Tying System Fully Automatic

Total Force Max 90 tons
Dimensional Specifications
Hopper Opening 1800mm x 1020mm
Bale Chamber 1100mm x 750mm x 2100mm
Machine Length 8471 mm
Machine Width 4500 mm (including wire pusher)
Machine Height 3004 mm
Machine Weight 17000 kg (excluding oil)
