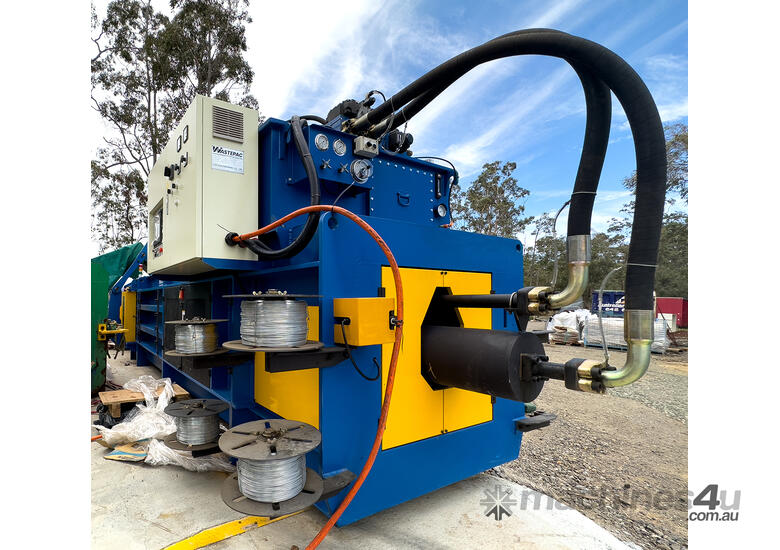

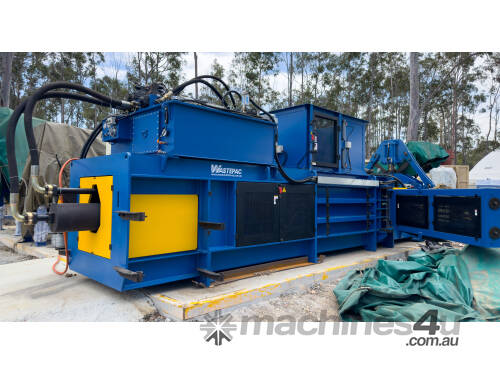

A high-throughput automatic baler with large apertures to accept bulky feed materials without “bridging” in the hopper. Typically used at recycling facilities, this channel baler is a popular seller.
Features
Hardox Bale Chamber
CAT3 Electrical Safety
Touchscreen HMI
Remotely Programmable
Wire coil dispensers
Raised bale floor for ease of cleaning
Interlocked maintenance access doors
Wire pusher can be placed on either side
Multi-Linkage jaw clamp for denser bales
Continuous feed
Optional Extras
Feed conveyor
De-blocking Ram
Newsprint/Paper Fluffers
Bin Lifter feeding
Vertical wire pusher
Vertical & Horizontal ties
Bale exit guides
Hardox upgrades
Height 3 100mm
Width 3 300mm
Length 7 450mm
Weight 15T / 16T / 17T
Feed Opening 1 600mm x 1 050mm
Throughput (indicative) 6-10 TPH / 8-12 TPH / 10-15 TPH
Bale Dimensions
Height 750mm
Width 1 100mm
Length variable
Number of ties 4
Power Supply 415 V 3-Phase
Motor 40HP / 60HP / 80HP
Pressing Force 90T (Optional 120T)
